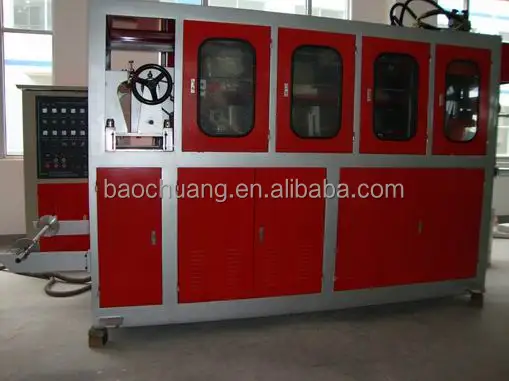

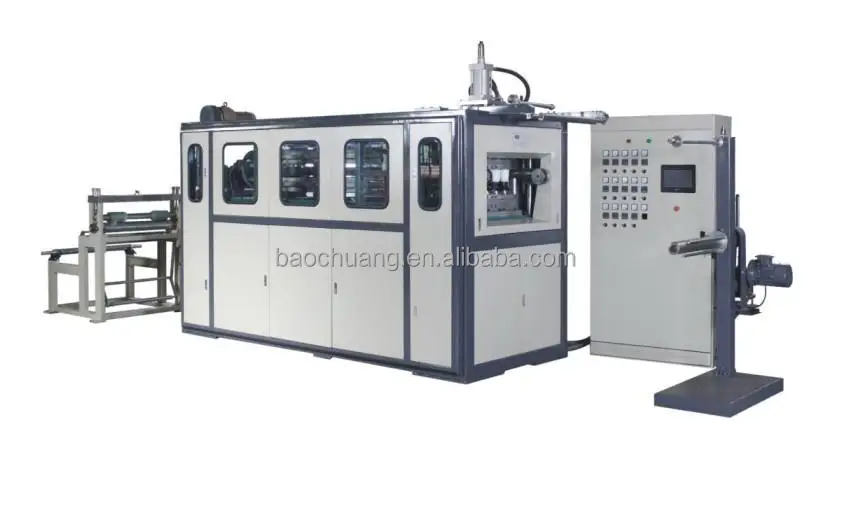

BC-75 Fully Automatic Plastic Cup-making Machine,adopts hydraulic pressure and air pressure technique.It has below features: working firmly,low noisy,intensively locking mold,highly productive etc.It is composed by main forming machine,feeding part,rolling scrap part and controller. Daily produce 600,000 pieces of plastic cups.
Manufacturing Technique
Sheet Material
PP/PE/HIPS/PET/PVC/Starch
Heating Rated Power
About 50kw
Sheet Thickness
0.3～2.0mm
Rated Power
140kw
Sheet Width
500～750mm
Main Motor Power
11kw
Max Install Area
750*580mm
Power Supply
380V/50Hz
Max Shaping Depth
170mm(can be adjust)
Forming Pressure
0.6～0.8Mpa
Max Forming Depth
130mm(can be adjust)
Water Volume Required
40～45L/min
Productivity
10～35strokes/min
Machine Weight
5.5T
Hourly Output Capacity
Products
PLA,Talcium
PP
Starch, PP,Talcium
Bowl
7200
16000
9600
Plate
7200
16000
9600
Cup
28800
48000
48000

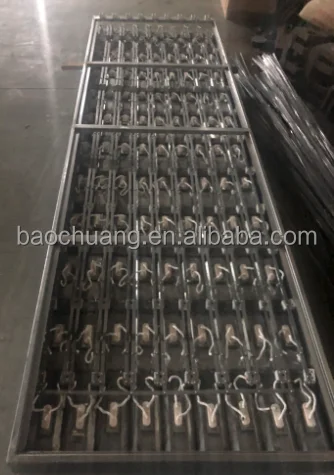

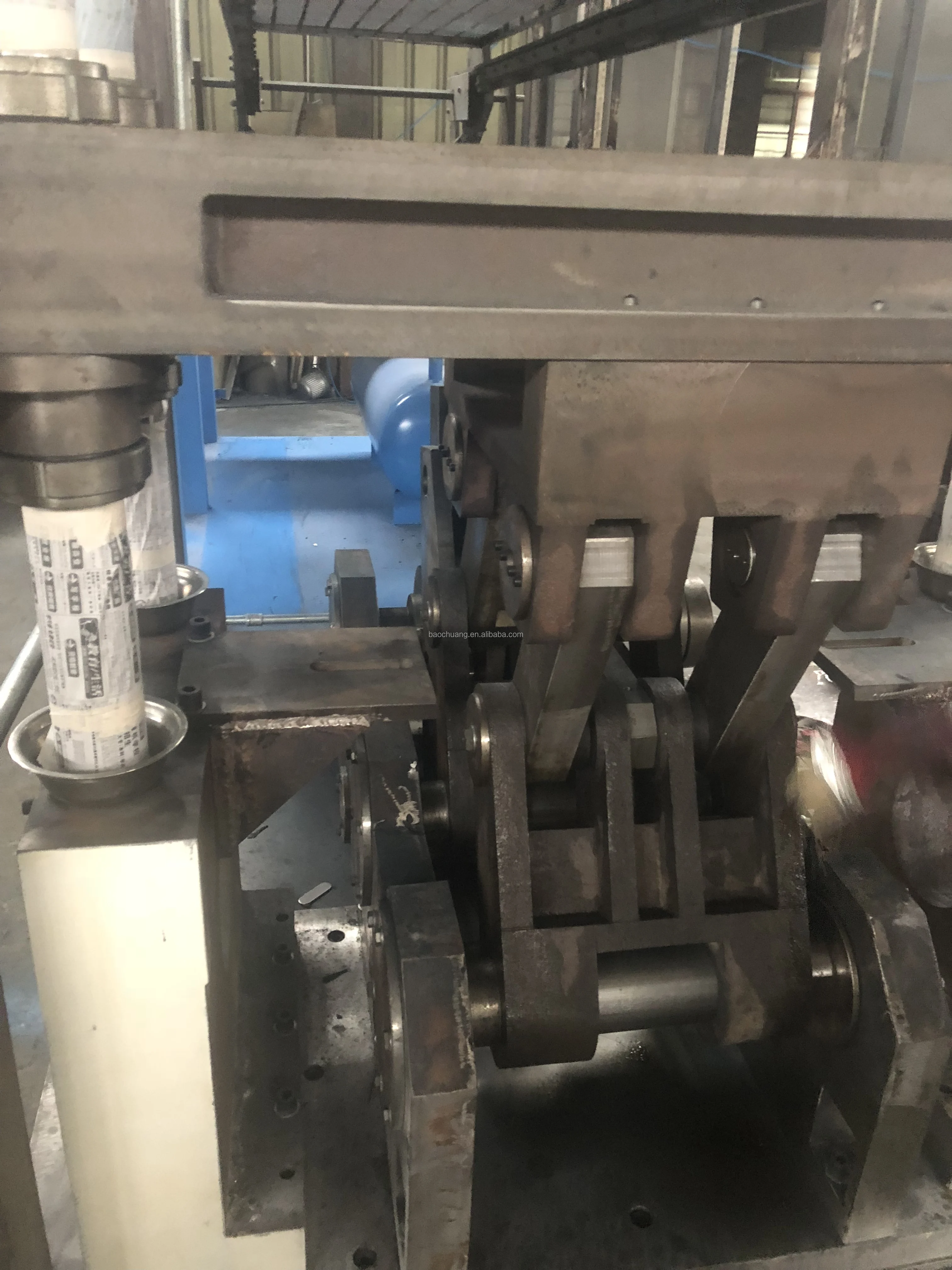

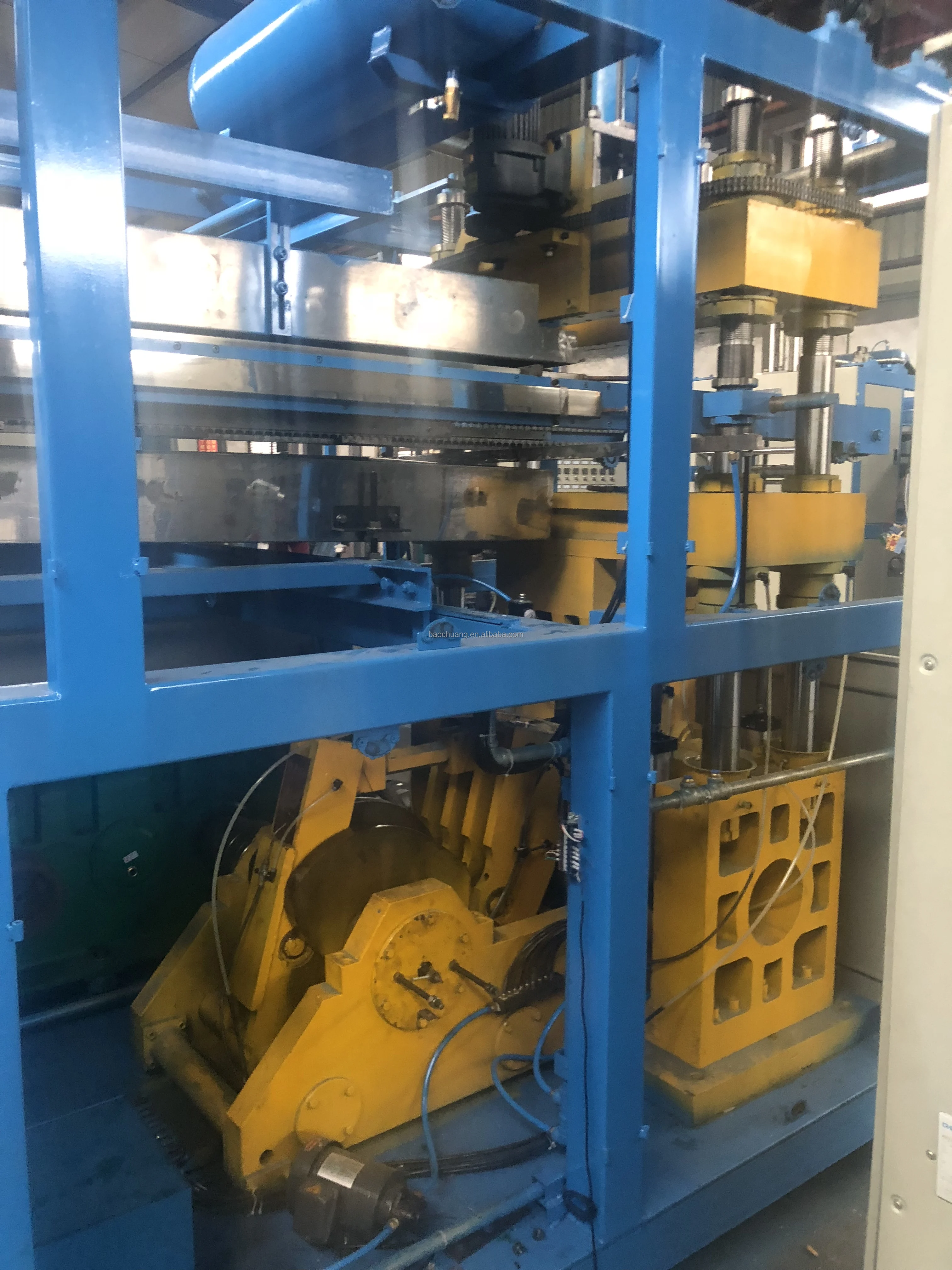

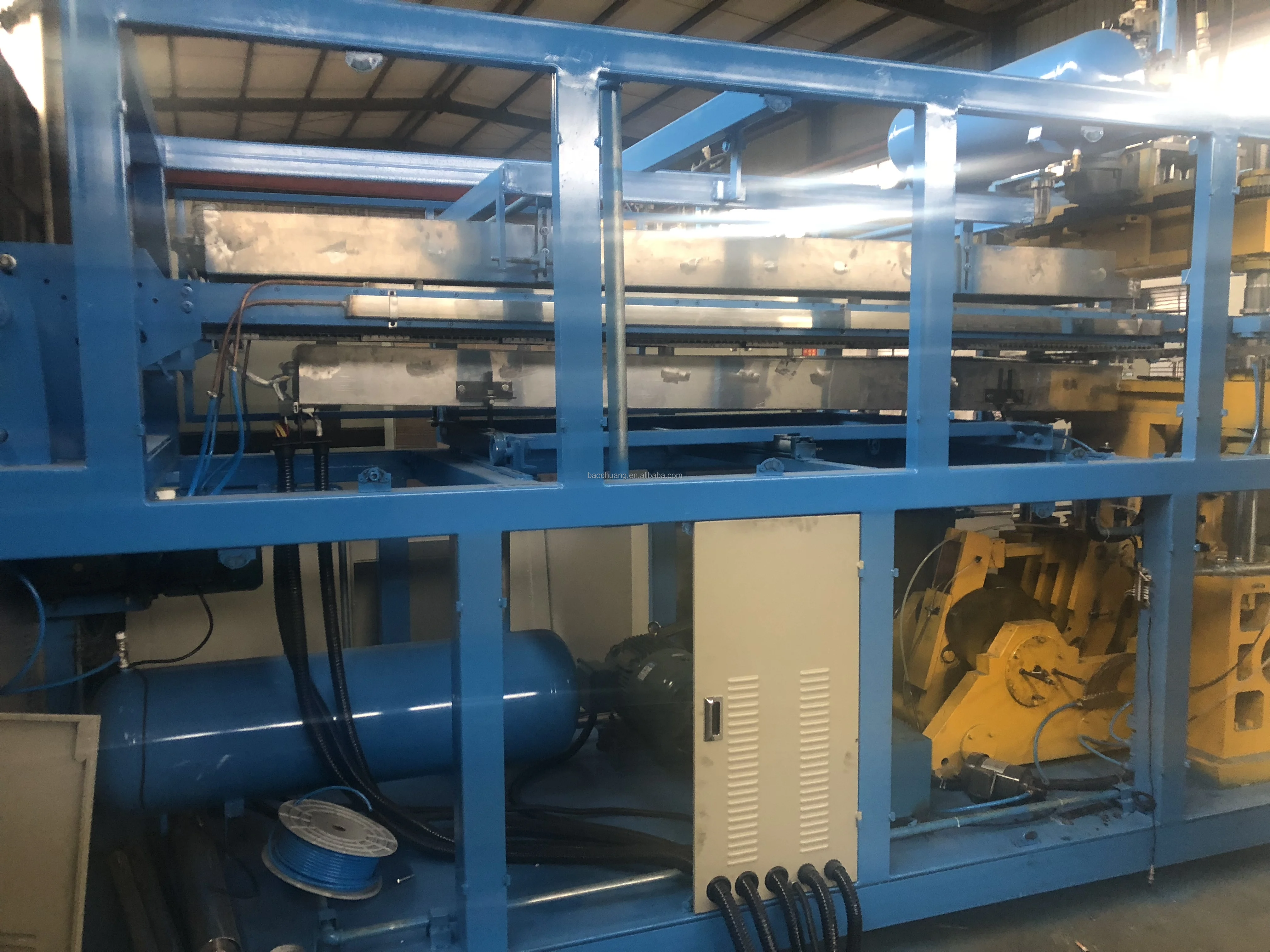

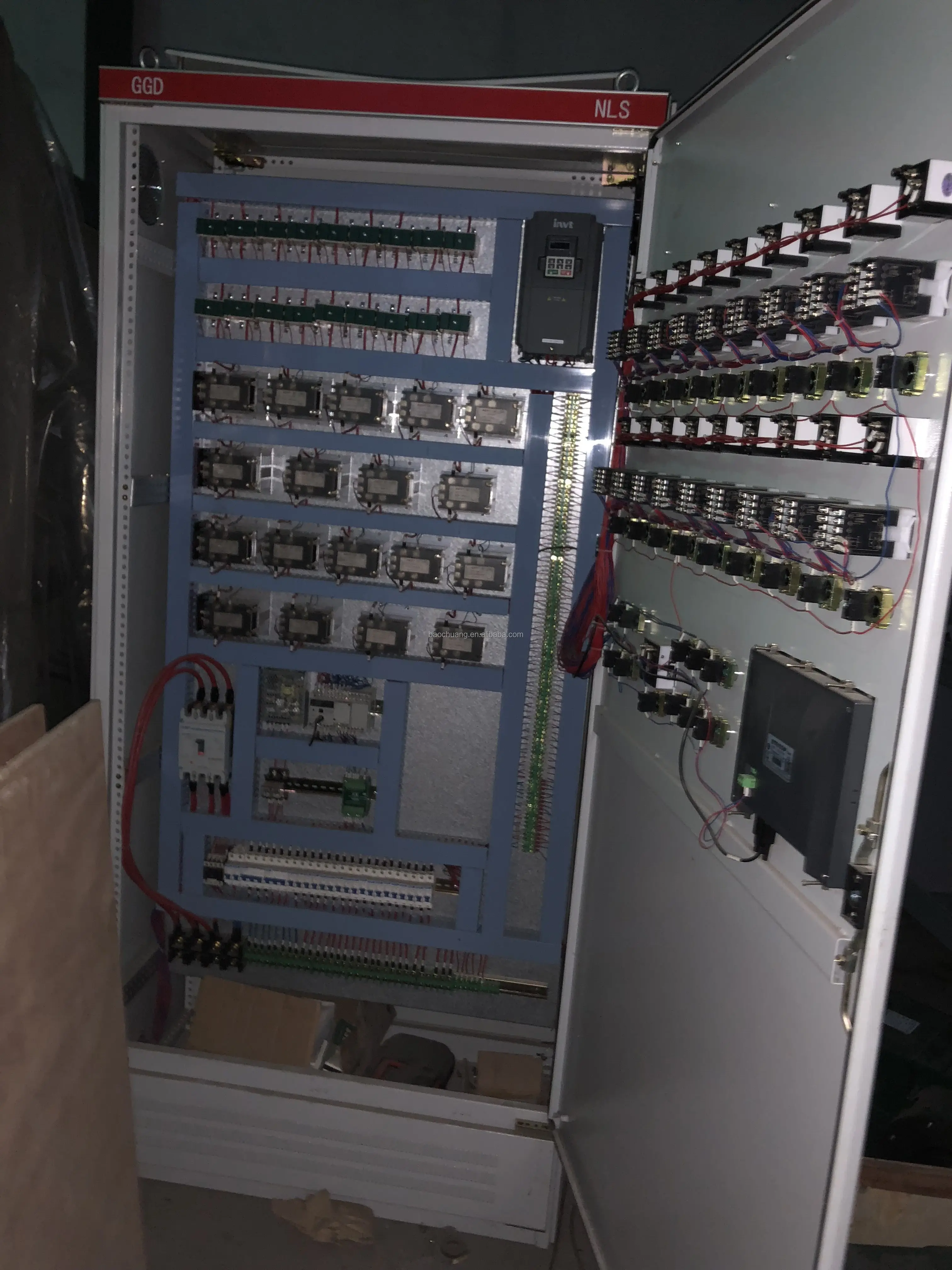

Machine Details

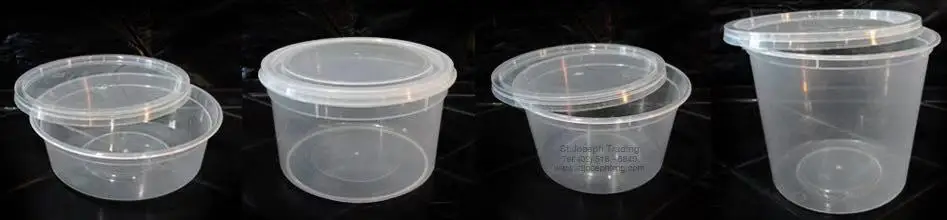

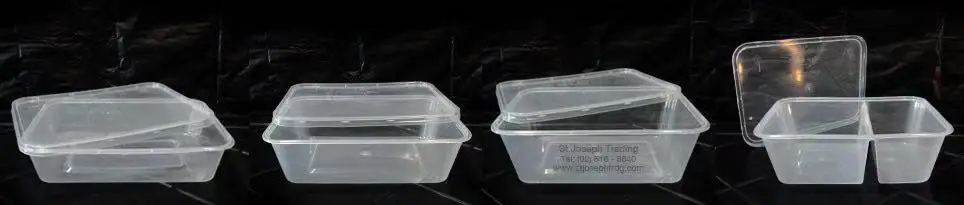

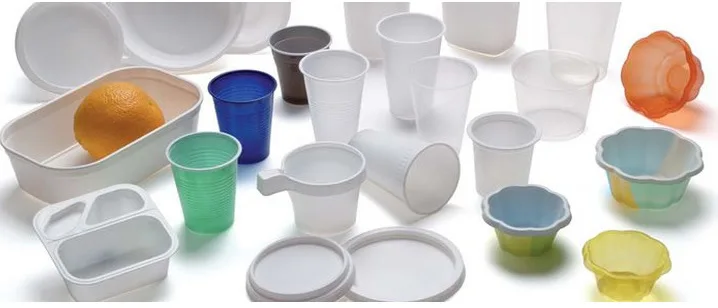

Sample Products
Certifications and Patents
Company Profile
Fujian baochuang Machinery Industrial Co., Ltd.
The company is located in Fuzhou, Fujian Province, the factory covers an area of 43 acres. Located in Minhou Jingxi Minhou Tieling Economic and Technological Development Zone one on the 9th Road on the 9th. Mainly produces one-step extrusion plastic molding machine products; computer tableware machine products; single screw, twin screw extruder; high-speed mixer and plastic packaging molding machinery, after ten years of business the company has developed accumulation design and development of new products. Has dozens of national patents, products in the domestic similar products leader. Products exported to Southeast Asia, Africa, the Americas, Europe, and more than twenty countries. Products by "sgs" identified by EU standards. Company technical personnel from Institute of Chemical Engineering, Fuzhou, Fuzhou Plastics Research Institute, Fuzhou BYK technical backbone of the Institute of Light Industry. Company Address: 21 Fuzhou Road Tongpan 307 (Provincial Revenue opposite) (Zuohai Park on the right)
