High Quality PP Foam Sheet Extruder Foam Board Production Line
- Category: >>>
- Supplier: Wuhan Zeqi Plastic Machinery Product Co. Ltd.
Share on (60722205474):
Product Overview
Description
Products Description
Product Application
Z-SJ series single screw extrusion machine is applicable in processing pipes, plates, sheets, rods, profiles and plastic pellets made from PP, PE, PS, ABS, PMMA, PVC and other thermoplastic materials. The aspect ratio and compression ratio of screw, and the structure of machine barrel varies according to different materials and product specifications to meet diversified processing requirements. To meet the highest processing standards, operators can choose the barrels, screws, and driving system that best suit their applications.
Adopting frequency control and speed reducer, the extrusion machinery features low noise, stable running, large bearing capacity and long service life. Upon clients' request, computer control or conventional control system is available.
Adopting frequency control and speed reducer, the extrusion machinery features low noise, stable running, large bearing capacity and long service life. Upon clients' request, computer control or conventional control system is available.

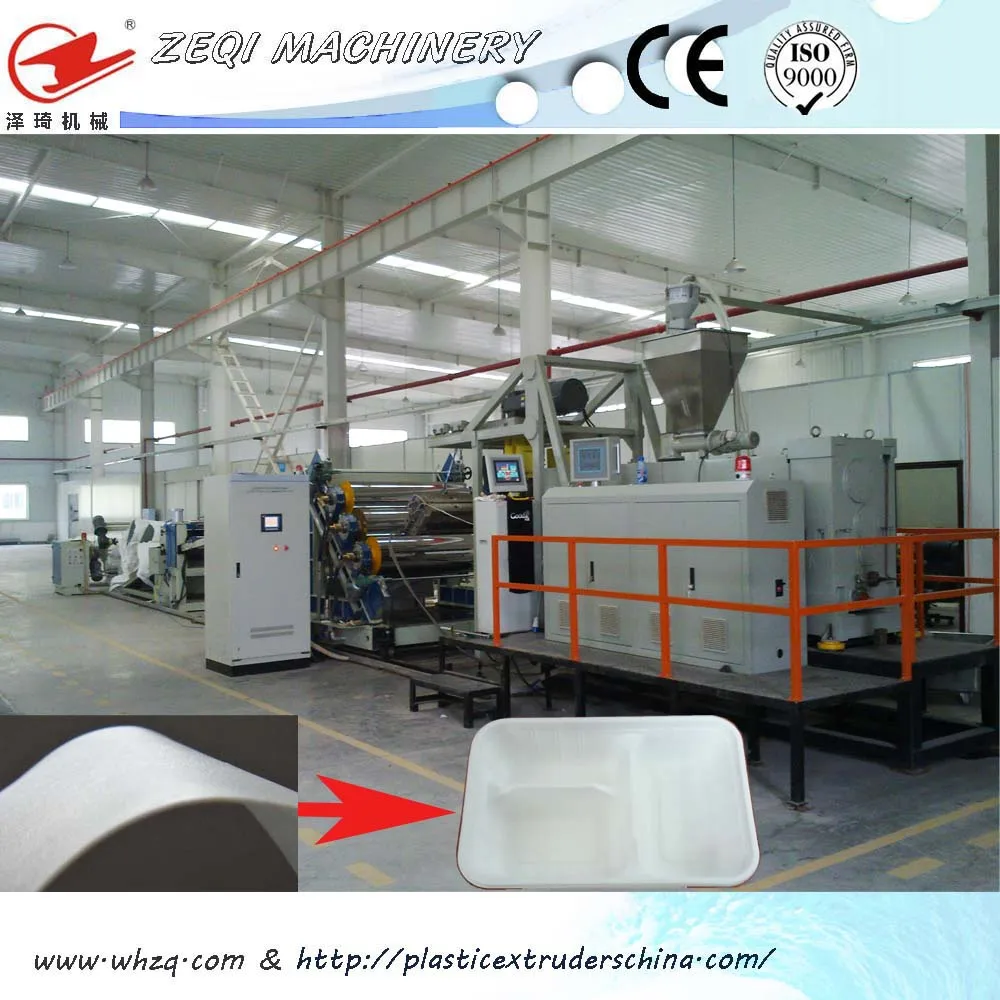

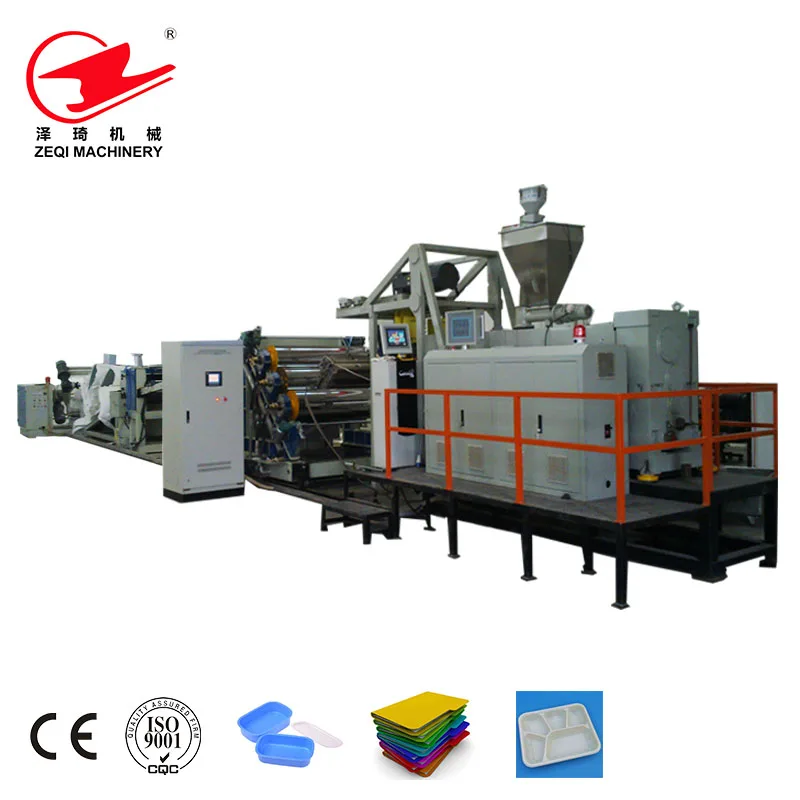

Production line consist of : main extruders ZQSJ-90 + molds + vacuum equipment + tractor + cutting machine + upender

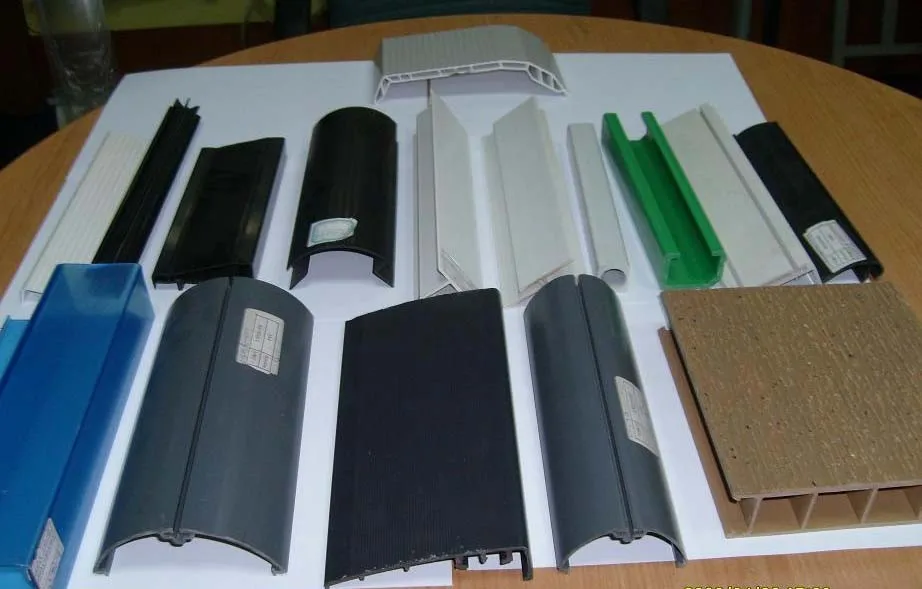

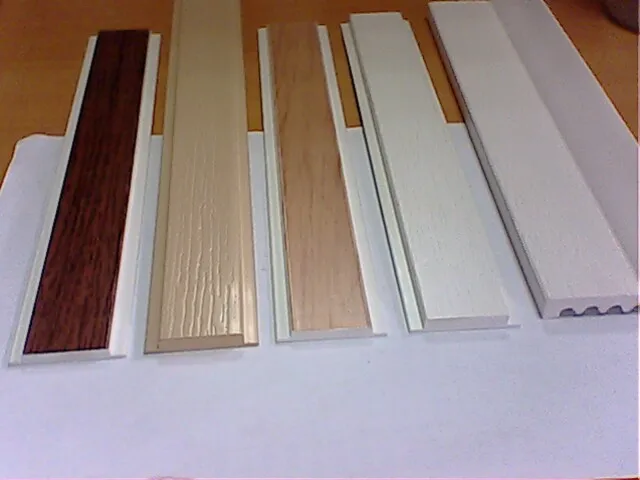

By employing molds with different specifications, we can use this line to produce diversified specifications, sizes, shapes and thickness of plastic decorative profiles.
Extruder Technical Paramenters:
Model | ZQ-SJ45 | ZQ-SJ65 | ZQ-SJ75 | ZQ-SJ90 | ZQ-SJ120 | ZQ-SJ150 |
Aspect ratio (L/D) | 25-33/1 | 25-33/1 | 25-33/1 | 25-33/1 | 25-33/1 | 25-33/1 |
Extrusion capacity(kg/h) | 50-150 | 60-250 | 200-350 | 180-550 | 320-800 | 400-1200 |
Screw Speed (r/min) | 20-150 | 20-150 | 20-150 | 20-110 | 20-90 | 20-75 |
Motor power (kw) | 7.5-22 | 22-90 | 55-110 | 37-185 | 75-280 | 90-355 |
Central height (mm) | 1000 | 1000 | 1000 | 1000-1100 | 1000-1250 | 1000-1300 |
Auxiliary Technical paramenters:
Equipment mold | MSYF150 | MSYF180 | MSYF240 | MSYF300 |
Max section width(mm) | 150 | 180 | 240 | 300 |
Total power of auxiliaries | 15 | 18.7 | 27.5 | 33.1 |
Cooling water capacity | 5 | 5 | 7 | 7 |
Compressed air pressure(Mpa) | 0.6 | 0.6 | 0.6 | 0.6 |
