Product Overview

Description

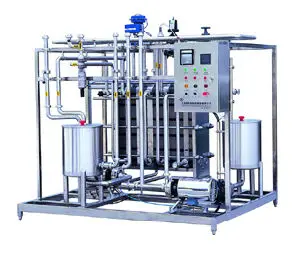

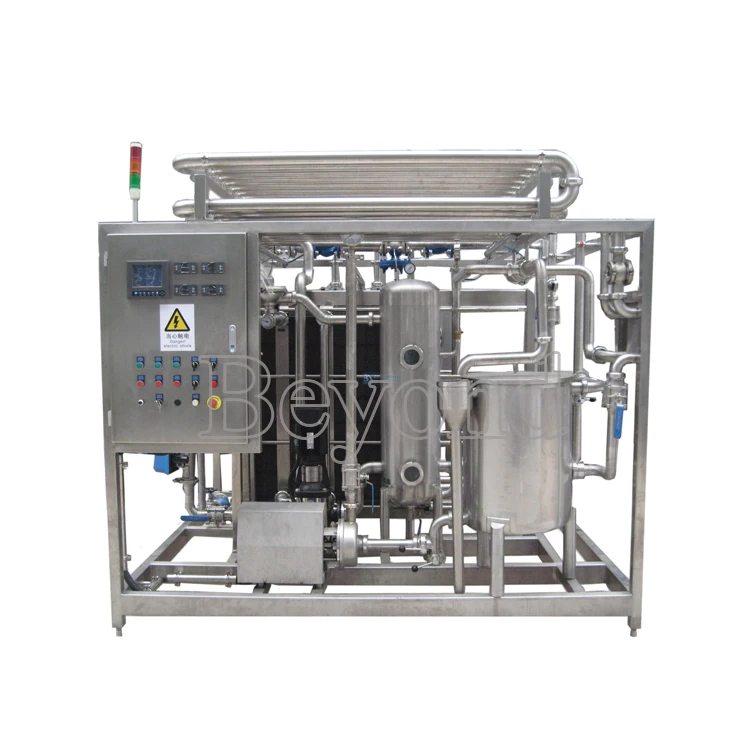

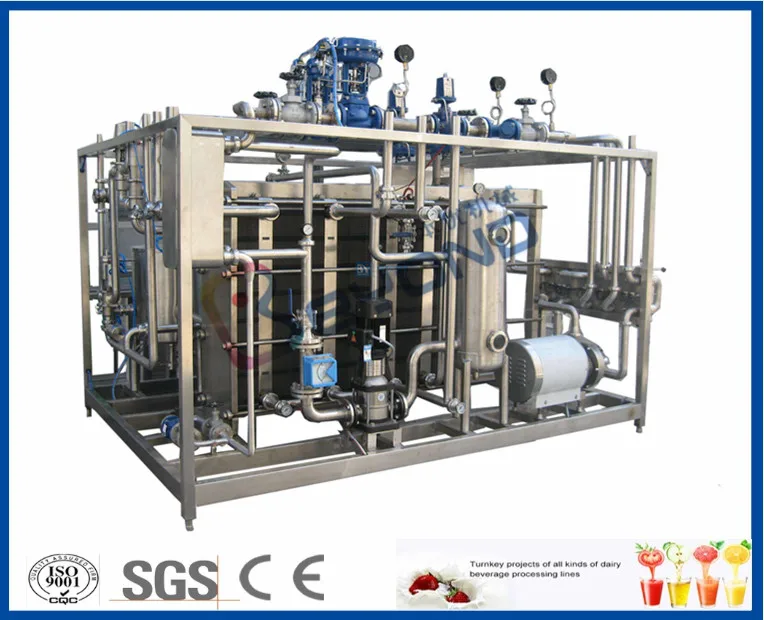

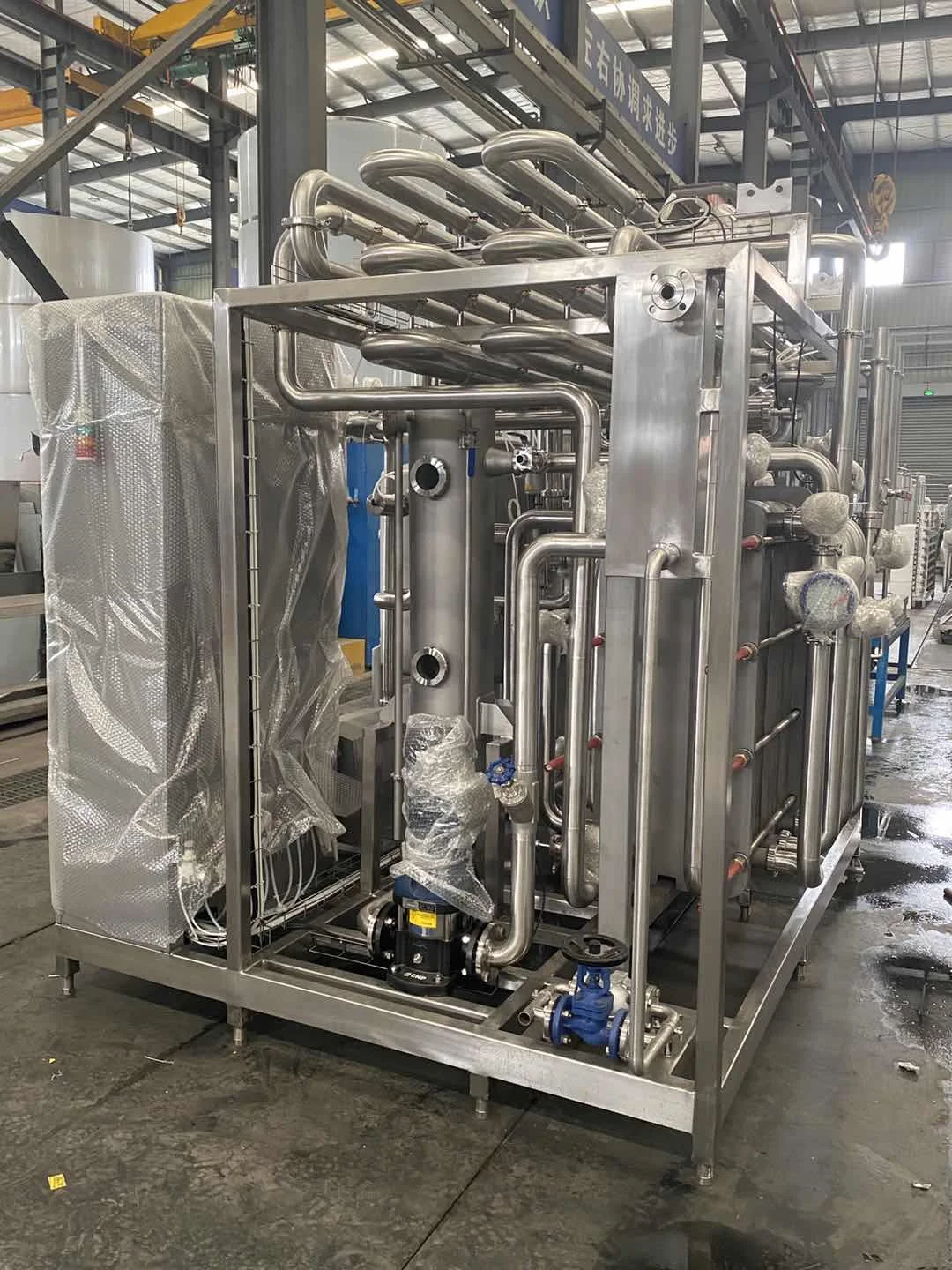

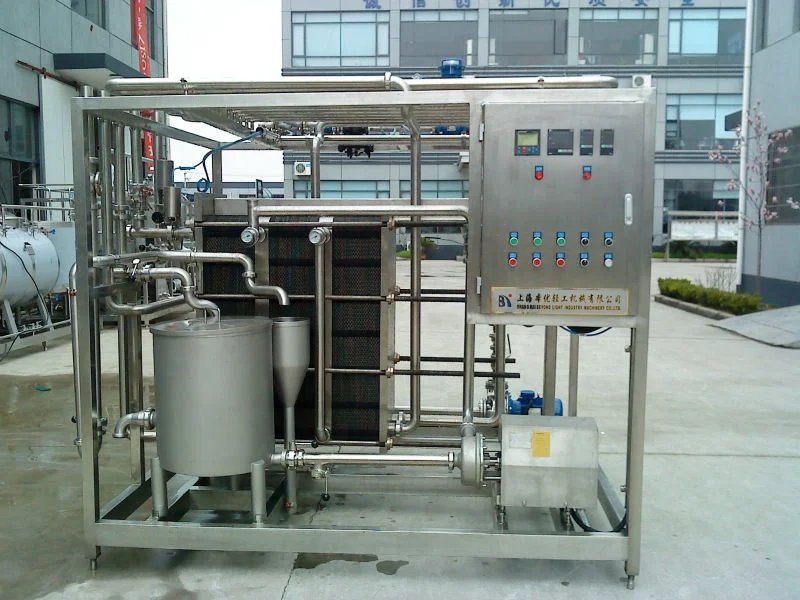

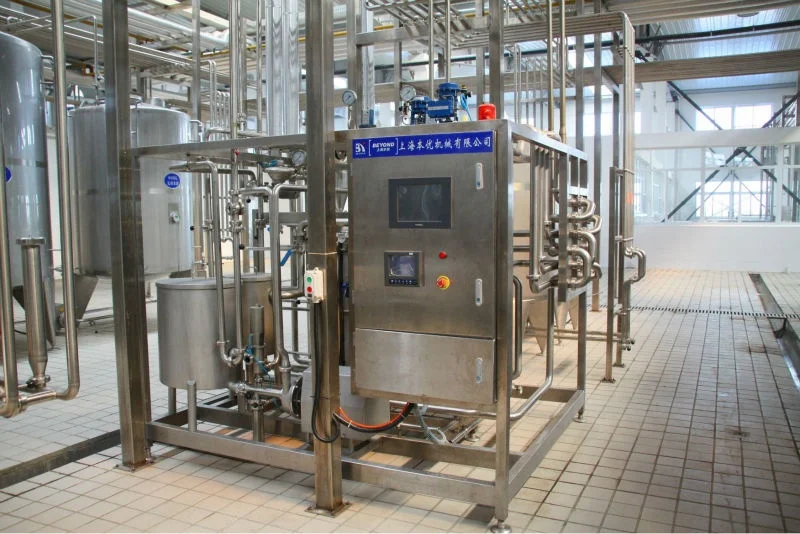

Description of Plate type yoghurt pasteurizer
Field of application: In juice and other liquid food industries. The plate heat exchanger unit is designed for pasteurizing and
cooling of juice. The pasteurization temperature is typically 72 – 120C for 12-30s seconds holding, or accord to customer's
requirement.
Standard design: The unit is pre-assembled and tested before it leaves the factory. The installation on site only require
connection to external service such as product inlet and outlet, water, steam, air and electricity.
Model
Capacity
Heat exchange area(m²)
Power(kw)
Steam consumption
(kg/h)
dimension(L×W×H)
mm
Weight
(kg)
BR16-BS-0.5
0.5t/h
5
5.2
52
1200×1200×1500
790
BR16-BS-1
1 t/h
8
5.2
60
1500×1500×1800
880
BR16-BS-2
2 t/h
13
6
104
1800×2000×1800
980
BR26-BS-3
3 t/h
20
6
156
2000×2000×2200
1080
BR26-BS-4-5
4-5 t/h
30-45
8
260
2250×2000×2200
1250
BR26-BS-6-8
6-8 t/h
35-50
8
400
2250×2000×2200
1250
BR26-BS-10
10 t/h
60
11
520
2800×2000×2200
1650
BR35-BS-15
15 t/h
75
11
780
3000×2200×2200
2150
BR35-BS-20
20 t/h
80
11
945
3300×2200×2200
2350
Our Services
Stainless Steel Tank Series
Mainly used in liquid food business such as milk,dairy,fruit juice,beverage and drinks etc.
Various kinds of SUS tanks meet different functions like Storage,Mixing,preparing and blending,heating and sterilizing,fermentation, aging,cooling,emulsification and dissolving etc.Tank capacity and structures can be customized as actual requirements.
Main service business
Supply scopes:Dairy process;fruit and vegetable process;beverage and drinks,meat and bone soup,pharmacy etc.
Dairy Turnkey Project
We could supply milk turnkey projects for various kinds of  dairy products such as pasteurized milk,UHT milk,Yogurt, Cheese, Butter, evaporated milk and sweetened milk,Yogurt drinks,flavored milk.
Supplied capacity 1000LPH-400TPD.Raw material starting from fresh raw milk or milk powder.
Fresh fruit processing line
Various kinds of raw fresh processing machinery can be supplied by us on the basis of turnkey projects.Fruit pulper,concentrate juice,NFC juice,juice beverage all can be available.The packages types also can be customized as the clients' requirements.
Supplied mini industrial capacity 2 tons per hour above.
Sterilizing and pasteurization equipment for liquid food.
plate pasteurizer and turbular pasteurizer ;tube-in-tube sterilizer in different external shapes with semi-auto and full-auto control type.Our pasteurizer is made to be 500 Liters per hour the smallest capacity. As for sterilizing temperature,we have 100℃,120℃,141℃ these three kinds of sterilizer can meet different application areas.
It is used in liquid food sterilizing processing such as Fresh Milk/Beverage/Fruit Juice/Tea beverage/drinks/ Electrolyte
drinks/Honery,etc.
