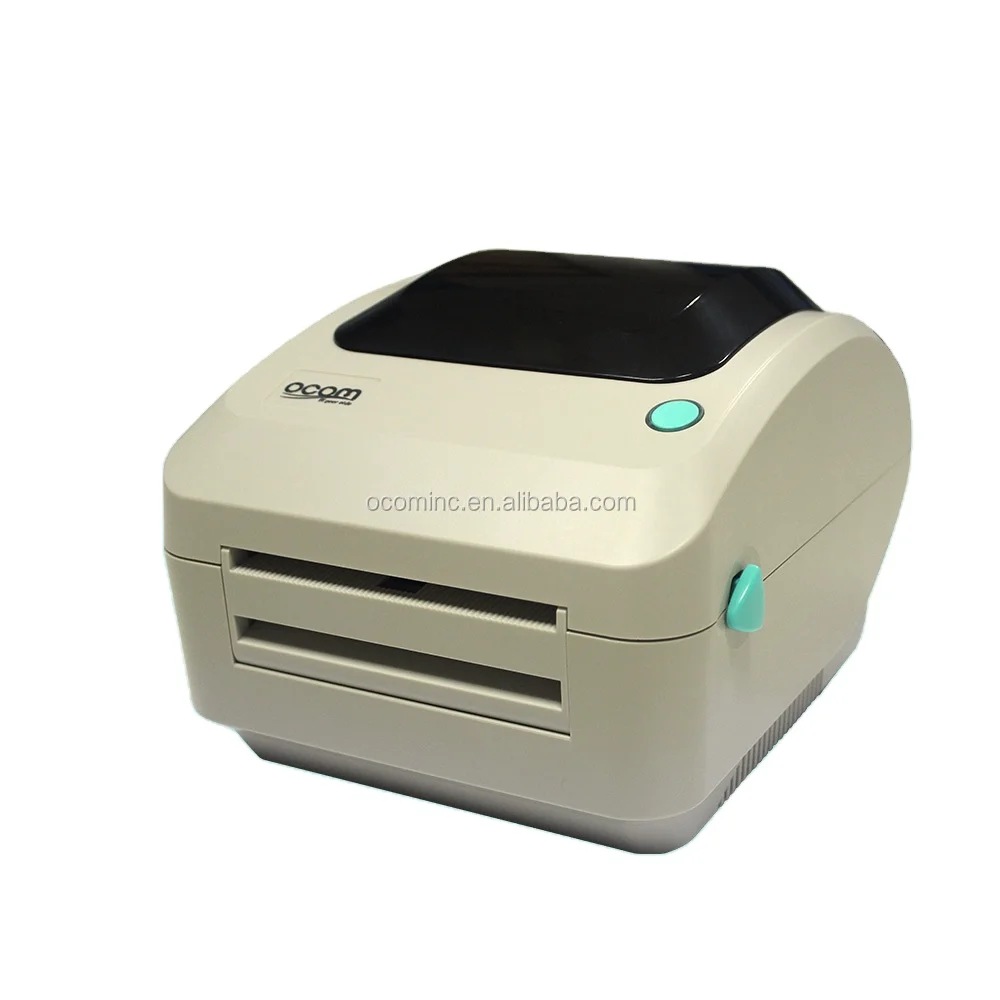

OCBP 007 U 4inch Direct Thermal Barcode Label Printer With USB Interface
- Category: >>>
- Supplier: Shenzhen OCOM Technologies Limited
Share on (60722213357):
Product Overview
Description
OCBP-007-U 4inch Direct Thermal Barcode Label Printer With USB Interface
Label Printer,Thermal Label Printer,Thermal Barcode Printer
Product Description
OCBP-007-U 4inch Direct Thermal Barcode Label Printer With USB Interface
Features:
- High quality double-walled clamshell design
- 32-bit RISC CPU
- 8MB SDRAM,4MB Flash
- Head-up sensor
- 203 dpi resolution
- 102mm(4'''')/s high printing speed
- 108mm printing width
- 20-112mm (0.78”-4.4”)adjustable media width
OCBP-007-U 4inch Direct Thermal Barcode Label Printer With USB Interface
Specifications:
Parameter | |
Resolution | 8 dots/mm(203DPI) |
Printing method | Direct Thermal |
Max.print speed | 102 mm (4”)/S |
Max.print width | 108 mm (4.25”) |
Max.print length | 2286 mm (90”) |
Media type | Continuous, gap, black mark, fan-fold and punched hole |
Media width | 20-112mm (0.78”-4.4”) |
Media thickness | 0.06~0.16mm((2.36~6.3mil) |
Label length | 10~2,286mm(0.4''''~90'''') |
Label roll capacity | 127 mm (5“) OD (outside wound) |
Enclosure | Double-walled plastic |
Physical dimension | 240 mm(W)× 211 mm(H)× 166 mm (D) |
Weight | 2.15kg |
Processor | 32-bit RISC CPU |
Memory | 4MB Flash Memory, 8MB SDRAM, SD card reader for Flash memory expansion, up to 4 GB |
Interface | USB 2.0 |
Internal fonts | 8 alpha-numeric bitmap fonts, Windows fonts are downloadable from software. |
Barcode | 1D bar code:Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleaved 2 of 5, EAN-8,EAN-13,EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST |
2D bar code:PDF-417, Maxicode, DataMatrix, QR code | |
Font and barcode rotation | 0°,90°,180°,270° |
Environment condition | Operation: 5 ~ 40°C, 25 ~ 85% non-condensing, Storage: -40 ~ 60°C, 10 ~ 90% non-condensing |
Product catalogue
Mini Blue tooth printer | Direct thermal printer Thermal transfer printer | Mini dot matrix printer Small dot matrix pritner | 2D barcode scanner Fixed barcode scanner Ring barcode scanner | Andorid industrial PDA Win CE data terminal Stock taking Terminal |
All-in-one POS Machine | 12"/15"/17" Touch monitor 12"/15"/17" LCD monitor 12"/15"/17" LED monitor
| VFD customer display LED pole display LCD customer display | Programmable pos keyboard Pinpad/Numeric keypad | Magnetic card reader Fingerprint reader |
Accessories | Others | |||
Bill counter machine Coin counter sorter | Big Cash drawer small cash drawer Fliptop cash drawer USB trigger for cash drawer |
| Theraml paper roll, Sticker label | Tablet PC Pallet Racking Suppermarket Shelve |
FAQ
1. MOQ policy
No MOQ limitation for the standard products, but the unit price is different, bigger quantity better price.
For customized production, you can discuss the MOQ with our sales representative directly.
2. Sample Availability & Policy
After customers confirmed the specification, we are very glad to provide samples for testing and qualification.
All samples should be paid before shippment, the samples price is a higher than mass order. When the mass order placed, we can return you the samples cost, or send you more piece products with the shippments.
You can buy the samples from us directly using t/t, western uion, or paypal. And you can also buy it on our online store at aliexpress://www.aliexpress.com/store/403448?tracelog=minisite_CI.
We was qualified by global fortune 500 company, and we have the top 1 level trade assurance which 100% protect your money and lead time.
Our warranty of the products is about 12+1 months from the shipment normally, some designated models can have as long as 24 months warranty;
Any product within 30 days of delivery failure occurs shall be deemed invalid delivery (DOA). DOA products will give priority to the replacement, and shipped by courier.
For mass order, we would like to supply some spare parts with shipment for local quickly repair. And after that, you can returned failure parts for rework and analysis.
4. Payment Terms
For mass order, you can pay us by using T/T, LC, Western Union, Escrow or others. About samples order, T/T, Western Union, Escrow,Paypal are acceptable.Escrow Service is powered by Alipay.com. Currently,you can pay using Moneybookers, Visa, MasterCard and bank transfer. You can also pay with select debit cards including Maestro, Solo, Carte Bleue, PostePay, CartaSi, 4B and Euro6000.
Company Information
OCOM Technologies Ltd. is the main supplier and manufacturer of POS and Auto-ID related products with TUV verified. OCOM is serving the fortune 500 company, and have the top 1% level trade asssurance
guarrantee by alibaba.
OCOM's products portfolio covers Thermal Printer, Barcode Printer, Dot Matrix Printer, Barcode Scanner, POS Terminal, Magnetic Card Reader, Date terminal, and other POS Peripherals products(Cash Drawer,Customer Display,POS Monitor, POS keyboard,Money counter,Electronical Scale,Thermal Paper ), which are widely used for retailing, restaurant, bank, lottery, transportation, logistic, and other applications. We have CE, FCC and other required certifications.
OCOM's mission is to be the compelling choice for our partners, and our three basic belief are "Integrity based, Strive for excellence, Win-win cooperation". We would like establish stable and reliable partnerships with customers all over the world. OEM/ODM is welcome.
