LM4NCL Microscope Objective Lens Kowa Lens
- Category: >>>
- Supplier: Beijing Pdv Instrument Co. Ltd.
Share on (60722221193):
Product Overview
Description
The Kowa Macro Zoom lens series offers four models in 2/3, 1/2, and 1/3 inch formats. This series of lenses is extremely useful in production processes such as character recognition, pattern matching, measurement, and inspection.
Brand | Kowa |
| model | LM4NCL |
Model |
|
| LM4NCL |
Focal length(mm) |
| 3.5 | |
Image size(mm) |
| 1/2"(Φ8) | |
Iris range(F-stop) |
| F1.4-F16 | |
Focusing range(m) |
| 0.2-∞ | |
Control | Iris |
| Manual |
| Focus |
| Manual |
Shooting range at M.O.D. | 396(H)×247(V) | ||
Angle ofview(degree) | 2/3 inch |
| - |
1/2 inch |
| 103.6×76.6 | |
| |||
1/3 inch |
| 77×57.7 | |
Resolution(Center, Corner) | 100lp/mm,60lp/mm | ||
Distortion(TV) |
| −28.0% | |
Back focus in air(mm) |
| 8.89 | |
Mount |
|
| C-mount |
Filter thread(mm) |
| - | |

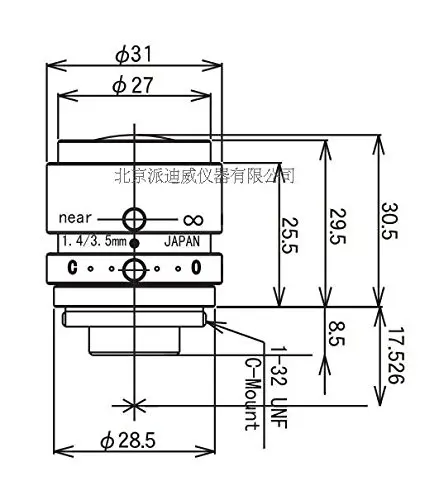

Size(mm) |
| Φ31×30.5 | |
Weight(g) |
| 73 | |
Temperature range | −10℃-+45℃ | ||
Specifications are subject to change without notice.
