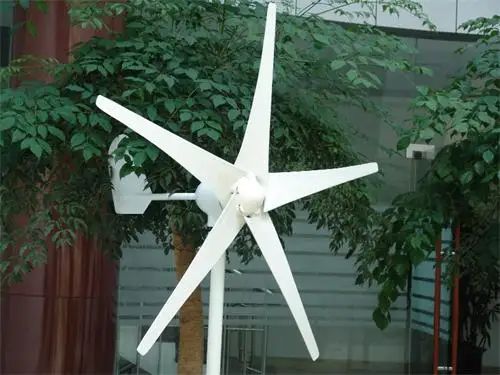

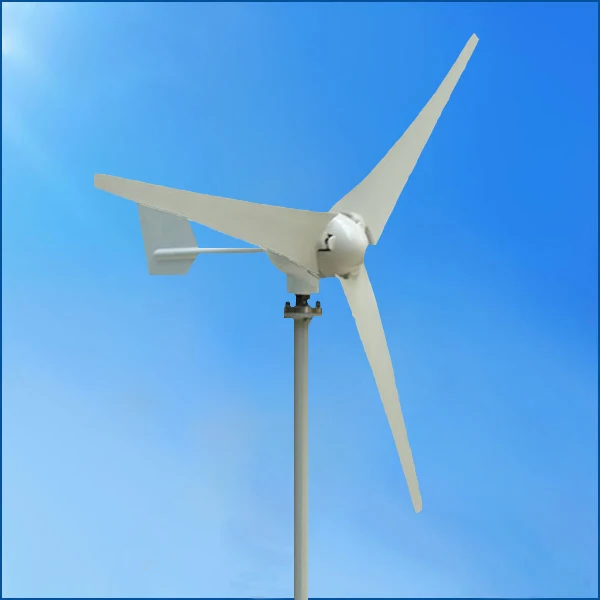

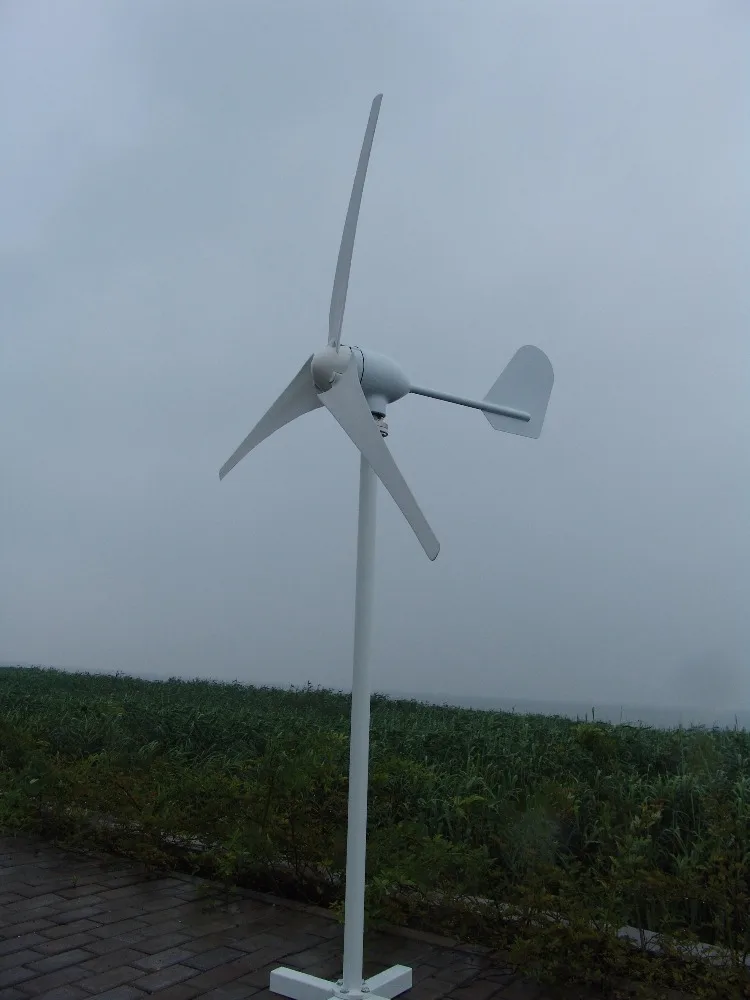

SMALL 400W MINI EOLIC WIND GENERATOR TURBINE

Product Overview

Description

When you make the order, pls kindly tell us your choice :



voltage: 12v or 24v

Blades: 3 blades or 5 blades



^{Package information:}



1 wind generator host and 1 controller

3/5 blades

Installation tools and user manual

1 Wind hood and1 Flange and installation screws

Screws and nuts



400w 12v 24v windpower generator

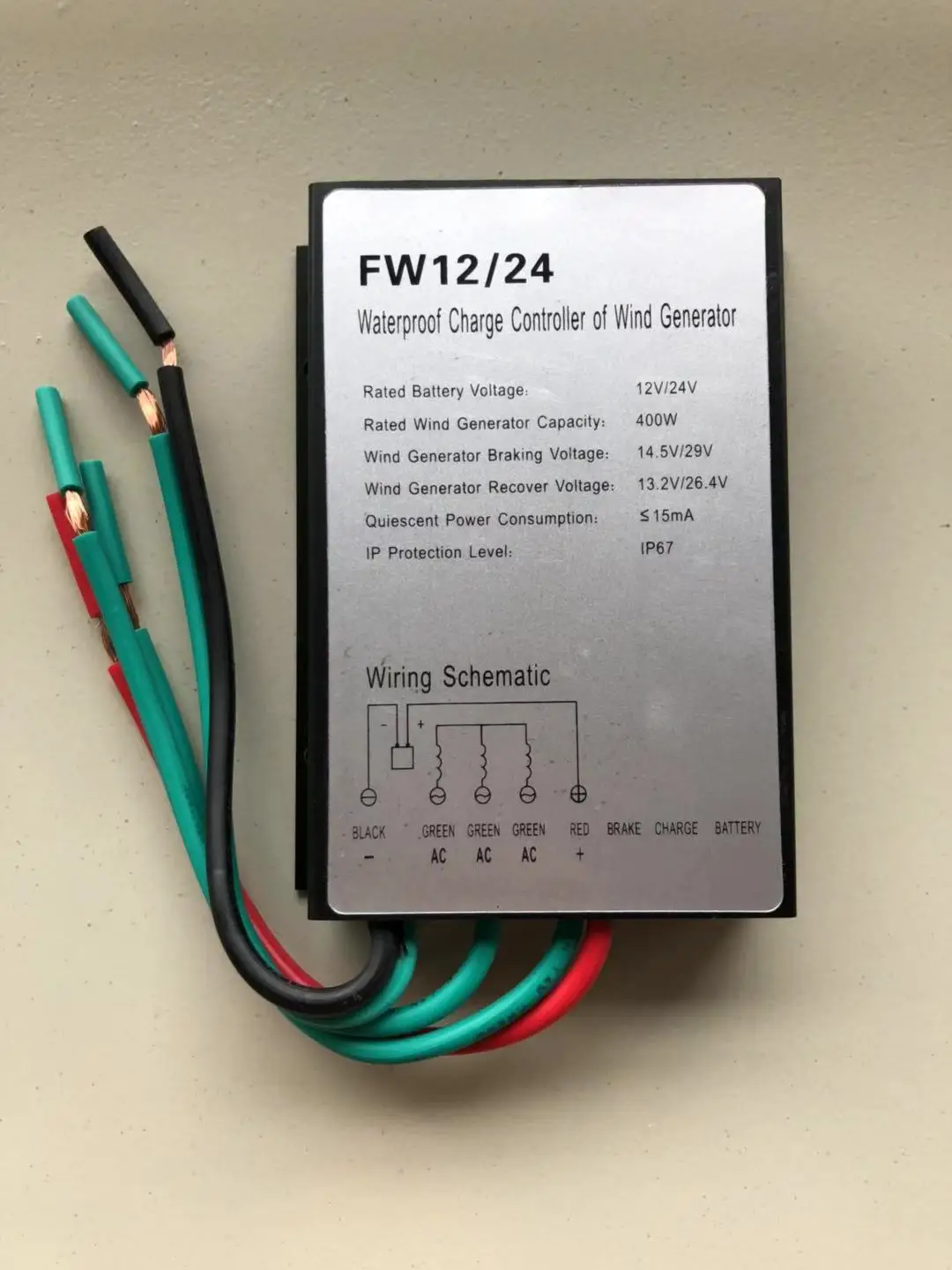

12v/24v automatic adjustment controller





400w 12v 24v windpower generator



Model	NE-400M
Rated power	400W
Maximum power	410W
Rated voltage	12/24V
Start-up wind speed	2.0m/s
Rated wind speed	11.5m/s
Survival wind speed	50m/s

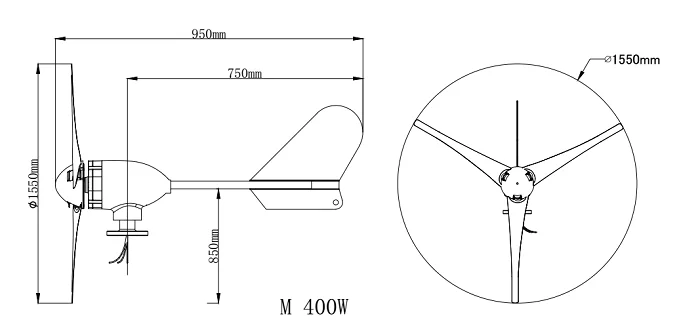

Wheel diameter	1.55m
Guy cable tower height	6m (suggested)
Noise at max power	less than 50db
Brake	by controller
Electricity produced per day	about 40% efficient 4 hours
Number of blades	3/5
Blades material	Nylon fiber
Generator type	3 phase permanent magnet AC generator
Magnet material	NdFeB
Generator case	Casting aluminum alloy
Speed regulation	Automatically adjust windward direction
Certificates	CE, ISO14001, ISO 9001, TUV
Gurantee	5 y
Gross weight	14kg
Packaging	98*40*21.5cm
Unique features	Quietest Turbine in the Industry Maintenance free Over 10,000 Naier wind turbines installed world wide every year 9 years manufacturing experience Easy installation 5 years warranty Average lifetime over 20 years



400w 12v 24v windpower generator





400w 12v 24v windpower generator



400w 12v 24v windpower generator

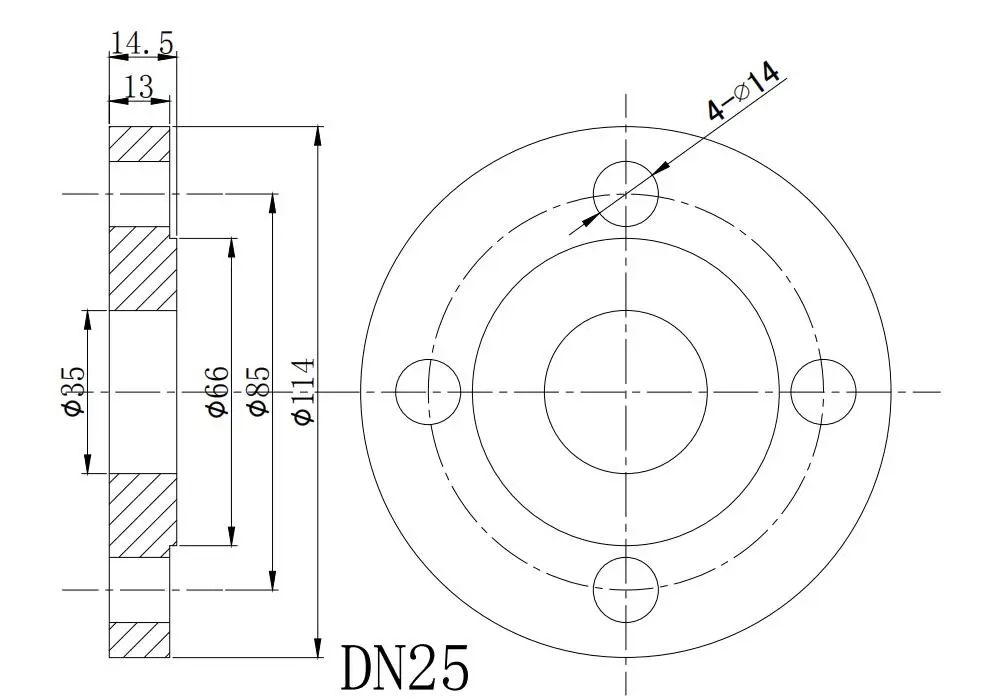

400w 12v 24v windpower generator Flange





400w 12v 24v windpower generator



400w 12v 24v windpower generator
