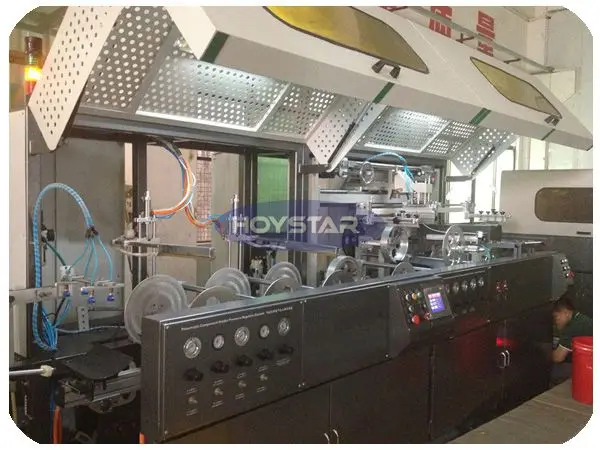

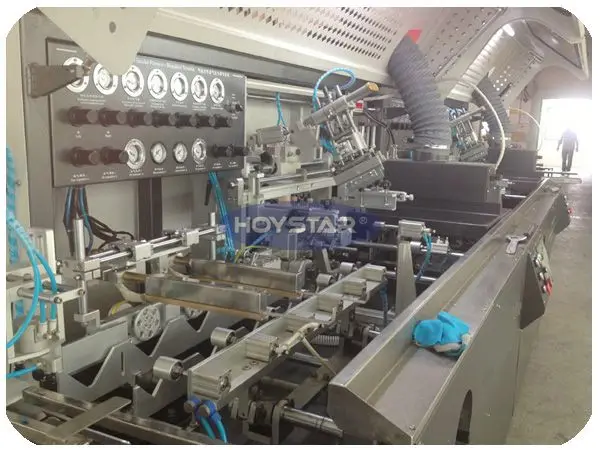

Full Automatic Two Color Cylindrical Screen Printer
Full Automatic Two Color Cylindrical Screen Printer

Full Automatic Two Color Cylindrical Screen Printer

Share on (60722294562):


Price:

Quantity:


Product Overview

Description



Products Description


Application:
This printing machine is suitable for printing some round and oval containers,such as cosmetic,leechdom and food service industry. It can print kinds of design on the surface of round/oval container.The material of workpiece can be plastic,glass,ceramic,metal and so on


Technical parameter:
⊕ Round printing diameter
20 mm~108 mm
⊕ Round printing height
20 mm~280 mm
⊕ Oval printing diameter
R20 mm~R180 mm
⊕ Oval printing height
20mm~280mm
⊕ Max printing speed
3600Pcs/Hour
⊕ Power supply
AC220V 1 PAHSE/AC380V 3Phase 50Hz/60Hz
⊕ Rated power
15KW
⊕ Air pressure
5~8bar
⊕ Machine dimension
(L2000mm*W1200mm*H1750mm)*2 pcs
⊕ Machine weight
2000kgs


Feature:
The full automatic two color curved screen printer is widely applicable to high-precision pictures & words printing on the container surface in cosmetic, medicine, food, electric appliance, toy, cabinet and many other fields. The demand of Arc surface printing ,such as cylindrical, elliptic cylindrical and other heterotype containers,could always be meet,and the machine is compatible for plastic bottle,glass bottle,metal materials. The electric control system consists of PLC and advanced touch screen as to intelligent operation for the whole machine .The new transmission system consisted of advanced imported motor,speed converter device and pneumatic component which has the function of electrodeless variable-speed,synchronous transmission ,auto allocation and no-workpiece-no –printing.
The machine is with flame treatment system , can treatment surface of round product.automatic drying after printing.
