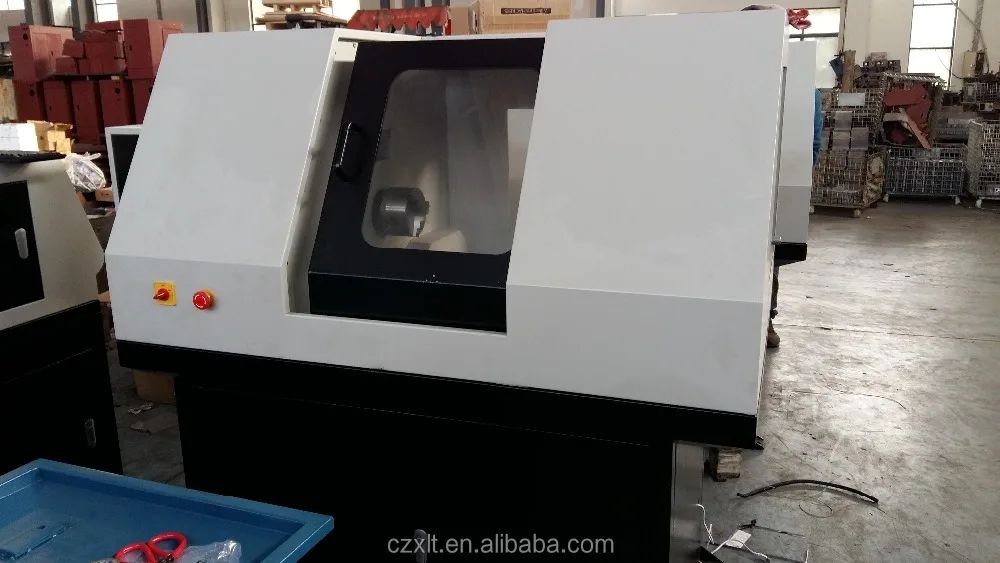

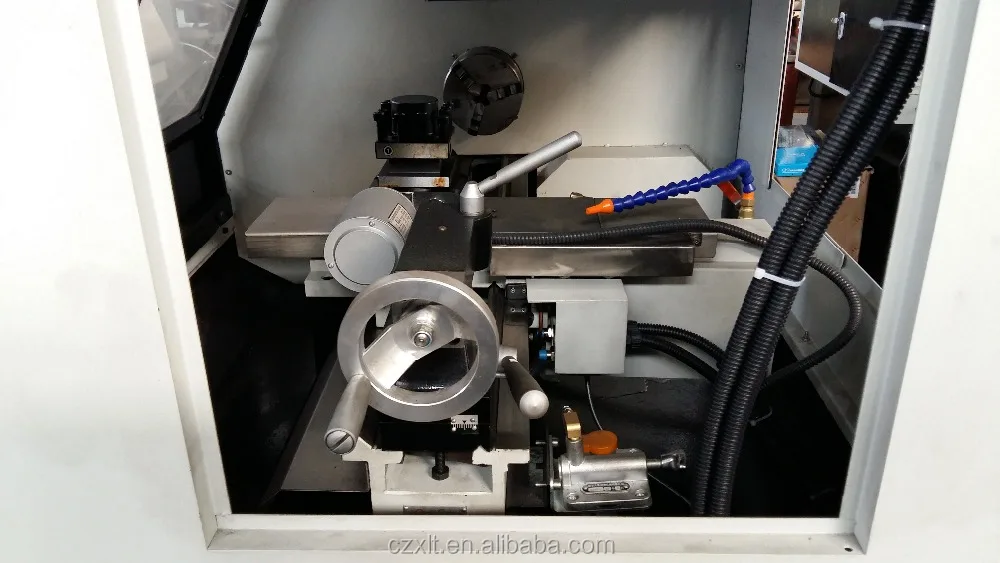

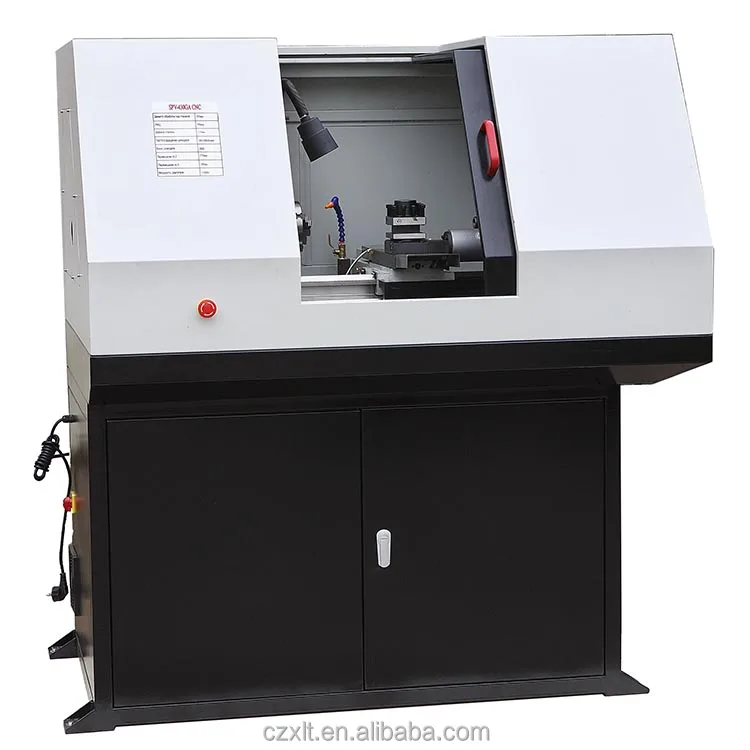

TL250G Mini CNC lathe machine MACH3 control D250X700mm
- Category: >>>
- Supplier: Chizhou New Dragon Machinery Co. Ltd.
Share on (60722306550):
Product Overview
Description
Product Description

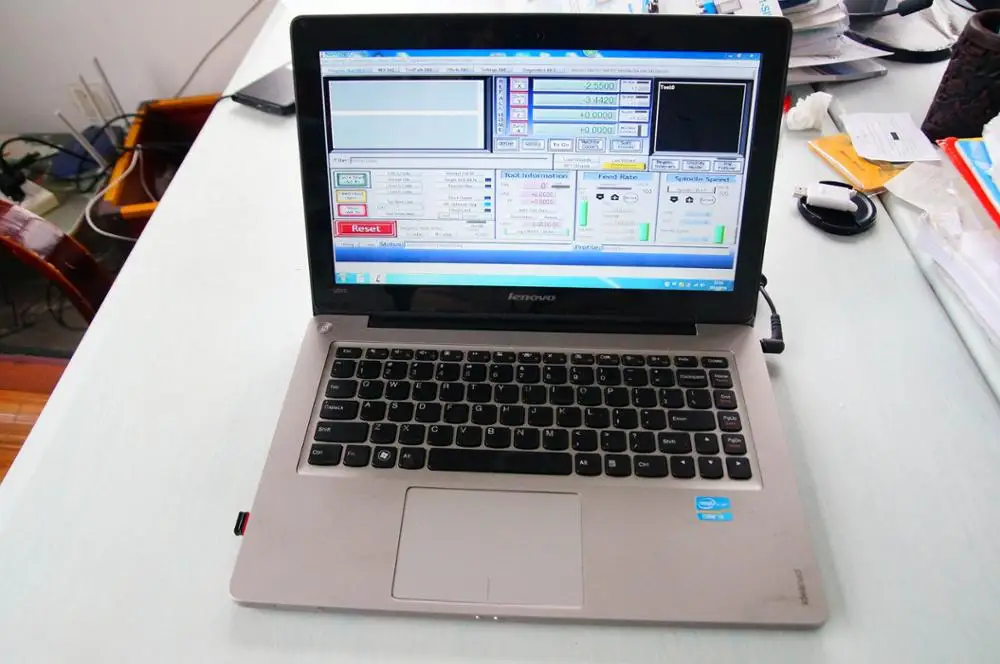

Mini Metal CNC lathe machine by MACH3
USB-MOTION-CARD-PLUGIN

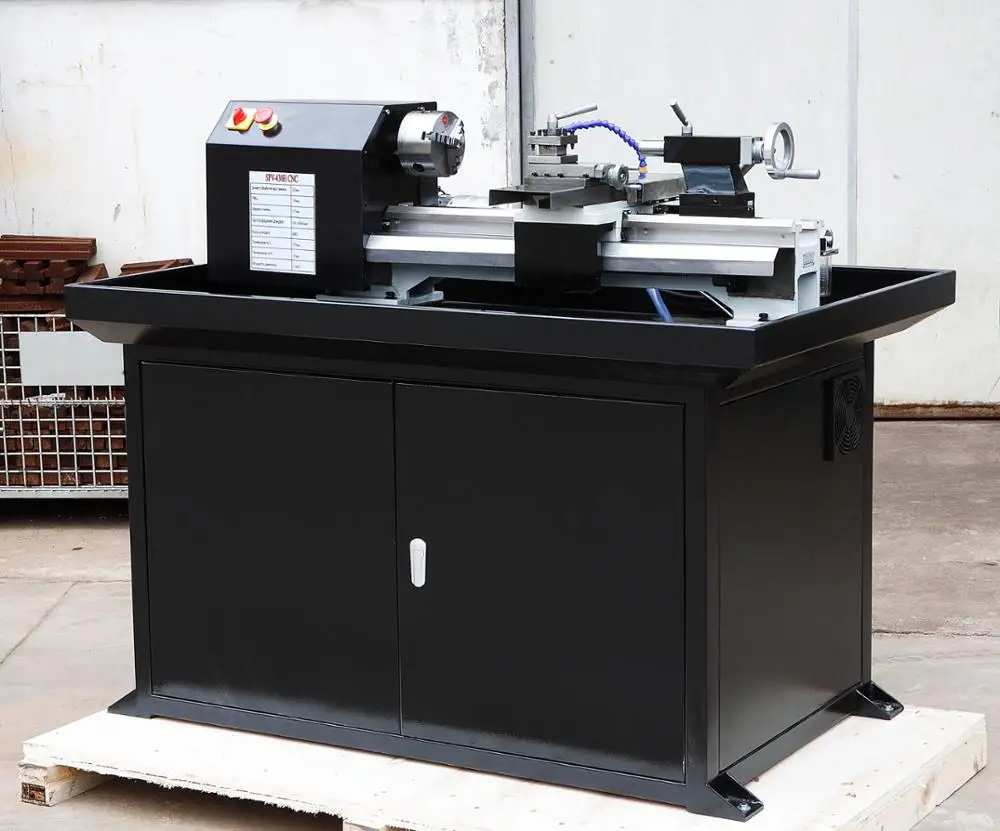

The machine is an economic CNC lathe controlled by a PC and driven by step motors (or servo motor). It is suitable for turning turning cylindrical and taper faces, boring, grooving and cutting.
TL250G CNC LATHE PC-BASE MACHINE CONTROLLED BY MACH3 SYSTEM
Specifications:
Swing over bed | 250mm |
Swing over apron | 110mm ) |
Max distance between centers | 700mm |
The width of bed | 135mm |
The speed of the spindle | 100-1400r/min |
The tape of the spindle | MT3 |
The max .speed of moving(X.Z) | 2000mm/min |
The speed of feeding(X.Z) | 500mm/min |
Max travel Z axis | 320mm |
Max travel X axis | 180mm |
Motor of X axis | 4N.m |
Motor of Z axis | 4N.m |
Tool position | 4 |
Angle of the tool post | 360° |
Tape of tailstock | MT2 |
Travel of tailstock | 50mm ) |
Position accuracy | 0.015mm |
Repeatability position accuracy | 0.01mm |
Tool post return orientation precision | 0.005mm |
Main motor power | 1100W |
Machine size(L*W*H) | 1710*760*1450mm |
Packing size(L*W*H) | 1830*1070*1685mm |
Weight(n.w/g.w) | 480/570kg |
