bus 10 wheel j1939 tpms

Product Overview

Description

bus 10 wheel j1939 tpms

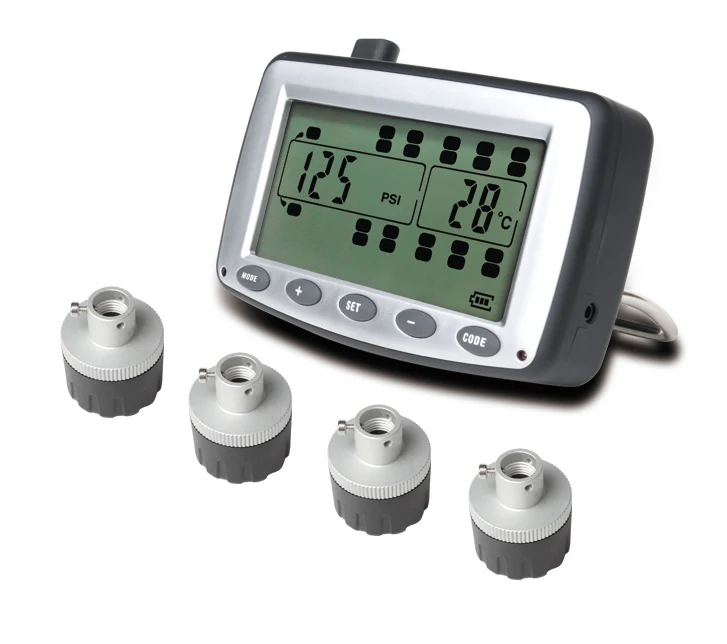

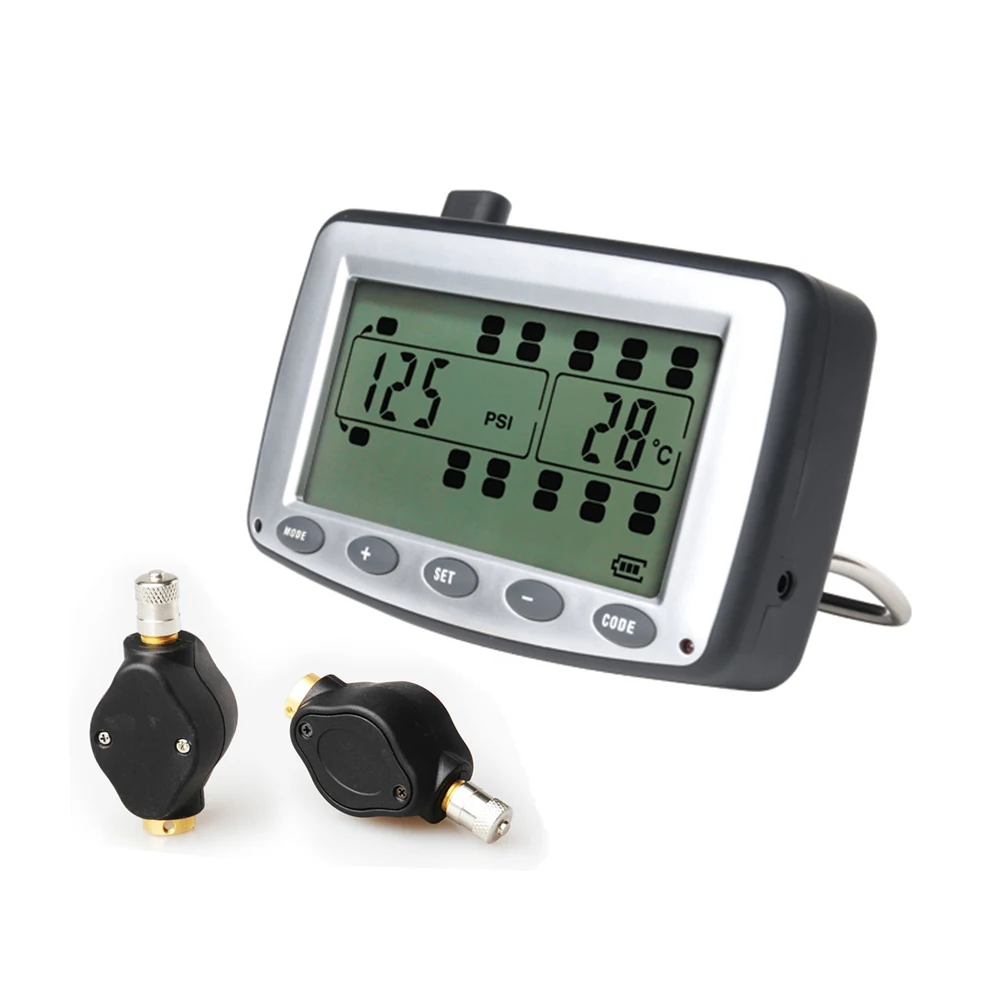

  Monitor Description





Operational Temperature	-20 to +80° C
Storage Temperature	-30 to +85 ° C
Charge Input Voltage	DC 8 to 30 V
Frequency	433.92MHz
Size	116 ( L ) x 68 ( W ) x 25 ( H ) mm
Weight	138 g

  Specifications

   1. Reliable and easy to install.

   2.Large LCD screen.
   3.Built-in rechargeable lithium battery.
   4.Vibration awakening.
   5.Automatical backlight.
   6.Configurable high/low pressure warnings.
   7.Configurable high temperature warnings.
   8.Visible and audible alerts.
   9.Selectable pressure units ( BAR, PSI ).
  10.Temperature unit selectable ( ° C/° F )
  11.Monitors up to 22 tires maximum.
  12.Long range between monitor and sensors.
  13.Individual configuration of axle high/low pressure warnings.
  14.Awake sensor to program ID code.

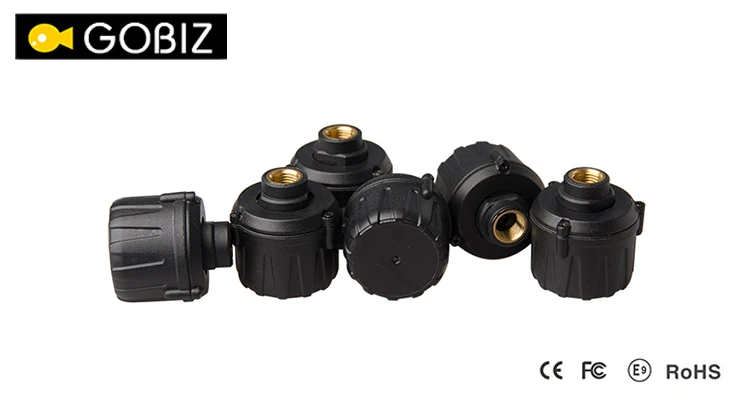

  Sensor Description





Operational Temperature	-40 to +85° C
Storage Temperature	-40 to +85° C
Pressure Range	0 to 13 bar, 0 to 188 psi
Transmission Power	< 10dBm
Transmission Frequency	433.92MHz
Battery Life	2 years (Sensor battery replaceable)
Size	Diameter:28mm Height:30mm
Weight	19 g

   Specifications

   1.Reliable cap sensors, easy to install.
   2.Water resistance.
   3.Replaceable sensor batteries.
   4.Fast leakage alert.
   5.Individually coded sensors.
   6.Anti-theft design.
