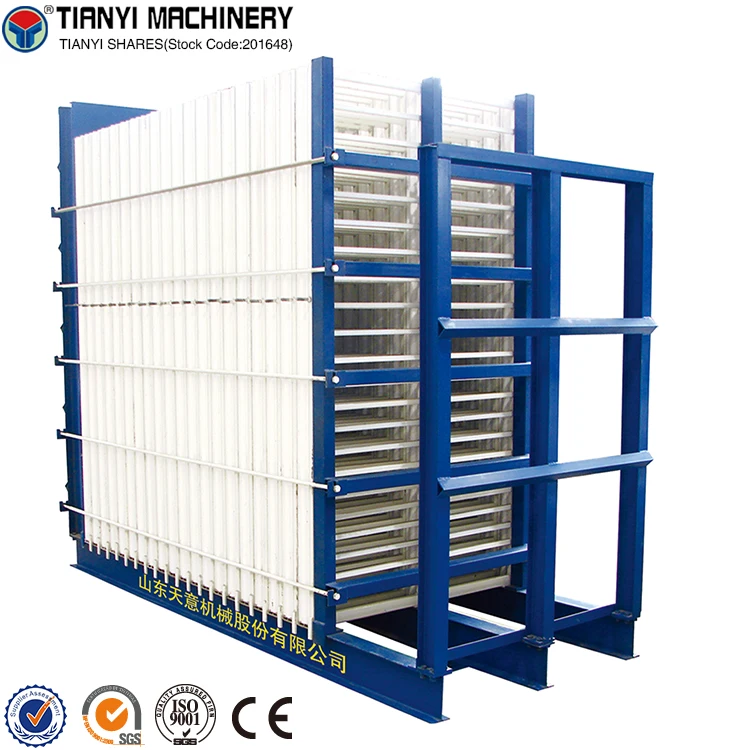

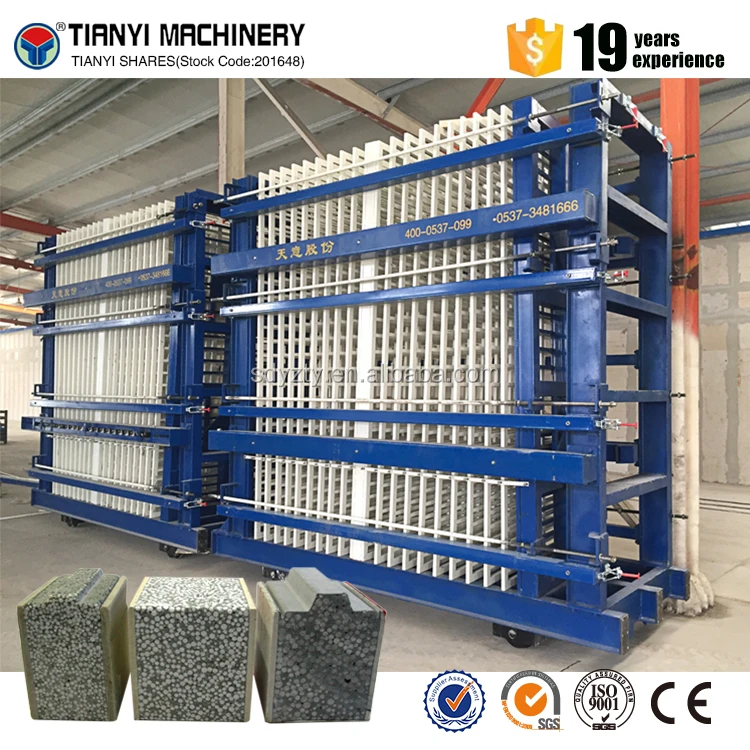

Compound partition wall panel for prefab house/EPS cement sandwich wall panel manufacturing machine

Product Overview

Description

Compound partition wall panel for prefab house/eps cement sandwich wall panel small business manufacturing machine



This machine is mainly used to produce the composite wall panels (with silicate calcium board

as surface panel and with EPS grain, cement and fly ash as the mixed material in the middle)

and suitable for both small and large manufacturing on production.

It can produce 40 boards at one time.



Equipment Technical Paramaters

Feeding Capacity	5m3
Finished Wall Panel Dimension	2440x610x75
	2440x610x90
	2440x610x100
	2440x610x120
	2440x610x150
Molding Time	Two hours(High Aluminum cement)
Mold Clearance	2mm
Quantity of panel provided one time	75mm	46Pcs
	90mm	40Pcs
	100mm	36Pcs
	120mm	30Pcs
	150mm	26Pcs



Raw materials

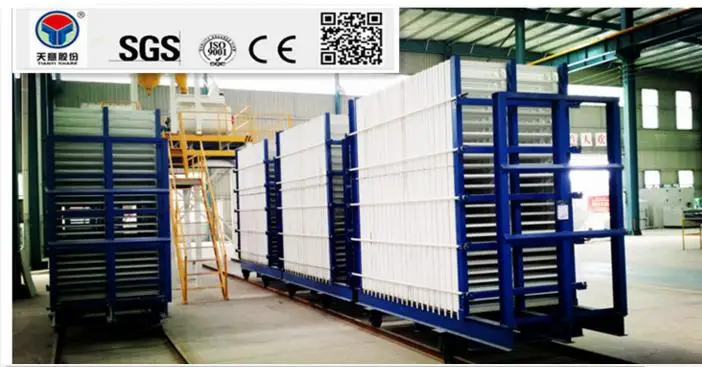

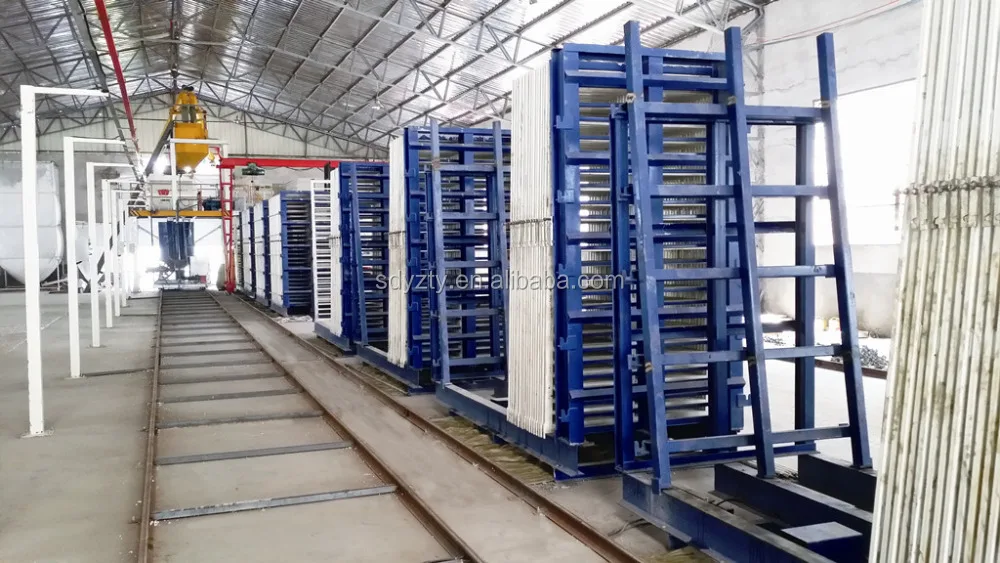

Production process

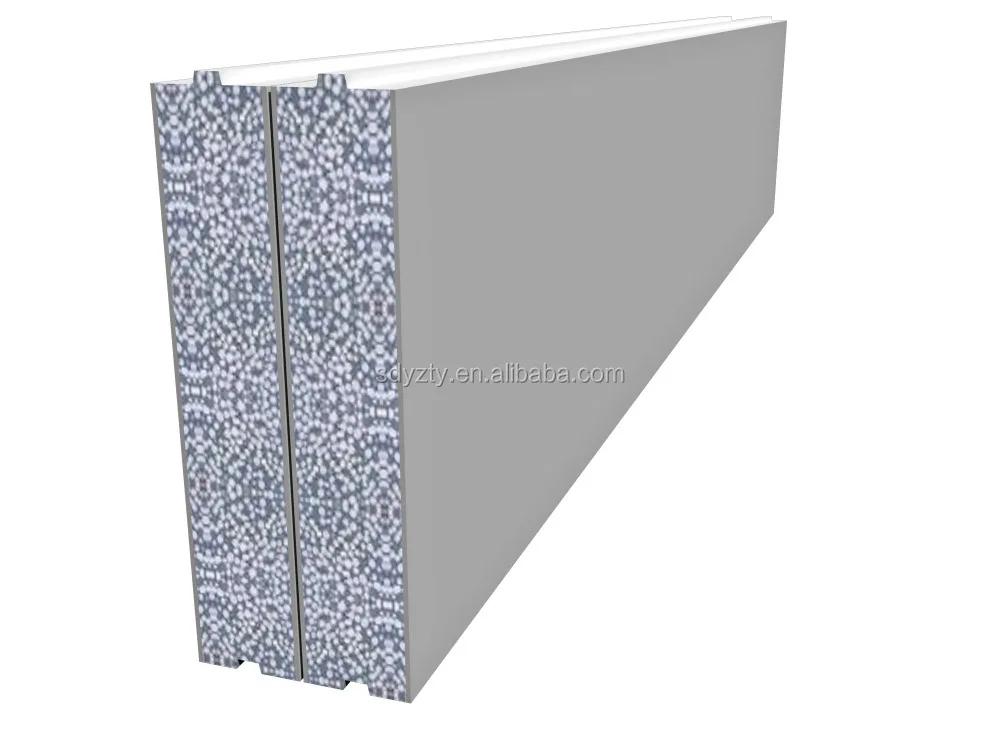

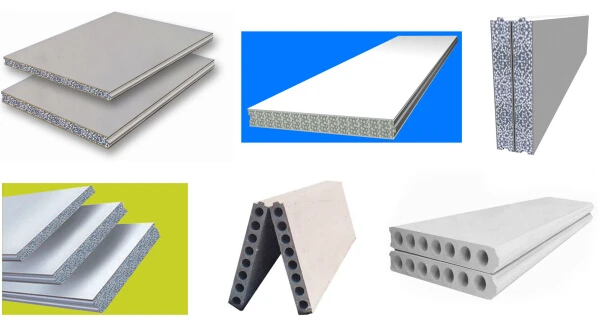

 Finished wall panel



Wall panel Features



The specification of the wall panel: 2440mm*610mm*60/75//90/120/150/180mm



1. Light weight:

Its weight is only 1/7 of that of brick walls, 1/3 of that of aerated concrete, and 1/8 of that of

120mm thick masonry wall with plastering on both sides.
2. Fire proofness:

It can endure fire at 1000 degrees for over 4 hours, without producing any toxic gas.

Its incombustibility meets A rating of the state standard.
3. Water-proofness & Damp-proofness

It consists of medium density fiber cement flat board, which has very good water proof and

damp proof property. Therefore, there is no worry about bulking, efflorescence,

deformation, degeneration of strength due to moisture absorption.

It's applicable for wet areas like kitchens, bathrooms and basements.
4. Sound Insulation

It has outstanding sound absorption and insulation capacity. The sound insulation

capacity of a 90mm thick board is 42dB, which is far higher than that of other masonry

walls, and meet the national requirement of sound insulation for residential houses.

5. Thermal Insulation & Heat Insulation

Nowadays, the construction industry attaches great importance to energy-saving

property of buildings. Ionic strip-type wall panel is made of pure natural vermiculite,

quartz flour of high purity, inorganic fibre and plant fiber, through a curing process

with steam of high temperature and high pressure. In addition, the internal alveolate

structure also contributes to its remarkable thermal insulation & heat insulation property.
6. Better earthquake resistance and overall stability:

Assembled into a whole structure, wall panels has an impact resistant capacity

which is 1.5 times as high as that of normal masonry walls.

The earthquake resistances is tens of times higher than normal masonry walls,

meeting the requirement for buildings to resist earthquake up to 8 degrees.

7. Easy installation:

The wall panel can be grooved freely, nailed directly or embedded with expansion

bolts to hang heavy things, like A/C; The single-point hanging strength is over 45kg;

In addition, the wall panel has a flat and smooth surface, which is compatible with

tiles and wall paper as the finish.



Wall Panel Technical Parameters



No.	Test Items	China standard	Product test
1	Compressive strength	≥3.5Mpa	≥3.7Mpa
2	Drying shrinkage value	≤0.6mm/m	≤0.37mm/m
3	Hanging force	≥1000N without 0.5mm crack in 24hours	≥1000N without 0.5mm crack in 24hours
4	Shock resistance	No damaged that Impacting of 30Kg sandbag five times	No damaged that Impacting of 30Kg sandbag five times
5	Bending resistance	≥1.5times of wallborad	≥1.5times of wallborad
6	Radioactivity	Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3	Inner radiation index Ira≤1.0 Outer radiation index IY≤1.3
7	Areal density	≤90Kg/m2	≤43Kg/m2
8	Sound insulation	≥35dB	43dB
9	Fire resistance limit	≥1h	≥1h
10	Combustion performance	A1 or A2	A1



Project site

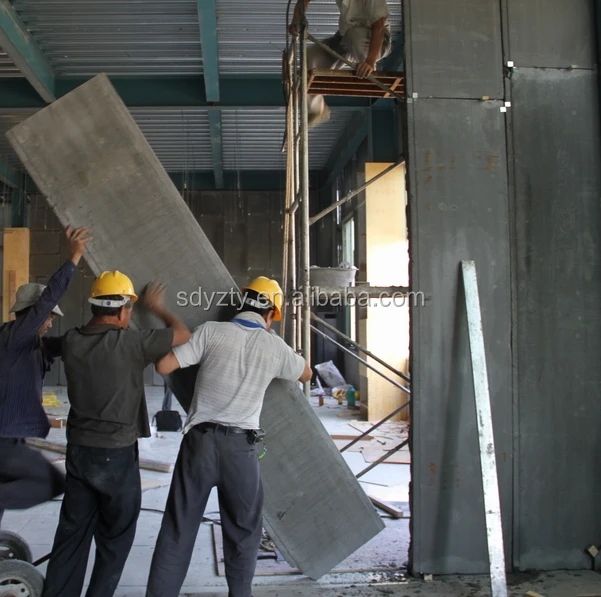

Construction process







Our Services



Company concept:

1. We guarantee the board machine is brand new.

2. Based on the natural materials through high technology research and development.

3. We strive to offer best after-sales services, also professional technical support, trying our best to satisfy your requirement.

4. Sustainable green building system is our slogan.



Certificate









Thank you for your attention to Tianyi  !
