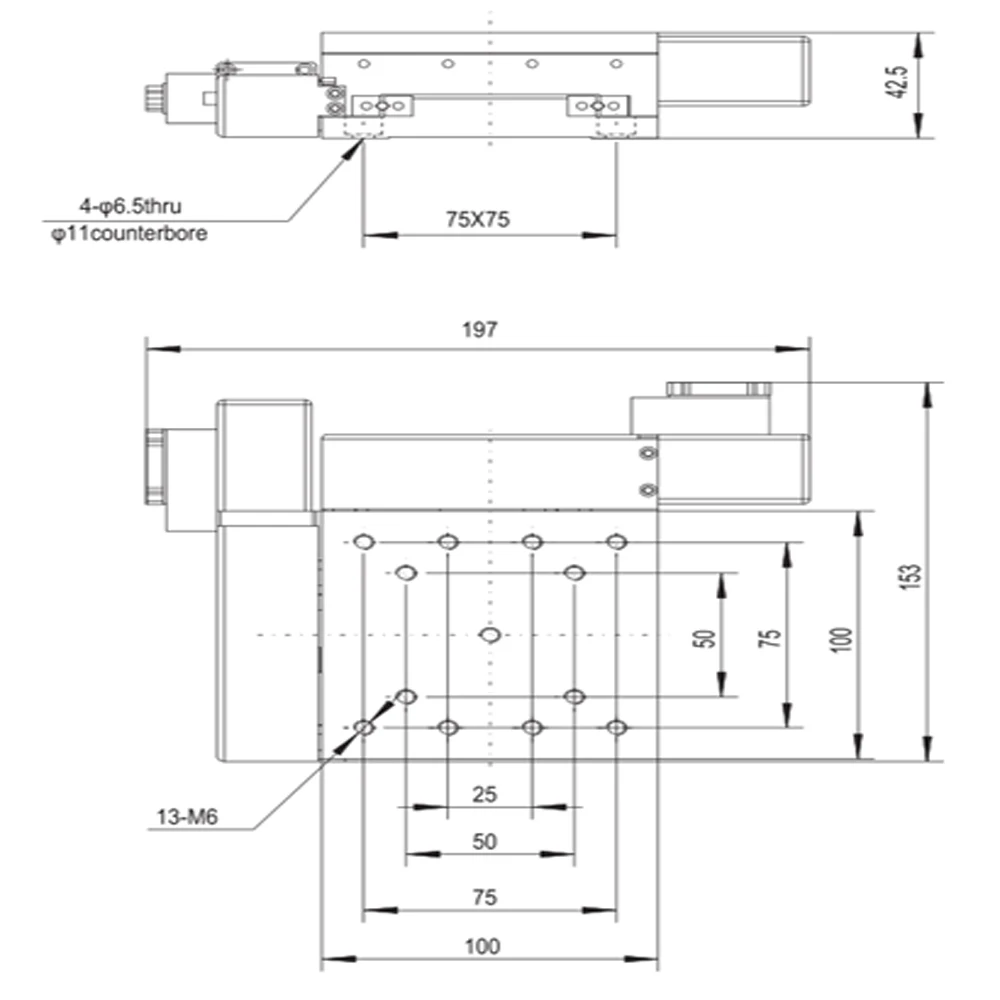

Linear 2 axis xy motorized positioner stage fast high power micro linear dovetail table 2 axis positioner
Company Information
Specification
we can customize any models products according to your sizes or quality requirements
1.Instruction:Uses the high quality ball screw, linear bearing guide rail, key parts like bearing motor adopt famous manufacturers' products, insure the high and stable quality.
Convenient for connected with our PMC series controller, the end is equipped with a hand wheel, can be manually adjusted, hand wheel, can be manually adjusted.
Base has standard pitch of the thread holes and hole, easy for mounting.
2.Features: small volume, low noise, conventional transmission, high cost performance.
3.Operation place: Matrix scanning, medical equipment, microscope, micro field.
Model | ETS-50R-2 |
Travel(mm) | 50*50 |
Screw Leading (mm) | 1 |
Main Material | Aluminum |
Surface Treatment | Black Anodized |
Lead Rail | V Type Guide |
Max Speed(mm/s) | 10 |
Resolution (8 subdivide)(μm) | 0.625 |
Repeated Positioning Accuracy (μm) | 5 |
Drive Motor | 28 Stepper Motor |
Step Angle | 1.8° |
Central Loading (kg) | 10 |
