What is waterproofing dimple drainage board membrane？

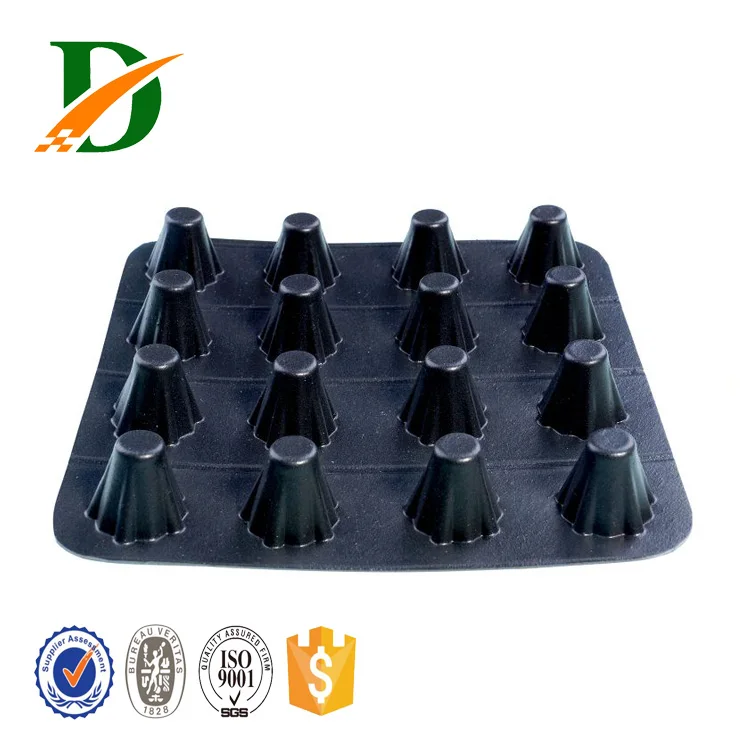

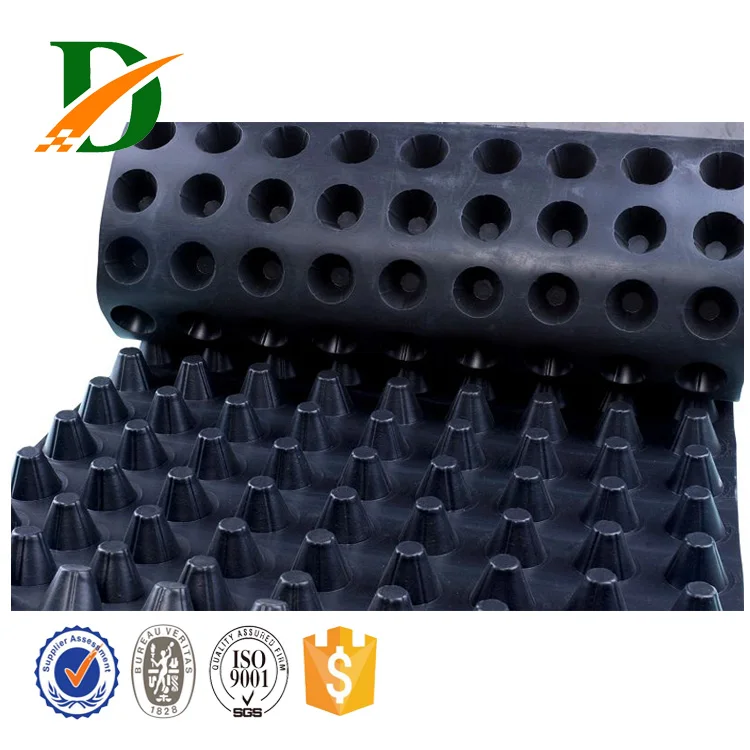

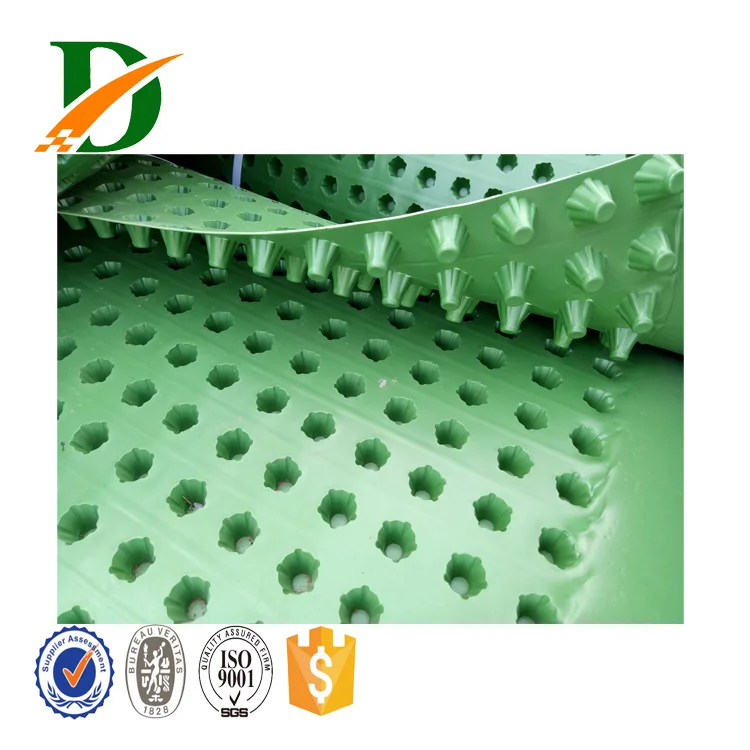

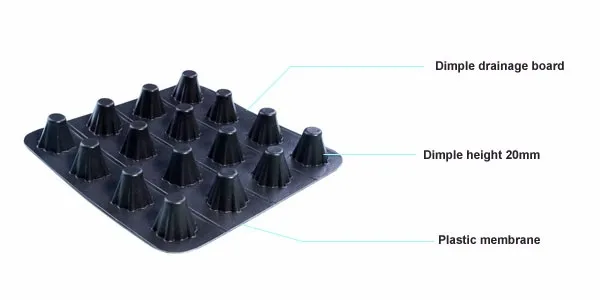

The waterproofing  drainage board with hole is made from high density polyethylene plastic and it is a kind of geomembrane with dimples on the surface. The dimples can be in cylinder and semi cone shape. It could also be coated by non woven geotextile. The liquid and gas can go through freely between dimples.

How thedimple drainage board membrane work?

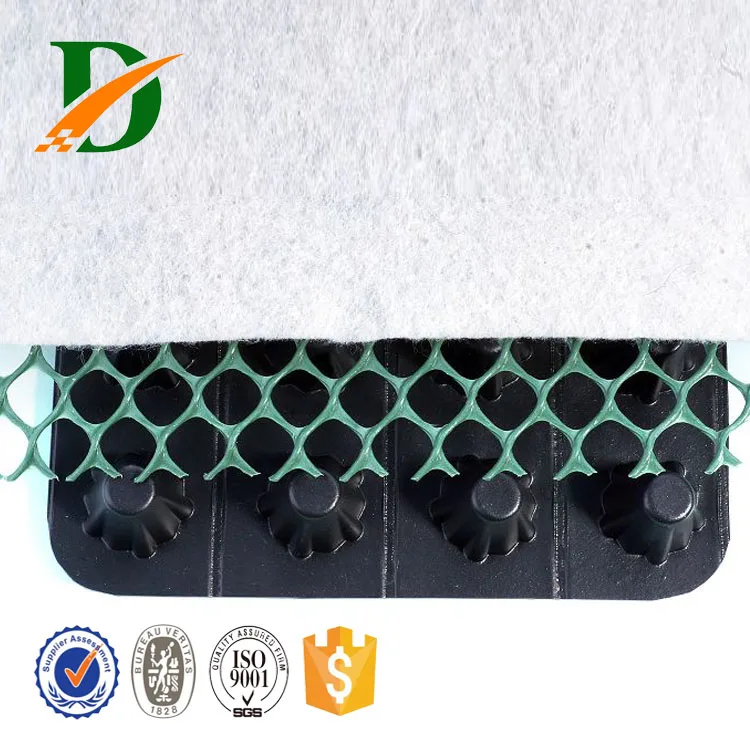

A certain amount of space is formed between the raised height and the upper layer of geotextile and the lower membrane.

Through the osmotic effect of the geotextile, the water that does not contain impurities is filtered into this space.

In this space, water can be gathered and  to form water flow, in accordance with the engineering design of the slope flow to the corresponding drainage system or the water collecting system.

Where the dimple drainage board membrane used for?

1. Environmental protection, sanitation (such as solid waste landfills, sewage treatment plants, power plants Chi-conditioning, industrial, hospital solid waste, etc.) .
2. Water (such as rivers, lakes and reservoirs of the anti-dam, plugging, reinforcement of the canal seepage, the vertical wall of the heart, slope protection, etc.).
3. Municipal Engineering (subway, on the ground floor of the building, planted roof, the roof garden of anti-seepage, sewage pipes lining, etc.).
4 .Landscape (man-made lake, river, reservoir, golf courses reservoirs of the substrate, slope protection, green lawn of the waterproof moisture, etc.).
5. Petrochemical (chemical plants, oil refineries, gas storage tanks of the anti-chemical reaction tanks, sedimentation tanks of the lining, etc.).
6.Mining (washing and pool heap leaching, the ash-field, dissolved, precipitation, the yard, the tailings seepage substrates, etc.) .

Main Features of dimple drainage board membrane?

(1)Waterproofing and drainage : from a channel,which water and gas can go through;
(2)Sound insulation and vibration isolation;
(3)Chemincal resistance,resist to plants' root;
(4)Easy to construction;
(5)Long life time.

How to construction?

Step 1,Keep the ground flat before laying;
Step 2,Spread the drainage board on the ground;
Step 3,Welding joints, or bumps and bulges;
Step 4,Spread out plastic mesh;
Step 5,Spread out the geotextile;
Step 6,Backfill soil

Data of dimple drainage board membrane

Depending on the different use site of the drain board , the quality requirements of the drainage board are not the same.The technical parameters of the drainage board we produce are shown in the table below:

Transportation and packing of samples.

Customers can get our free samples by paying the postage.If you have frequent international express, please inform us that we will send the samples to you through the designated express delivery.

Transportation and packaging of bulk products.

Packing specification

Appearance shape:Roll

Length:10m/roll

Width:3m/roll

Outer packing:No outer packing or customization

The packing way:Nylon rope

Company profile

Tai'an Daxing New  Materials Technology Co., Ltd. is a professional enterprises who collection of independent research and development, production and sales in the field of geotechnical materials. The company own strong technical force, advanced process equipment and complete range of products.With a number of senior technical personnel who specializes in geotechnical material production.We have established the close cooperation relations with more than the national scientific research units, universities and colleges, design institute and the abundant technical force to ensure the stability of the product and forward-looking.

Introduction of factory productivity

1.Excellent production capacity

Our company now has four sewerage production lines, which can produce about 30, 000 square meters per day.I think our production capacity can meet your requirements.
