H2Ojet high pressure waterjet pump

Product Overview

Description

Company Profile

TEENKING CNC Machinery CO., LTD was established in 2004, specializing in manufacturing high efficiency CNC cutting machines.  TeenKing Waterjet is commonly used to cut steel, metal, marble, stone and glass, etc.  By becoming the preferred choice of the high end customers at home and abroad, we are dedicated in producing quality products with our know how and innovations, in order to give good service and fulfill our customers’ requirements. By making our customers as our partners, we work together to achieve their needs, maximum economical benefits and produce easy to use machines.



With the development and enlargement of the company, we strive for perfection through our motto “Innovations, Practice, Diligence”.  We insist on “better quality and service” to serve our customer’s needs.  We appreciate your opinions and feedbacks which will help us improve and be closer to perfection.  We are making “Teen King” a worldwide brand and at the same time satisfy all our customer needs.





Product decription

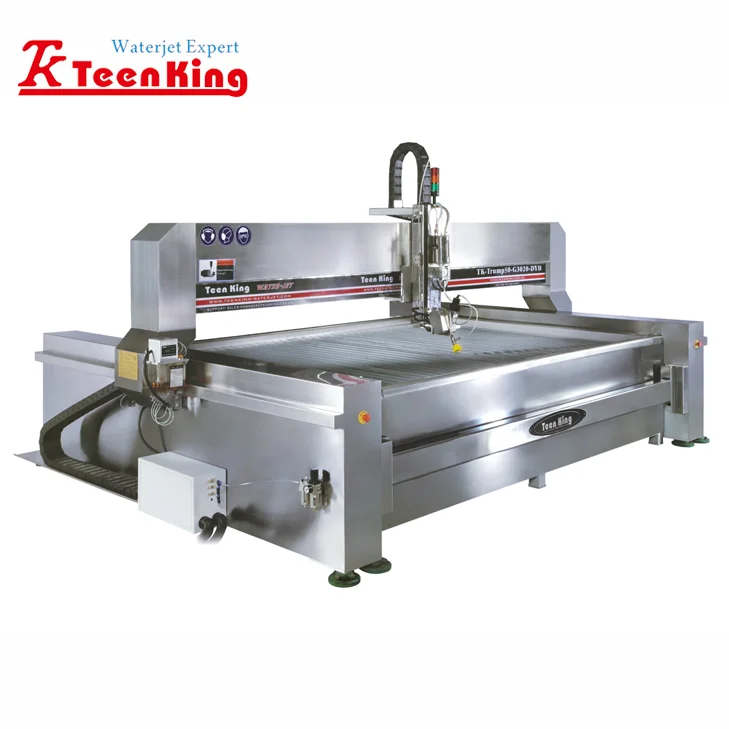

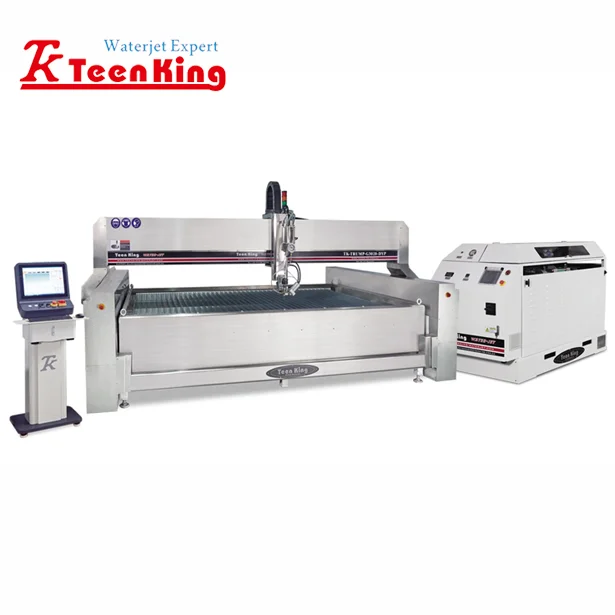

A full set of abrasive waterjet cutting machine includes work table, CNC controller, High pressure system with cooling system, Auto abrasive feeder, Water treatment and Sludge Removal System, etc.

Waterjet can cut almost every thing, including: stainless steel, hard tool steel, mild steel, aluminium, brass, bronze, titanium, tungsten steel, zirconia, glass, plexiglass, rubber, ceramic,marble, granite, etc.









KMT High Pressure System

KMT H2O JET 50

Motor

Intensifier

420MPa/60000psi

350-380MPa/50000-55000psi

3.6L/min /                  7.0L/min

37KW/50HP            75KW/100HP

380V/50Hz, 3 Phases

1. At H2O, a full range of products and replacement parts that vastly improve the productivity of any waterjet cutting machine.

2.  H2O jet waterjet parts are proven to have the highest reliability in the waterjet cutting industry for wide range applications,including stone ,glass ,foam and metal cutting .

3. It is suitable for using in various fields as well as for all waterjet cutting applications.







Recommended Units

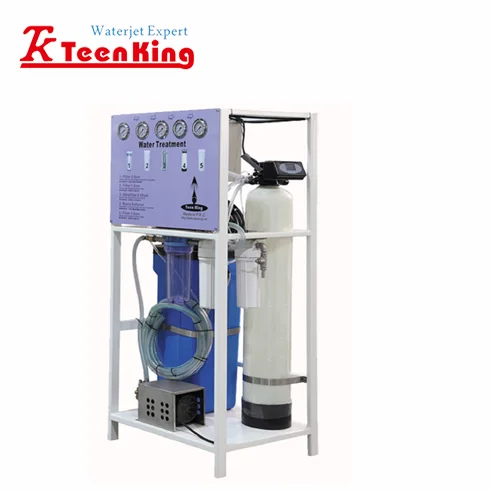

Water Treatment Precise filtration up to  0.1 micron and auto softened	Auto Cycling Fan Cooling System         Mantain the oil temperature    within 20 degrees higher       than environment  temperature	Auto Abrasive Feeder      Deliver the abrasive automatically by pressed          air (2.5 bars) , volume controlled by the level  of the hopper.	Sludge removal system Automatically clean up and collect sludge from water tank
Refrigerant chiller Cooling inlet water and extend high pressure pump lift	5 hp oil cooler  Cooling down hydraulic oil, suitable for high temperature areas	Auto abrasive delivery system 1000kg jumble bag non-stop abrasive feeding system	Sludge removal system Dual pumps removal system
Independent dual cutting heads Can choose single or dual    head(s) work together, distance between heads   is adjustable.	Auto height tracking system Track height of material before and during cutting	Laser locator Help for locating nozzle	Engraving head Help to do engraving work when needed
