This product is used for dairy items in-place cleaning of pipes and vessels, can also apply to the brewery, beverage plants, and general food production materials of pipes and equipment cleaning. Normally it contains three tanks, acid liquid tank, alkali liquid tank, water tank separately. It is up to our customer’s requirement.
A centrifugal pump is used in CIP to convey cleaning liquid into material pipe and equipment, circulate to equipment circularly. Therefore, the equipment utilization can be improved without the disintegration of the equipment and the pipeline, and reduce labor intensity of workers. Therefore, this product is an advanced of cleaning process equipment.
Using this equipment need a closer cooperation with the workshop, piping arrangement, cleaning head and so on.
This equipment is mainly composed of Acid and alkaline liquid tank, clear water tanks, racks, three - way plug valve, globe valve, and comprised of centrifugal pump.

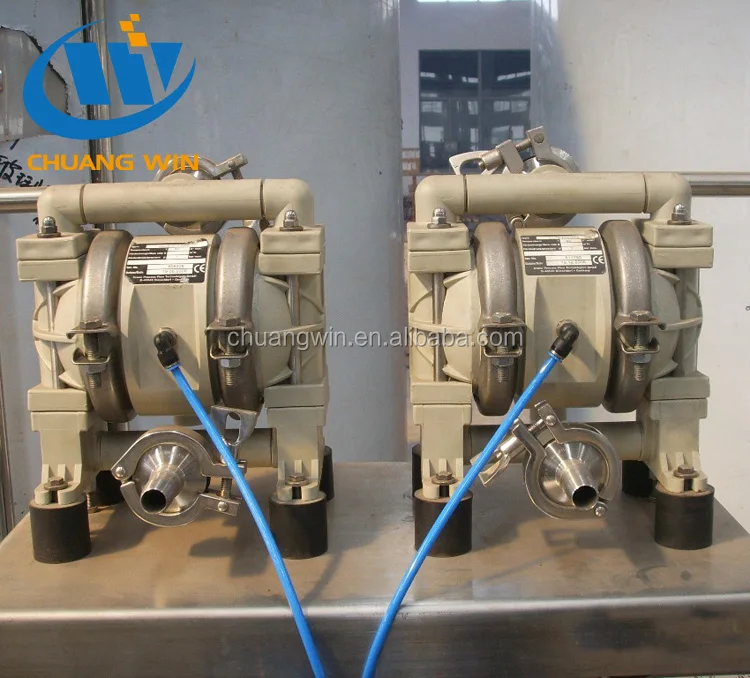

Unlike semi-automatic CIP system, it uses pneumatic diaphragm pump to automatically control the valves, inside all have digital control connection to all the pipes and whole line machinery, cleaning process controlled by program.

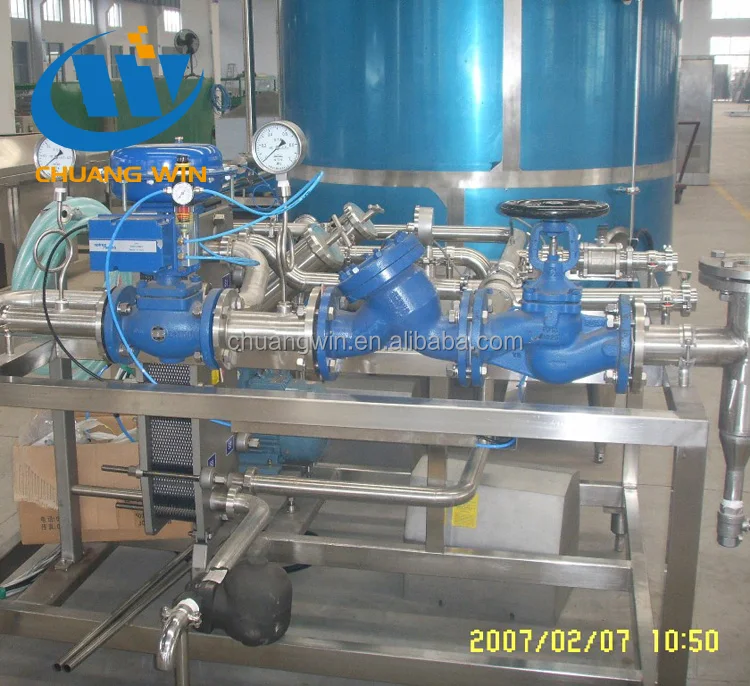

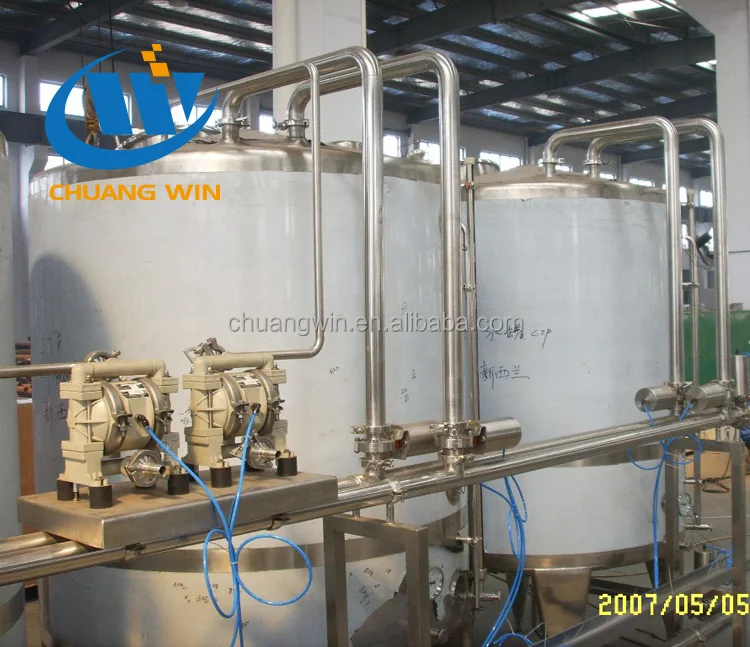

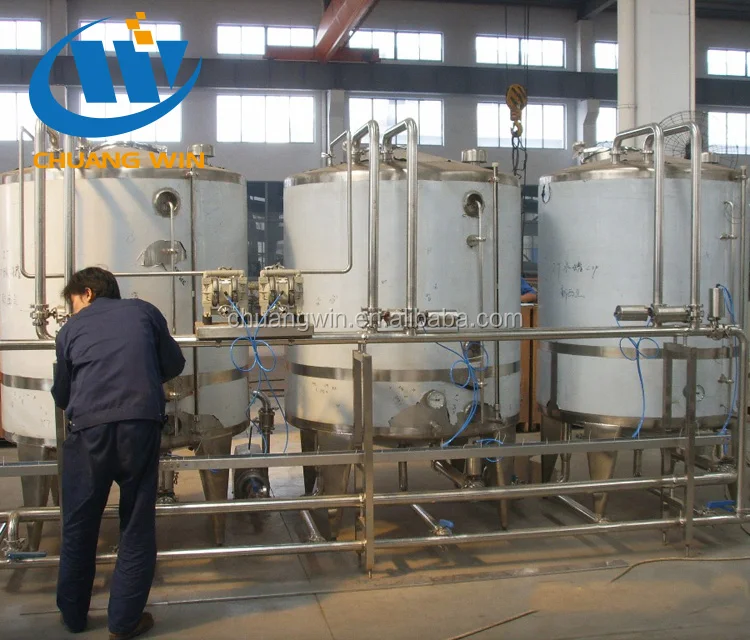

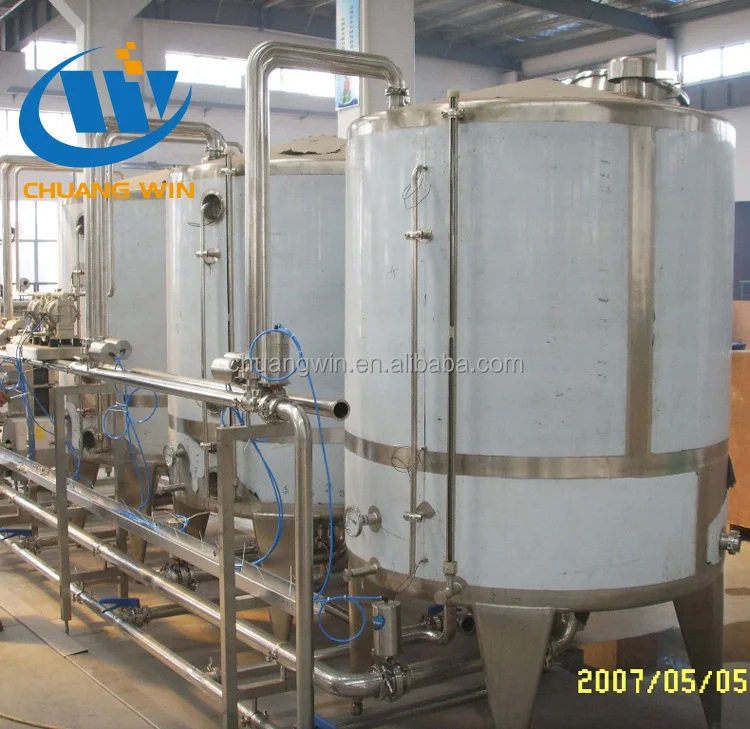

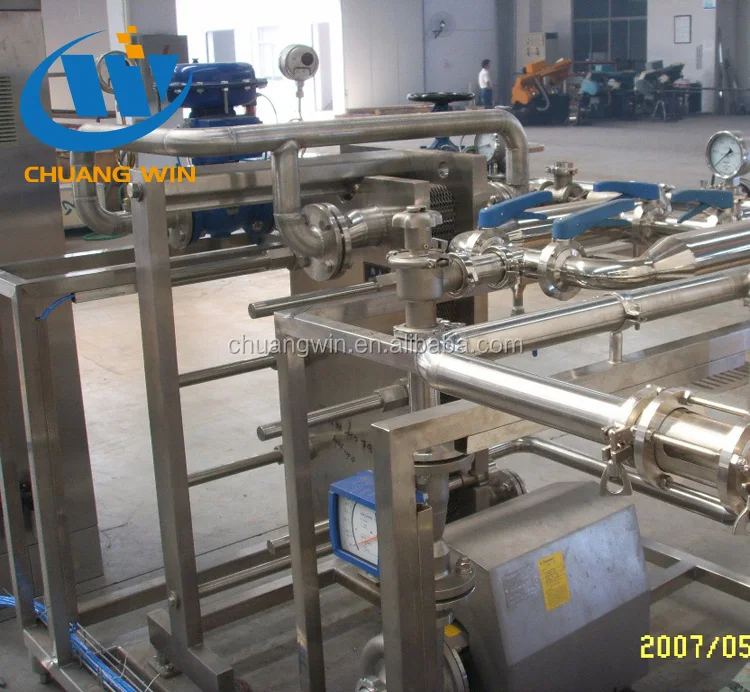

Detailed Images
Design Parameter
Procedure
Time
Temperature
Water prewash
3min-5min
40ºC-50ºC
Alkali wash
5min-15min
60ºC-80ºC
Intermediate washing
3min-5min
40ºC-50ºC
Acid pickling
5min-15min
60ºC-80ºC
Finally water washed
3min-5min
40ºC-50ºC
Normal Model And Main Technical Parameters
Model
CIP-0.5
CIP-1
CIP-2
CIP-3
CIP-4
Acid tank volume (L)
500
1000
2000
3000
4000
Alkali tank volume (L)
500
1000
2000
3000
4000
Hot water tank volume (L)
500
1000
2000
3000
4000
Heating method
Coil, plate, tube heating, electric heat pipe heating
CIP Pump
Follow Rate(m³/h)
10
10
20
20
30
Pump Head(m)
24
24
36
36
36
Power(kw)
2.2
2.2
4
4
5.5
Company Information
Packaging & Shipping
Our Services
1.Find our products through websit .
2.One year warranty for the whole system.
3.Free equipment installation and debugging.
4.After one Year,we can help you to maintain the machine and the accessories are provided olny one the cost price.
5.Every 3 years,we can help to overhaul the machine freely(Labor).
6.We can provide internship servise and help you train the operator and mechanic.
7.Free production technology and process configuration.
8.We can help you to design the production line,workshop and provide turn-key project.
