RC ECG3312 12channel ECG machine, pc based types of ecg machine of very good price
- Category: >>>
- Supplier: Shanghai Ro-Chain Medical Co. Ltd.
Share on (60722475858):
Product Overview
Description
Product Description
Ro-Chain Medical Supply types of ecg machine, pc based ecg machine
RC-ECG3312
Product Features of RC-ECG3312 Ro-Chain Medical Supply types of ecg machine, pc based ecg machine
1. Portable and delicate design, easy to operate
2. Accurate pulse pace identification function
3. High accuracy digital filter, automatic baseline adjustment
4. Working modes: Manual, Automatic, Arrythmia Analysis, Storage
5. 1120mm,six channel format recording, excellent automatic interpretation
6. 800x480 graphic 10 inch color touch LCD to simultaneously display ECG
7. 250 patient cases storage and replay
8. Detailed patient information record
9. Freeze function
10 . Available for 215mm*20m roll paper and 210mm*140mm Z-fold paper
11. Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Li-ion battery
12. RS232 and USB interface, optional for USB storage, external laser printer printing, PC ECG software functions.
2. Accurate pulse pace identification function
3. High accuracy digital filter, automatic baseline adjustment
4. Working modes: Manual, Automatic, Arrythmia Analysis, Storage
5. 1120mm,six channel format recording, excellent automatic interpretation
6. 800x480 graphic 10 inch color touch LCD to simultaneously display ECG
7. 250 patient cases storage and replay
8. Detailed patient information record
9. Freeze function
10 . Available for 215mm*20m roll paper and 210mm*140mm Z-fold paper
11. Adapt to 110-230V,50/60Hz power supply. Built-in rechargeable Li-ion battery
12. RS232 and USB interface, optional for USB storage, external laser printer printing, PC ECG software functions.
Product Specification of RC-ECG3312 Ro-Chain Medical Supply types of ecg machine, pc based ecg machine | ||||||
Lead | Standard 12 leads | Time constant | ≥3.2s | |||
Lead acquisition | 12bit/1000Hz (synchronously 12 leads) | Frequency response | 0.05~160Hz(-3db) | |||
Work mode | Man / Auto/Analysis/Storage | Noise level | <15μVp-p | |||
Filter | AC Filter : 50Hz / 60Hz EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive) | Inter-channel Interference | ≤0.5mm | |||
CMMR | ≥120dB (with AC FILTER) | Sensitivity | 5,10,20, 40, Auto (mm/mV) | |||
Input circuit | Floating; Protection circuit against Defibrillator effect | Recording mode | 3ch+++, 6ch, 6ch+, 12ch Default Man. Mode is 3ch+++ format Default Auto. Mode is 12 format | |||
Input Impedance | ≥50MΩ | Paper speed | 6.25,12.5,25,50mm/s(±3%) | |||
Input circuit current | ≤0.05μA | Paper | 215mm *20m or 210mm *140mm Z-fold thermalpaper | |||
Patient current leakage | <10μA | Communication | RS232/ USB port | |||
Calibrating voltage | 1mV±2% | Power Supply | AC 110-230V(±10%),50/60Hz(±1Hz),60VA DC Built-in rechargeable Li-ion battery,14.4V (4400mAh) | |||
Voltage tolerance | ≥±500mV | Dimension/Weight | 347mm * 293mm * 83mm / 5.8Kg | |||

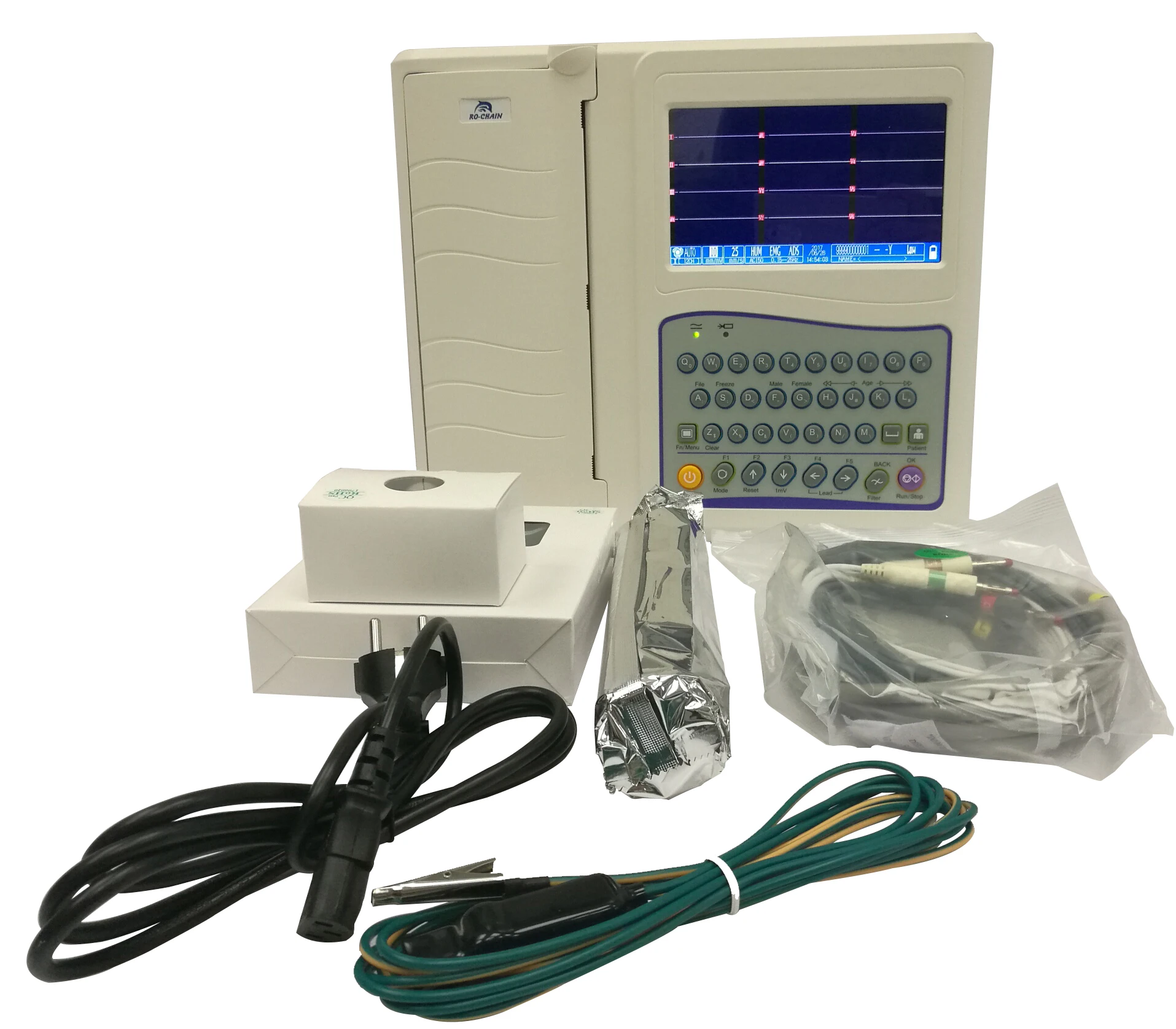

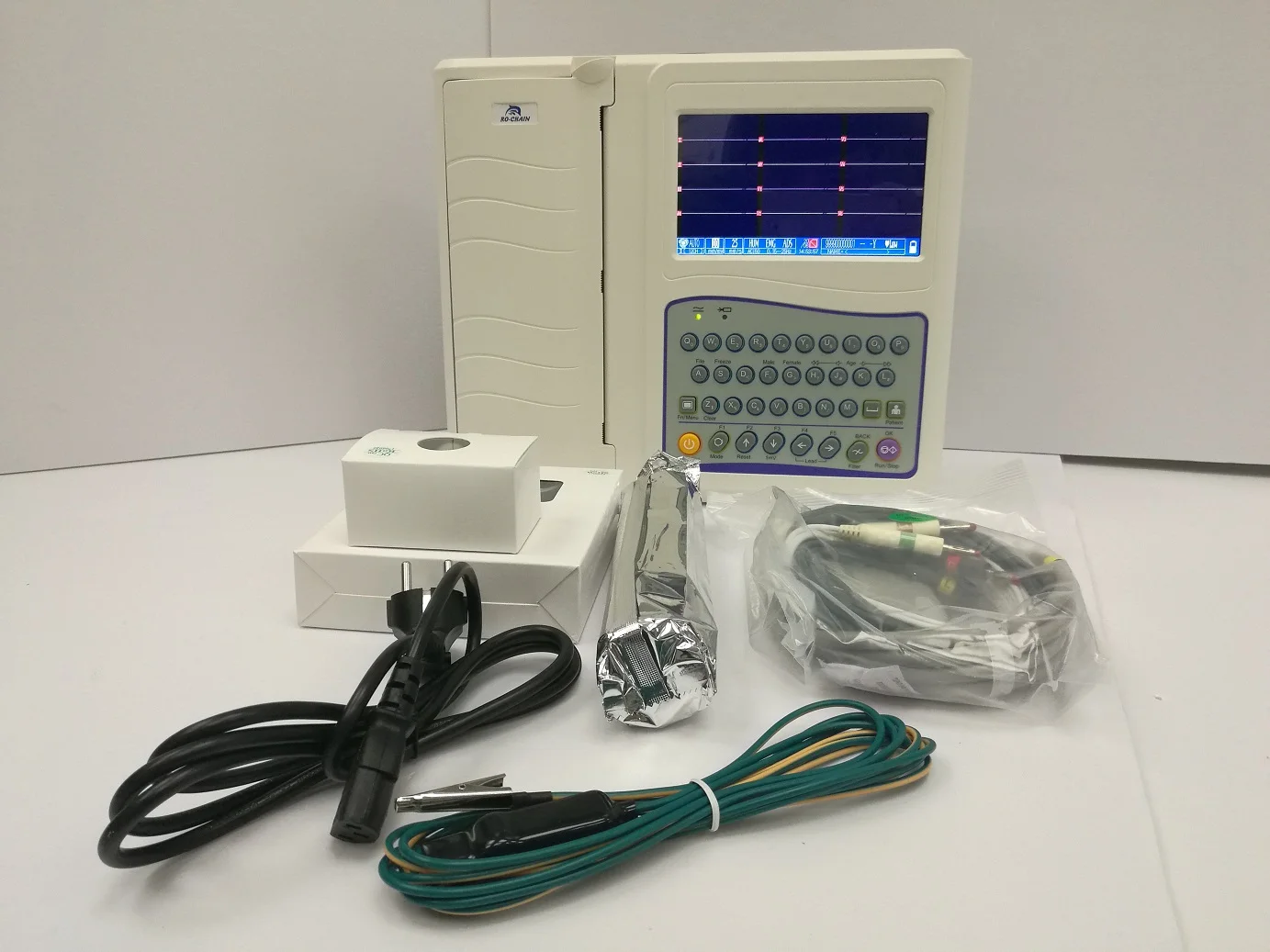

Product Packing: | ||
1. Main Unit : 1 set | 2. Patient Cable : 1pc | |
3. Chest Electrodes : 1set ( 6 pcs ) | 4. Limb Electrodes : 1set ( 4 pcs ) | |
5. Power Cable : 1pc | 6. Grounding Cable : 1pc | |
7. Fuse : 2pcs | 8. Paper Axis : 3pcs | |
9. Thermal Paper : 1 roll | 10. Use Manual : 1 copy | |
11. The factory Inspection Report : 1 copy | ||
Product Details Photos
