Product Overview
Description

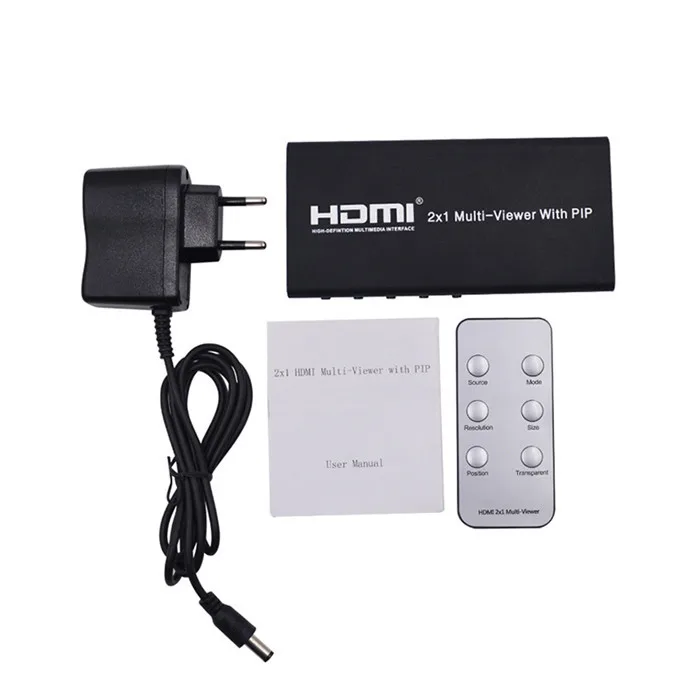

hdmi 2 port hdmi 2x1 multi-viewer with pip with IR picture division
| Related Products |
AV TO VGA USB FAX MODEM hdmi 4x1 multi-viewer
AV2HDMI Mirascreen(wifi display dongle) USB 2.0 to SATA CABLE
Product Features
hdmi 2 port hdmi 2x1 multi-viewer with pip with IR picture division
| Product type | hdmi 2 x 1 multi-viewer |
Color | Black |
| OEM | Yes |
| Quality | High quality |
| Stock | Yes |
Support HDMI1.3, HDCP1.2 version, and backward compatible
Support two HDMI input, all the way output
Supports single screen switching
Support dual-screen display, dual-screen mode to support up and down, left and right, picture in picture, display four mode switch
Support resolution switching, support OSD mode, so that users more clearly know the screen viewing screen resolution
Support picture in picture small and medium picture transparency adjustment, move, zoom, reduce the switch (picture in the small picture transparency adjustment function is only controlled by the remote control)
Supports power supply from 5 to 12V power adapter
Product parameter:
HDMI maximum transmission bandwidth ............................................. 225MHz
HDMI maximum transmission speed ........................................... 5.76Gbps
HDMI audio support ......................... TrueHD, DTS-HD Master Audio 7.1CH
Input resolution ................ 480I60HZ, 480P60HZ, 576I50HZ, 576P50HZ, 720P50 / 60HZ, 1080I50 / 60HZ, 1080P24 / 30/50 / 60HZ, 800 × 600 @ 60,1024 × 768 @ 60,1280 × 720 @ 60,1920 × 1080 @ 60
Output resolution ................ 1024 × 768P @ 60,1360 × 687P @ 60,1280 × 720P @ 60,1920 × 1080i @ 60,1920 × 1080P @ 60
Input and output TMDS signal ................................... 0.5 ~ 1.5Vp-p (TTL)
Input and output DDC signal ........................................... 5Vp-p ( TTL)
HDMI input cable length ............................... ≤ 5m AWG26 HDMI standard line
HDMI output cable length ............................... ≤ 5m AWG26 HDMI standard line
Maximum operating current ............................................... .... 800mA
Power adapter specifications ...................... AC 100V-240V 50 / 60HZ, DC 5V-12V / 2A
Operating temperature................................................ ... -10 ~ + 55 ℃
Storage temperature ............................................. ... ~ 20 ~ + 60 ℃
Working humidity ........................................... 10 ~ 90% RH (no condensation)
Storage humidity ............................................. 5 ~ 95% RH (no condensation)
Human body mode Electrostatic discharge protection ................. ± 8kV (air gap discharge), ± 4kV (contact discharge)
Product Description

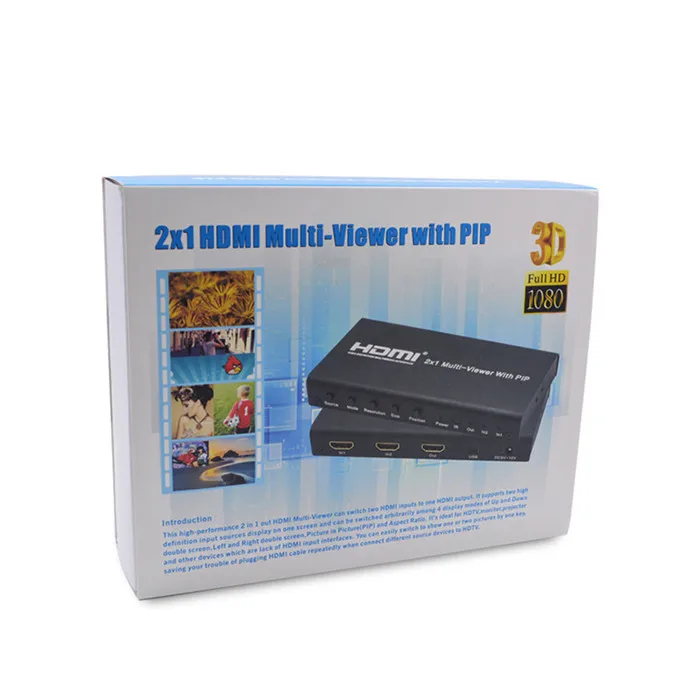

Packaging & Shipping
hdmi 2 port hdmi 2x1 multi-viewer with pip with IR picture division
1,We will adopt Safe, Health, Durable package for you.
2, Shipping type: DHL, UPS, Fedex, EMS, Post,TNT.
3, Shipping time: It is different base on the shipping type, generally 4~5 days.
