Двухсторонняя вакуумная экспозиция для печатных плат, сухая пленка, экспозиция

Name: Двухсторонняя вакуумная экспозиция для печатных плат, сухая пленка, экспозиция
SKU: 60722581384
Availability: InStock

Price:

Quantity:

Product Description

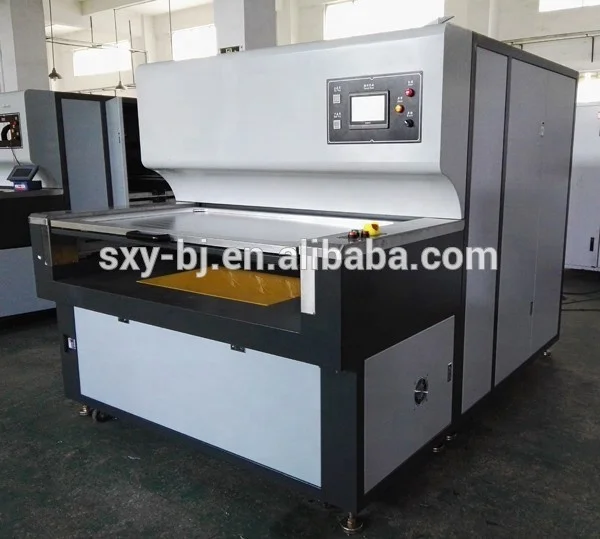

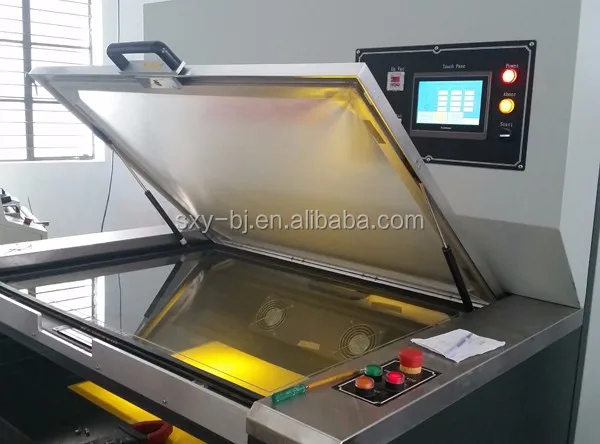

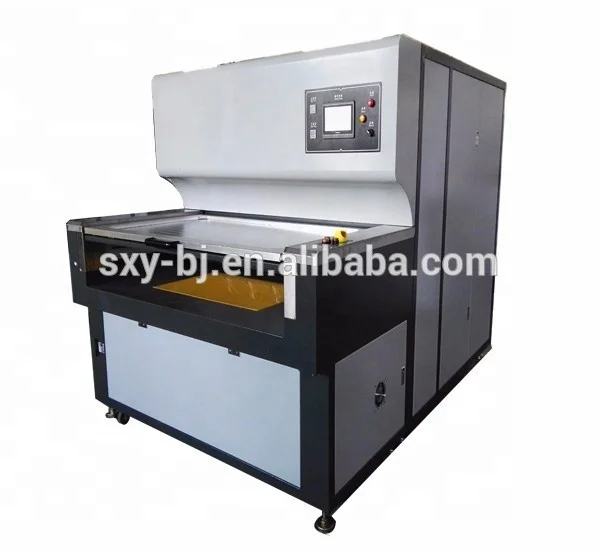

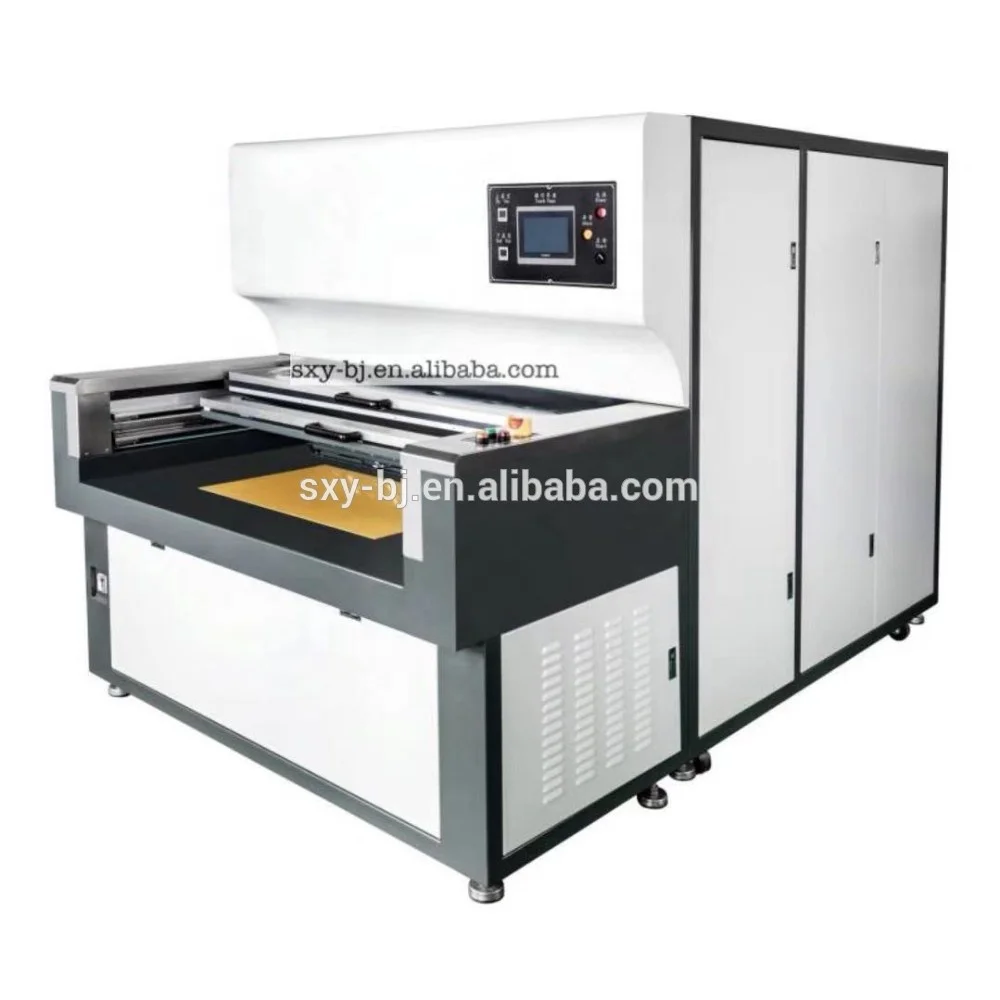

\t Double Sided Vacuum LED Exposure Machine for PCB dry film exposing work
\t Machine Model		\t B7090
\t Machine Power		\t 4.5KW/30A/50/60HZ,380V
\t Working Size		\t 700x900mm
\t Expose Lamp		\t UV LED light
\t Expose Type		\t Double Side & Vacuum
\t Exposing Table		\t Mylar Film & Glass
\t Expose Time		\t <20S
\t Light uniformity		\t >90%
\t Plate Thickness		\t 0.05~4.5mm
\t Cooling System		\t Water Cooled for lamp
\t Operation		\t Human-Computer & PLC
\t Working		\t Temperature 25℃ Humidity:55%
\t Protection Function		\t 1.LED Light Off Alarm 2.Over Temperature Alarm 3.open-phase protection 4.short-circuit protection
\t Machine size/ Weight		\t 1400mm X 2400mm X 1750mm / 900kgs
