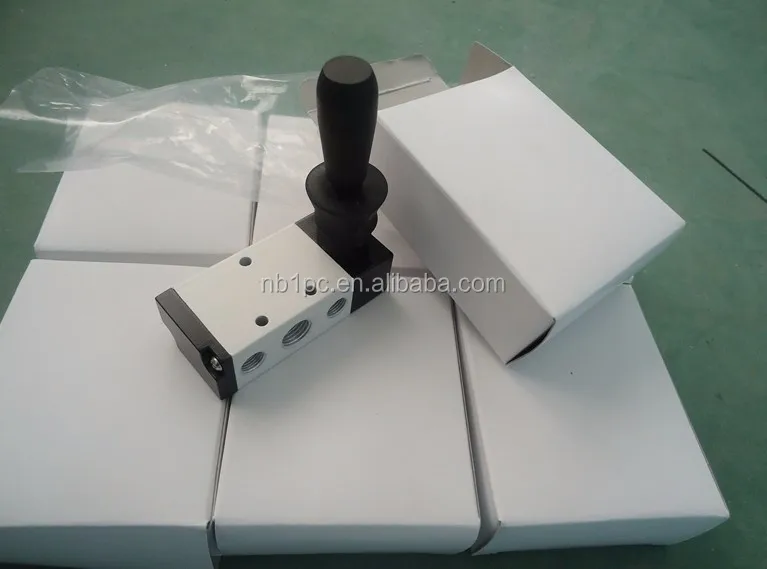

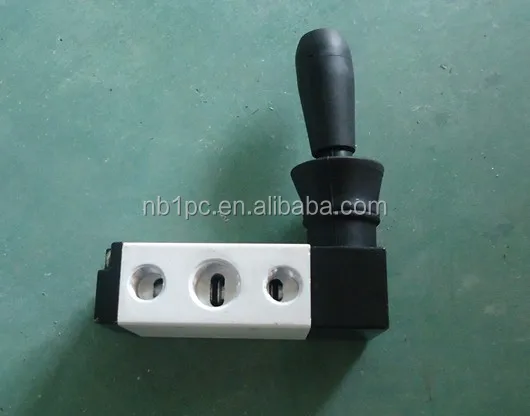

1/4' 3/5 Way Single Head Hand Pull Valves With Lock 4H230 08L

The mechanical valves usually go on with reversing through the outer forces. When the outer strenght disappear, the valve will come back the original position and exchange the direction. The structure soloker knob and emergency push button with lock has the memory function. However, according to the function of valves, it's split into three port and two way as well as five port 2 way. The 3/2 way usual is used to control the output signal of pneumatic system and the 5/2 way can directly drive the cylinder.

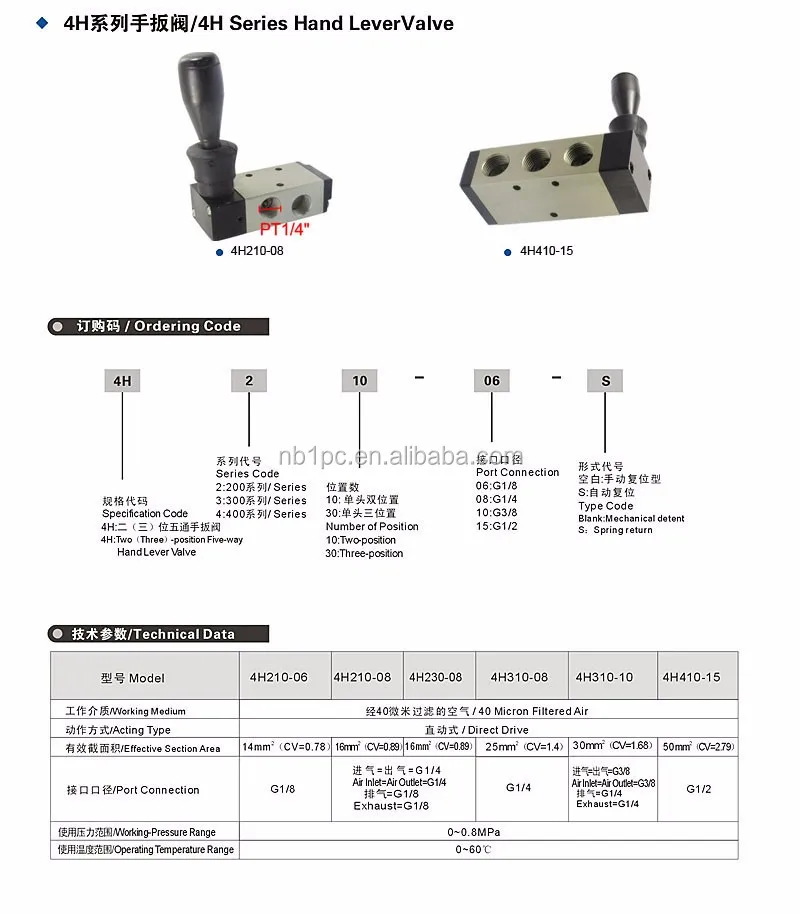

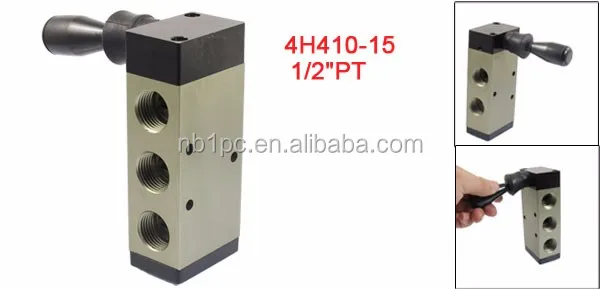

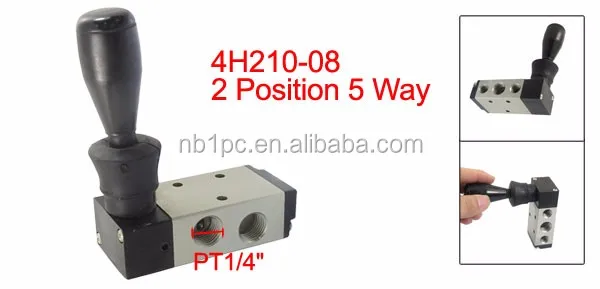

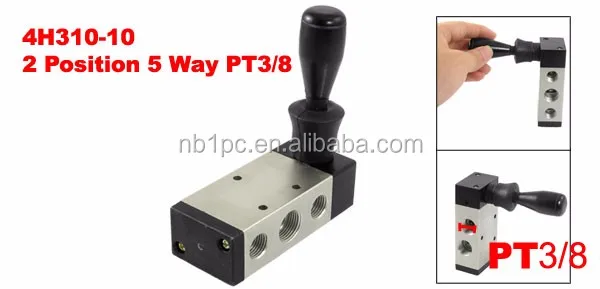

Model 4H210-08  4H210-08L  4H310-10  4H310-10L  4H410-15  4H410-15L
L          L: WITH LOCK TYPE

Fluid   40 micron fi ltered air
Operation: Direct drive type
Effective area

            16mm2(CV=0.89)         30mm2(CV=1.68)          50mm2(CV=2.79)
Port size
Inlet=Outlet=Exhaust=G1/4″   Inlet=Outlet=G3/8''Exhaust=G1/4″   Inlet=Outlet=Exhaust=G1/2″
Operating pressure: 0 ~ 1.0MPa
Operating temperature: 0 ~ 60'C

Description:
Pneumatic Foot Pedal Valve is 5/2 Way 5/3  Way, high performance.
Foot Valve is a change valve controlled by foot, with small operative force and emancipation of hands.
This kind of valve is widely applied to pneumatic system.
