Strong Corrosive Liquids Submersible Level Transmitter

Product Overview

Description

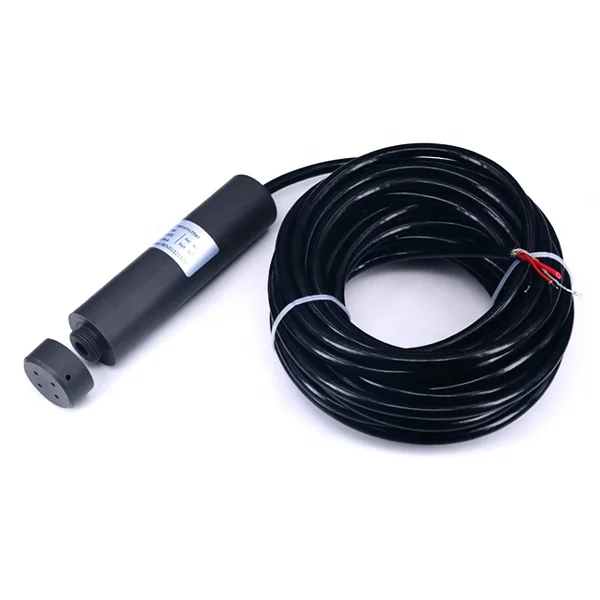

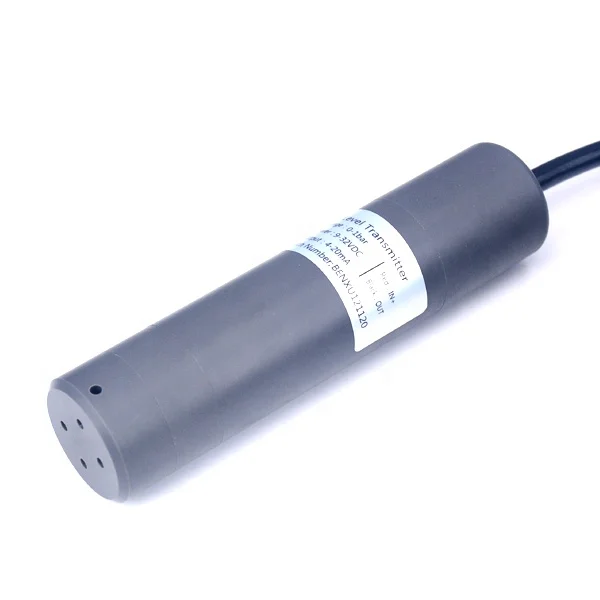

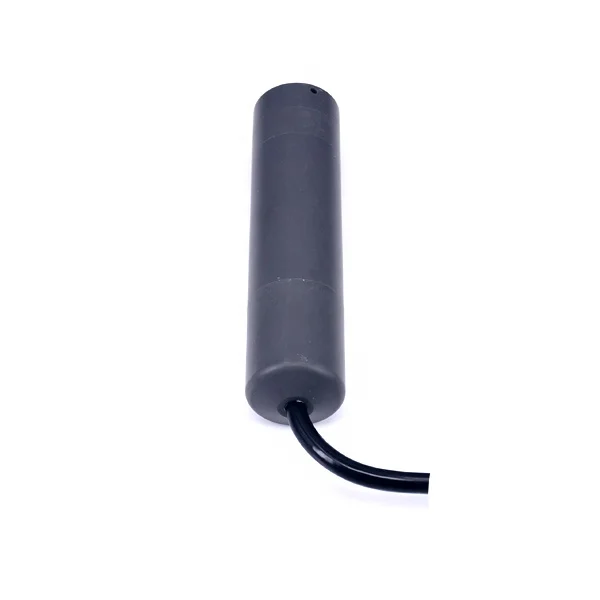

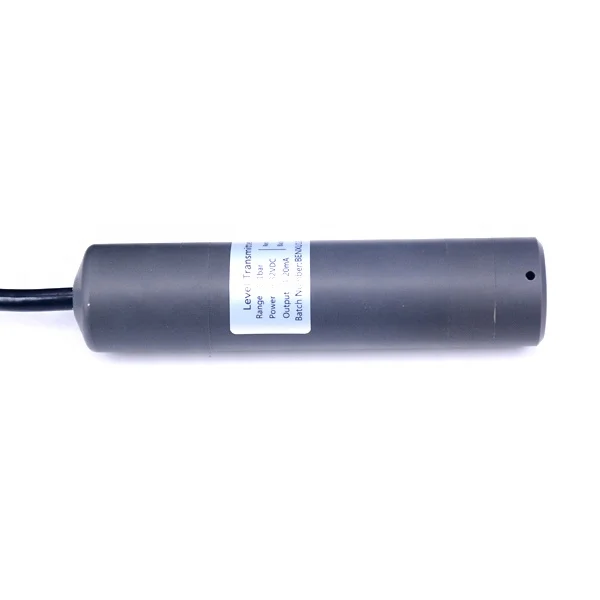

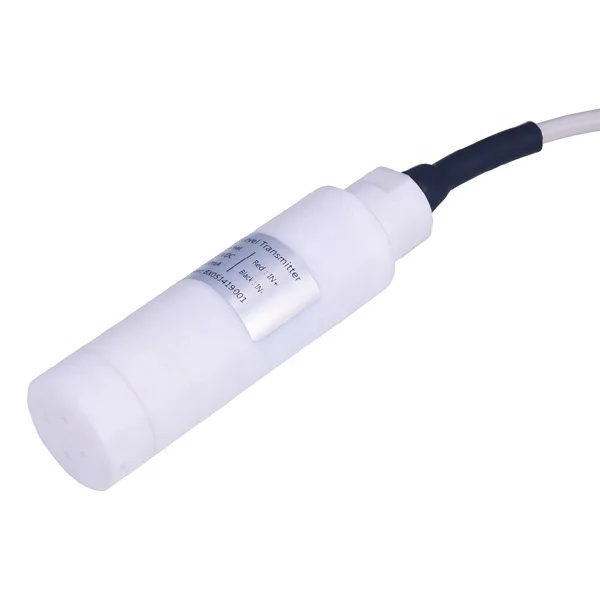

Submersible Level Transmitter for Strong Corrosive Liquids



Specifications:
1, Prevent from the surge voltage, over-voltage, over-current and the protection of reversed polarity;
2, Do the test to make sure the ability of overload resistance and shock resistance,precisely ensure the overload capacity;
3, Implement the electromagnetic interference resistance to avoid the problem taken place under the condition of complicated electromagnetism environment;
4, All sensitive chips are from the imported OEM parts,in order to keep the long-term stability.



Technical Parameters:

Measurement Range	0~0.5m~200mH2O
Measurement Medium	Strong Corrosive Liquids
Accuracy	±0.2%FS;±0.5%FS;
Overload Capacity	Two times full-scale pressure
Power Supply	9-32VDC
Output Signal	4-20mA/0-5VDC
Using Temperature	-20℃—70℃;-20℃—120℃
Compensation Temperature  Range	-10℃—80℃
ZTC	(typical):±0.02%FS/℃
STC	(typical):±0.02%FS/℃
Long-term Stability	(typical):±0.1%FS/year
Protection Class	Outer shell:IP68
Load Resistance	<=(U-10)/0.02Ω
Shell Material	PVC
Explosion-proof Type	Exia II CT6



Applied Field:

1,reservoir,watercourse,sea hydrologic and hydraulic system;
2,the factory which should solve the sewage;
3,urban water supply,the level measurement of well and pool.
