Product Overview
Description

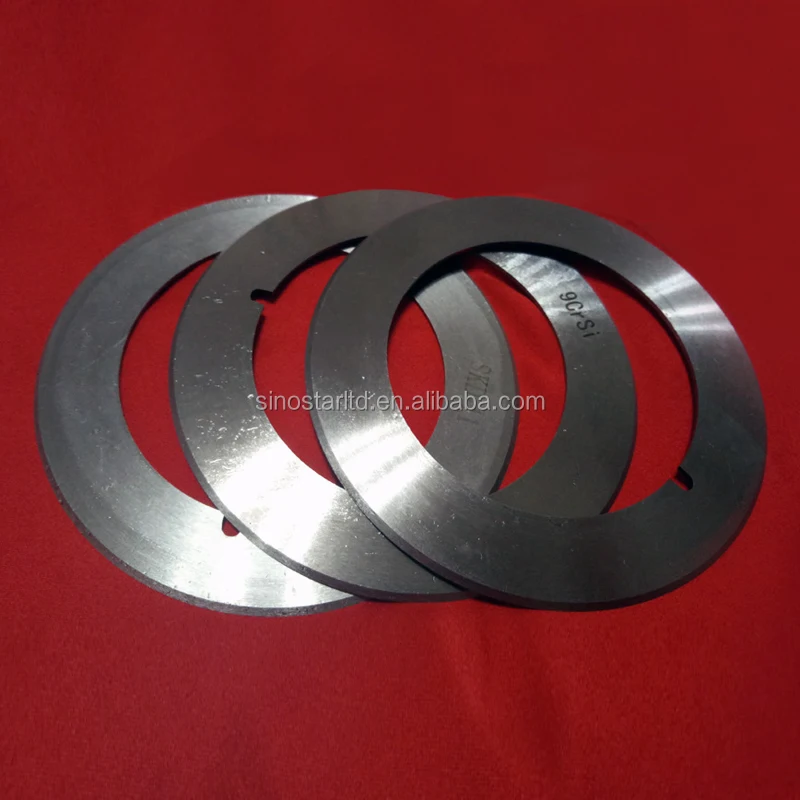

High speed steel slitting knife for pipe cutting
Material optional: 9CrSi, SKD-11, SKH-51, HSS, Tungsten carbide.
Product Description
Slitting knife parameter sheet
| Pipe slitting knife | ||||
| Specifications (mm) | OD (mm) | ID (mm) | Thickness (mm) | |
| 61x40x1 | 61 | 40 | 1 | |
| 76x25.4x1.2 | 76 | 25.4 | 1.2 | |
| 80x40x1 | 80 | 40 | 1 | |
| 90x22x1.5 | 90 | 22 | 1.5 | |
| 90x60x1.2 | 90 | 60 | 1.2 | |
| 100x22x1 | 100 | 22 | 1 | |
| 100x25.4x1 | 100 | 25.4 | 1 | |
| 100x25.4x1.5 | 100 | 25.4 | 1.5 | |
| 100x25.4x2 | 102 | 25.4 | 2 | |
| 110x25.4x1.5 | 105 | 70 | 1 | |
| 110x25.4x2 | 110 | 25.4 | 2 | |
| 110x32x2 | 110 | 32 | 2 | |
| 110x43x2 | 110 | 43 | 2 | |
| 110x55x2 | 110 | 55 | 2 | |
| 120x25.4x2 | 120 | 25.4 | 2 | |
| 150x25.4x2 | 150 | 25.4 | 2 | |
| 150x32x1 | 150 | 32 | 1 | |
| 150x70x2.5 | 150 | 70 | 2.5 | |
Features & Benefits
- 10 production processes to go through for every individual knife.
- Assuring the ultimate in life time.
- Lower yearly knife consumption costs.
- Triple tempered to retain the hardness while toughness kept.
- Strictly quality control for excellent valve.
- High precision, high intensity, excellent hardness,small thermal deformation.
- Matched to their applications.
- Intregrated output increase.
- Reduce unsurpassed edge quality.
Reward customers with high Productivity.

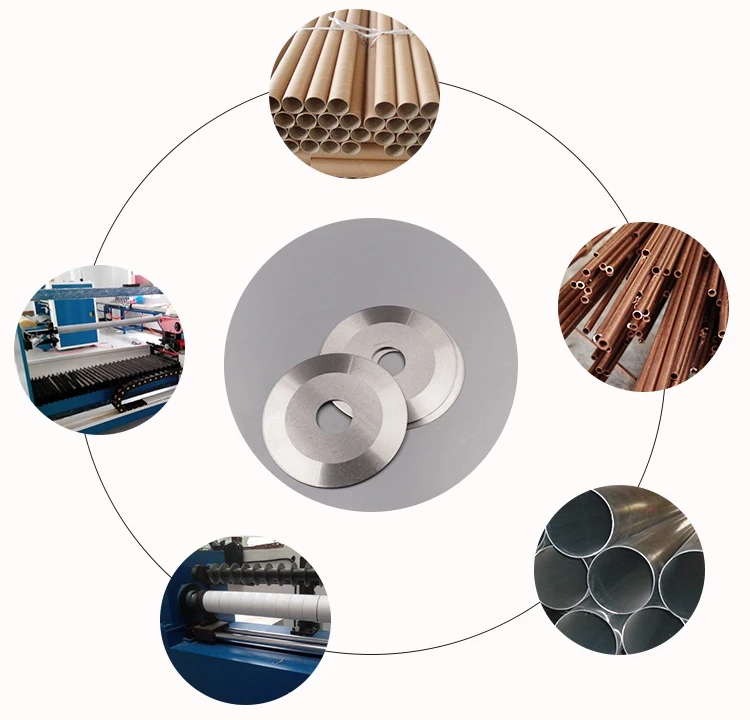

Applications
- Paper tube, Plastic pipe.
- Aluminum tube, Aluminum foil, Copper pipe, iron pipe, etc.
- film, foil, fiber glass, tape, etc.
