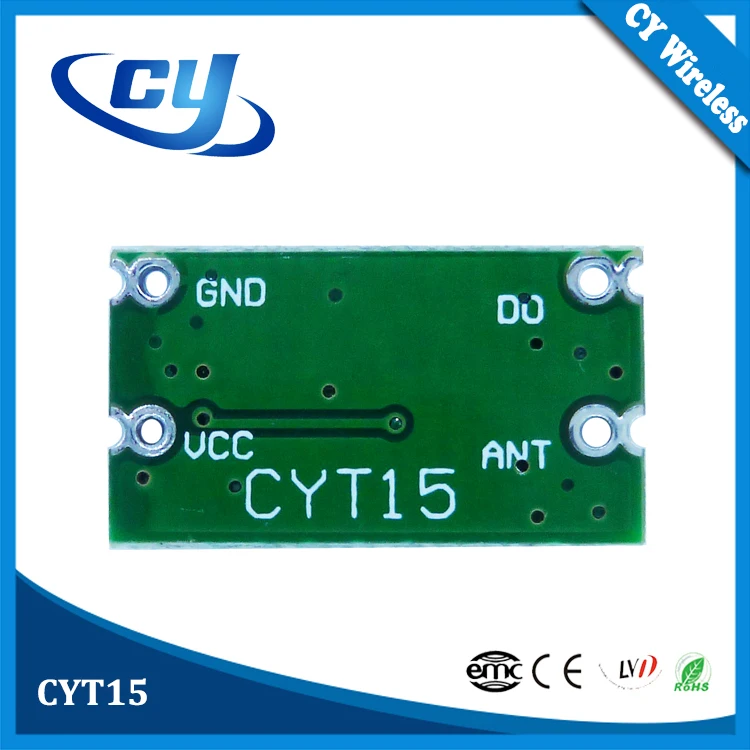

CYT15 ASK/OOK RF 433.92 MHz Transmitter Module Circuits Electronic

Product Overview

Description

CYT15 ASK/OOK RF 433.92 MHz Transmitter Module Circuits Electronic

DESCRIPTION:
The CYT15 is an ASK/OOK transmitter module. It is simple to use with excellent performance. The CYT15 is designed specifically for remote-control, wireless mouse and car alarm system operating at 315MHz/433.92MHz.

FEATURES:
The range can be 500m when matching with CY11
Operation voltage: VCC= 2.6 to 12V;

Frequency: 315MHz/433.92MHz(custom frequency is available);
High output power: 15dBm;
Frequency tolerance: ±75 KHz;
Current: 12mA;
Operating temperature: -20℃~+70℃
Bit rate: <1.2kbps;

APPLICATION:
Remote gate controls
Remote keyless entry
Car alarm systems
Wireless security systems
Automation systems

PIN DEFINITION:

ELECTRICAL CHARACTERISTICS:

Condition: Ta=25℃ Vcc=5.0V

MECHANICAL SIZE: (unit: mm)

PCB Dimension Size Tolerance: +-3%
