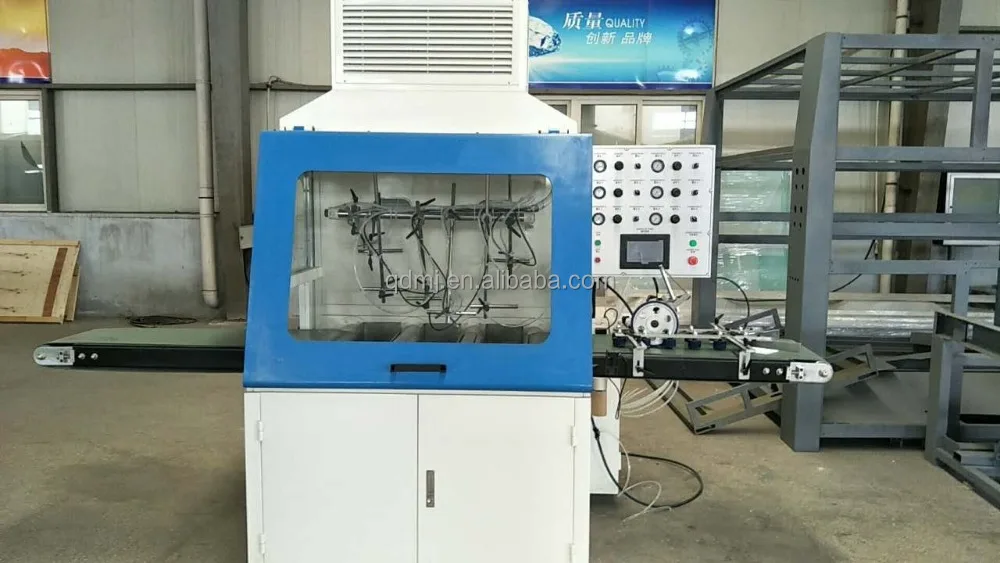

Woodworking Solid Wood MDF furniture UV PU Water based Profile Spray Spraying Painting Machine
- Category: Other Woodworking Machinery >>>
- Supplier: Qingdao Haozhonghao Woodworking Machinery Co. Ltd.
Share on (60722827558):
Product Overview
Description
HOT SLAES
Product Description
Woodworking Profile Paint Spraying Machine Parameters:

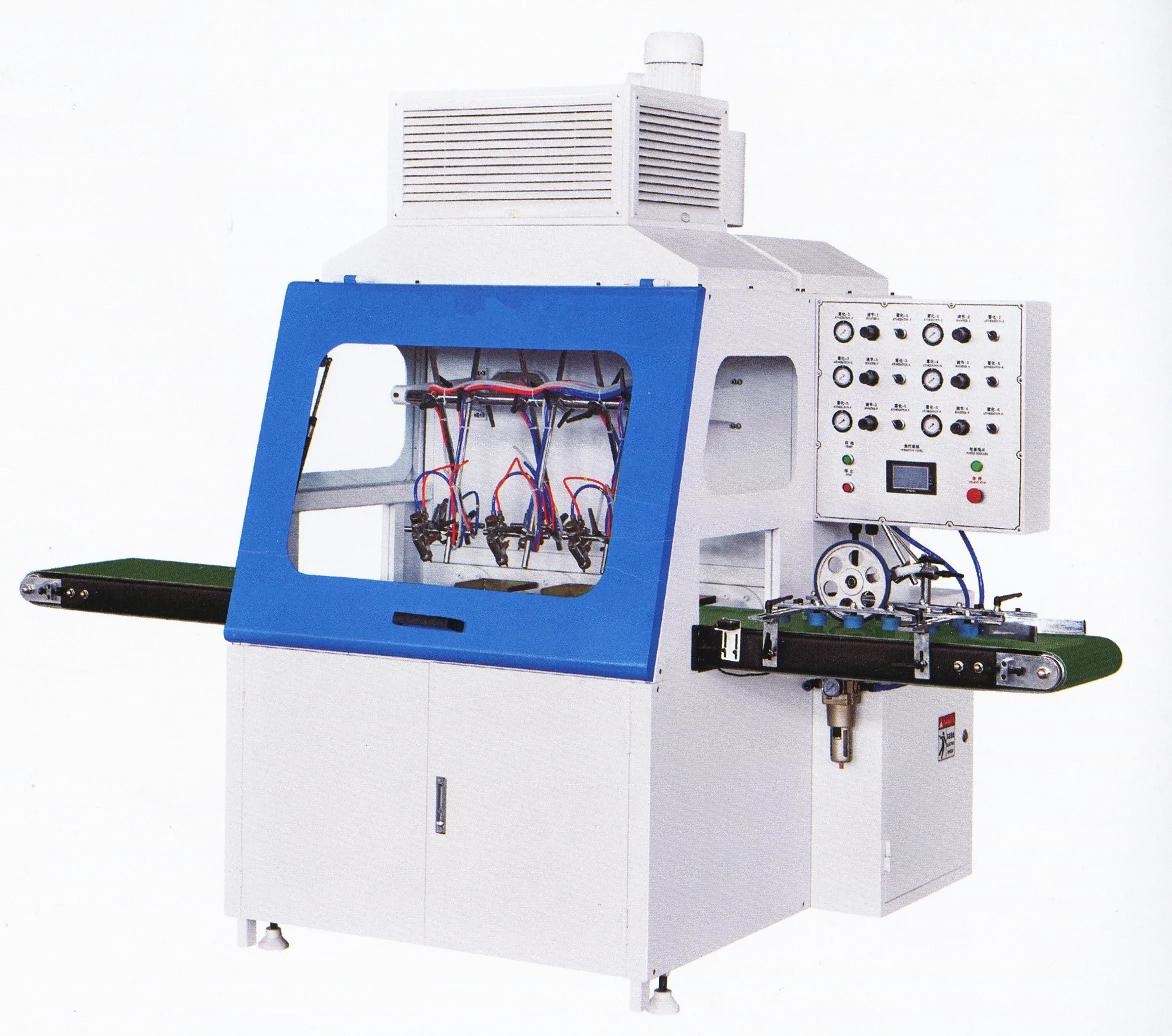

It is a special machine for spraying slightness work piece. This machine has high automatization; symmetrical spraying surface; accurate control; high producing efficiency and high cost performance. It is suitable for UV, PU, PE, NV, etc. It has UV lacquer reclaiming equipment to reduce waste. It can be used alone and also can be equipped with line drier to make the work piece dried as soon as spraying finished.
MODEL | LSPM400 | LSPM600 |
Working width | 10-400mm | 10-600mm |
Working thickness | 10-100mm | 10-100mm |
Min. working length | 700mm | 700mm |
Feeding speed | 0-50m/min | 0-50m/min |
Working spraying gun | 3pcs | 3pcs |
Working pressure | 0.5-0.8Mpa | 0.5-0.8Mpa |
Total power | 2.25Kw | 2.25Kw |
Figure Dimension | 3500×1700×2000mm | 3500×2000×2000mm |
Weight | 1600Kg | 1800Kg |
Detailed Image

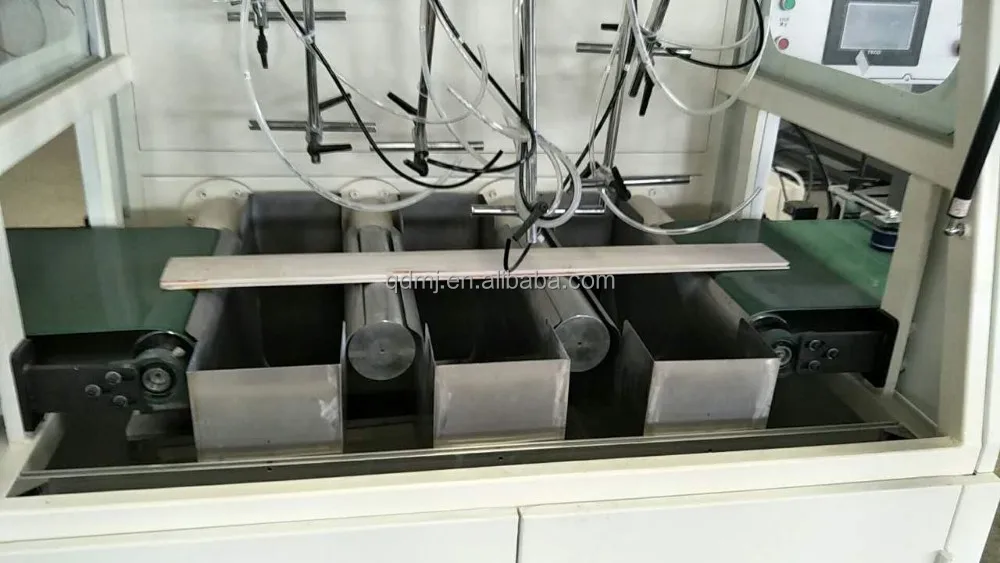

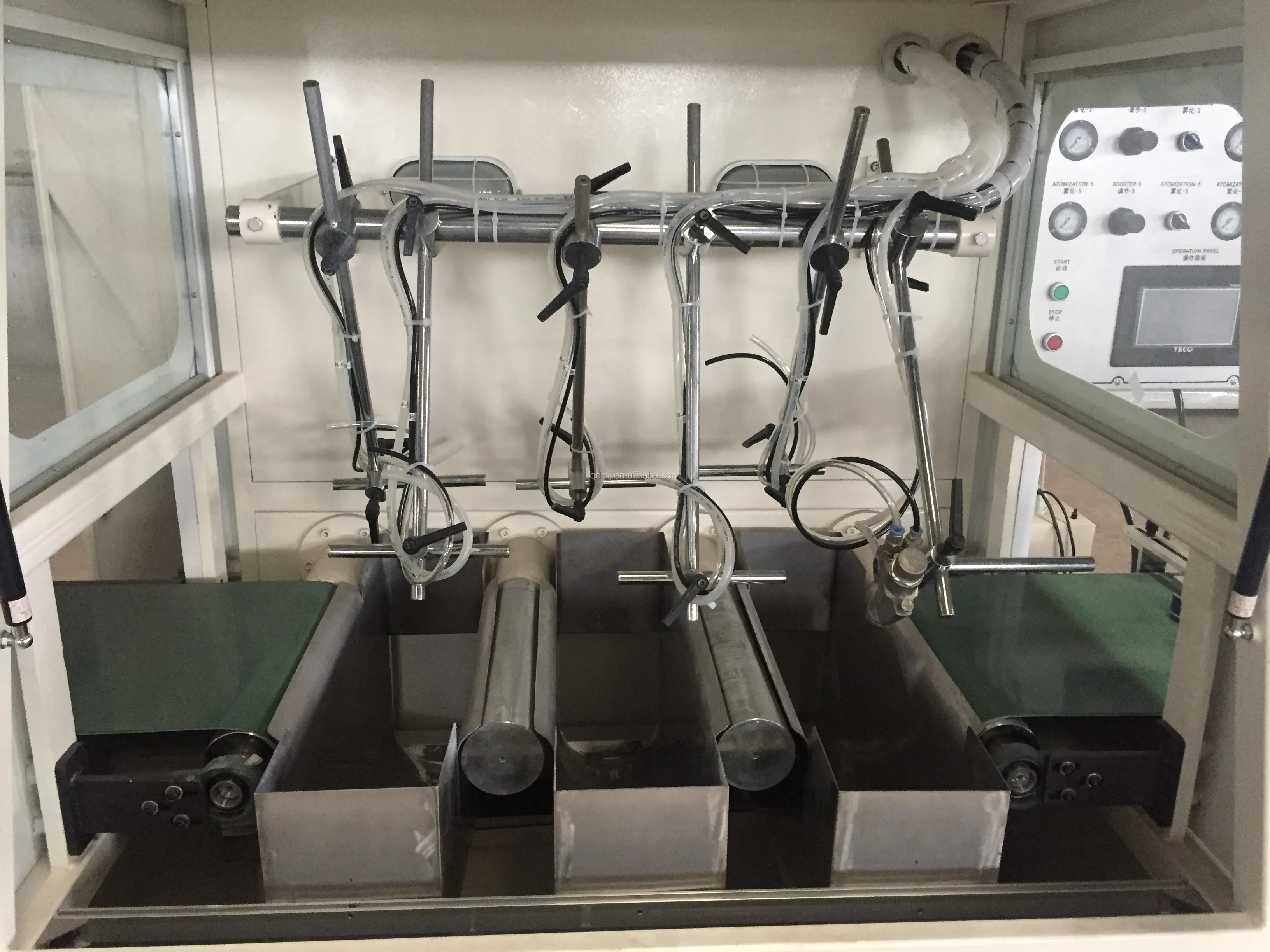

With paint recycle systm, the overspray paint can flow into tank in bottom of the machine, fliter and reuse

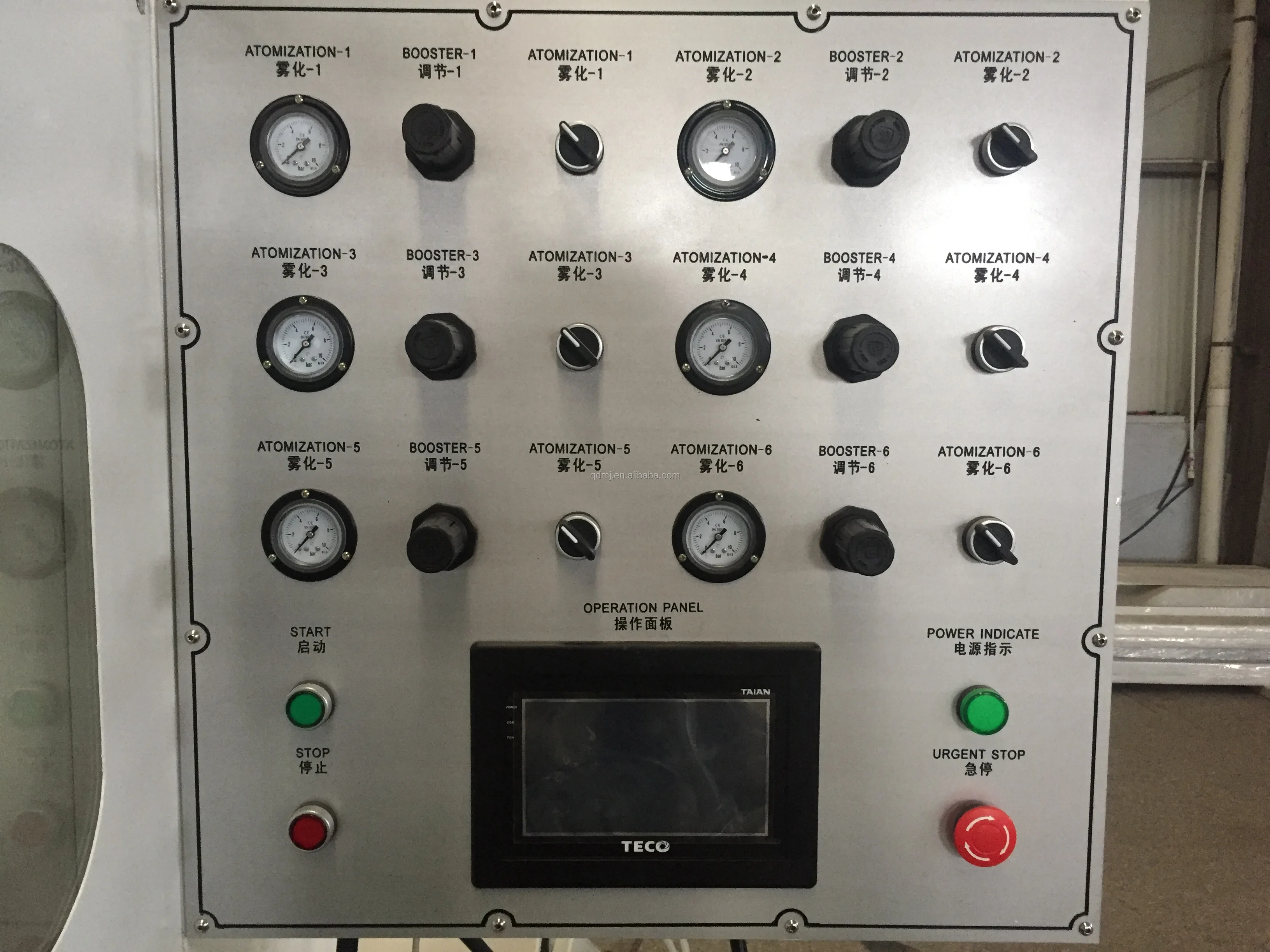

Control panel

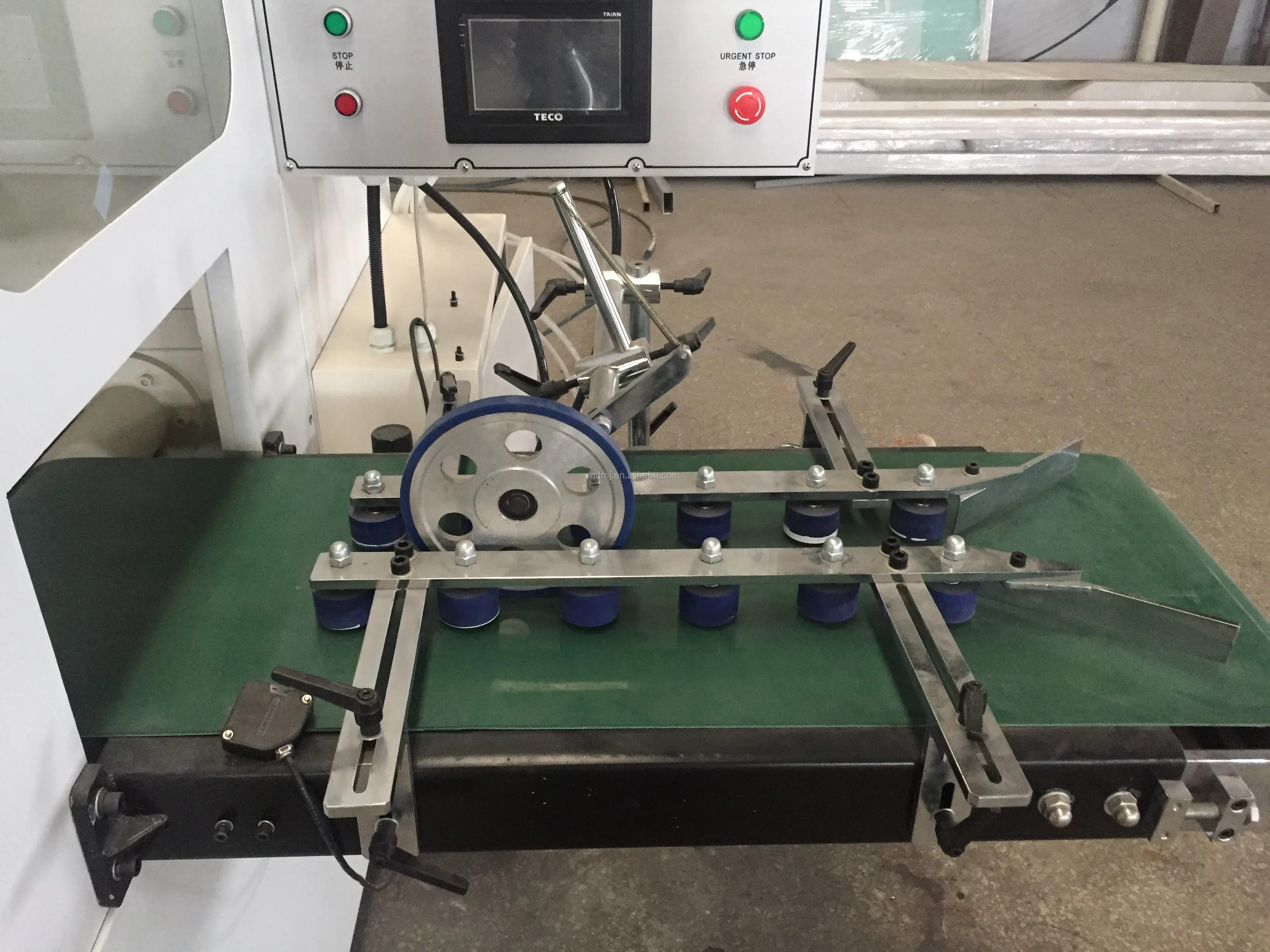

Profile feeding system, feed work piece more smoothly
Title goes here.

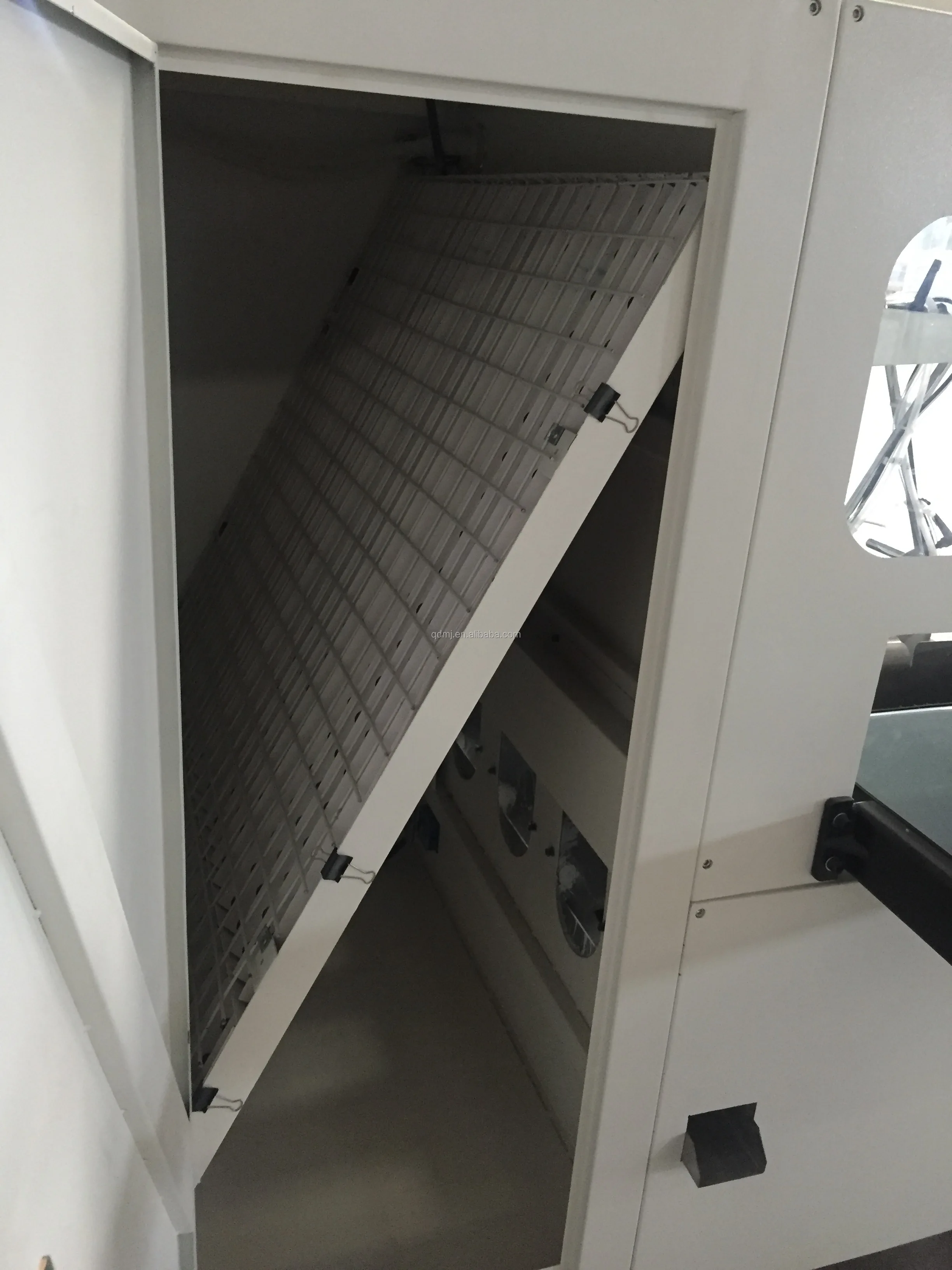

with filter to filt the paint in the air
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging | ||
Size | 3500(L) * 1700 (W) * 2000 (D)mm | |
Weight | 1600kg | |
Packaging Details | The normal package is plastic bags can make plywood case package if needs | |
