Product Overview

Description



\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t


Product Application

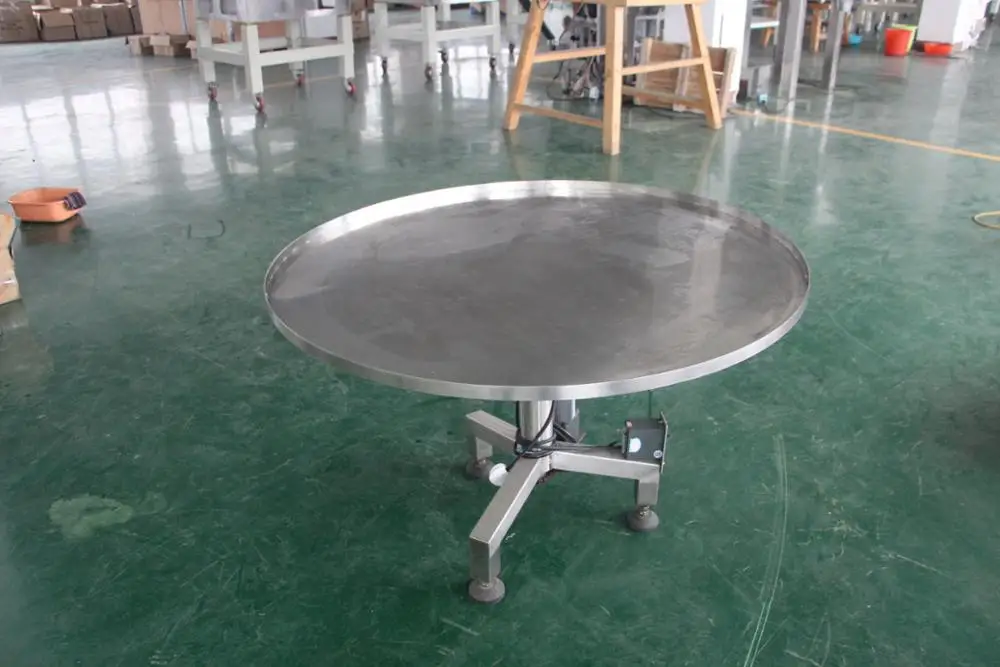

Rotary table is for transferring bag when pack bag in carton.



                                                                                        Main Features
1) 304SS frame, which is stable, reliable and good appearance.

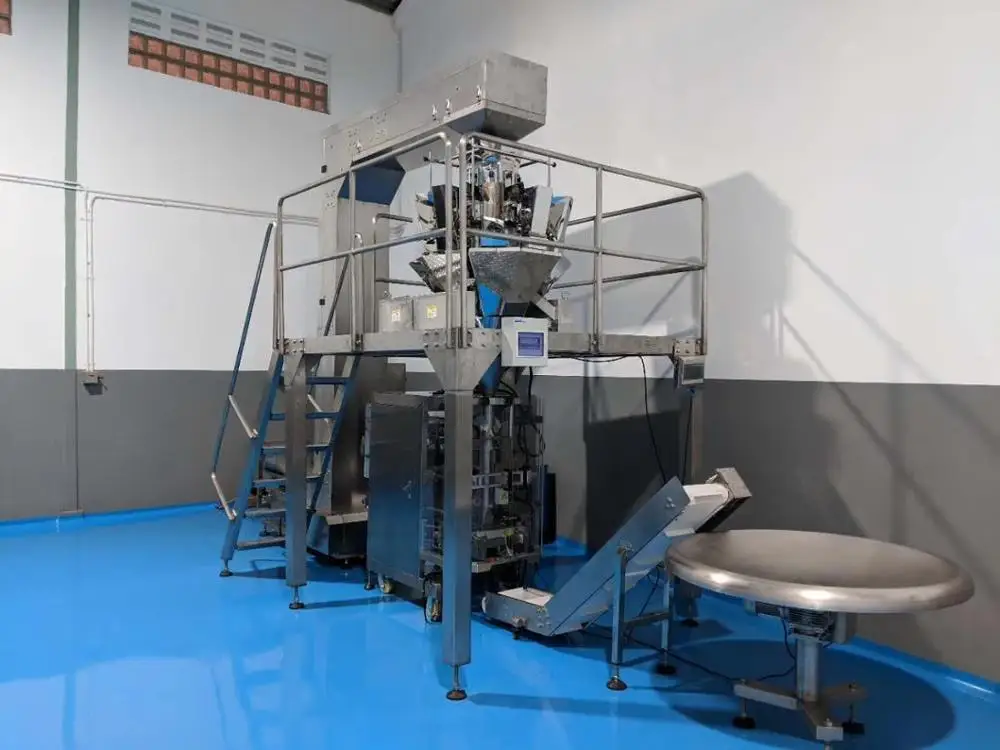

2)Working with take-off conveyor, check weigher, metal detector or other horizontal conveyor.
3) Height of table can be modified.
4) Easy to install, operate and maintain.


                                                                                             Options
Curve type or flat type are optional.


a.Curve type

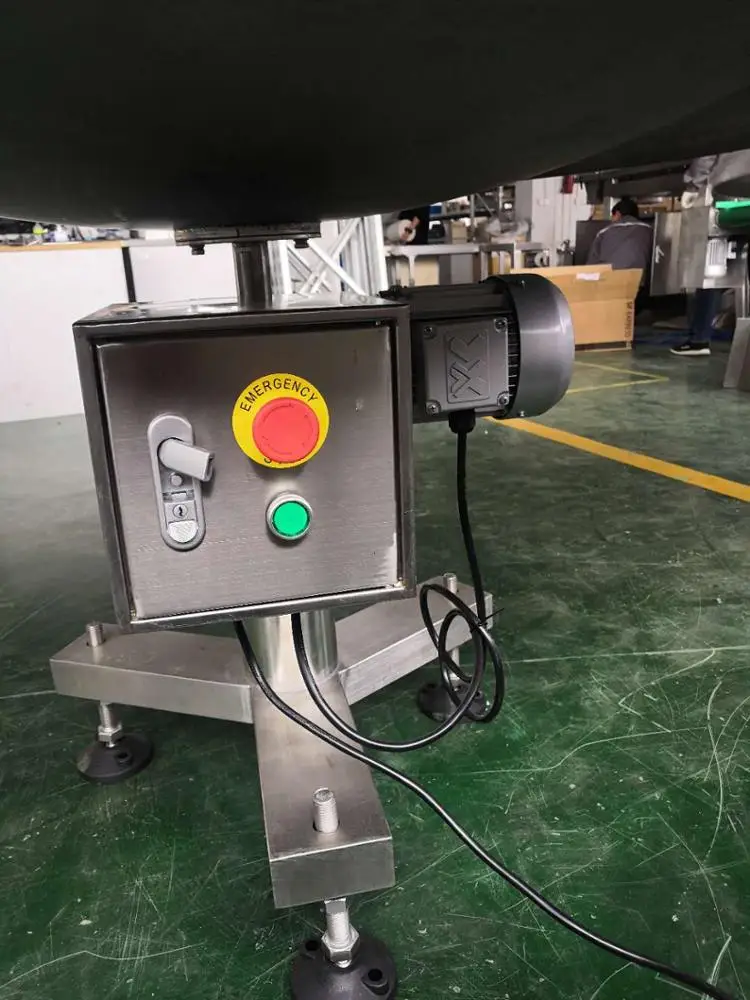

ZH-QR (curve type) :Thicker table top which is more stable and strong.,speed tune with frequency converter, control with high reliability,motor drive with 400W power.





                                                                                   Technical Specification
Model
ZH-QR
Height
700±50 mm
Diameter of Pan
1200mm
Driver Method
Motor
Power Parameter
220V 50/60Hz 400W
Package Volume (mm)
1270(L)×1270(W)×900(H)
Gross Weight(Kg)
100

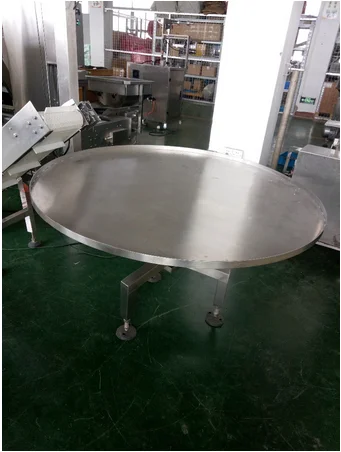

b.Flat type
ZH-QRS (flat type) :Speed tune with governor, structure is simple.





                                                                                   Technical Specification
Model
ZH-QRS
Height
700±50 mm
Diameter of Pan
1200mm
Driver Method
Motor
Power Parameter
220V 50/60Hz 90W
Package Volume (mm)
1260(L)×1260(W)×1010(H)
Gross Weight(Kg)
100
