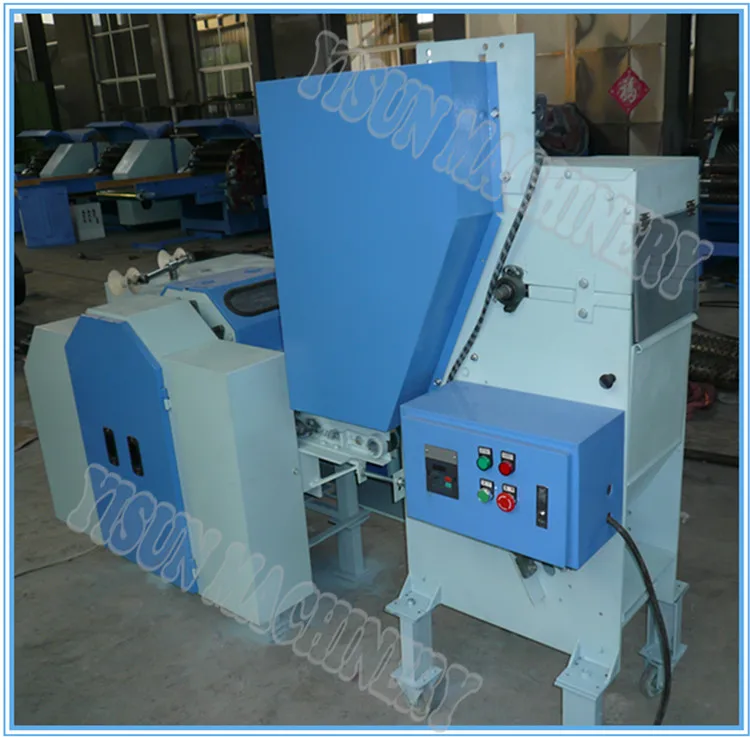

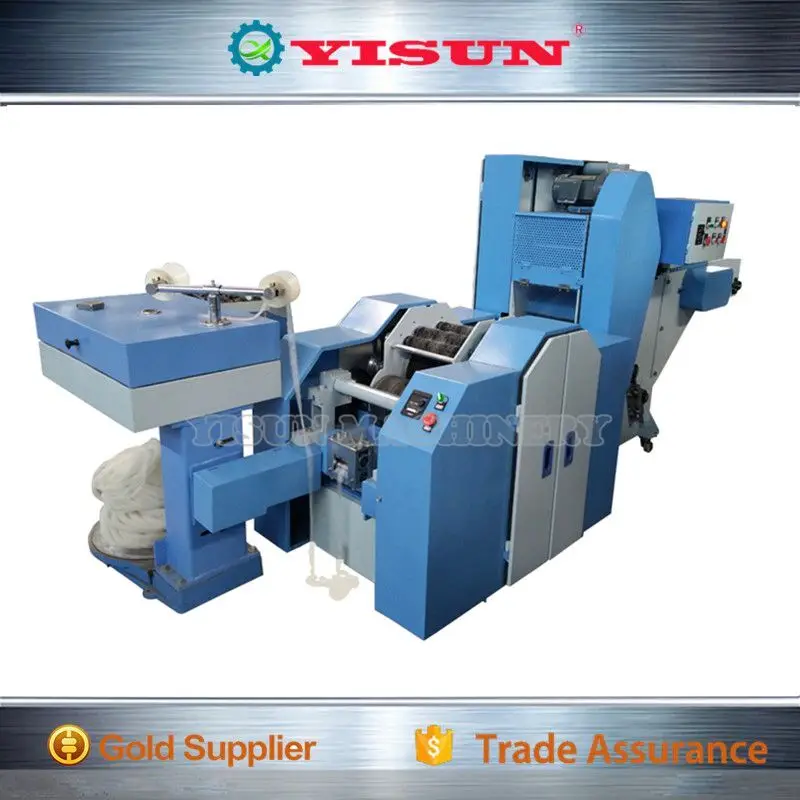

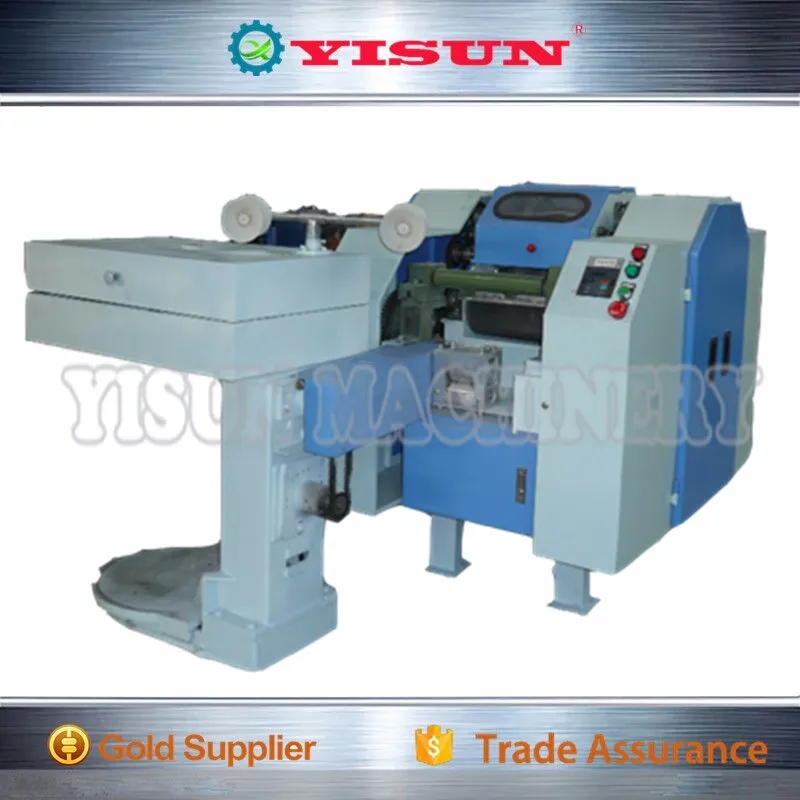

Small Laboratory Use Wool Fiber Carding Machine

YX107-A Sample Carding Machine makes the sample of wool and chemical fiber slivers through opening, mixing and carding.

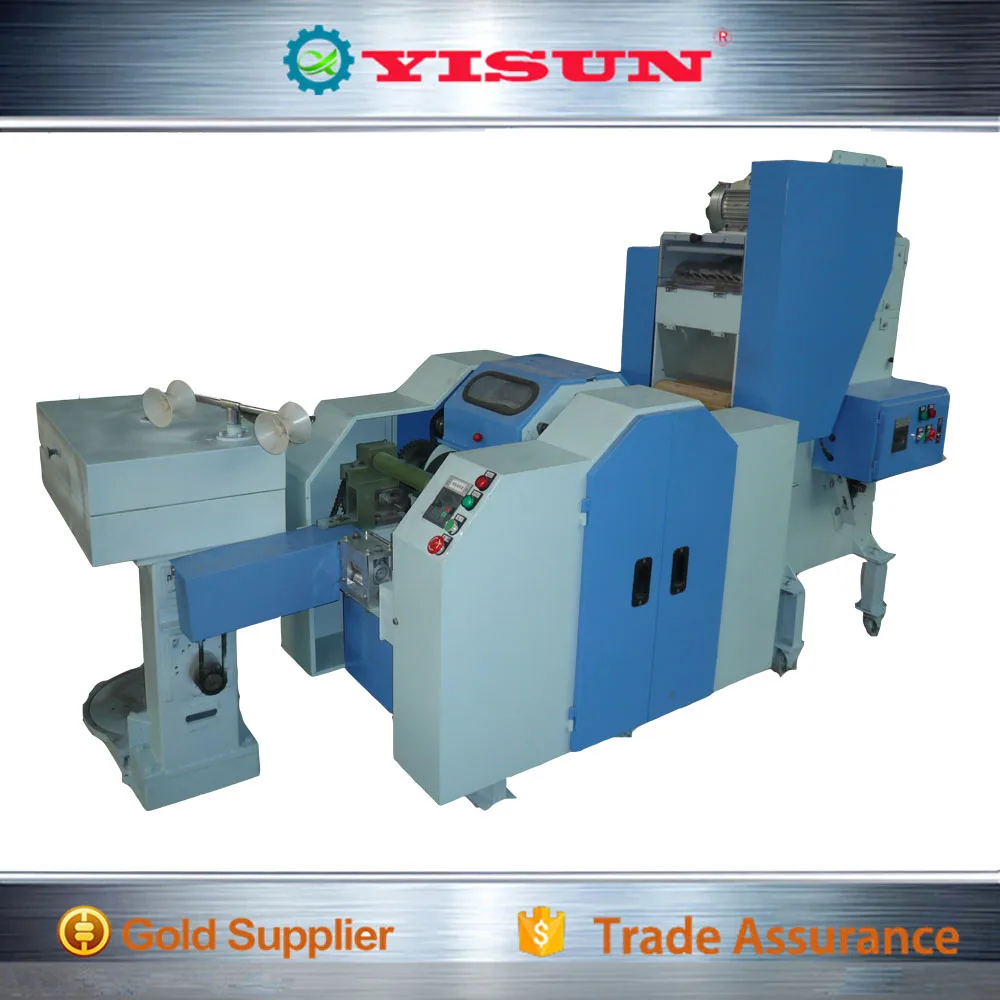

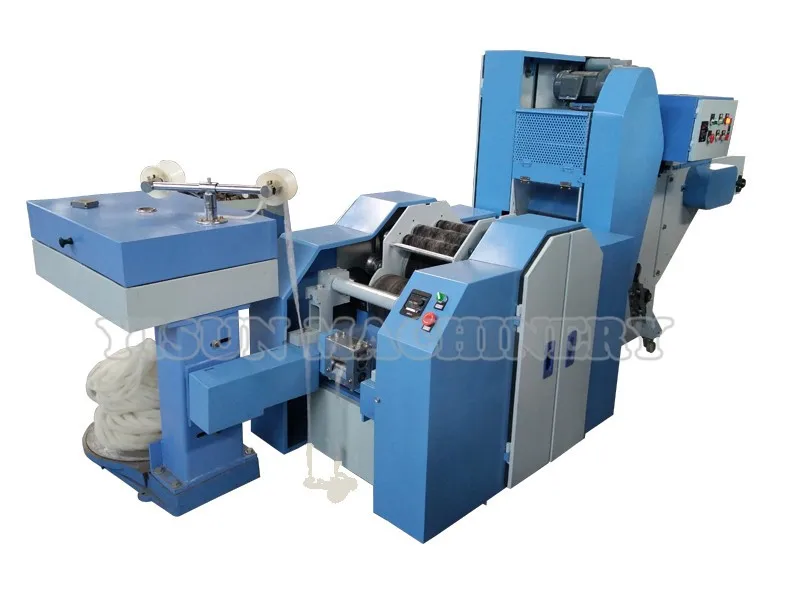

YX107 series colour spinning machine, according to the application, achieve roller drum type of get out of net,  get out of slivers, feeder-carding-coiler integrated.

Specifications

Cylinder Width	300mm
Capacity	about 5-10kg/h
Diameter of Cylinder	Φ270mm
Diameter of Doffer	Φ160mm
Diameter of licker-in	Φ160mm
Diameter of working rollers	Φ60mm
Diameter of stripping rollers	Φ60mm
Diameter of feeding rollers	Φ60mm
Speed	The whole machine is driven by a geared motor, and is equipped with a frequency converter to slow down.
Power	1.9kw
Weight	about 350kg
Dimension	1300*1000*900mm

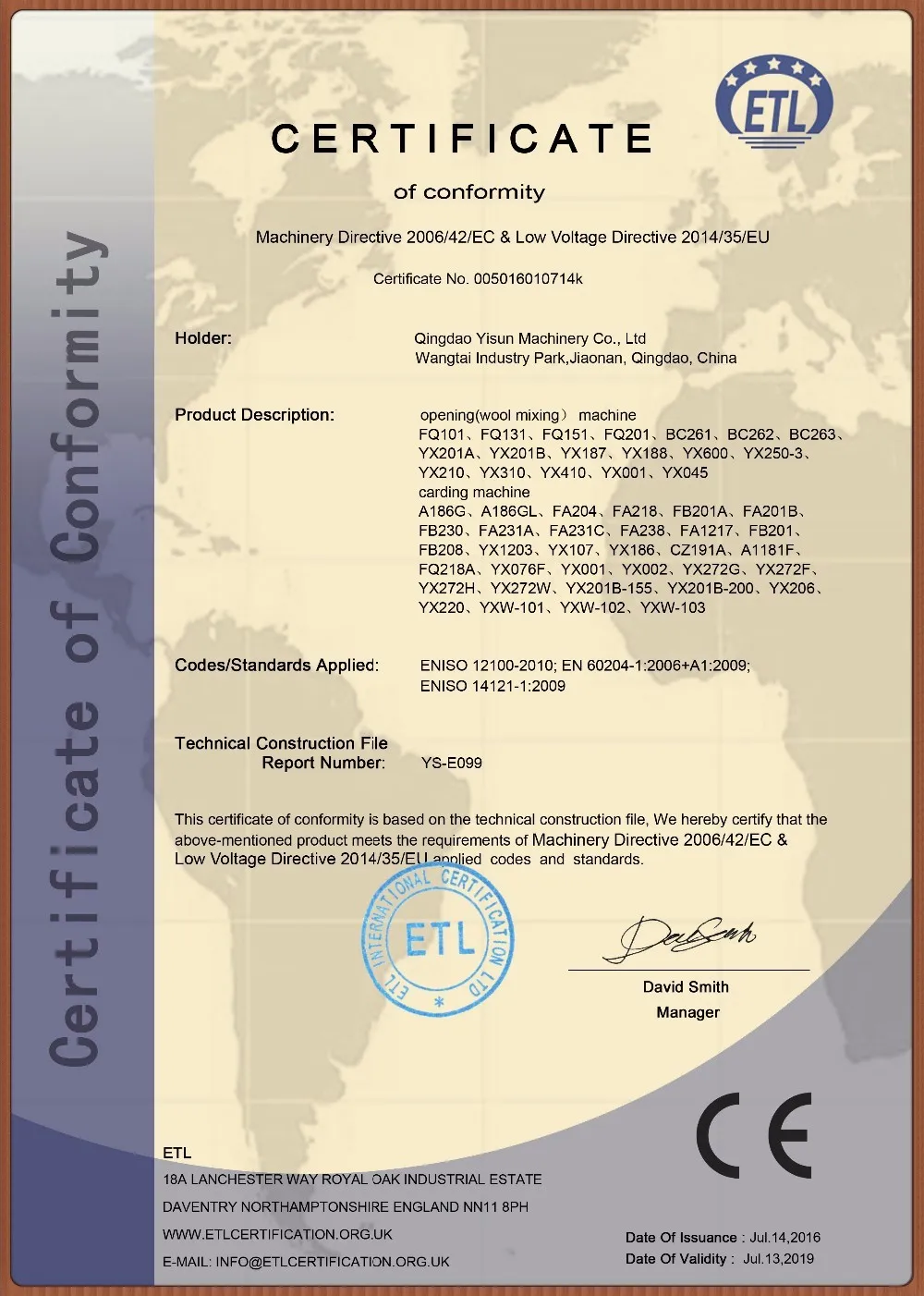

Certifications

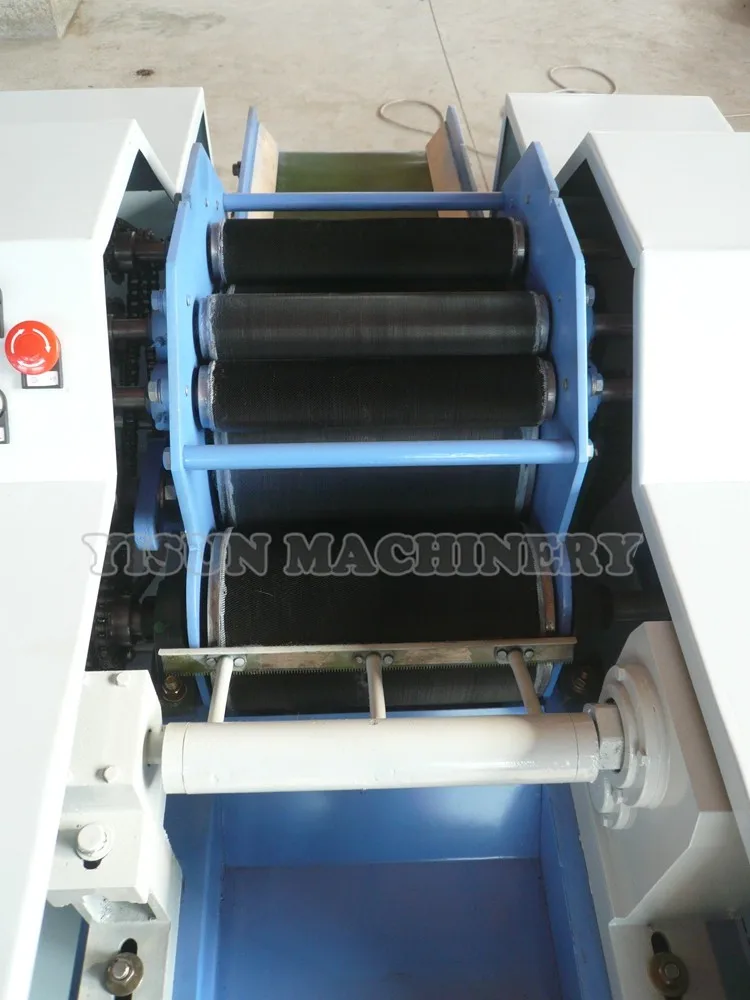

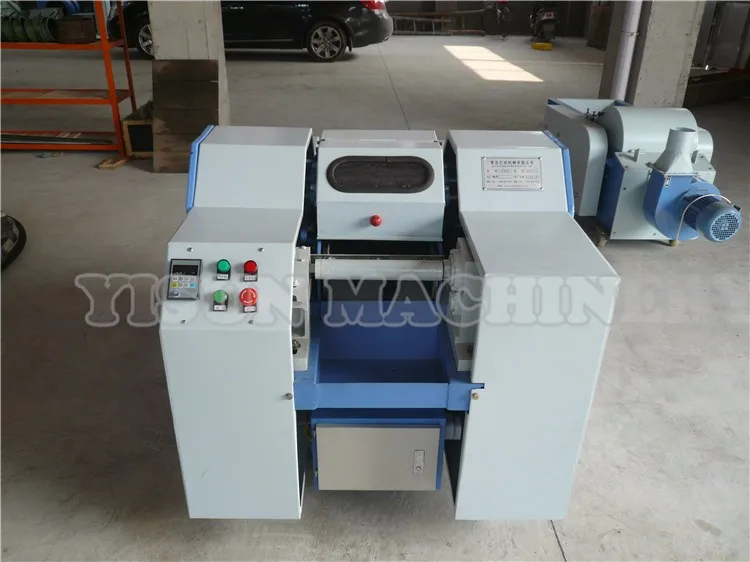

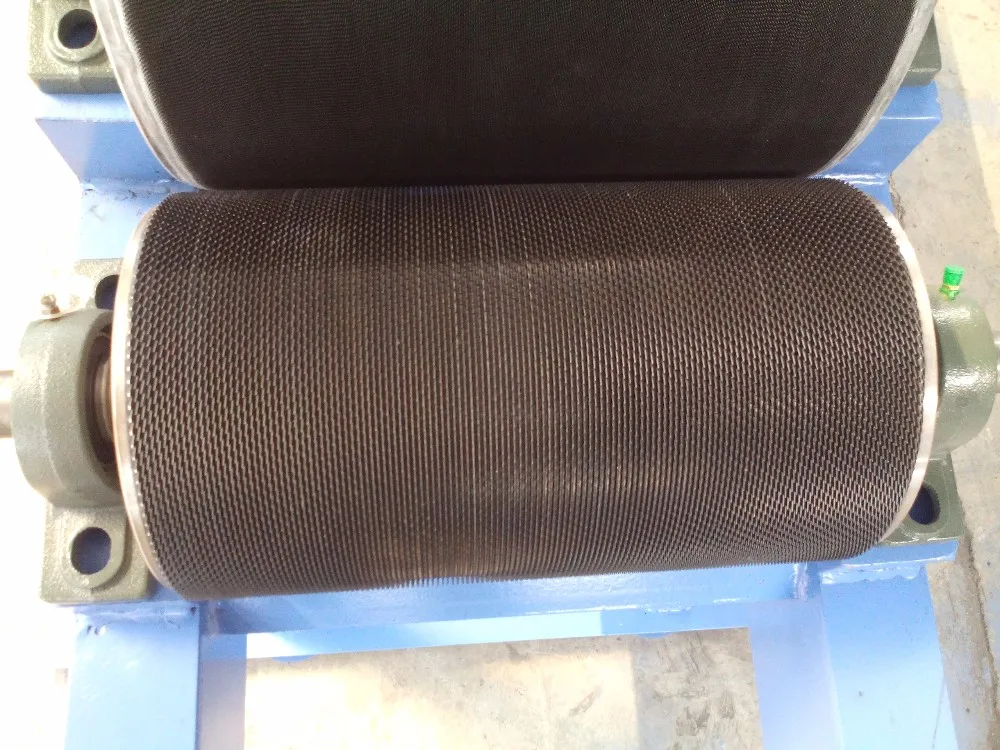

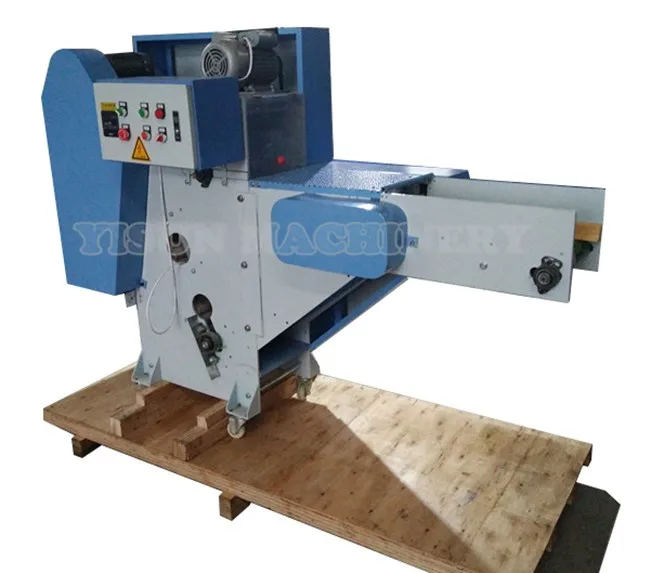

Detailed Images

Our Service

Pre-sale services:

1> Provide the free consultation of the equipment
2> Provide the standard device and the flow chart
3> According to the clients’ special requirement, offering the reasonable plan and free design helping to
select the equipment.
4> Welcome to visit our factory


After sale services:

1> 24 hours online service
2> Provide the VIDEO with Install and debug the equipment
3> Provide technical exchanging

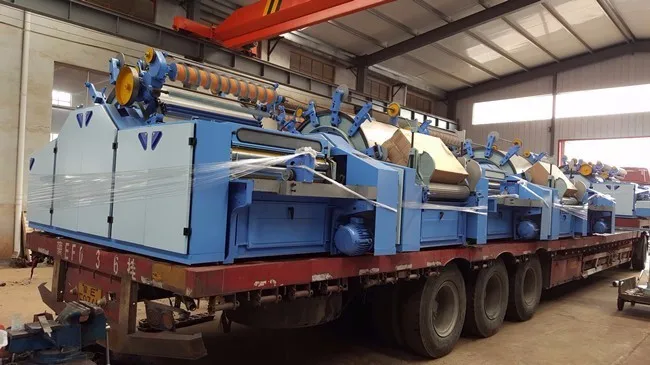

Packing & Delivery

Outside Packaging: Standard Export Wooden Case
Inner Packaging: Plastic Foam Packaging
Delivery Details: 30-45Days
