37GB 500 DC gear motor for Paper shredder machine
- Category: >>>
- Supplier: Dongguan City Well Motor Co. Ltd.
Share on (60722873504):
Product Overview
Description
Product Display

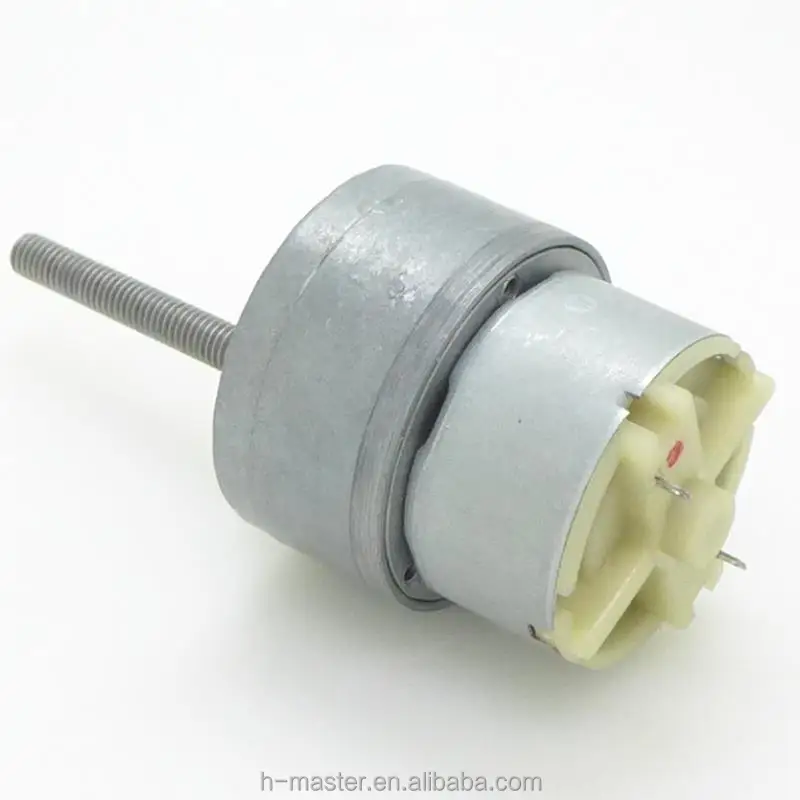

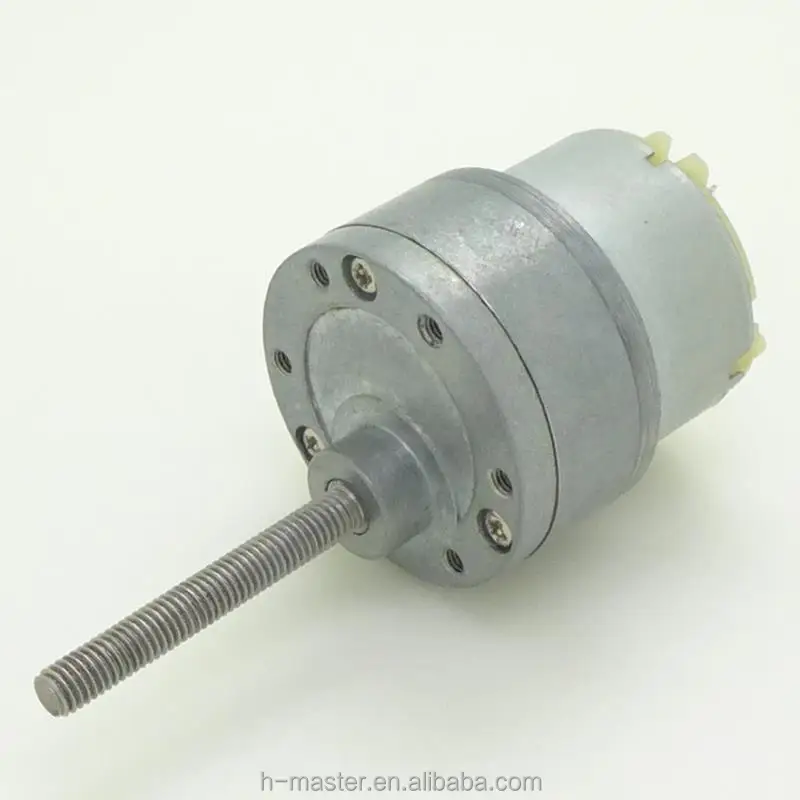

37GB-500 DC gear motor for Paper shredder machine
*The dimetre is 37MM with different gear ratio.
*The speed can be adjusted by your required
*Gernelly use for Paper shredder machine, Security facilites gear motor,Monitoring facilites gear motor,Automatic door lock gear motor
* Voltage is from 1.5-36
Motor No.: GM37-500 with low noise, big torque. | |||||||||||
| Below based on rated voltage 12v,2W | |||||||||||
| Gear ratio | 1:6.3 | 1:10 | 1:18.8 | 1:30 | 1:56 | 1:90 | 1:131 | 1:168 | 1:270 | 1:506 | 1:810 |
| No load current(MA) | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 | ≤45 |
| No load speed (Rpm) | 1016 | 640 | 340 | 213 | 114 | 71 | 49 | 38 | 24 | 13 | 8 |
| Rated torque (Kg.cm) | 0.3 | 0.5 | 0.9 | 1.5 | 2.8 | 4.5 | 6.5 | 8.4 | 13.5 | 25 | 40 |
| Rated speed (Rpm) | 660 | 420 | 220 | 140 | 75 | 45 | 32 | 25 | 15 | 8 | 5 |
| Rated current (A) | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 | ≤0.25 |
| Maxium torque (Kg.cm) | 0.8 | 1.3 | 2.5 | 4 | 7.5 | 12 | 17 | 22 | 36 | Can not over 40kg | |
| Stall current (A) | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | can not running at stall | |
| Gear box lenght (mm) | 19 | 19 | 22 | 22 | 24 | 24 | 26.5 | 26.5 | 26.5 | 29 | 29 |
| Below based on rated voltage 6v,0.5W | |||||||||||
| Gear ratio | 1:6.3 | 1:10 | 1:18.8 | 1:30 | 1:56 | 1:90 | 1:131 | 1:168 | 1:270 | 1:506 | 1:810 |
| No load current(MA) | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 | ≤35 |
| No load speed (Rpm) | 500 | 320 | 170 | 105 | 57 | 35 | 25 | 19 | 12 | 7 | 14 |
| Rated torque (Kg.cm) | 0.15 | 0.25 | 0.45 | 0.75 | 1.4 | 2.2 | 3.2 | 4.2 | 6.8 | 12 | 20 |
| Rated speed (Rpm) | 330 | 210 | 110 | 70 | 37 | 22 | 16 | 12 | 7.5 | 4 | 2.5 |
| Rated current (A) | ≤0.13 | ≤0.13 | ≤0.13 | ≤0.13 | ≤0.13 | ≤0.13 | ≤0.13 | ≤0.13 | ≤0.13 | ≤0.13 | ≤0.13 |
| Maxium torque (Kg.cm) | 0.4 | 0.7 | 1.2 | 2 | 3.7 | 6 | 8.5 | 11 | 18 | 30 | 50 |
| Stall current (A) | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 |
| Gear box lenght (mm) | 19 | 19 | 22 | 22 | 24 | 24 | 26.5 | 26.5 | 26.5 | 29 | 29 |
