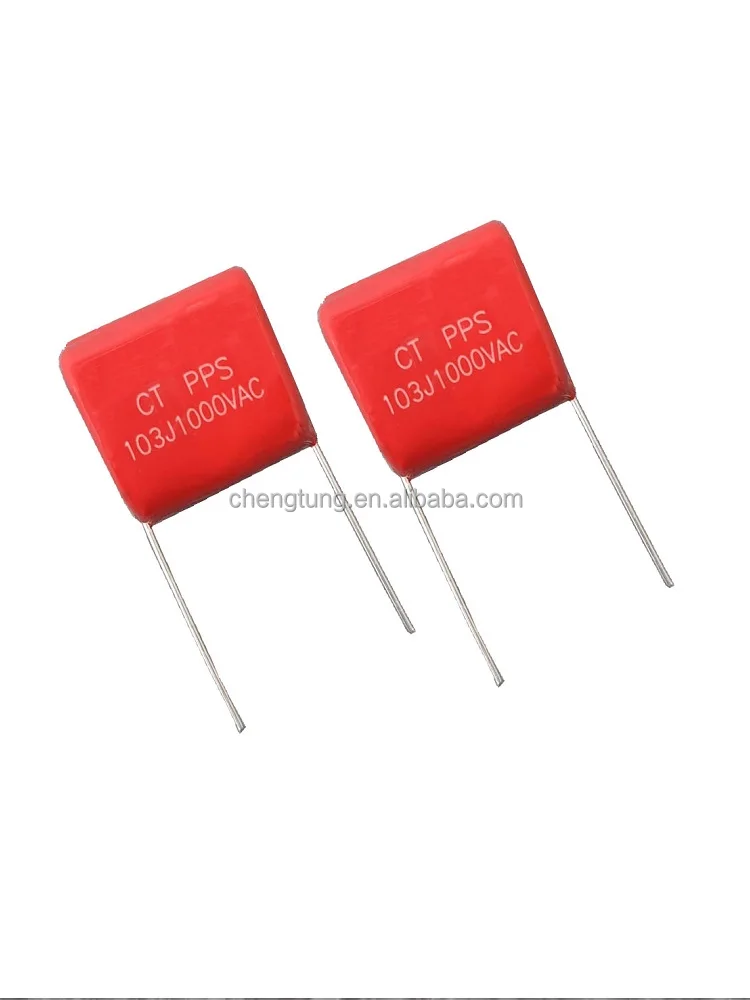

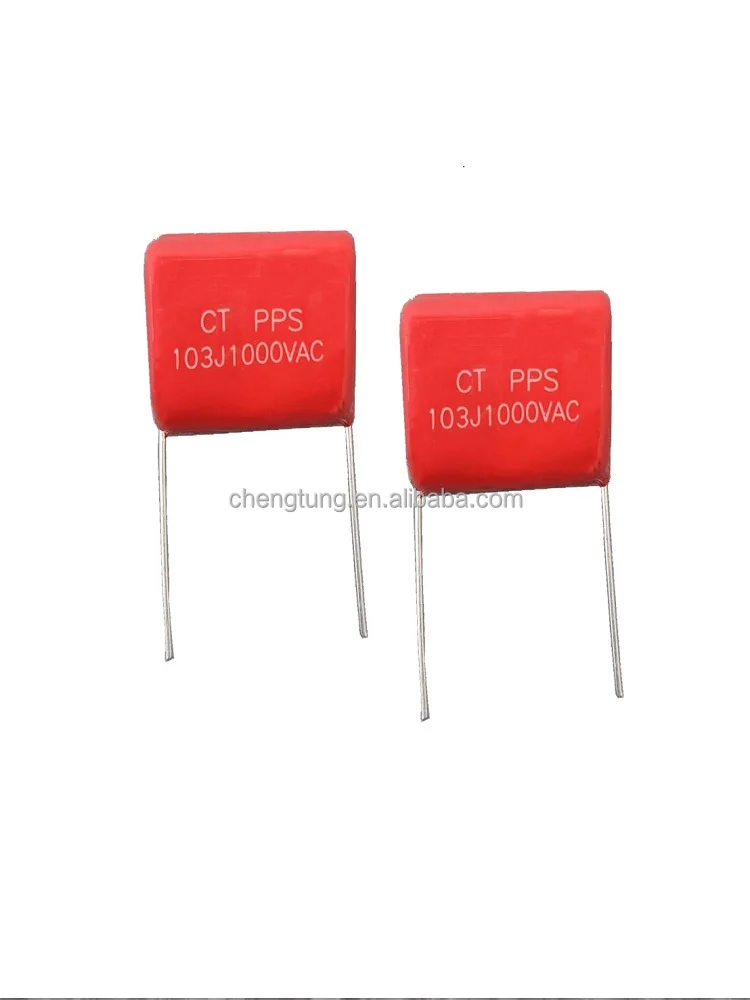

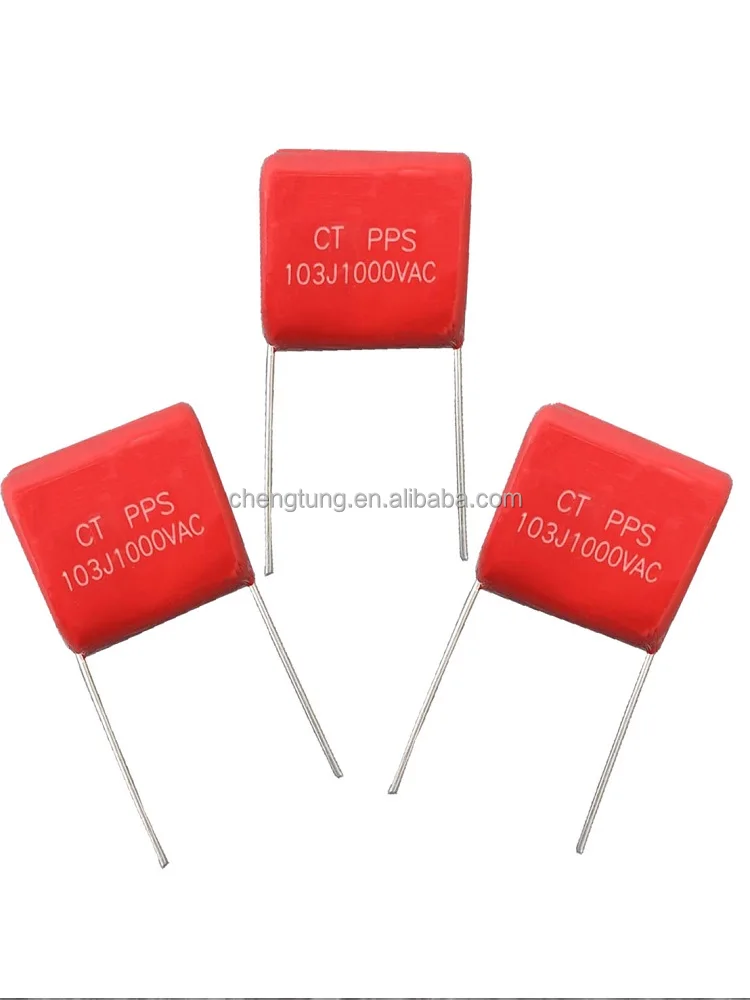

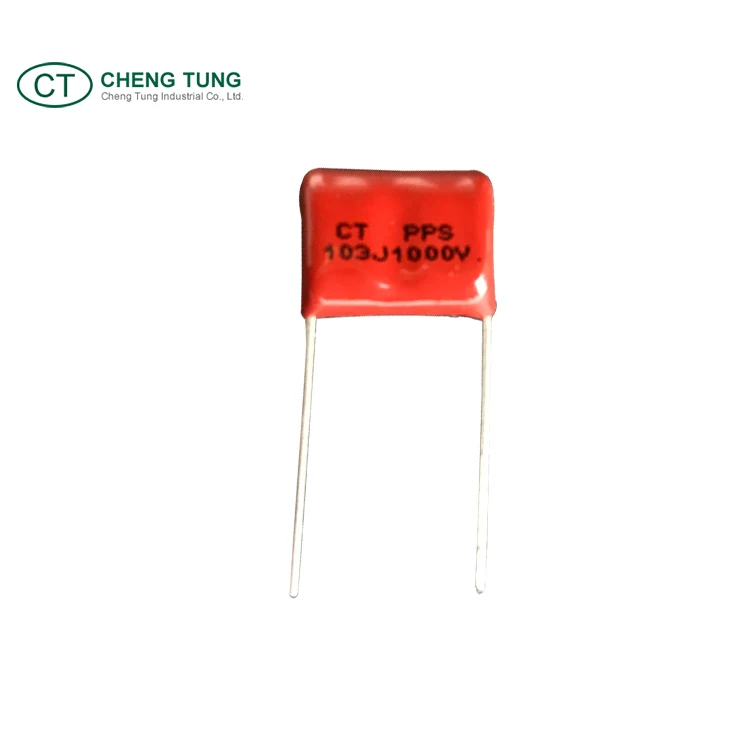

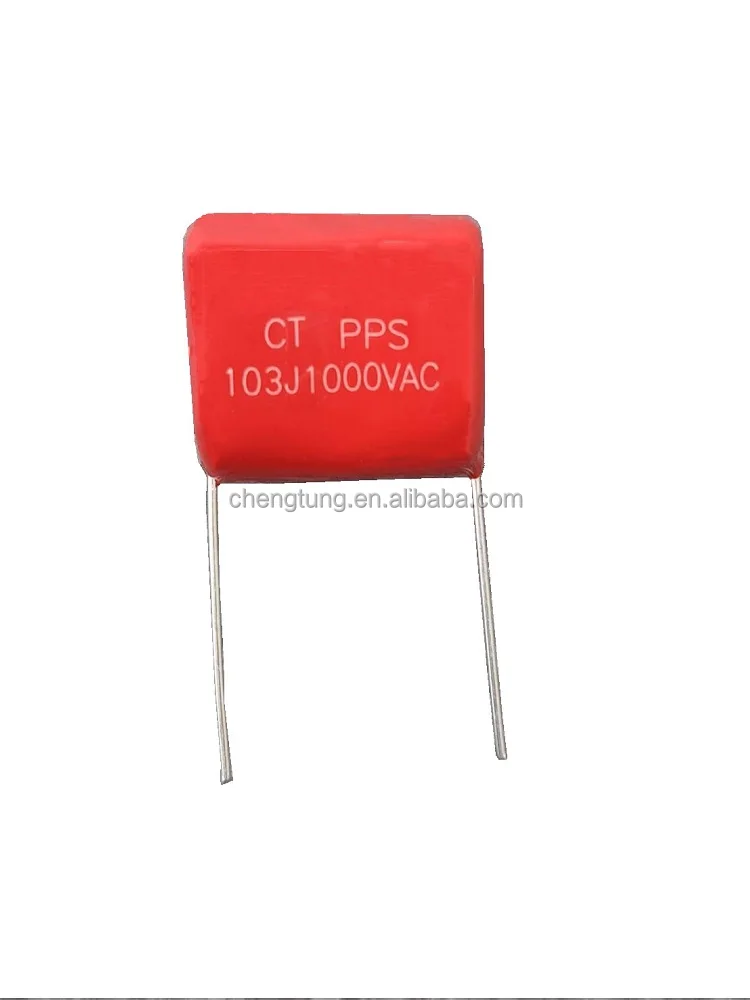

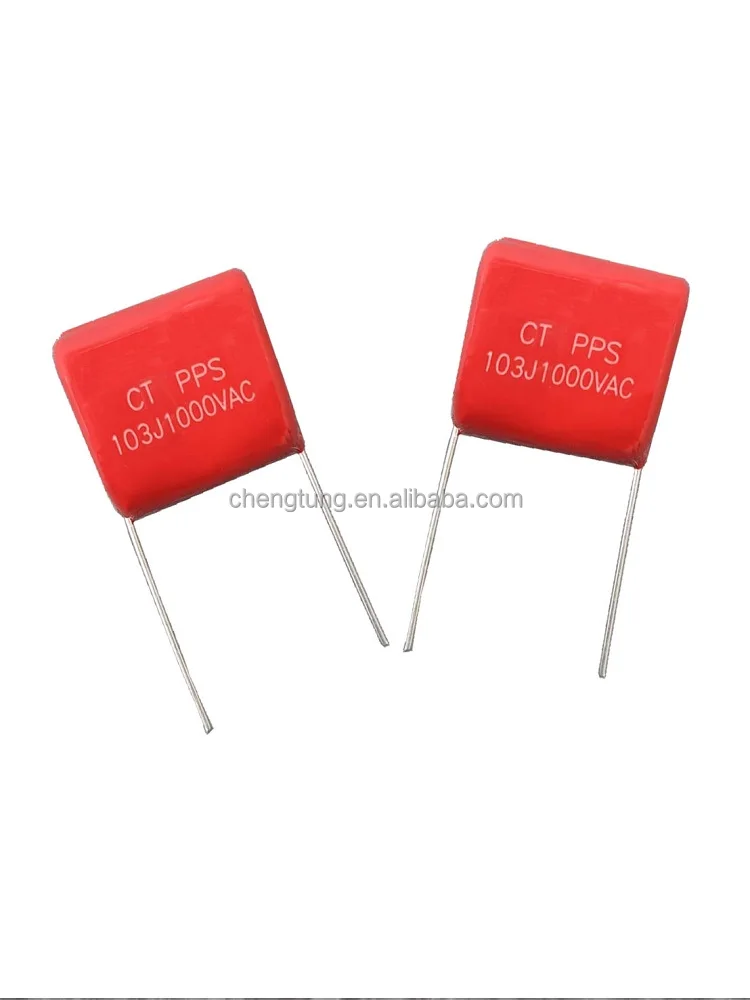

PPS Series Polypropylene Film and Foil Capacitor

TYPE: PPS

FEATURES

 APPLICATIONS

•


  High stability of capacitance and DF versus temperature and frequency.





•


  Special series construction for high voltage and long-term environment.





•


  High pulse rise rate (dv/dt) and suitable for large current circuit.




•


  Most suitable for high voltage and pulse in the horizontal resonance circuit of colour TV set.




SPECIFICATIONS

  Dielectric

  Polypropylene film

  Electrodes

  Aluminum foil

  Coating

  Epoxy resin coating

  Leads

  Radial leads of tinned wire

  Climatic Catalogue

  40 / 105 / 21

  Capacitance versus Rated Voltage  (U_R)

250VDC  0.001uF ~ 4.7uF;400VDC  0.001uF ~ 2.2uF

630VDC  0.001uF ~ 1.0uF

  Capacitance Tolerance

   J = ± 5%  K = ±10%  M = ± 20%

  Dissipation Factor (Tangent of Loss)

Max  0.1%  (at 1KHz, 25℃)

  Voltage Proof

   1.75×U_R  (2 Sec.)

  Insulation Resistance

CR<=0.33uF  IR>=30,000MΩ     U_R<=100V

CR>0.33uF  IR>=10,000MΩ / uF  U_R<=100V
