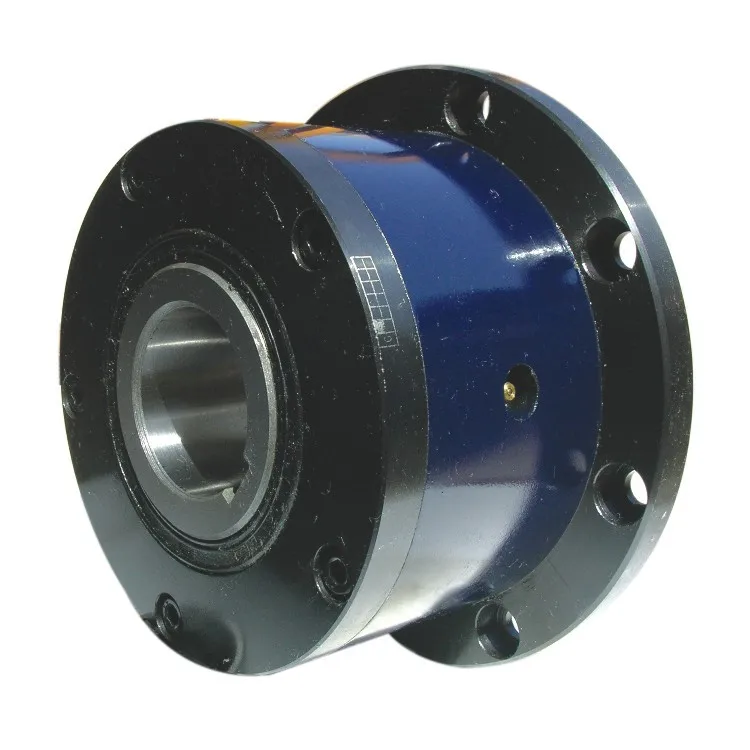

CKZF D Machinecal freewheel one way clutch bearing with keyway

Name: CKZF D Machinecal freewheel one way clutch bearing with keyway
SKU: 60722920224
Availability: InStock

Price:

Quantity:

Product Description

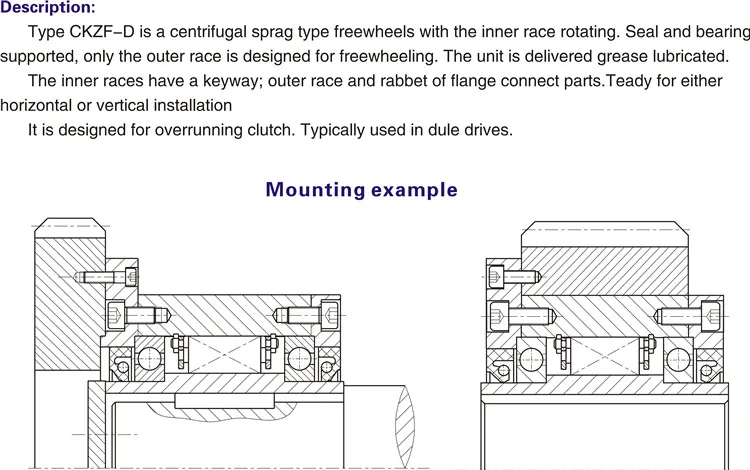

CKZF-D Machinecal freewheel one way clutch bearing with keyway

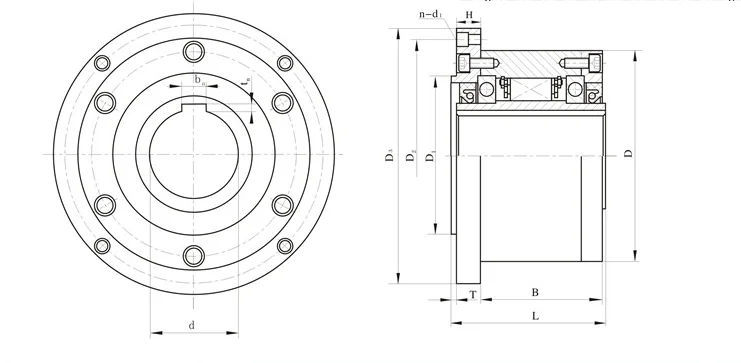

Parameter of CKZF-D Machinecal freewheel one way clutch bearing with keyway

TYPE	NOMINAL TORQUE [N · m]	NON CONTACT ROTATE SPEED [r / min]		DIMENSION IN CONTOUR [mm]											WEIGHT [kg]
TYPE	NOMINAL TORQUE [N · m]	MININUM [n_min]	MAXIMUM [n_max]	d [H7]	D	D₁[h8]	D2	D₃	H	B	L	T	n - d1	bn x tn	WEIGHT [kg]
CKZF-D30100	300	780	1500	30	100	75	114	128	10	57	70	3.0	6 - 6.6	8 x 3.3	3.90
CKZF-D35110	460	740	1500	35	110	80	124	140	13	58.5	75	3.5	6 - 6.6	10 x 3.3	4.90
CKZF-D40125	590	720	1500	40	125	100	142	160	14	68.5	88	4.5	8 - 9.0	12 x 3.3	7.50
CKZF-D45130	700	665	1500	45	130	100	146	165	15	75.5	88	3.5	8 - 9.0	14 x 3.8	7.80
CKZF-D50150	1310	610	1500	50	150	110	166	185	14	78	97	4.0	8 - 9.0	14 x 3.8	10.8
CKZF-D55160	1480	600	1500	55	160	115	182	204	18	84	106	4.0	8 - 11	16 x 4.3	14.0
CKZF-D60170	1910	490	1500	60	170	125	192	214	17	101	116	4.0	10 - 11	18 x 4.4	06.8
CKZF-D70190	2700	480	1500	70	190	140	212	234	18	113	136	4.0	10 - 11	20 x 4.9	20.8
CKZF-D80210	4500	450	1500	80	210	160	232	254	21	120.5	146	4.0	10 - 11	22 x 5.4	27.0
CKZF-D90230	7560	420	1500	90	230	180	254	278	20.5	131	160	4.5	10 - 14	25 x 5.4	40.0
CKZF-D100270	11500	455	1500	100	170	210	305	335	30	150	184	5.0	10 - 18	28 x 6.4	67.0
CKZF-D130310	15150	415	1500	130	310	240	345	380	29	181	214	5.0	12 - 18	32 x 7.4	94.0
