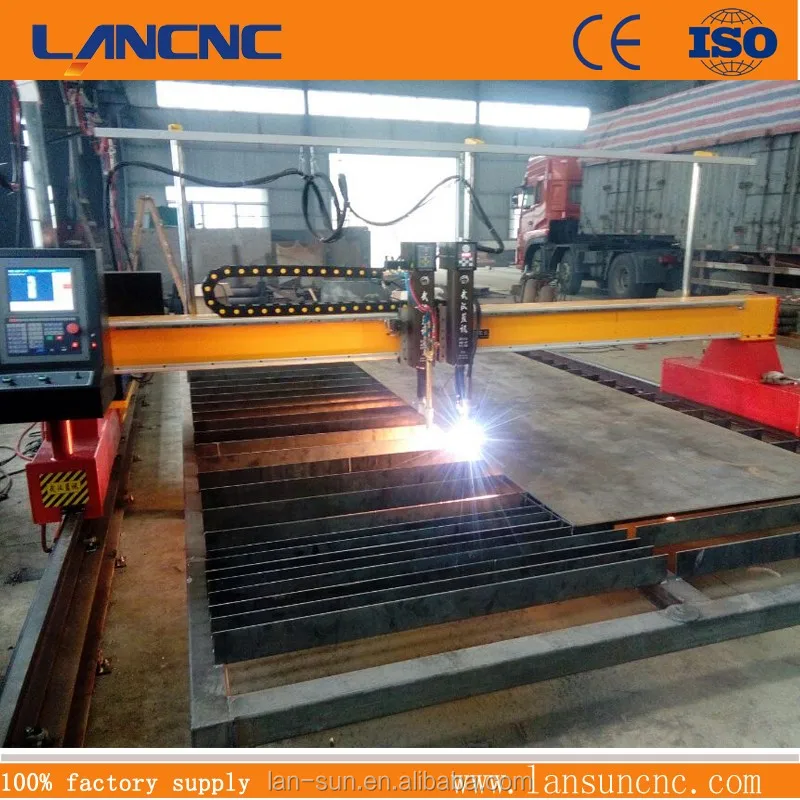

Hot sale Gantry type heavy duty CNC gas /plasma  cnc plasma metal cutting machine



20  years CNC cutting machine manufacturing;


9  years Alibaba supplier; 5000 +  customers Choice;


> Our own R & D team, customized according to your needs;


> China's famous brand, fast delivery,cheap price;


> Total quality management system.




Wuhan Lansun CNC cutting machine, To Be your reliable business partner!


















paste-pic-dp_uuid_cn3olpaste-pic-dp_uuid_xlzmo


Cutting method Guide:

1,Flame cutting: Suitable for cutting carbon steel larger than 20mm;

2,Plasma cutting:Plasma cutting cost is 1/3~1/2 of flame cutting;So the plasma is suitable for cutting carbon steel within 20mm;

3,Stainless steel, aluminum or galvanized sheet etc materials suitable for plasma cutting.




 Product Description











































































Model



ZLQ-10A



Cutting Mode



Plasma




Flame




Flame and Plasma



Driving Mode


Servo motor or stepper motor , Dual-side


Cross beam Width(m)


3m or 3.5m


effective Working Width(m)


 1m less than track width


Guide rail Length (m)


According to your cutting demands


effective working length (m)


2m less than guide rail length


Flame Cutting thickness(mm)


 5-200 (specific type up to 300)


Plasma Cutting thickness(mm)


According to the plasma generator, common 1-30mm


Number of Cutting Torch


At customers’ requests


Cutting Speed (mm/min)


50-8800


Running speed (mm/min)


12000


NC Controller


LANSUN or other China or import System you want

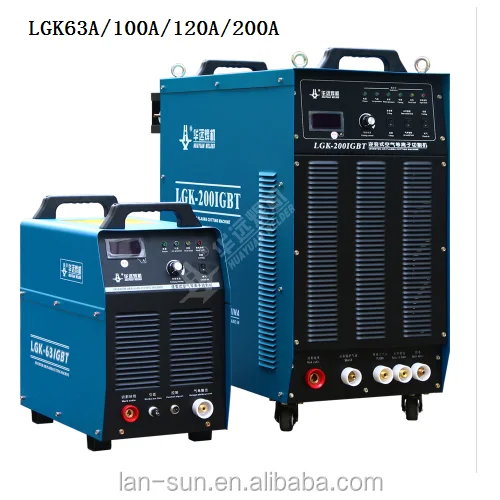

Plasma Power


100A ,120A , 200A ,300A ect .  China , USA brand


Programming software


China or Australia professional nesting software


Operation language


English or Chinese or Russian














Detailed description



















Machine body structure




1.Steel hollow beam design ensures good heat dissipation without deformation;
2. Box weldment structure process tempering ensures excellent rigidity and intensity;
3. Double drive adopts symmetrical structure.




Transmission


1. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed;
2. Gear box: SEW, high output torsion low noise.



 Drive Model


Japan AC servo motor or Stepper motor Bi-side Driving.





GUIDE RAIL
Process mode: High precision grinder;
Longitudinal rack accuracy: 7 grade;





HEIGHT CONTROLLER


Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.
Flame:Electric height adjusting system.
Plasma:Arc voltage height controller.

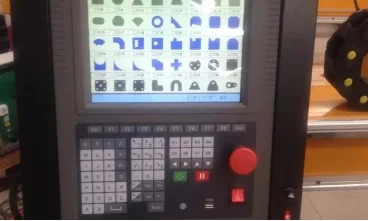

CNC System





1. 10.4 inch LCD display;
2. USB port support, figures display;
3. Indicator lights showing working condition;
4. Operation menu displayed instantly on monitor;
5. Easy figures programmed directly.
Beijing or Shanghai or American Brand CNC system is oPtional






























CNC System





1. 10.4 inch LCD display;
2. USB port support, figures display;
3. Indicator lights showing working condition;
4. Operation menu displayed instantly on monitor;
5. Easy figures programmed directly.
Beijing or Shanghai or American Brand CNC system is oPtional
