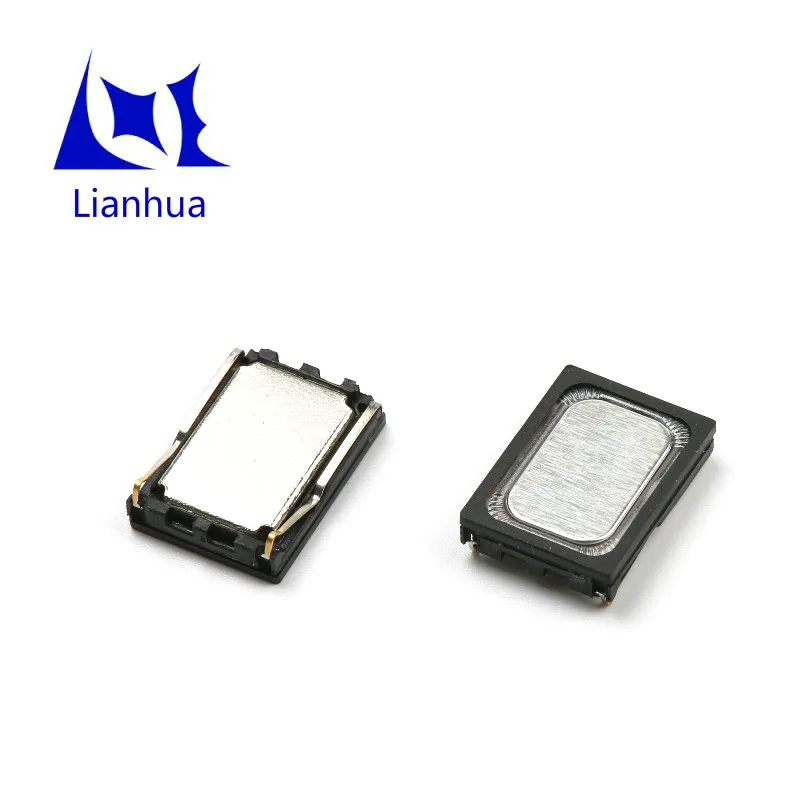

15mm miniature speaker 8 ohm speaker 3.0mm height LSC151130AS mobile phone speaker
- Category: Speakers >>>
- Supplier: Changzhou,Wujin,Lianhua,Electronics,Co.,Ltd.
Share on:
Product Overview
Description
1. Miniature Speaker Specification
|
1 |
Model No. |
LSC151130AS-08-0.6 |
|
2 |
Rated Power |
1.0W (in 1cc box) |
|
3 |
Max Input Power |
1.3W (in 1cc box) |
|
4 |
Rated Impedance |
8.0±15% ohm @2.83V,2.0KHz |
|
5 |
Resonance Frequency at 0.1m 1.0W |
600±20%Hz in free air |
|
A 930±20%Hz in 1cc box |
||
|
6 |
Sound Output at 0.1m 1.0W |
95±3dB at 2.0kHz in 1cc box |
|
7 |
Buzzes & Rattles |
Should not be audible at 2.0V sine wave between 200Hz~2KHz in1cc box and a baffle. |
|
8 |
Operating Temperature |
-30℃ ~ +70℃ |
|
9 |
Storage Temperature |
-40℃ ~ +85℃ |
|
10 |
Weight |
1.5g |
|
11 |
RoHS |
Yes |
2. Miniature Speaker Dimensions
3. Miniature Speaker Frequency Curve
![]()
Resonance Frequency (2.83Vrms) in free air
Resonance Frequency (2.83Vrms in 1CC)
4. Miniature Speaker Test Method
5. Miniature Speaker Factory
1.One of the leading manufacturers specilized in acoustic component since 1995.
We supply SMD buzzers,automotive buzzers,piezo buzzers,electro-magnetic buzzers and
piezo elements.
2.Capable to make 5 to 8 million products monthly
Our factory covers 5000 square meters and our company has more than 250 skillful
workers and 20 experienced engineers.It is furnished with advanced facilities for
production with four automatic machines.
3.Operating according to IATF16949,IOS 14000 and IOS 9000 guidelines to
ensure the highest quality all the time.
6. Transport for Miniature Speaker
7. Miniature Speaker FAQ
1.Can i have samples?
Yes.Sample is surely ok. We can even send you free sample and you should only pay
for the freight fee.
2.What about terms of payment?
Payment terms: T/T, west Union Paypal and L/C etc.
3.What about minimun order quantity?
We have no limit for MOQ, so you can even buy only 1 piece. Welcome to buy sample
to test first.
4.What about delivery time?
We will send sample to you within 3 days.
Production for big quantity needs 20 days. Andit also depends on product and quantity.
5.What are your main products?
Our main products are (SMD) piezo buzzers, (SMD) magnetic buzzers, piezo elements and speakers.
6.How you will send the goods to us?
We will send the goods to you by DHL, FEDEX, UPS, EMS, AIR etc.
7.Are you trading company or manufacturer?
Yes, We are changzhou buzzer manufactory.
8.Do you support OEM service?
Yes,surely support (Print logo on carton for free)
8. Buzzer Catalogues
SMD Magnetic Buzzer Piezo Element Speaker
