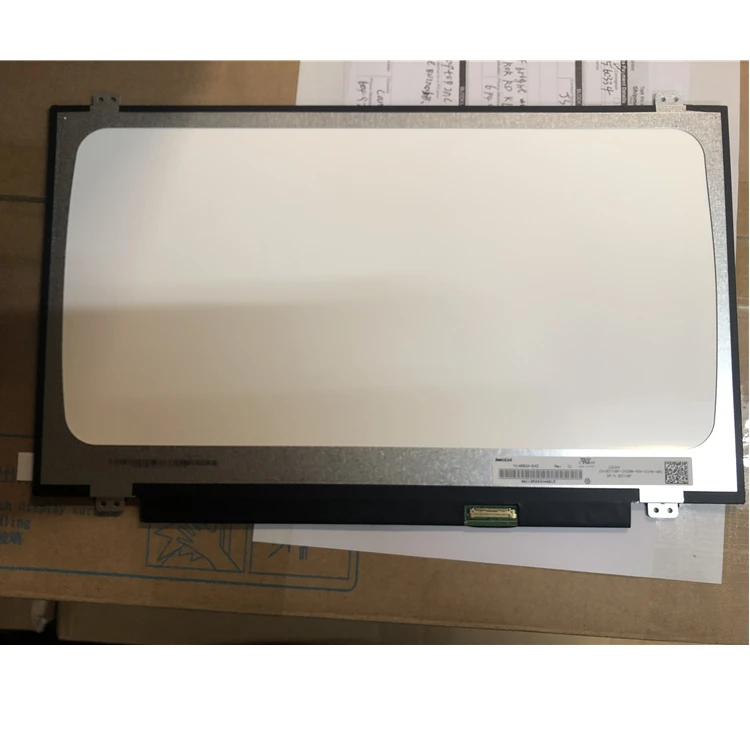

14 inch Slim TFT LCD Panel 30 Pins eDP Laptop Display Screen N140BGA EA3
- Category: >>>
- Supplier: Shenzhen JS Screen Electronics Co. ltd
Share on (60722977825):
Product Overview
Description
Product Description
| Model No. | N140BGA-EA3 |
| Screen Size | 14.0 inch |
| Resolution | 1366(RGB)×768 (WXGA) 112PPI |
| Interface Type | eDP (1 Lane) , 30 pins Connector |
| Surface | Antiglare, Hard coating (3H) |
| Screen Type | LCD , a-Si TFT-LCD |
| Arrangement | RGB Vertical Stripe |
| Active Area(mm) | 309.399 × 173.952 (H×V) |
| Outline(mm) | 320.4 × 205.1 × 3 (H×V×D) |
| Luminance | 220 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) Left / Right / Up / Down |
| Response | 3/7 (Typ.)(Tr/Td) ms |
| Good View at | 6 o'clock |
| Work Mode | TN, Normally White, Transmissive |
| Color Depth | 262K 45% NTSC |
| Backlight | WLED , 15K hours , With LED Driver |
| Outline Shape | Slim (PCBA Flat, T≤3.2mm) |
| Used for | Laptop |
| Refresh Rate | 60Hz |
| Voltage Supply | 3.3V (Typ.) |
| Max. Ratings | Storage Temp.: -20 ~ 60 °C; Operating Temp.: 0 ~ 50 °C |
| Holes & Brackets | Face mounting holes (8 pcs) on up, down slugs |
| Warranty | 3-6 Month |
| Shipping Term | DHL FEDEX UPS TNT |
| Application | Laptop |
| Quality | 100% Tested before shipment |
| Packing | Original Factory Sealed Package |

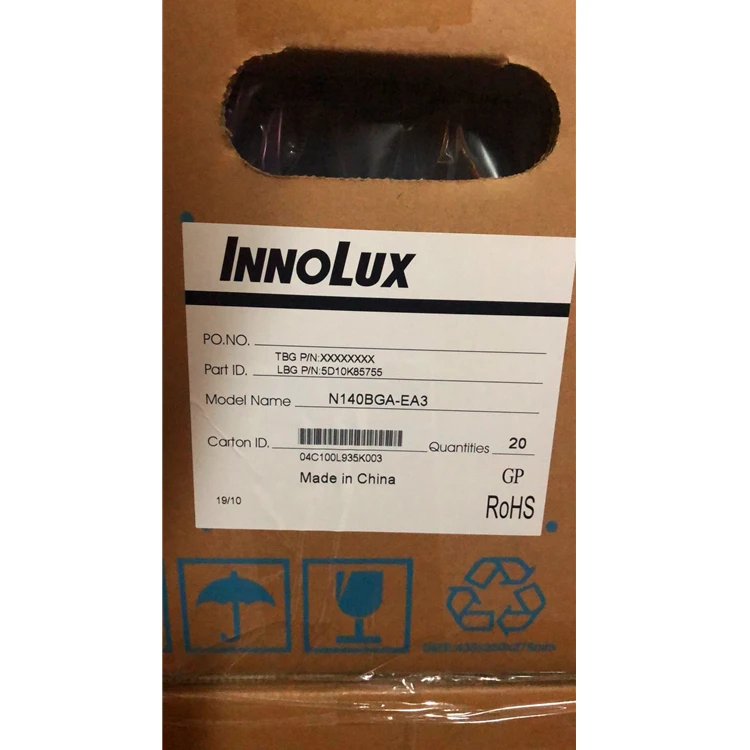

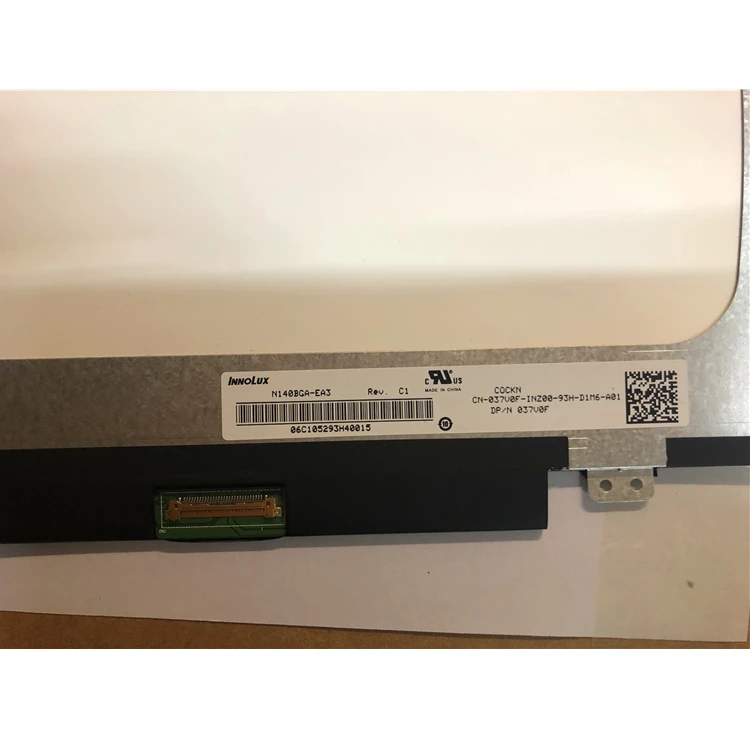

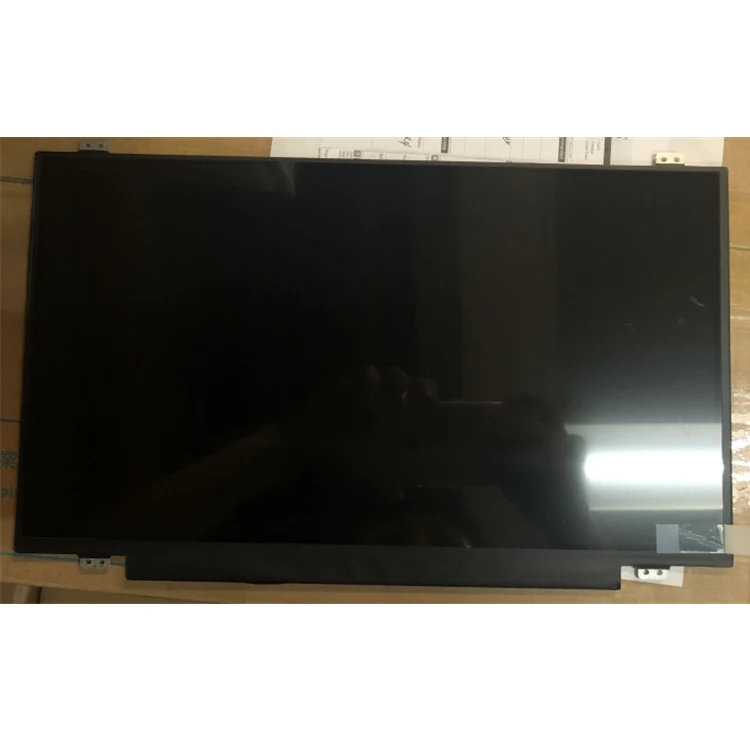

Detail Images
Packaging & Shipping
- Package & Shipping
- Warranty: 3-6 months
- Leading time: 3-5days after payment confirmed
- Shipping method: DHL, FedEx, UPS, EMS etc fast shipping
- Packing: Antistatic bag & Bubble bag & Foam Box & Strong Carton box
Our Services
- All the inquiries will be replied within 2 hours, with 12 hours at weekends
- All laptop screen will be tested piece by piece before ship out.
- All the documents will prepared for your customs.
- Have any new or short models will informed you as the first time.
