China Cnc Hobbing Machine from Gear Cutting Machines Supplier
Product Description

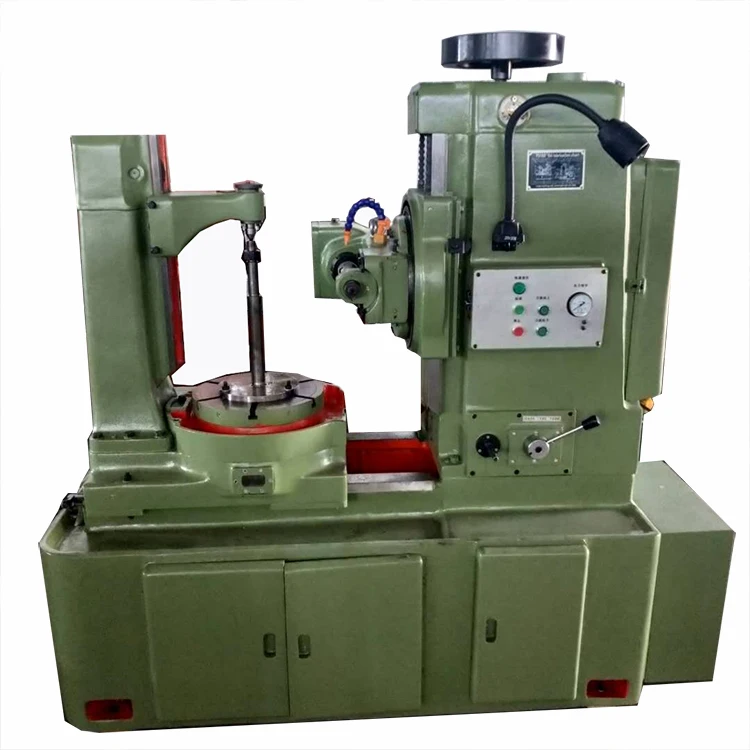

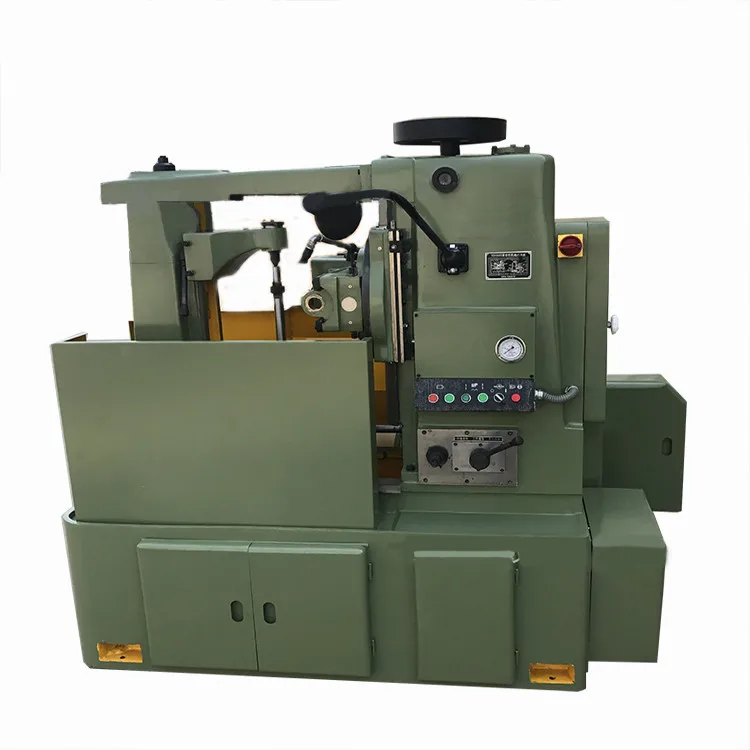

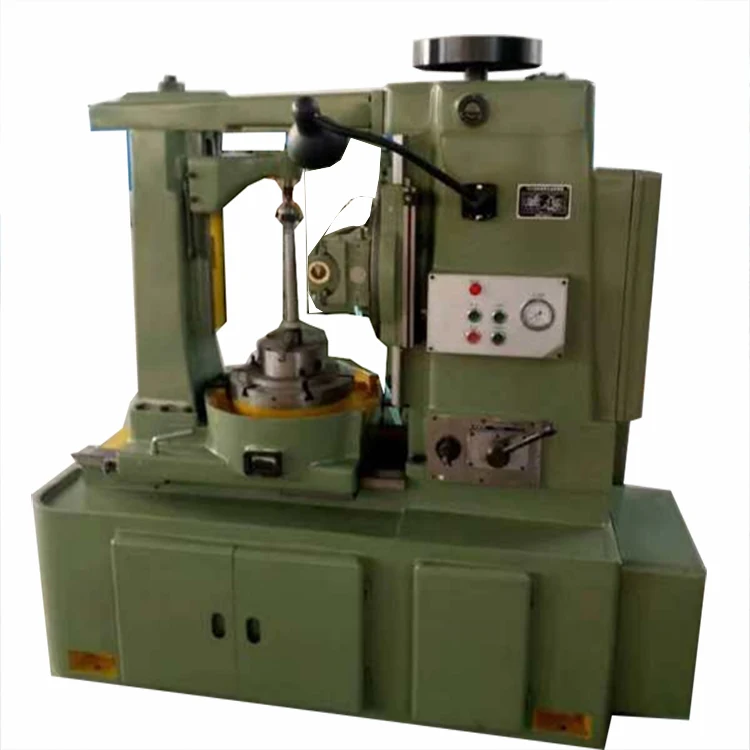

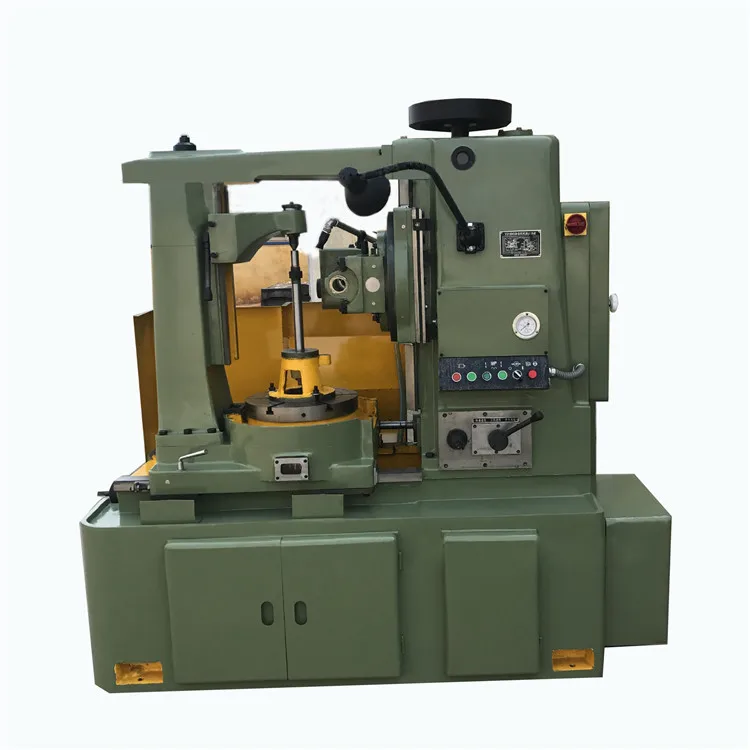

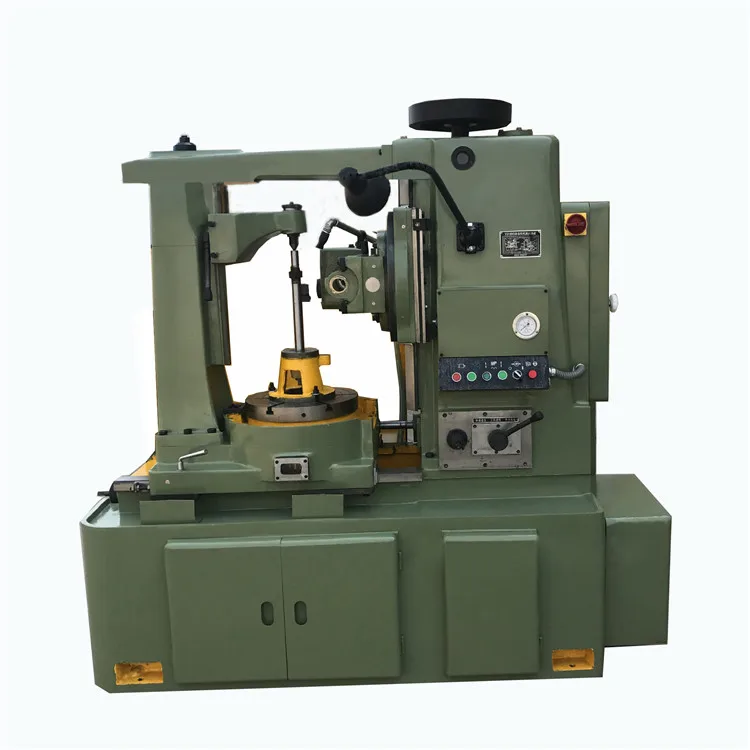

Y3150 is a general precision gear hob machine The machine is applied for multiple batch production, small batch production and Single part production for cylinder gear, and worm gear. 1. Raised height of vertical column and increased stroke effectively expand the working range. 2. Mechanism with electric tool leap allows longer hob and greatly increases service life of the cutting tool . 3. Worm gear of a high precision over five grade features long service life and steady accuracy. 4. Traditional bearings along the hobs are replaced with rolling bearings to enable greater speed of the tools. 5. External support of the small column tailstock adopts the hinge structure and can be easily opened outward, convenient to hang components of large diameters.
< WORKPIECE DISPLAY >
We welcome customized machine , could provide tangential cutter head,processing the worm wheel as the tangential feeding .
1.Convenient hydraulic powed structure reduces the non-cutting time as well as the times to use the cutting tools .
2.Raised height for vertical column and increased stroke:The vertical column is made higher(180/130mm increased axial stroke in head slide)
3.High precision and long service life:The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance,enabing long service life and steady accuracy.
<MACHINE PARAMETERS>
Model
Y3150
Max. dia. of workpiece ( without back column/with back column)
500/500mm
x. modulus
8/6mm
Max machining width
250mm
Minimum hobbing gear teeth
6
Max. travel of carriage in vertical direction
430mm
Max. helix angle in turning bevel gear
±45°
Distance between axis of cutter and work table face
235~535mm
Spindle Taper
MT.5
Max. dimension of cutter
Φ160×160mm
Max. axial movement of cutter
180mm
Diameter of changeable hobbing arbor
22,27,32mm
Distance from hob center to worktable center
30~330mm
Rapid moving speed of work table
50mm
External Diameter/bore diameter of work table
510/80mm
spindle speed steps
9
spindle speed range
40~250rpm
axial feeds range
12-step 0.4~4 mm/rev
power of main motor synchro-speed
4/1500 kw/rpm
Power of rapid axial motor synchro-speed
1.1/1500 kw/rpm
Power of rapid worktable motor synchro-speed
1.1/1000 kw/rpm
Power of Pump motor synchro-speed
1.5/1500 kw/rpm
Overall Size
2450*1200*1950mm
Weight
2500kg

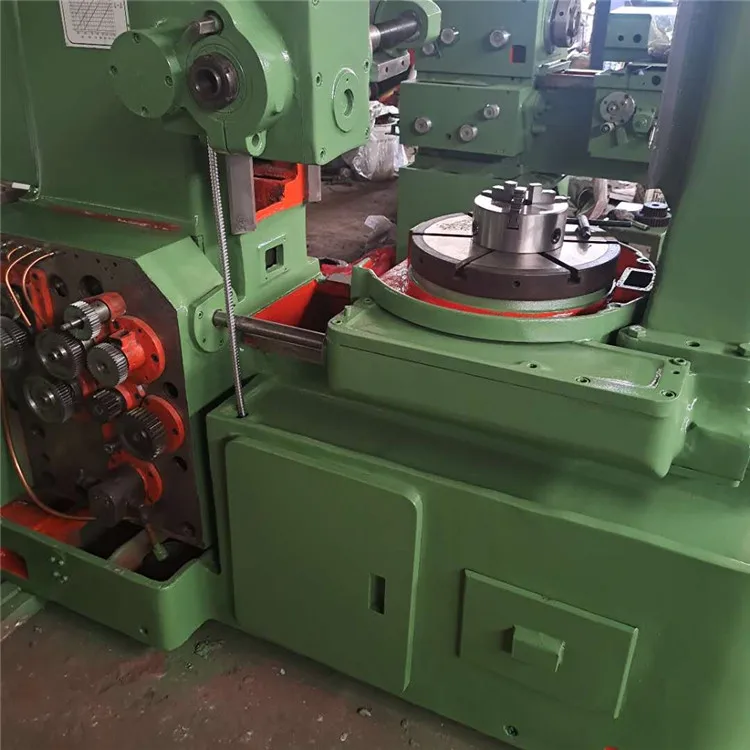

Detailed Images
