CE Rohs SAA Constant Current Led Driver 700mA

Product Overview

Description

Constant current LED driver 0-10 V dimmable LED driver

Features

1. Universal AC input voltage 90-277V


2. Adopt active PFC function


3. Protection design:over current,over voltage,over-temperature


4. IP33 waterproof


5. PWM dimming(3-12V PWM signal


6. suitable for LED lighting


7. Conform to World Lighting safty equipment standards


8. 3 years

Specification

Model No.		ZF-HTG-70H-48	ZF-HTG-70H-48	ZF-HTG-70H-48	ZF-HTG-70H-48	ZF-HTG-70H-48	Customized
output	No load voltage	49VDC	66VDC	89VDC	101VDC	131VDC	undetermined
	output current	1.4A	1.1A	0.81A	0.71A	0.55A	undetermined
	Fan-output voltage	12VDC
	fan-output current	0.3A
	PWM control signal voltage	3-12V DC
	PWM frequency	2-15KHZ
	dimming range	0-100%
	output power	75W	75W	75W	75W	75W	75W
	Ripple and noise	3000mVAC	3000mVAC	23000mVAC	2000mVAC	2000mVAC	3000mVAC
	output voltage range	28-48VDC	35-65VDC	50-88VDC	60-100VDC	80-130VDC	customized
	Current Error	±3%	±3%	±3%	±3%	±3%	±3%
	Efficiency	88%	88%	89%	89%	89%
	Line regulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±1%
	load ragulation	±0.5%	±0.5%	±0.5%	±0.5%	±0.5%	±1%
input	start time	500mS,1000ns(full load)230VAC/115VAC
	Hold time	10mS full load 230VAC/115VAC
	Frquency range	47-63HZ
	PFC	PF>0.94 230V AC full load
	input voltage	100-300VAC
	AC current	0.9A/115VAC,0.5A/230VAC,0.4A/277VAC
	surge current	cold start <50A/230VAc
	leakage current	<0.75MA/277VAC
protection	over current protection	95-105%  protect mode:constant limitation
	over-voltage protection	protect mode:constant voltage limitation
	over-temp.	145°C ± 10°C,start
Environmental	Work-temp.	--40--+55°C
	Work-humidity	20-95%RH,no condensation
	Storage temp.humidity	--40--+80°C, 10-95%RH,
	Max temp.rise	+55°C No wind open environment
	Vibration Resistance	10-500HZ,5G 12 minute/cycle,X,Y,ZAxis each 72 minutes
	withstand voltage	I/P-O/P:3.75KVAC
	Insulation Resistance	I/P-O/P:100M Ohms/500VDC/25°C/70%RH
	Safety standard	EN61347-1:2008+A1:2011+A2:2013,EN61347-2-13:2006,EN62493:2010
Others	MTBF	≥150Khrs MIL-HDBK-218F(25°C)
	size	L153*W53*H37.5mm
	packing	Use box

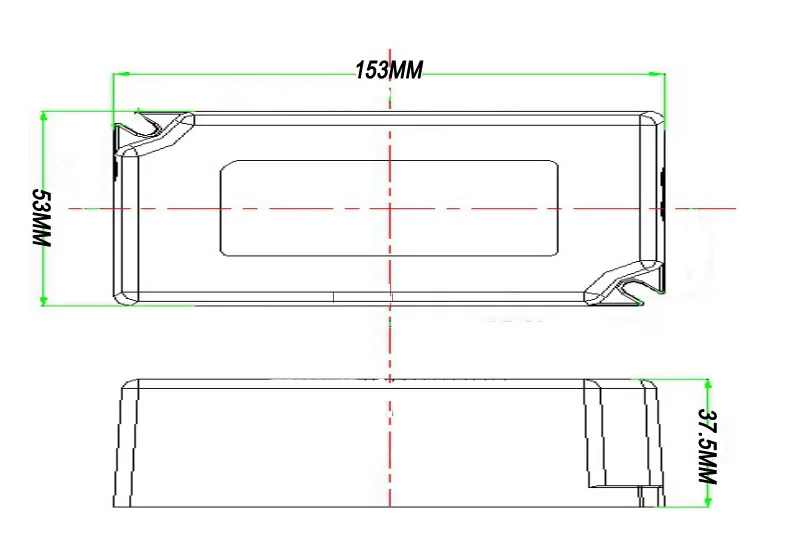

 Dimensions

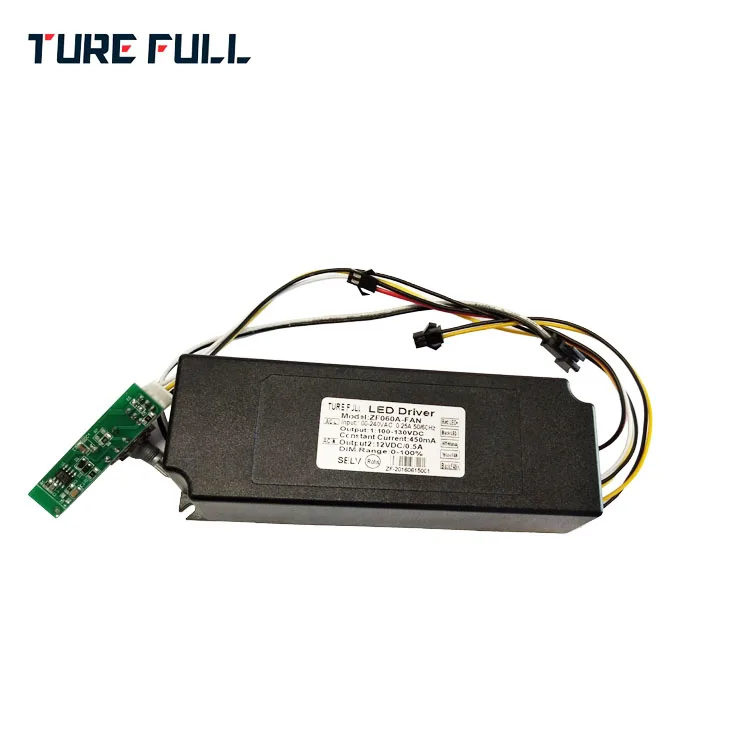

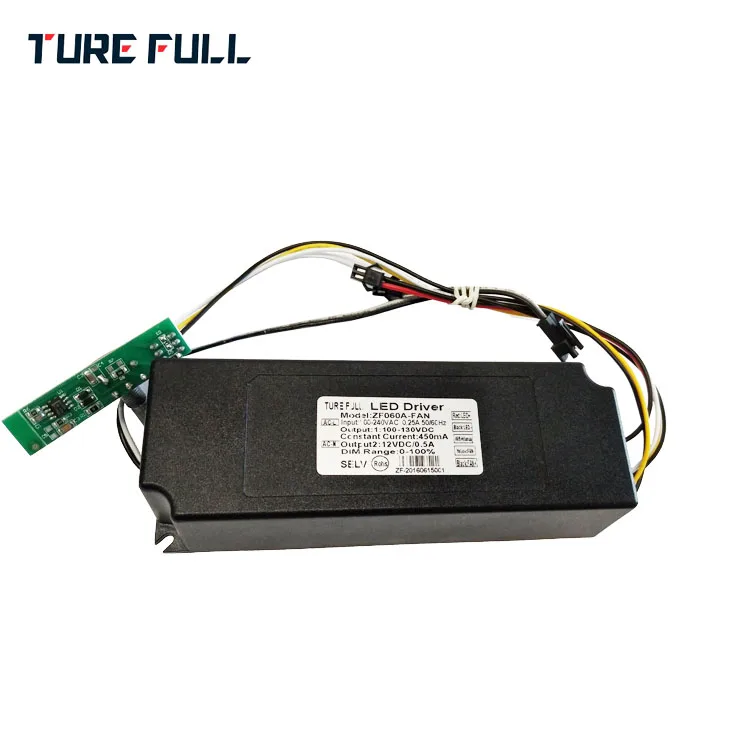

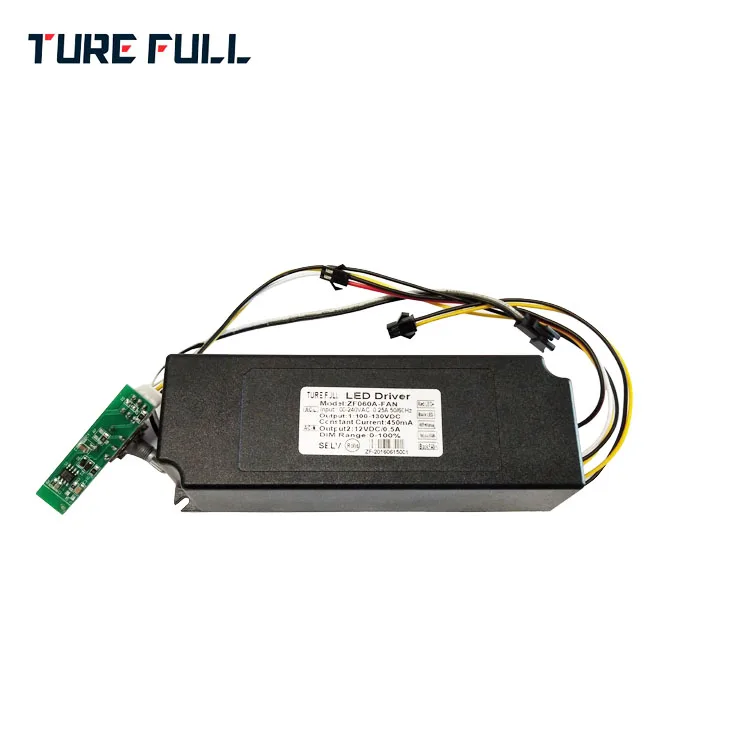

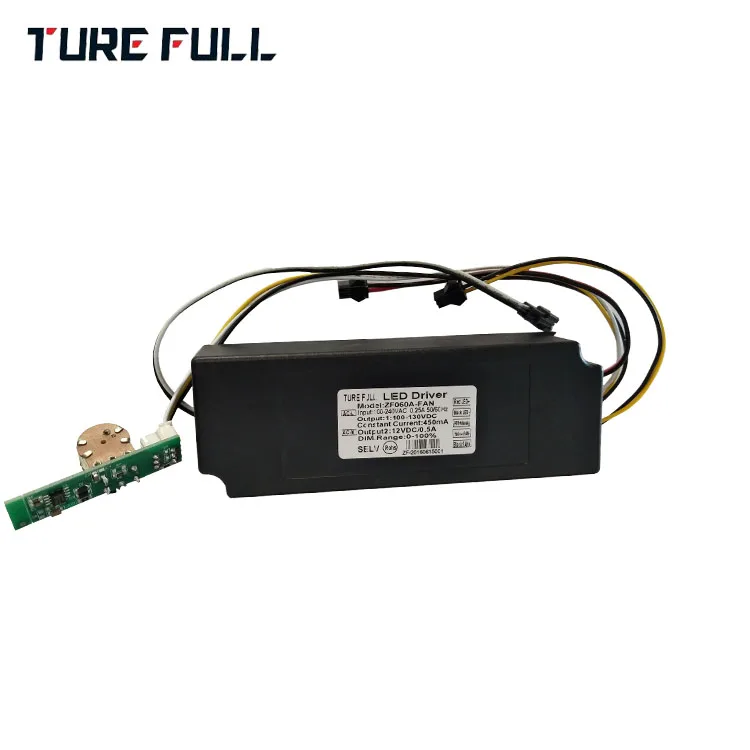

Product show





Company information

Shenzhen ZhongFu Photoelectric Technology Co. Ltd located in Shenzhen China since 2009,is a High-tech Enterprise which is engaged in designing,manufacturing and selling all kinds of indoor&outdoor LED Lighting drivers.Our company have experienced R&D team and advance R&D test equipment,we established independent quality management system,got ISO9001 quality management system certification,achieved “National New High-tech enterprise”,Chinese enterprises credit AAA grade honorary title.



We mainly concentrate on constant current street/flood /tunnel light driver,high bay/grow light driver,DC/DC converters,etc.,can offer OEM / ODM service. Our products have been passed CE ROHS TUV,SAA CCC certification,the product sells all around Europe,Northern America, Southeast Asia.



Certification

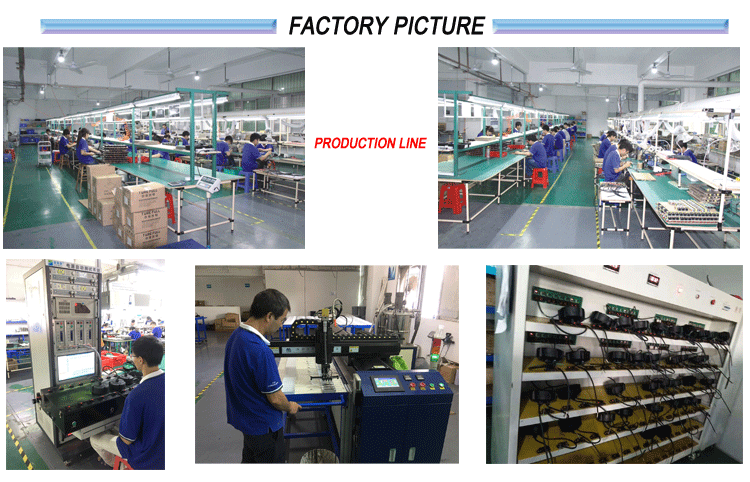

Our exhibition
