Smart Push Button Heating Jacket Thermostat Temperature Controller
- Category: >>>
- Supplier: Shenzhen Lixiang Energy Co. Ltd.
Share on (60723072725):
Product Overview
Description

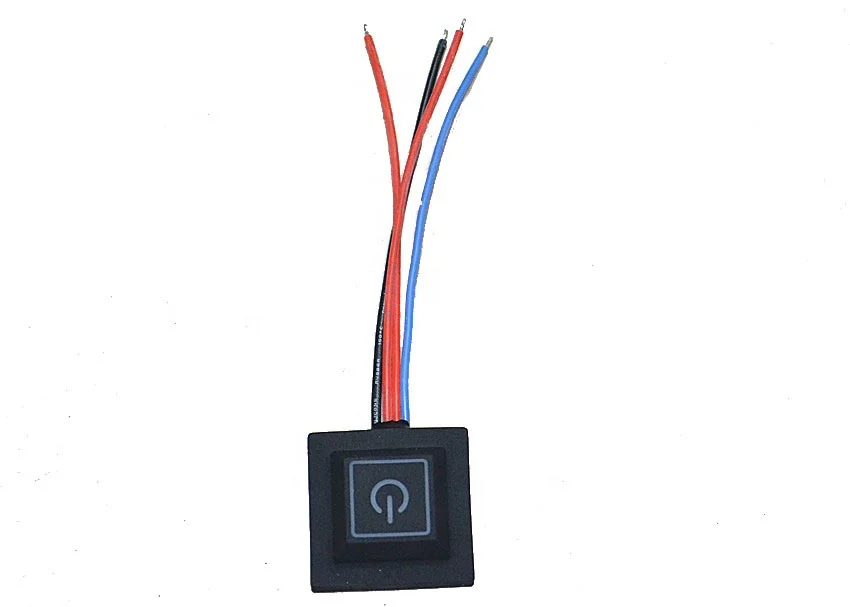

Smart Push Button Heating Jacket Thermostat Temperature Controller
3 temperature settings
3.3v~16.8v working voltage
0A~3A current range Custom Heated Wear Push Button Switch
Application:

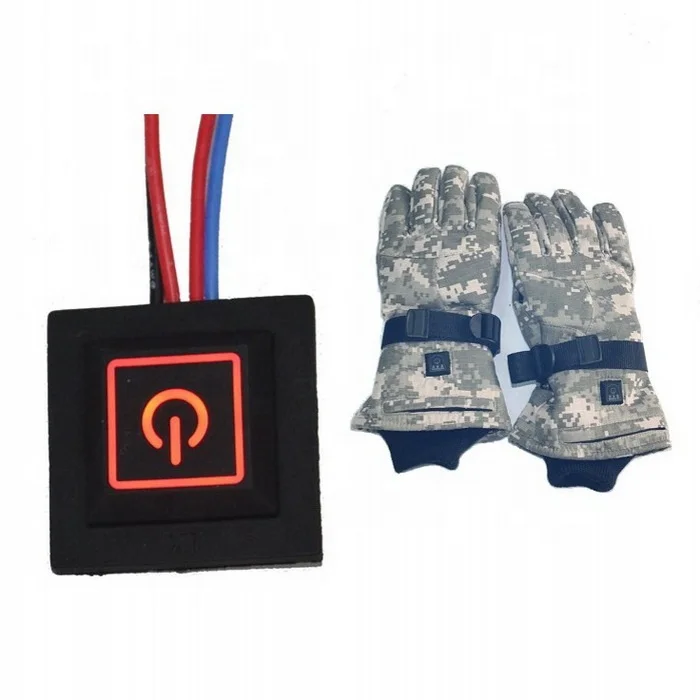

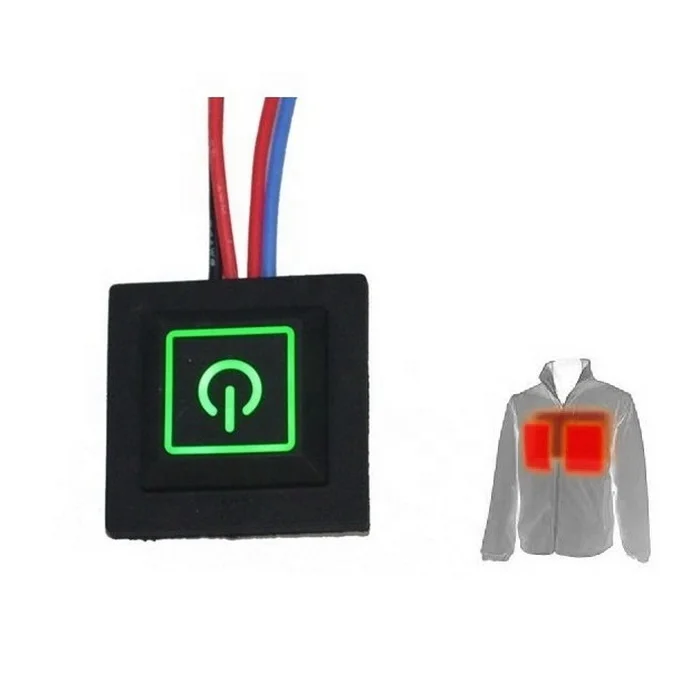

smart push button swith for heated glove/ heated vest/ heated jacket/ heated belt
Specification:
1. Model: L X-TPC01
2. Input Voltage: 3.3-16.8V
3. Output current: 0-3A
4. Operating Efficiency: ≥99%
5. Standby Current: ≤300μA
6. PCB Internal Impedance: <20mΩ
7. Work Temperature: -20℃~ +60℃
8. Three output level: red-98%, blue-75%, green-50%.
Working procedure:
(With loading & connect to battery pack)
1. Press & hold the button for 2 seconds to switch power on, set to 5-minute pre-heat mode at 100% output (during pre-heat mode, also can press button to change heat levels), then go down to medium heat level automatically.
2. Press button to change output three different heat levels
Red - 98% output
Blue - 75% output
Green - 50% output
Output Power | GREEN LED | BLUE LED | RED LED |
98% | ° | ° | • |
75% | ° | • | ° |
50% | • | ° | ° |
3. Press & hold the button for 2 seconds to switch power off.
Certificates
Company overview
Our Services
1) As we are factory, we can guarantee our price is first-hand, very cheap and competitive with high quality.
2) To make sure provide customer with high quality product & good service, sample can be sent for approval fristly. Beforeshipment, our QC staff will check quality 1 pc by 1 pc.
3) If you receive defective items, please email us photo of the defectives.
4) Provide OEM service. Our factory can offer OEM service to customer. Please offer us your LOGO & all OEM design information, and we can do special OEM tooling & OEM service for you.
5) After-sale service: all prodcuts are with 1 year warranty.
FAQ
Q: 1. Can I have a sample order?
A: Of course.
Q: 2. What is the lead time?
A: 3~7 days for sample, 20~25 days for bulk order.
Q: 3. Do you have any MOQ limit?
A: No MOQ for existent items, MOQ 1000pcs for modified ones.
Q: 4. How do you ship the goods and how long does it take arrive?
A: For small quantity, generally ship by DHL, EMS, UPS, or FedEx, usually take 4~7 days to arrive. For large quantity, ship by airplane or ocean, shipping time will depend on destination port.
Q: 5. How to proceed the order if I have logo to print?
A: Firstly MOQ 1000pcs request, then we will prepare artwork for visual confirmation, next we will make a real sample for second confirmation. If sample is ok, finally we will go to mass production.
Q: 6. Do you offer guarantee for the products?
A: Of course, all our products are with One Year Warranty.
