CE certification wheel loader low price wheel loader 1.2 ton mini wheel loader for sale

Share on (60723140617):


Price:$5,500.00 - $6,000.00

Quantity:


Product Overview

Description


Product Description

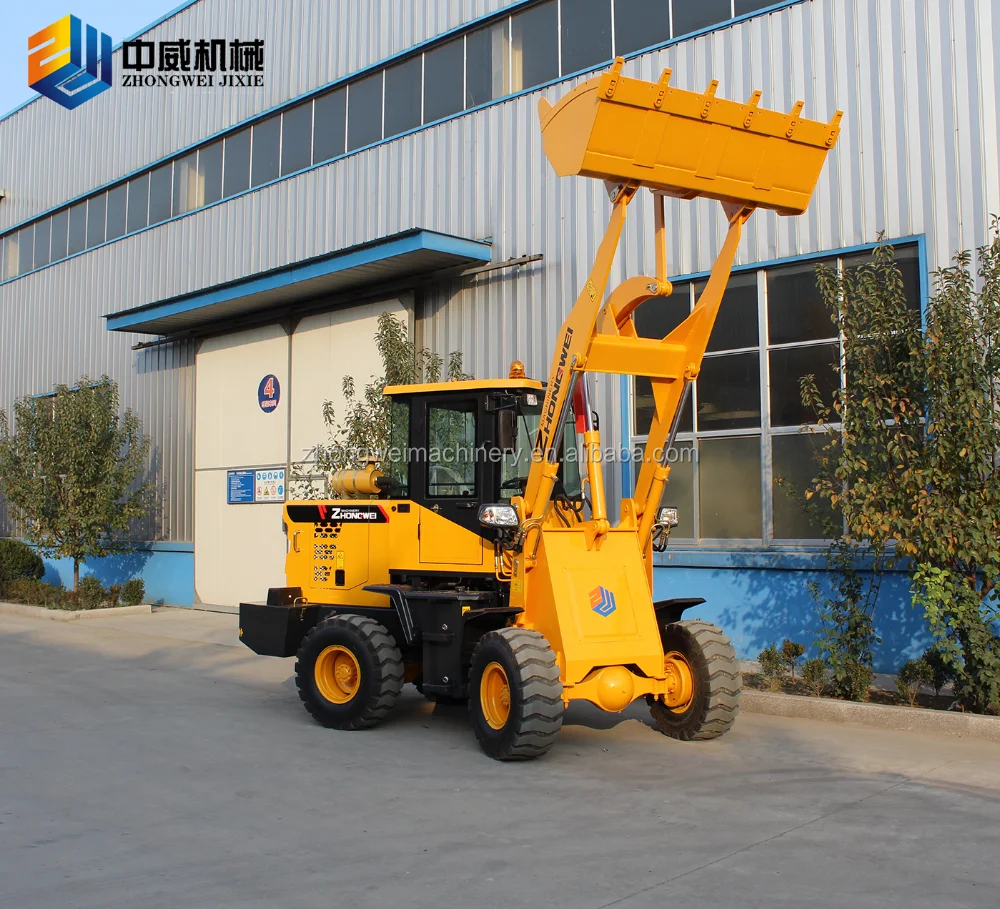

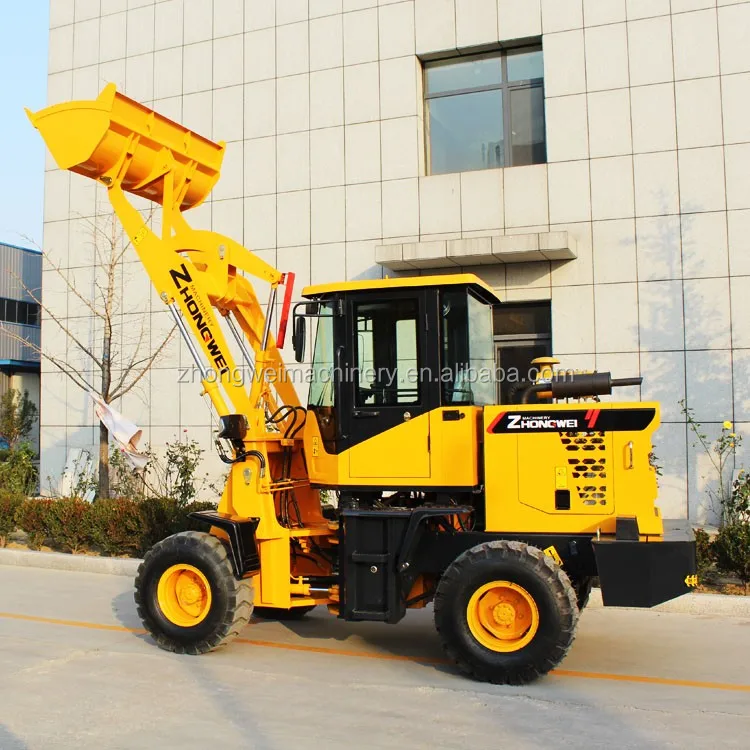

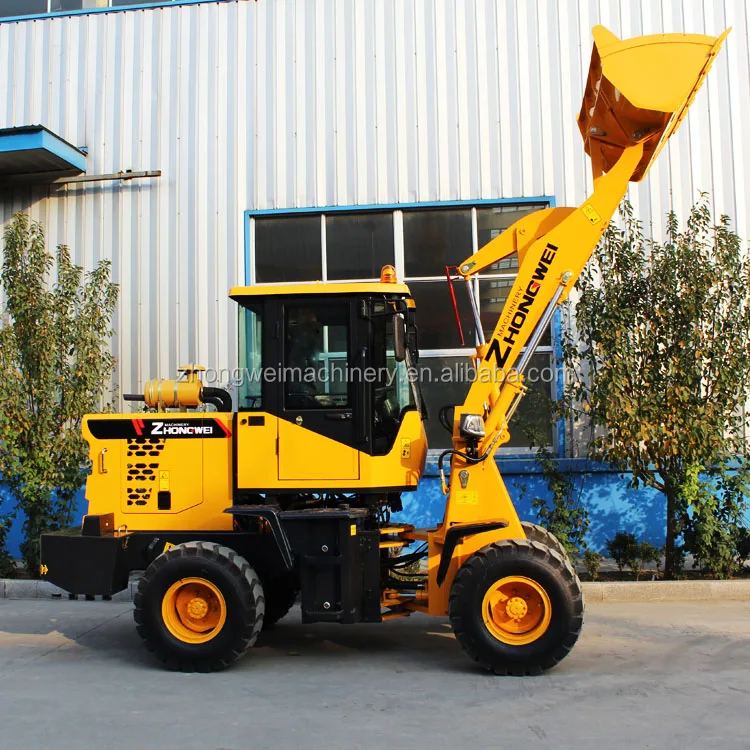

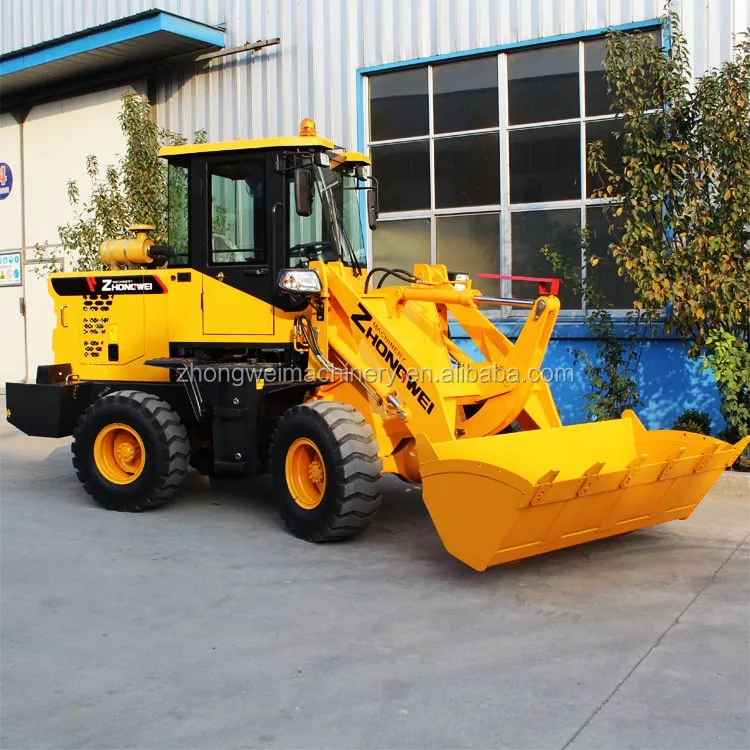

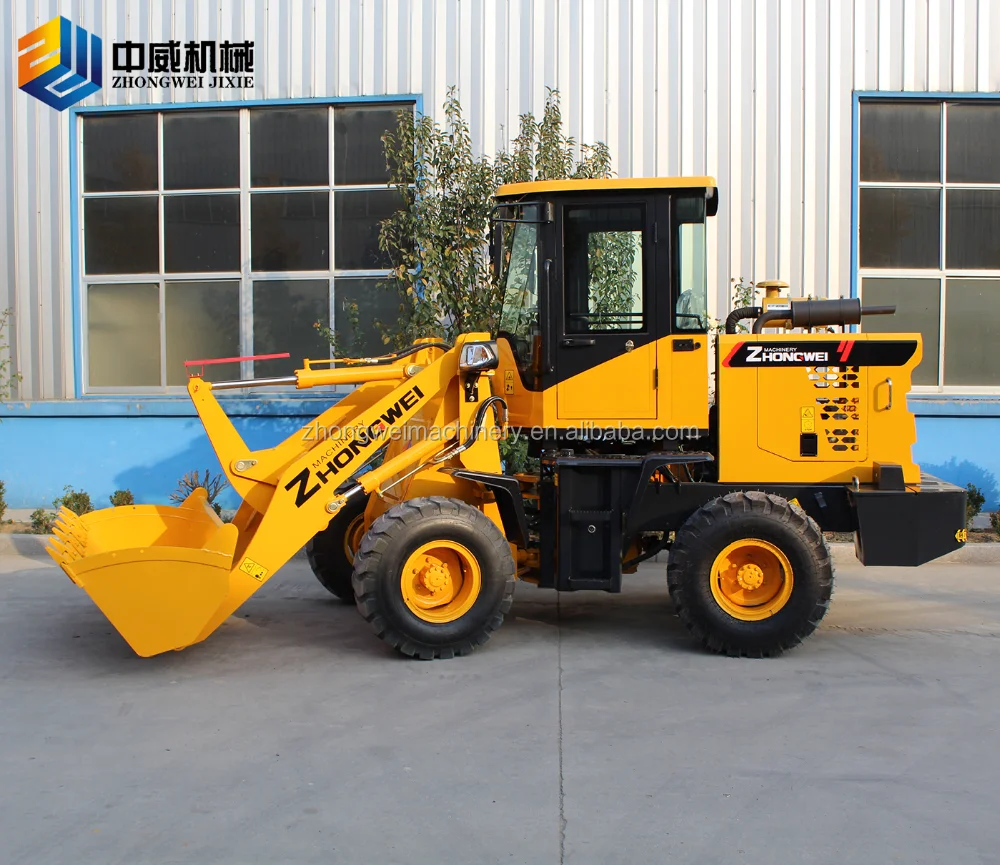

Main specification and characters of Zhongwei ZL920A wheel loader

1.Using direct injection diesel engine as power, with easy startup and low oil consumption

2.Using 50 drive axle, with strong ability to overcome obstacle

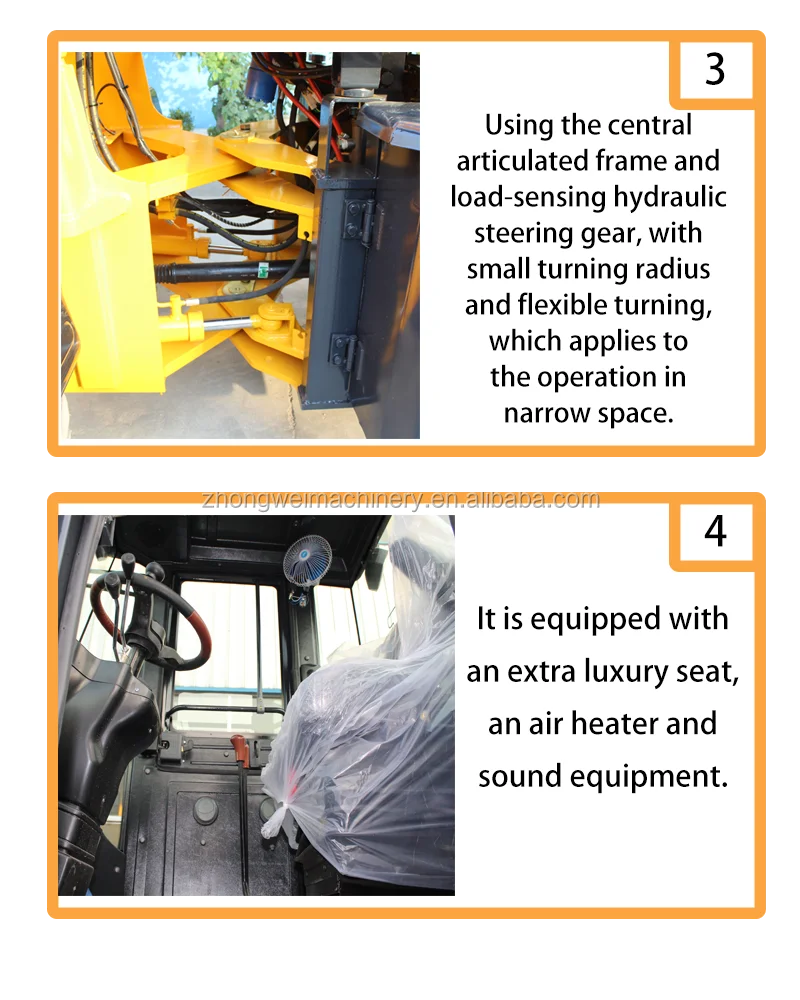

3.Using the central articulated frame and load-sensing hydraulic steering gear, with small turning radius and flexible turning, which applies to the operation in narrow space

4.This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality

5.Widely applying to the construction of agricultural engineering and small and medium building such as road, coal mine, brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.

6.hydraulic transmission , can make it much easier for operation

7.Using four -wheel -drive,low wide-based off-road tires

8 drum -type shoe brake, spring applied and air released

\t
Performance
\t
Rated load
\t
1200kg

\t
Overall weight
\t
3400kg

\t
Rated bucket capacity
\t
0.75m3
\t
Maximum tractive force
\t
36kn
\t
Maximum breakout force
\t
≥37kn
\t
Maximum grade ability
\t
35°
\t
Maximum dump height
\t
3200mm
\t
Overall dimension (L*W*H)
\t
5400*1800*2650mm
\t
Maximum dump reach
\t
900mm
\t
Minimum turning radius
\t
5400mm
\t
Engine
\t
Model
\t
YN27
\t
Rated power
\t
42kw
\t
Maixmum torque
\t
195N.m
\t
Min fuel-consume ratio
\t
≤238g/kw.h
\t
No. of cylinder-bore/stroke
\t
4-95*105mm
\t
Type
\t
In-line,arrangement,water cooling, four-strok
\t
Transmission system
\t
Torque converter
\t
YJ265
\t
Gearbox mode
\t
Power shift normally engaged straight gear
\t
Gear shift
\t
2 forward shift 2reverse shift
\t
Maximum speed
\t
25km/h
\t
Drive axles
\t
Model
\t
50 drive axle
\t
Decelerating mode
\t
planetary reduction,grade 1
\t
Wheel base (mm)
\t
2140mm
\t
Wheel tread
\t
1450mm
\t
Minimum ground clearance
\t
250mm
\t
Hydraulic system
\t
System working pressure
\t
16Mpaa
\t
Bucket lifting time
\t
≤6
\t
Bucket falling time
\t
≤4
\t
Total time for a single working cycle
\t
≤11.5
\t
Function of leveling automatically
\t
Yes
\t
Brake system
\t
Service brake
\t
drum brake
\t
Parking brake
\t
manual parking brake
\t
Tyre
\t
Type specification
\t
20.5/70-16
\t
Front tyre pressure
\t
0.4Mpa
\t
Rear tyre pressure
\t
0.35Mpa
