Gift 4kw Offgrid Solar Inverter CE Certification Solar Inverter System Solar Power System Home DUAL SAKO 7 Days 2 Years 230VAC
- Category: >>>
- Supplier: Shenzhen King Sako Electronics Co. Ltd.
Share on (60723188977):
Product Overview
Description
GIFT Hybrid Pure Sine Wave Home Solar Inverter high frequency solar inverter 5kva Builtin PWM 80A/ MPPT40A solar charger
Features
1. Real MPPT charge controller built inside, 15 % - 2 0 % higher than PWM charge controller, use solar utmost, 3KVA is 60A MPPT, 5KVA is 80A MPPT.
2. Pure sine wave, high frequency technology, wall amounted design , light weighted and easy to operate.
3. Selectable input voltage range for home appliances and personal computers.
4. Selectable charging current based on applications.
5. Configurable AC/Solar input priority via LCD setting.
6. Compitable to grid power or generator power.
7. Parallel operation with up to 6 units only available for 4KVA/5KVA.
8. Auto restart while AC/ Solar is recovering, auto charge and switch, unattended operation.
9. Smart battery charger and management for optimized battery performance.
10. Remote control panel is optional.
11. High Efficient DC to AC Conversion. Minimizing Energy Loss and self power consumption .
12. All around protection functions: Overload,short circuit protection,high voltage,low battery voltage,high temperature ,etc.
Specification
This is a hybrid inverter, Equipped with 60A AC charger and 60A/80A solar charger, Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, Its also have opposite connection protection
Product Description
| Model | SUNSEE-1K | SUNSEE-2K | SUNSEE-3K | SUNSEE-4K | SUNSEE-5K |
| The rated power | 1000VA/800W | 2000VA/1600W | 3000VA/2400W | 4000VA/3200W | 5000VA/4000W |
| INPUT | |||||
| Voltage | 230 VAC | ||||
| Selectable Voltage Range | 170-280VAC (For Personal Computers), 90-280VAC (For Home Appliances) | ||||
| Frequnecy Range | 50Hz/60Hz (Auto sensing) | ||||
| OUTPUT | |||||
| AC Voltage Regulation (Batt. Model) | 230VAC ± 5% | ||||
| Surge Power | 2000VA | 4000VA | 6000VA | 8000VA | 10000VA |
| Efficiency(Peak) | 90% | 93% | |||
| Transfer Time | 10ms (For Personal Computers), 20ms (For Home Appliances) | ||||
| Wave form | Pure sine wave | ||||
| BATTERY | |||||
| Battery voltage | 12VDC | 24VDC | 48VDC | ||
| Floating Charge Voltage | 13.5VDC | 27VDC | 54VDC | ||
| Overcharge Protection | 16VDC | 32VDC | 60VDC | ||
| MPPT SOLAR CHARGER & AC CHARGER | |||||
| Maximum PV Array Power | 420W | 1440W | 3840W | ||
| MPPT Range Operation Vol | 15-33VDC | 18-145VDC | 36-145VDC | ||
| Maximum PV Array Open Circuit Vol. | 50VDC | 145VDC | 145VDC | ||
| Standby Power Consumption | 15W | 28W | 56W | ||
| Maxmum Solar Charge Current | 30A | 60A | 80A | ||
| Maxmum AC Charge Current | 10A or 20A | 60A | 60A | ||
| Maxmum Charge Current | 50A | 120A | 140A | ||
| Maxmum Efficiency | 98% | ||||
| BEST PANEL CONFIGUTATION | |||||
| Max. generated from solar charger | 30Amp, 420W | 60Amp, 1440W | 80Amp, 3840W | ||

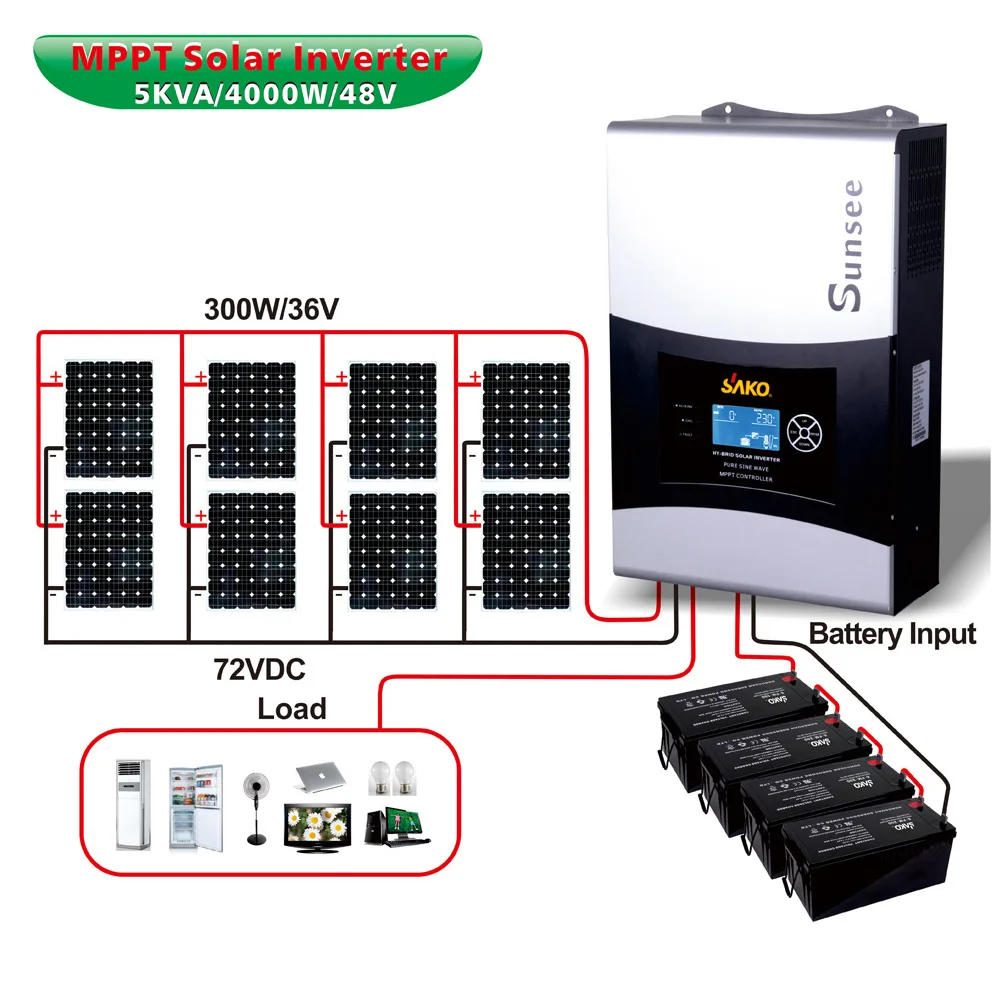

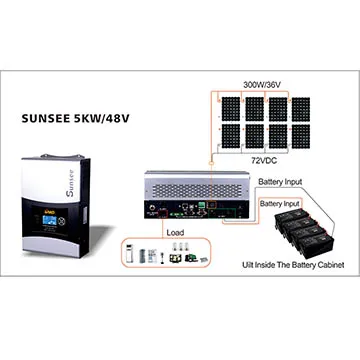

| Best Panel configuration | 200Wp*2pcs (420Wp) | 300Wp*4pcs *30V(1400Wp) 4pcs in parallel connection | 300Wp*4pcs *30V(3360Wp) 6 strings, and 2pcs in each string in series connection | ||
| PHYSICAL | |||||
| Dimension, D*W*H(mm) | 128*272*355 | 543*394*204mm | 549*394*224mm | ||
| Net Weight (kgs) | 7.5 | 8.4kg | 10.81kg | ||
| OPERATING ENVIRONMENT | |||||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | ||||
| Operation Temperature | 0℃-50℃ | ||||
new products
other Products
Company Information
Certifications
Packaging & Shipping
FAQ
Q1: How to choose a right inverter?
A1:Tell us your demand, then our sales will recommend a suitable inverter to you.
Q2: What's the different between inverter and solar inverter?
A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.
Q3: How about the delivery time?
A3: 7 days for sample; 25 days for bulk order.
Q4: What is the warranty of inverter?
A4: One year warranty on SAKO-Solar product.
Q5: How to solve the technical problem?
A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.
