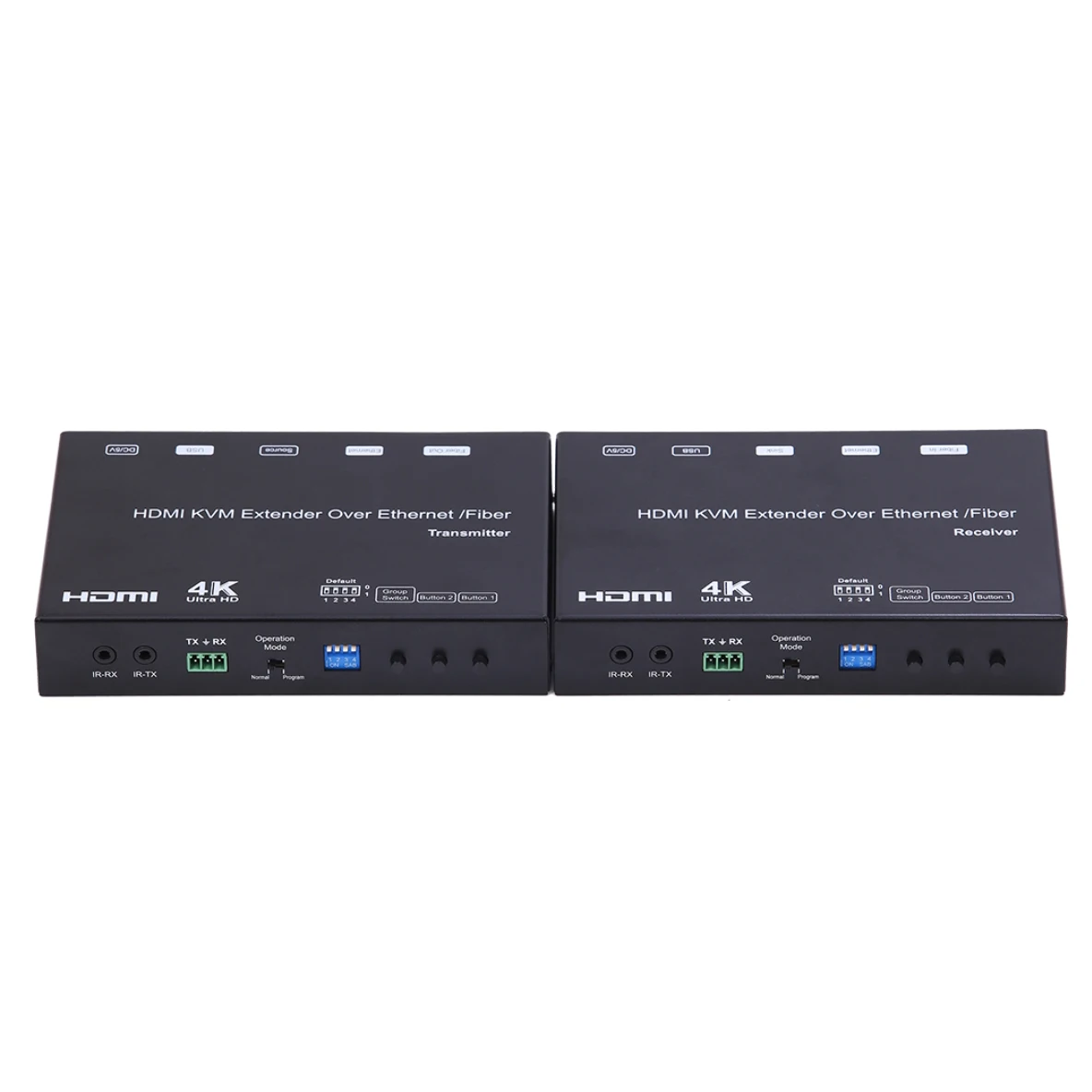

Foxun 4K HDMI DC Extender over IP / Fiber with IR RS232 USB 2X2 Video Wall
- Category: >>>
- Supplier: Shenzhen Shunxun Electronics Co. Ltd.
Share on (60723193236):
Product Overview
Description
4K HDMI+USB KVM Extender over IP / Fiber
Features
* 4K UHD HDMI over IP extension
* USB 2.0 over IPextension
* RS232 bi-directional extension and RS232control
* 4 bits switch for 16 stream channel selection
* Support Dolby True HD, DTS-HD Master Audio
* Support two way Wide Band IR extension(38khz-56khz)
* Transmit over single Cat5e/6 cable up to120m
* Transmitter over Fiber Optical cable up to 60km (SingleMode)
* Networking environment under Giga Ethernet switch and CAT5e cable

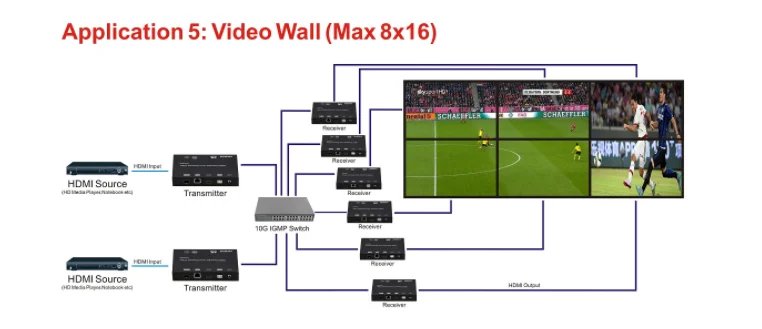

* Point to point extension, Unicast, Multicast and Video Wall system (Max 8x16)
* Output video rotation
* Output video partial enlargement
* HDCP 1.4compliant
* USB 2.0 over IPextension
* RS232 bi-directional extension and RS232control
* 4 bits switch for 16 stream channel selection
* Support Dolby True HD, DTS-HD Master Audio
* Support two way Wide Band IR extension(38khz-56khz)
* Transmit over single Cat5e/6 cable up to120m
* Transmitter over Fiber Optical cable up to 60km (SingleMode)
* Networking environment under Giga Ethernet switch and CAT5e cable
* Point to point extension, Unicast, Multicast and Video Wall system (Max 8x16)
* Output video rotation
* Output video partial enlargement
* HDCP 1.4compliant
Specification
Performance | ||
Protocol | TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4 | |
Support Video format | 4K@30HZ, 1080P/1080i/720P/576P/576i/480P/480i | |
Support Audio format | Stereo 192Kbps | |
HDCP | Compliant | |
IR Frequency | 38 -56 KHZ | |
RS232 Baud rate | Default 115200bps, total 8 kinds optional | |
IP setting &Group ID setting | ||
Default IP | Automatic allocation | |
Group ID | Group 00 ~ group 16 | |
Request for Switch/Router | Support IGMP, support DHCP | |

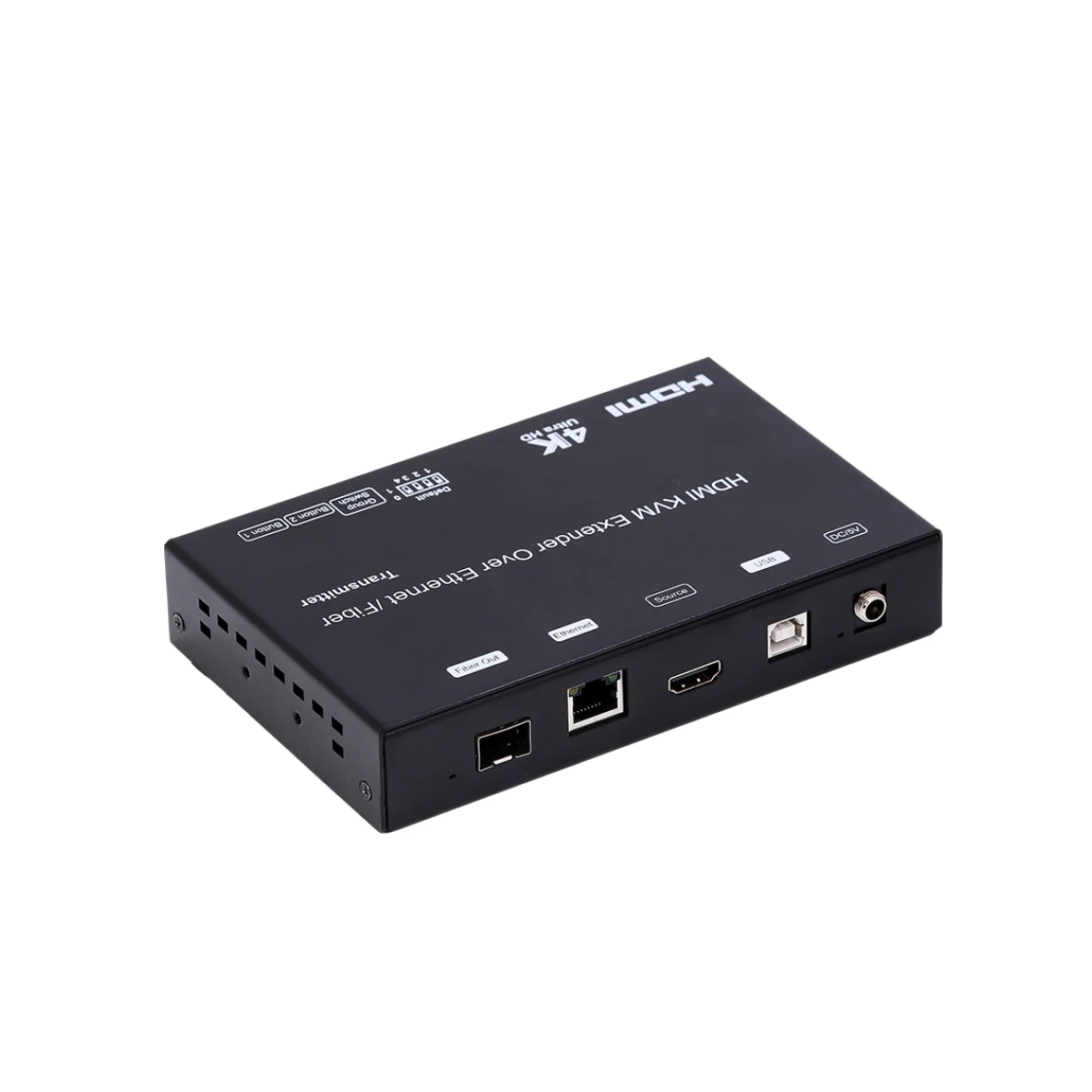

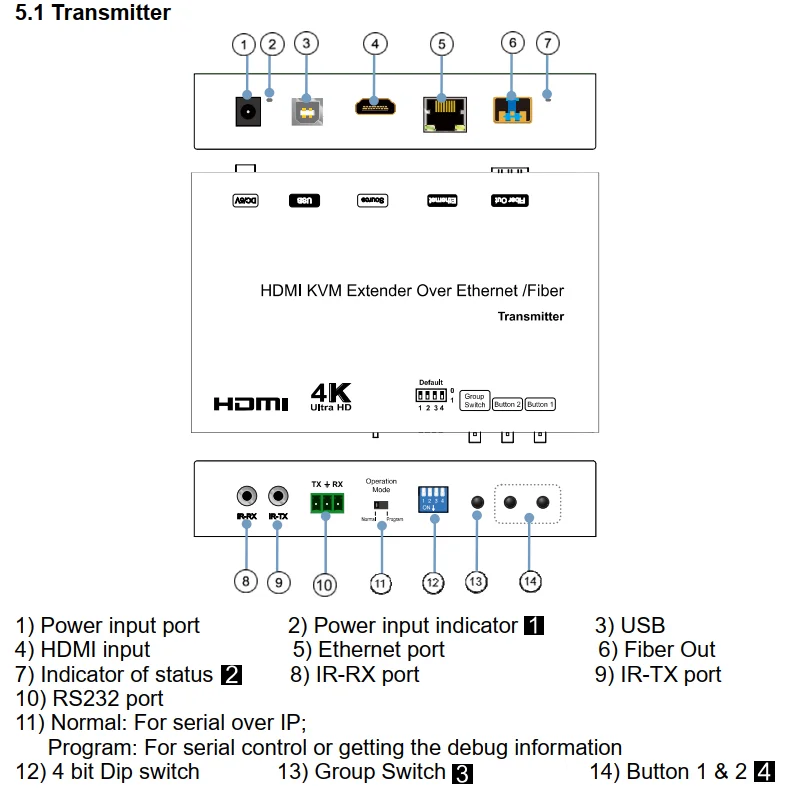

Connectors on Transmitter | ||
Input | 1xHDMI Female port, 1xUSB B type | |
Output | 1x RJ45 output, 1x Fiber output | |
RS232 | Phoenix RS232 port | |
IR | 1x IR TX port; 1x IR RX port Support 38K-56KHz | |

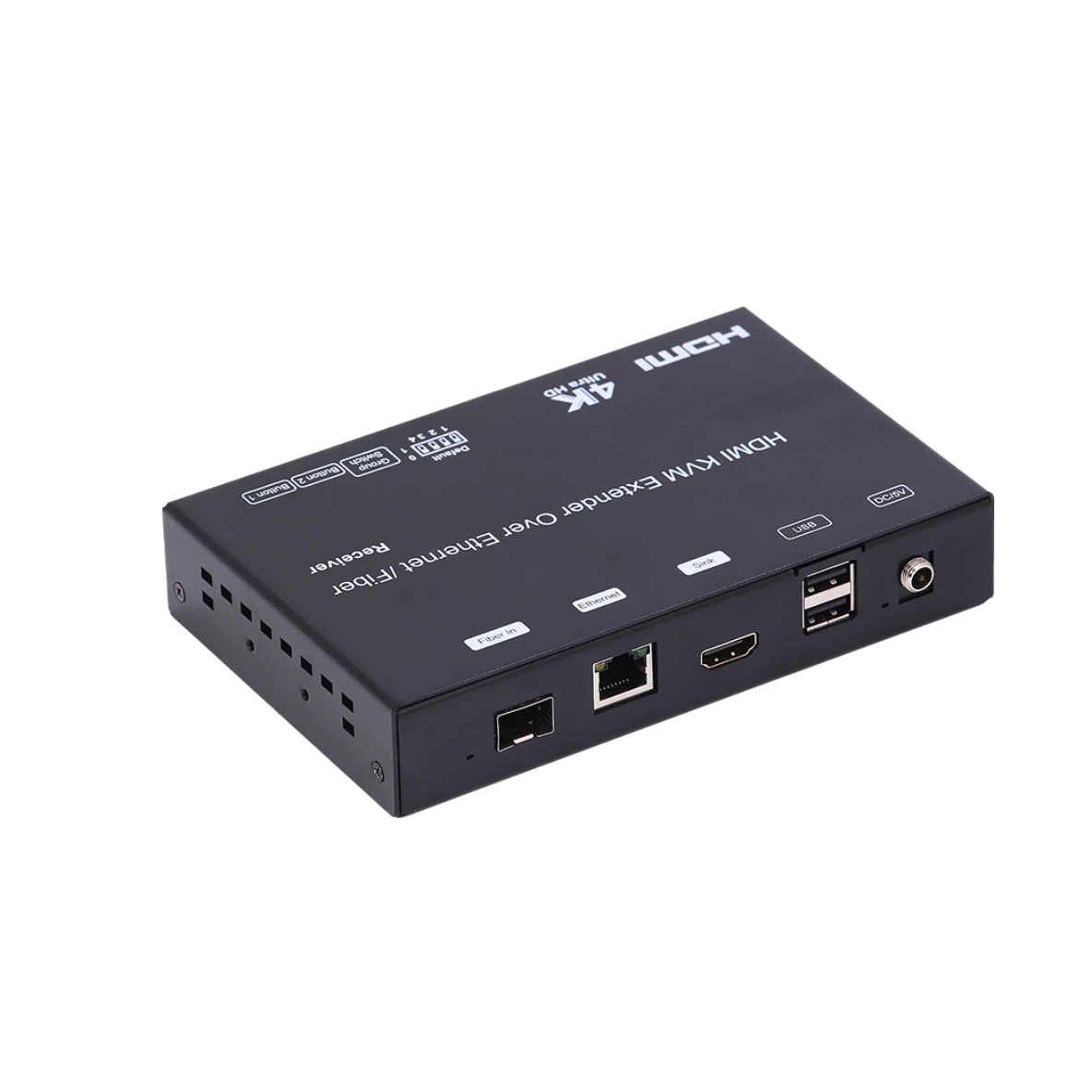

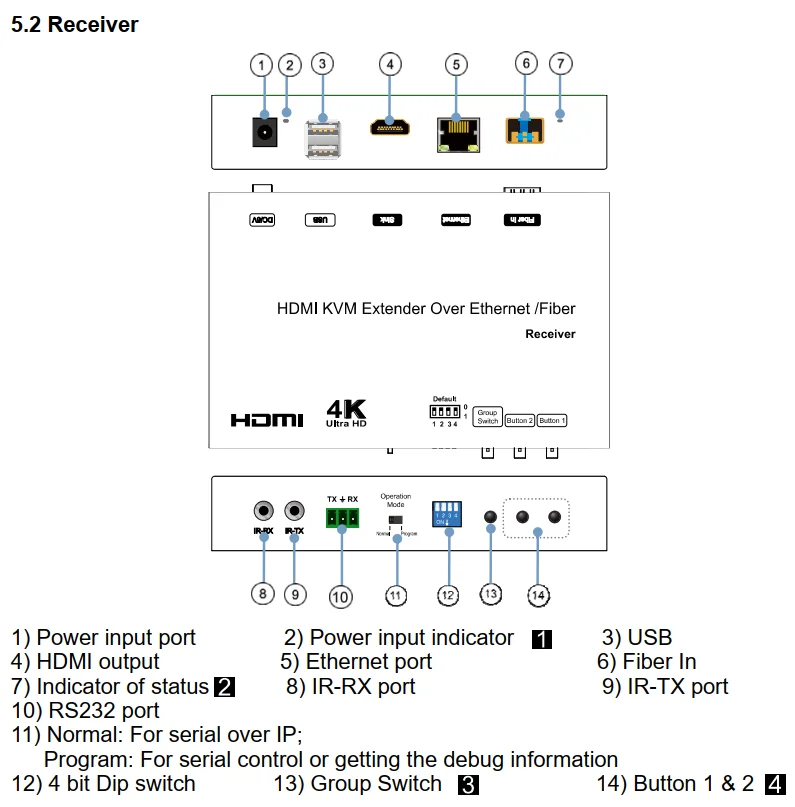

Connectors on Receiver | ||
Input | 1xRJ45 input, 1x Fiber input | |
Output | 1x HDMI Female port, 2x USB A type | |
RS232 | Phoenix RS232 port | |
IR | 1x IR TX port; 1x IR RX port Support 38K-56KHz | |
Environmental & Power Requirements | ||
Operating temperature | -5 to +35 ℃ （+23 to +95℉） | |
Operating Humidity Range | 5 to 90%RH (No Condensation) | |
Power supply | DC 5V | |
Power consumption | Max 3 watt | |
Physical | ||
Dimension | TX: 160x103.2x30mm ; RX: 160x103.2x30mm | |
Net Weight | TX: 472.8G ; RX:472.3G | |

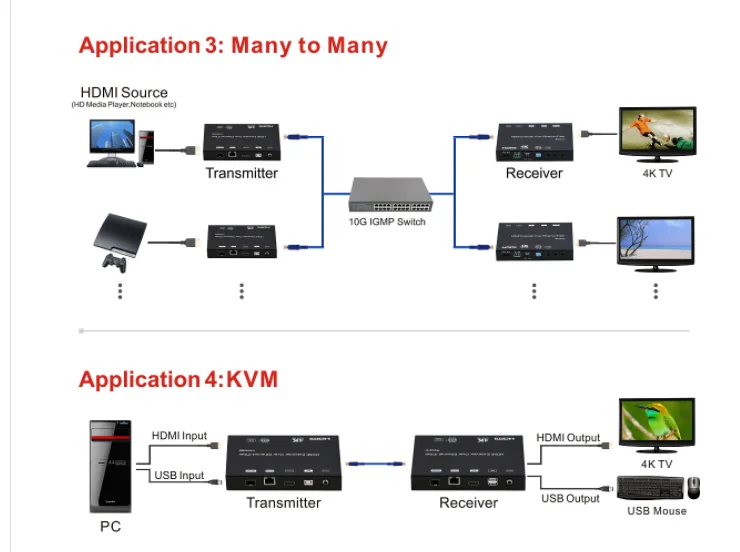

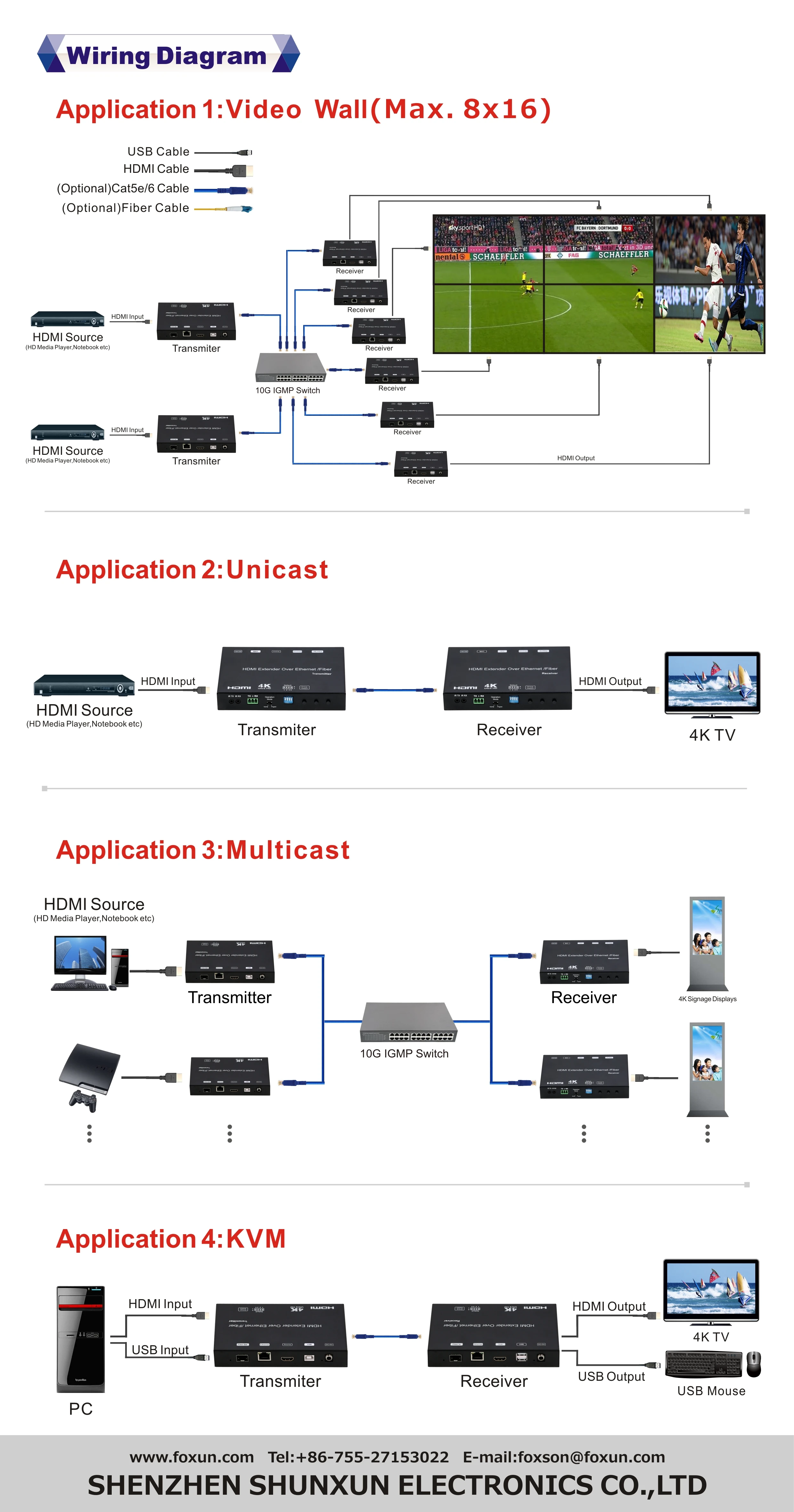

Wiring Diagram
Certifications
Packing & Delivery
PACKAGE CONTENTS

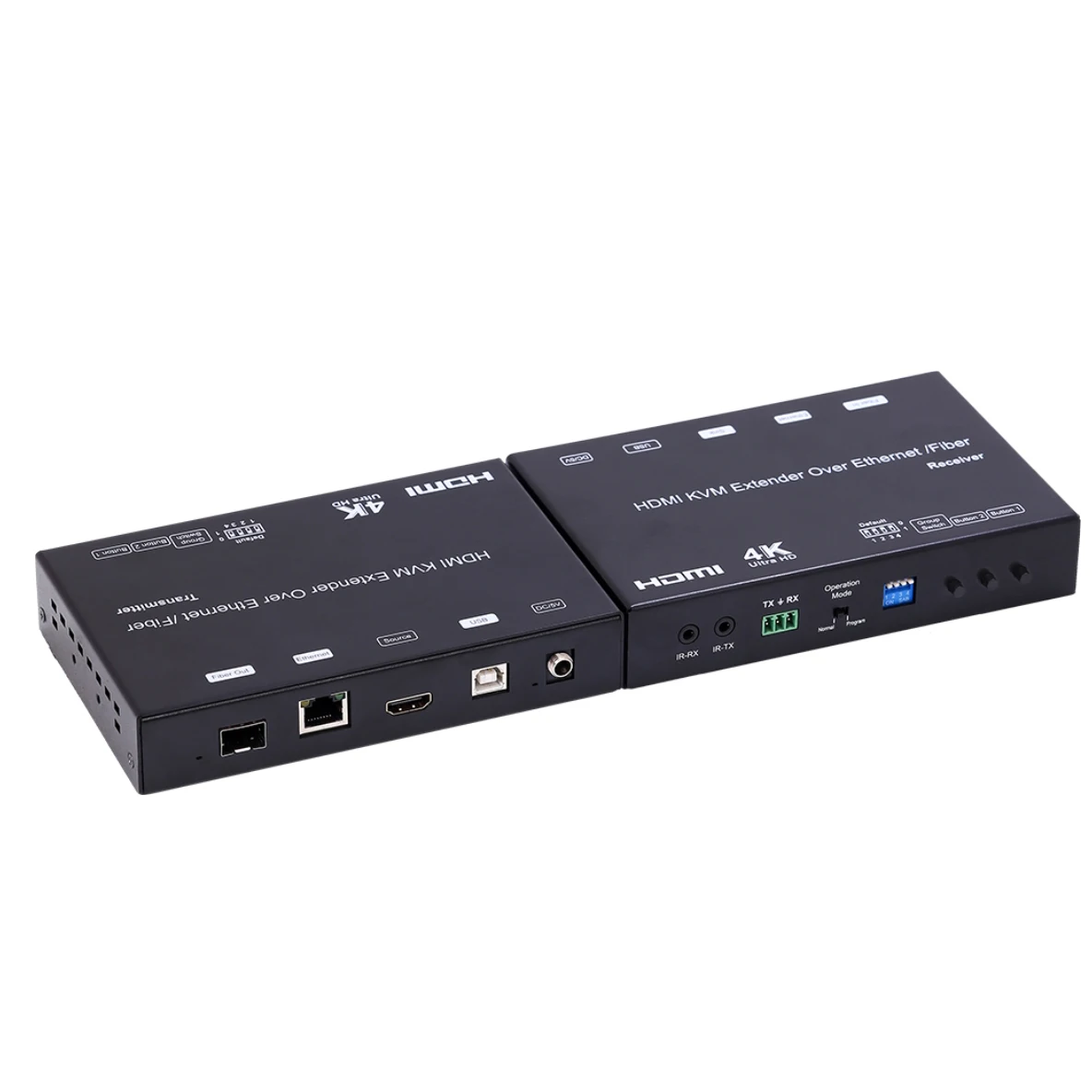

1). Main Unit. HDMI Extender (Transmitter & Receiver)
2). Power adapter DC 5V x2PCS
3). 2xIR TX cables, 2x IR RX cables
4). 2x Phoenix plugs for RS232 cable termination
5). 4x screws
6). Rear bracket x2
7). Operating Instruction manual
2). Power adapter DC 5V x2PCS
3). 2xIR TX cables, 2x IR RX cables
4). 2x Phoenix plugs for RS232 cable termination
5). 4x screws
6). Rear bracket x2
7). Operating Instruction manual
