CE Marked OBS Cautery Portable Dental ESU Generator Surgical Medical Electrosurgical Unit

Product Overview

Description

Specifications:

Stable condiction,precise operation,speical for beauty surgery and micro surgery.

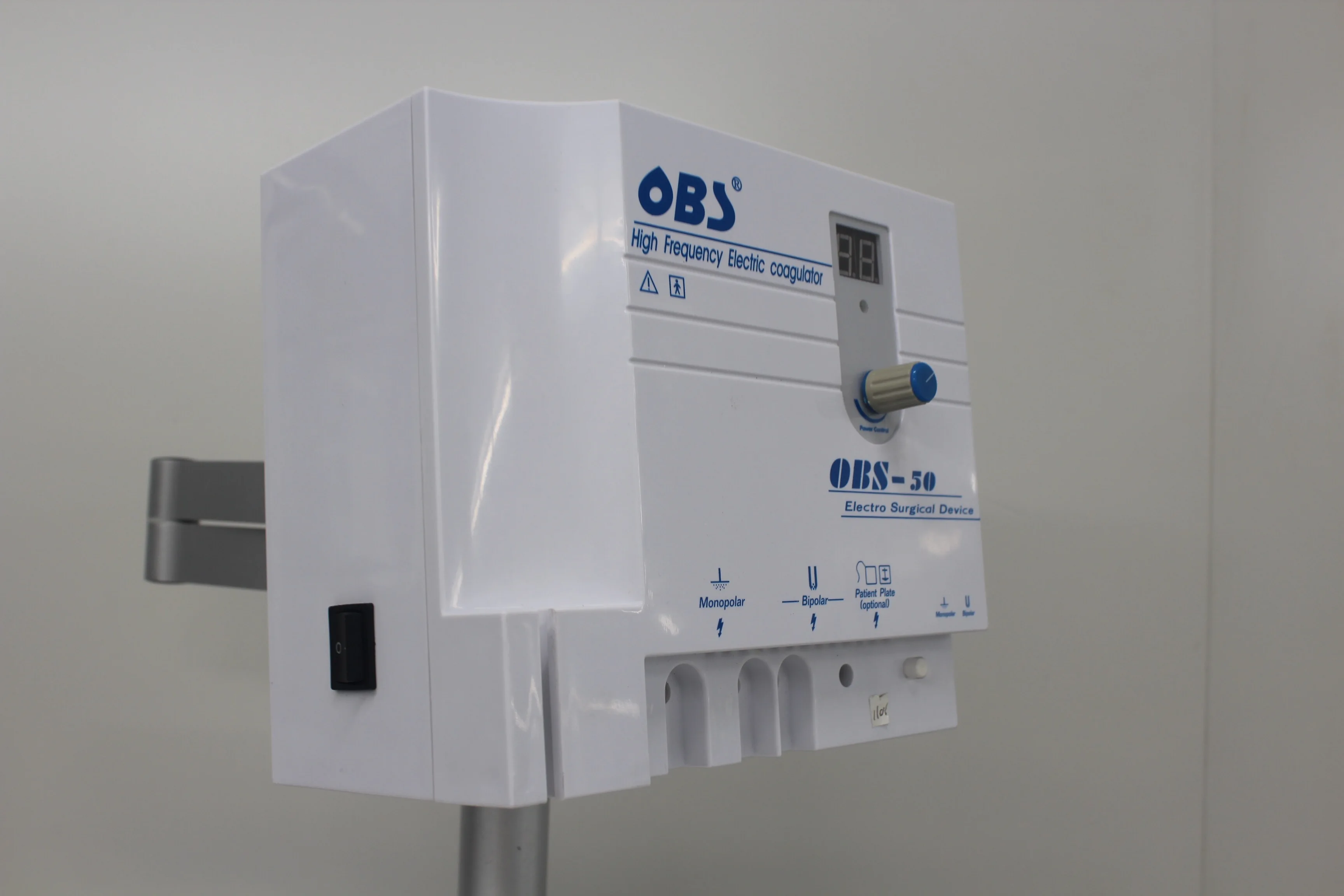

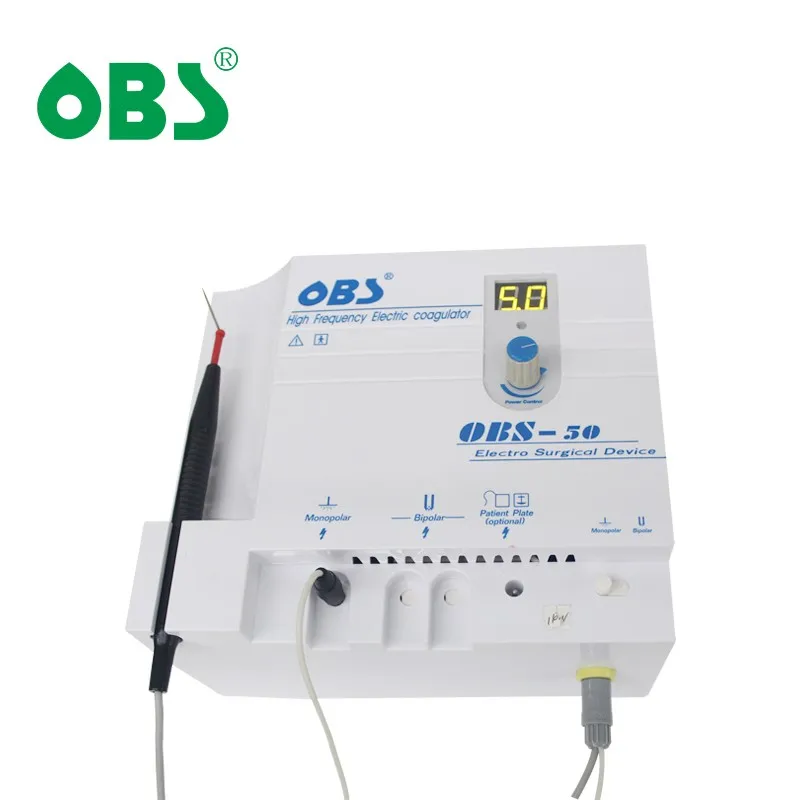

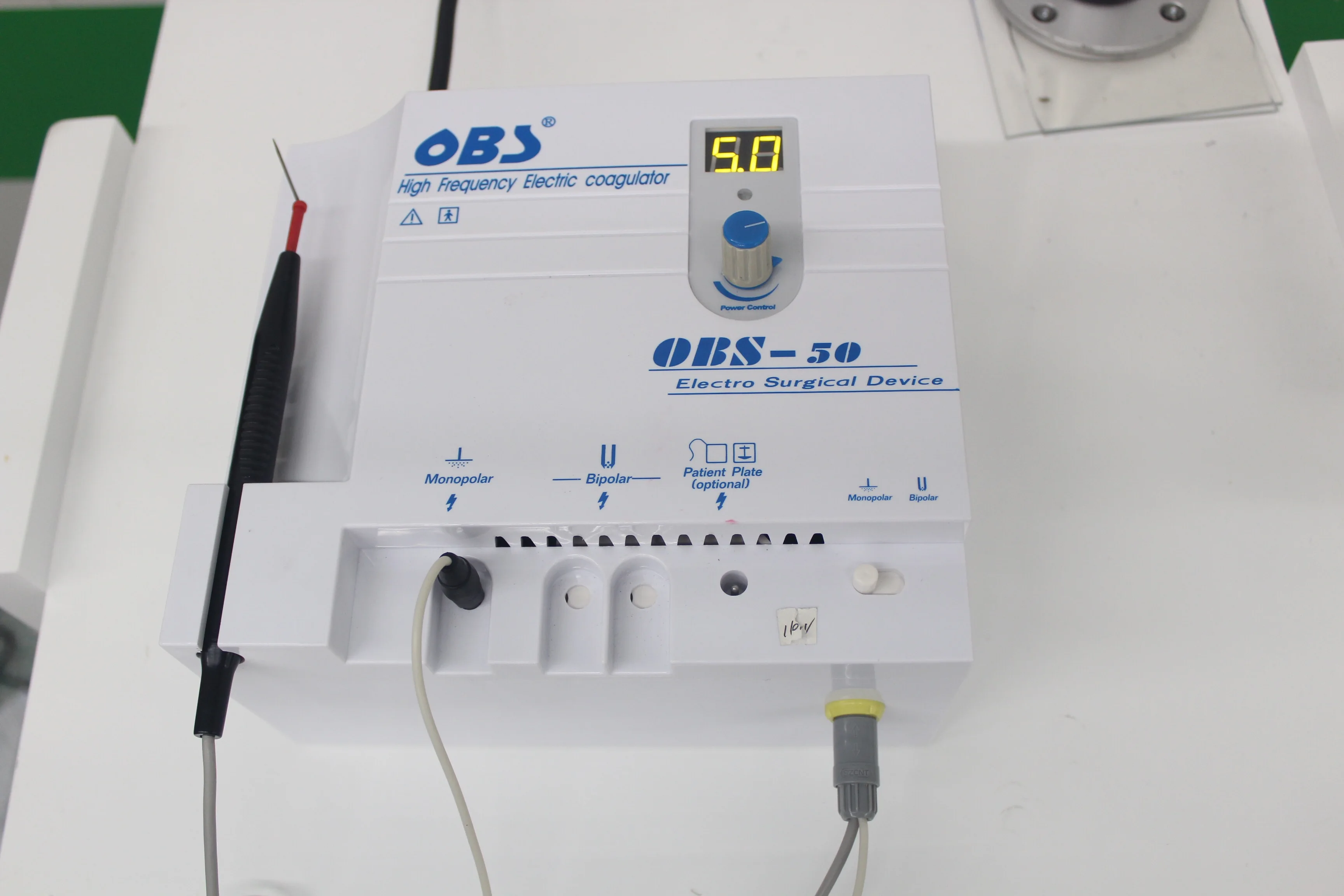

CE Certifed OBS Electrosurgical Unit 50

Convenient handle power control, precise coagulation, suitable fordermatology,plastic surgery, proctology,gynecology,ophthalmology, urology, ENT,and dentistry.



Characteristic:

a.  Control the power by using the power adjustment button of the ESU pencil so as to control output power and the operation time is shortened.

b.  Dual microprocessors (one is to control function and the second is to terminate activation if a hazard or safety issue is detected.

c.   Memory Function:set us the requested function parameter after turn-off.At the nest  startup the previous setting parameter will be displayed.

d.  From 10w to 30w, the output of each watts can be manipulated precisely. And below 10w, the adjustment is done at the 0.1w amplitude by up and down, all of micro surgery is effected by this machine.

e.  Stimulate the argon system for activating the spray coagulation.

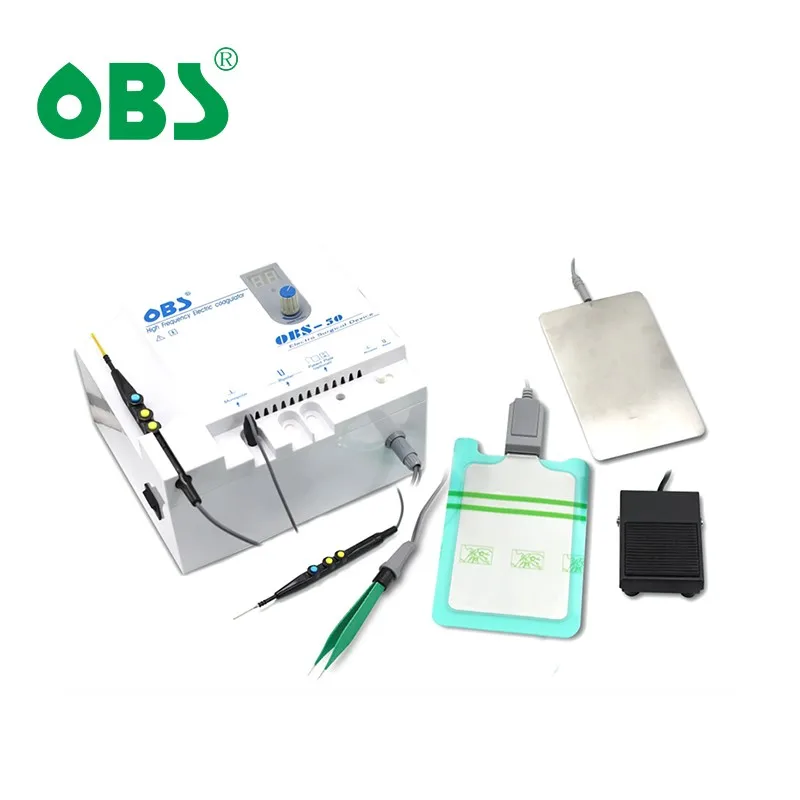

Accessories Included:

Electrosurgical Pencil, reusable                            1pc

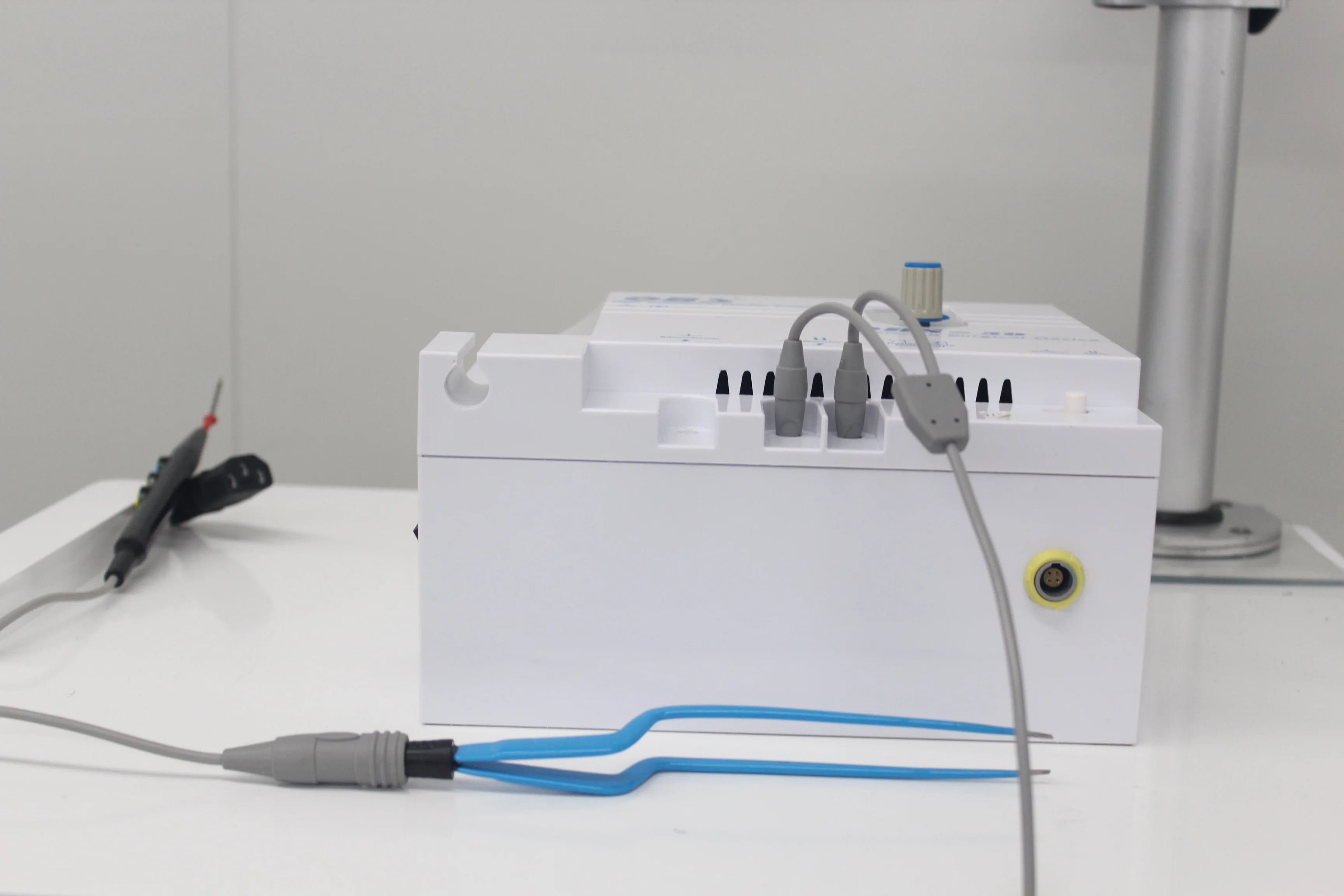

Bipolar Forceps with cable, reusable                   1pc

Disposable ESU Pad                                               2pcs

Cable for ESU Pad, reusable                                 1pc

Footswitch                                                                1pc

Wall Mount                                                              1pc

Power cord                                                               1pc

Manual                                                                      1pc

Technical parameters:

Environmental temperature range:	5°C-40°C
Relative moisture range:	≤80%
Atmosphere pressure range:	86.0 - 106.0 Kpa
Voltage:	220V±10V, 50Hz ± 1Hz
Working frequency:	450KHz ± 50KHz
Output rated power:
Monopolar output:	30w (Load 1000Ω)
Bipolar electrocoagulation:	30w (Load 200Ω)
Display Setting:
Monopolar
0 ~ 10 range:	0.1 Watt increments
10 ~ 30 range:	1.0 Watt increments
Bipolar
0 ~ 10 range:	0.1 Watt increments
10 ~ 30 range:	1.0 Watt increments



Packing :

  More machines are in supply
