PTFE membrane dust collector Polyester Filter cloth/bag for industrial gas filtration purification
- Category: Filter Bags >>>
- Supplier: Zhejiang Heading Environment Technology Co. Ltd.
Share on (60723220868):
Product Overview
Description

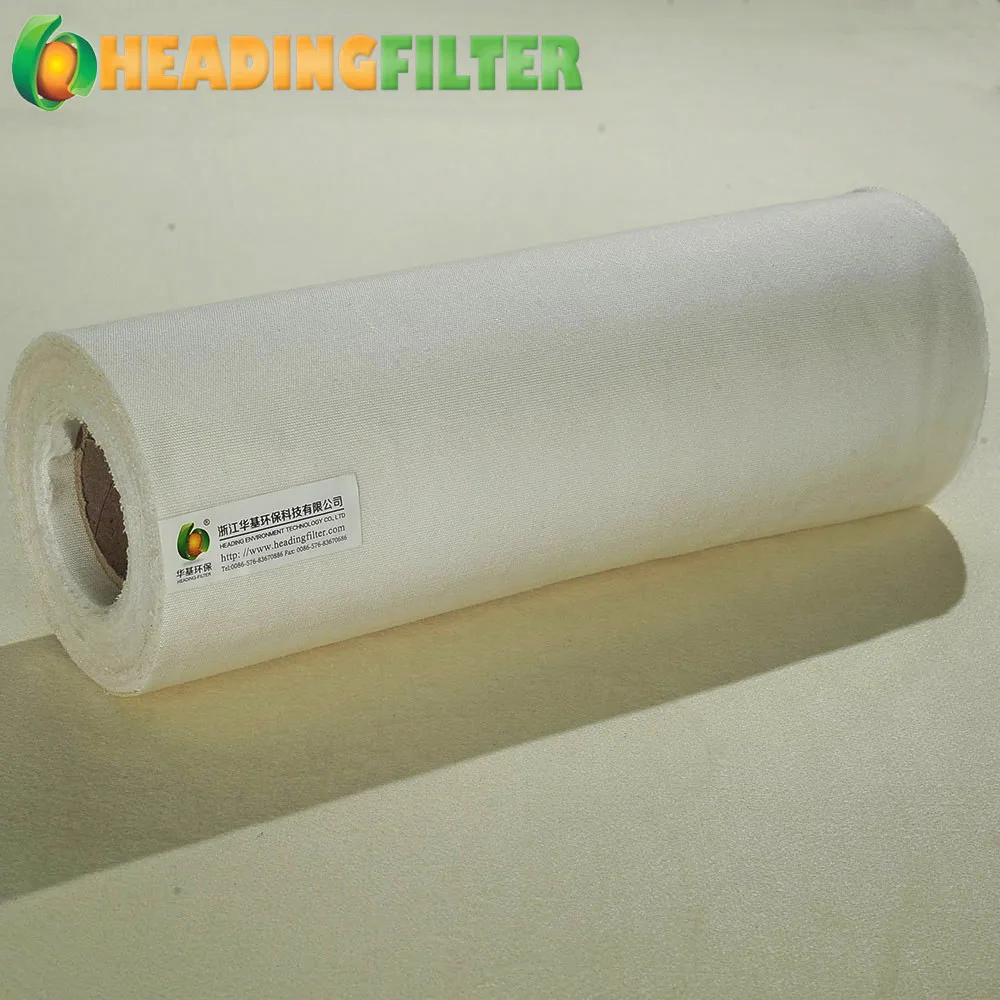

HEADING FILTER® PTFE FILTER CLOTH
HEADING FILTER® polytetrafluoroethylene (PTFE) film is smooth and chemically resistant. It is laminated to the surface of a common filter material to act as a disposable dust layer, trapping all the dust on the surface of the film to achieve surface filtration.
Because the film has a smooth surface, excellent chemical stability, no aging, and water repellency, the dust trapped on the surface is easily peeled off, and the service life of the filter material is improved.
PRODUCT SPECIFICATIONS:
-Physical Proerties:
*Fiber： PTFE*Scrim： PTFE
*Weight (gsm): 750
*Thickness (mm): 1.0-1.2
*Width (mm): ≤2200
*Finish treatment： Heat Set, PTFE Full Bath
*Air permeability : 120~250 L/m2/s @200Pa
120~250 mm/s @ 200 Pa
*Tensile strength (N/5×20cm): Warp: ≥700
Weft: ≥700
Weft: ≥700
*Tensile elongation(%): Warp: <35
Weft: <50
Weft: <50
*Temperature (℃): Continue: ≤240
Instant: 260
-Chemical Properties:
✔Anti-acid
✔Anti-alkali
✔Anti-abrasion
-Performance facts:
(1) Resist strong acid and alkali.
(2) Stable to thick abioacid in low temperature, not dissolved in organic acid, but can be dissolved in thick vitriol and heated cresol.
Instant: 260
-Chemical Properties:
✔Anti-acid
✔Anti-alkali
✔Anti-abrasion
✔Hydrolysis stability
-Advantages of PTFE Material:
1. The membrane pore size is between 0.23μm, the filtration efficiency can reach more than 99.99%, and almost zero emission is achieved. After cleaning, the porosity is not changed, and the dust removal efficiency is always high.
2. When the membrane filter material is used, the pressure loss is higher than that of the ordinary filter material.
1. The membrane pore size is between 0.23μm, the filtration efficiency can reach more than 99.99%, and almost zero emission is achieved. After cleaning, the porosity is not changed, and the dust removal efficiency is always high.
2. When the membrane filter material is used, the pressure loss is higher than that of the ordinary filter material.
3. The dust of ordinary filter media can easily enter into the interior during use, and it accumulates more and more, until the pores are blocked and the use cannot be continued. With the use of PTFE coated filter material, the filtered dust can be easily removed from the surface of the membrane. The cleaning effect is good, the cycle is long, and the cleaning pressure is low, which improves the service life of the filter material and reduces the operating cost of the product.
(1) Resist strong acid and alkali.
(2) Stable to thick abioacid in low temperature, not dissolved in organic acid, but can be dissolved in thick vitriol and heated cresol.
Application
Liquid-solid separation and dust collection. Mainly used in the precision chemical industry, sugar-refinery, pharmaceutical, alumina industry, etc., for equipment of frame filter press, belt filters, blend belt filter, disc filters, drum filters, centrifuge filters, etc.
Liquid-solid separation and dust collection. Mainly used in the precision chemical industry, sugar-refinery, pharmaceutical, alumina industry, etc., for equipment of frame filter press, belt filters, blend belt filter, disc filters, drum filters, centrifuge filters, etc.
PACKING & DELIVERY
1.Needle punched felt:
--Plastic bags for interior packing, Woven bags for exterior packing

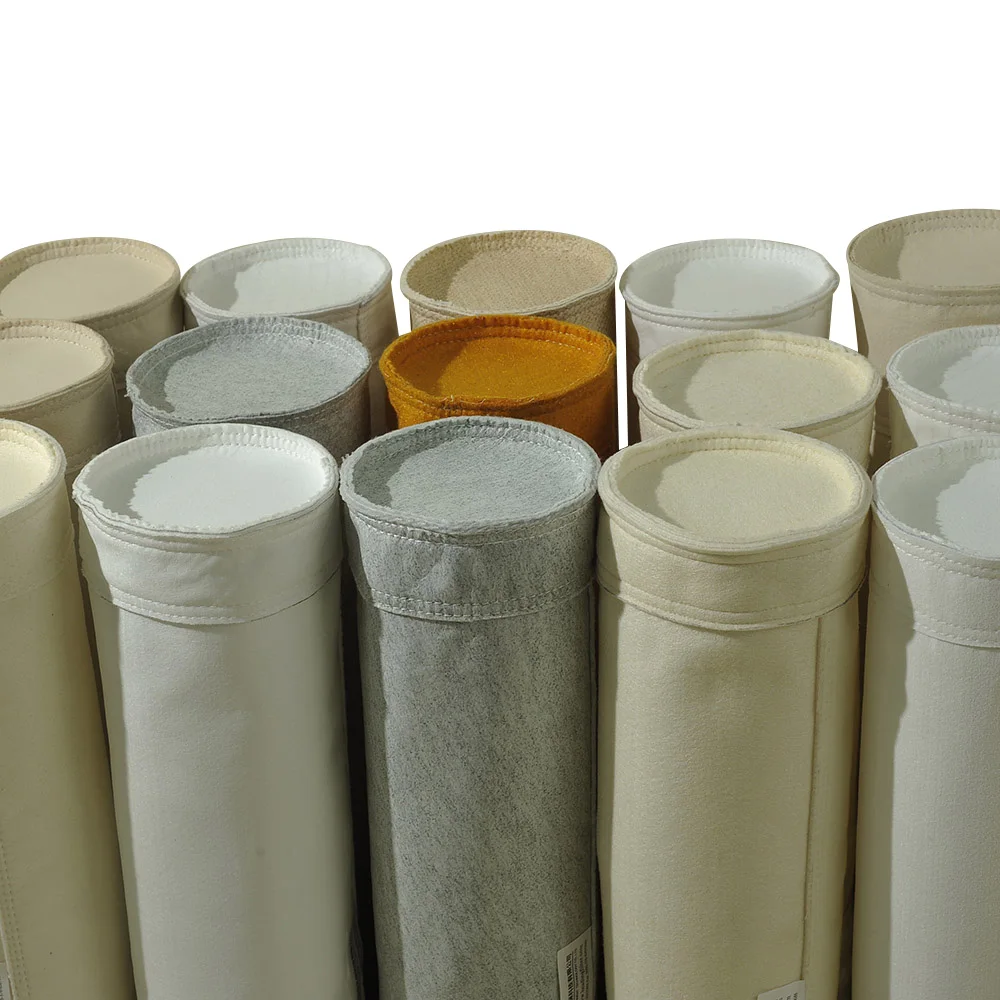

2.Filter bags:
2.Filter bags:
--Plastic bags for interior packing, Woven bags for exterior packing; Cartons will be packed after woven bags especially for material PTFE and Fiberglass
ABOUT US
ZHEJIANG HEADING ENVIRONMENT TECHNOLOGY CO,LTD was founded in the year of 2010 and located in Zhejiang, China. As an innovative company we deliver powerful filtration solutions to help companies increase market share and more importantly, to help building an eco-friendly environment.
Heading Filter offers a one stop shop for all baghouse needs including manufacturing facilities for conventional and industrial baghouse filter bags, filter cages, and dust collector baghouse hardwares.
CERTIFICATES
AT THE EXPO
FAQ
1. Are you a manufacturer or trading company?
Manufacturer which located in Taizhou,Zhejiang,China
2. What are your main products?
Needle punched felt, Dust filter bags, Net/Belt fabric, Airslide
3.What payment method can you do?
T/T L/C D/P
4. What size can you do?
Customized sizes as you required.
5. Can you offer a sample before an order?
Yes, and it is a free sample
Manufacturer which located in Taizhou,Zhejiang,China
2. What are your main products?
Needle punched felt, Dust filter bags, Net/Belt fabric, Airslide
3.What payment method can you do?
T/T L/C D/P
4. What size can you do?
Customized sizes as you required.
5. Can you offer a sample before an order?
Yes, and it is a free sample
6. How can I order from you?
Step 1 You make the deposit after the Proforma Invoice finalized
Step 2 We start the production, and keep the communication with you if any questions
Step 3 You make the rest payment when the cargo is ready to ship
Step 4 We ship out the cargo, then offer documents
