Product Overview

Description

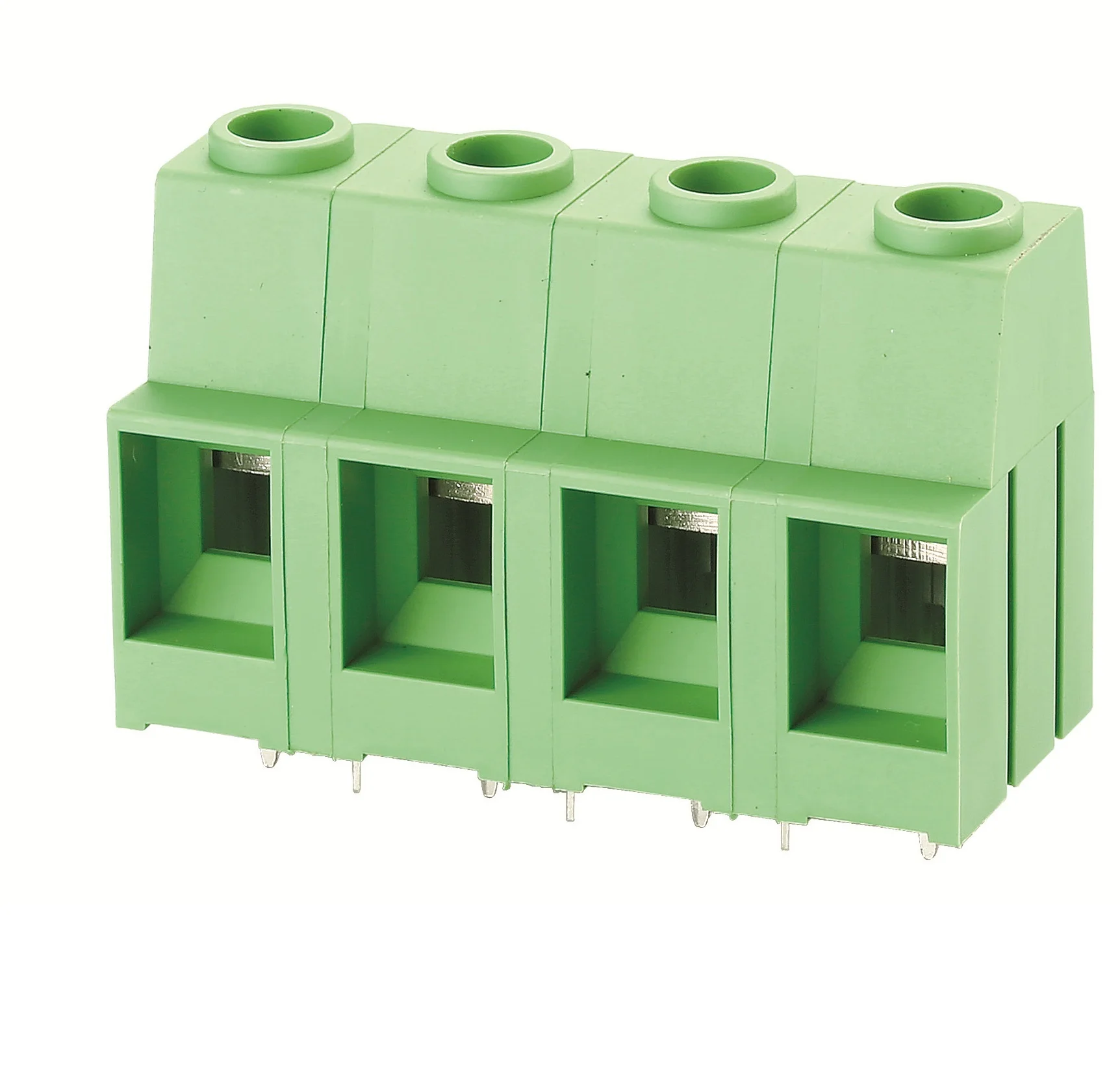

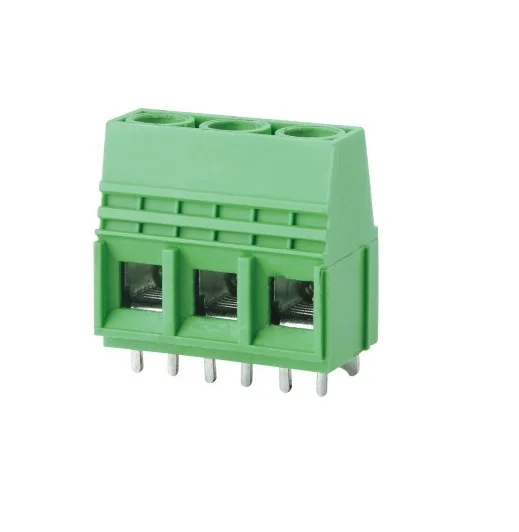

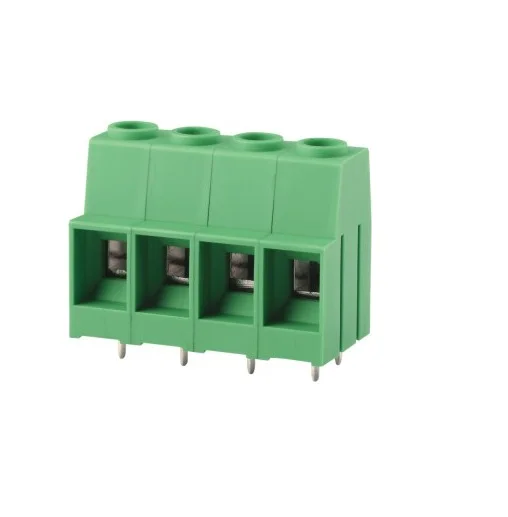

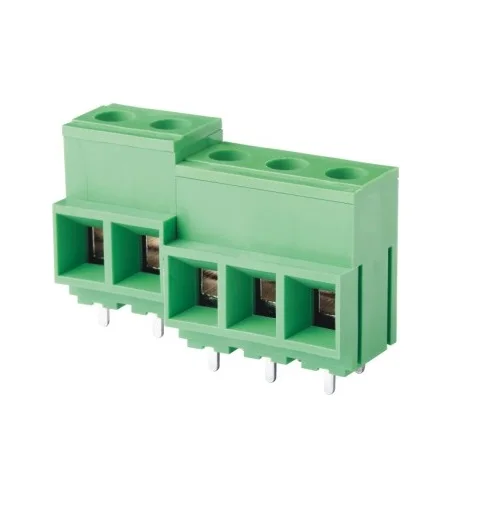

High Current 12.7mm pitch PCB Screw terminal block connector

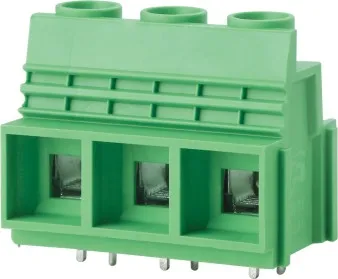

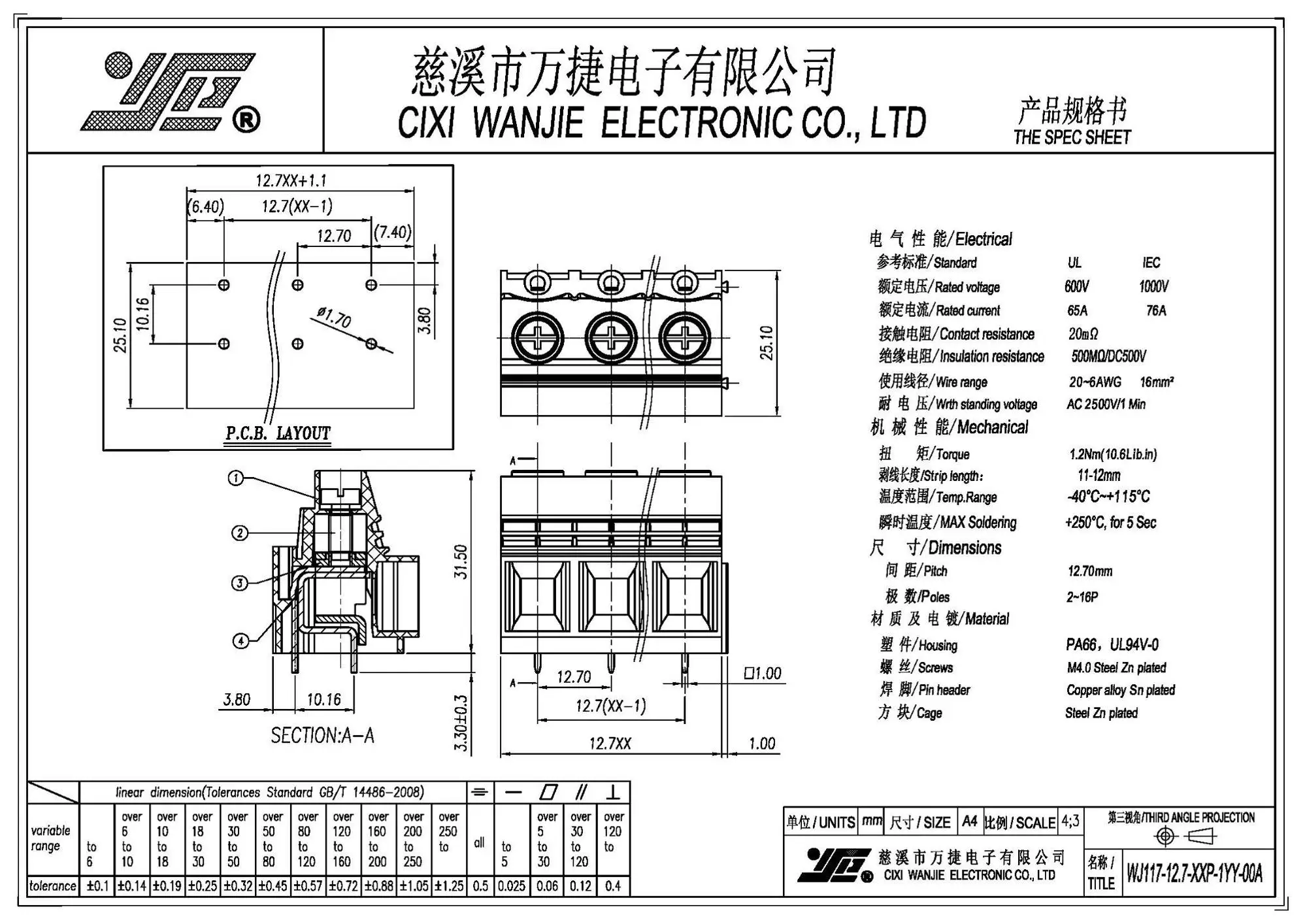

 WJ117-12.7





UL/CUL
























Use Group








BCD

Rate Voltage [V]








600600600

Rated Current [A]








65655

Wire Range [AWG]






20~6

Dielectric Voltage-Withstand






2.2KV


IEC




























Overvoltage Category








IIIIIIII

Contamination Class








322

Rated Voltage [V]








100010001000

Rated Current [A]








575757

Impulse withstand voltage [KV]








888

Conductor cross section[solid/flexible] [mm²]






2.5~16


Material




















Insulation Material






PA66

Flame relardant rating






UL94V-0

Conductor Material






Copper alloy

Plating of conductor surface






Sn plated


Other Data
































Pitch/Poles [mm]/[P]






12.7/2~16

Stripping Length [mm]






11~12

Screw/Torque(Max)[N.m]






M4/1.2

Operating temperature [℃]






-40~+105

Soldering temperature






260℃/5S

Pin dimensions [mm]






1.0*1.0

PCB Hole Diameter [mm]






Ø1.7

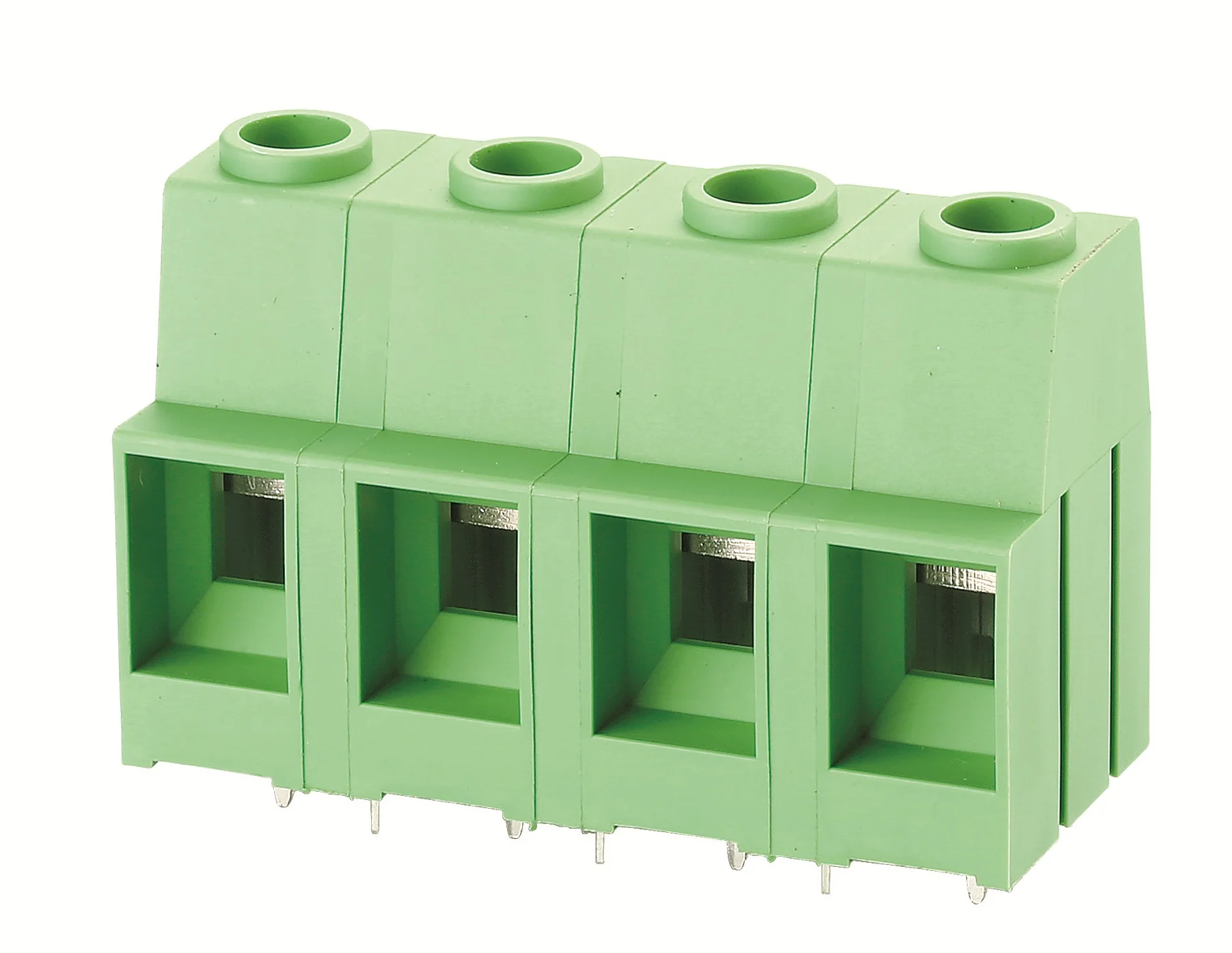

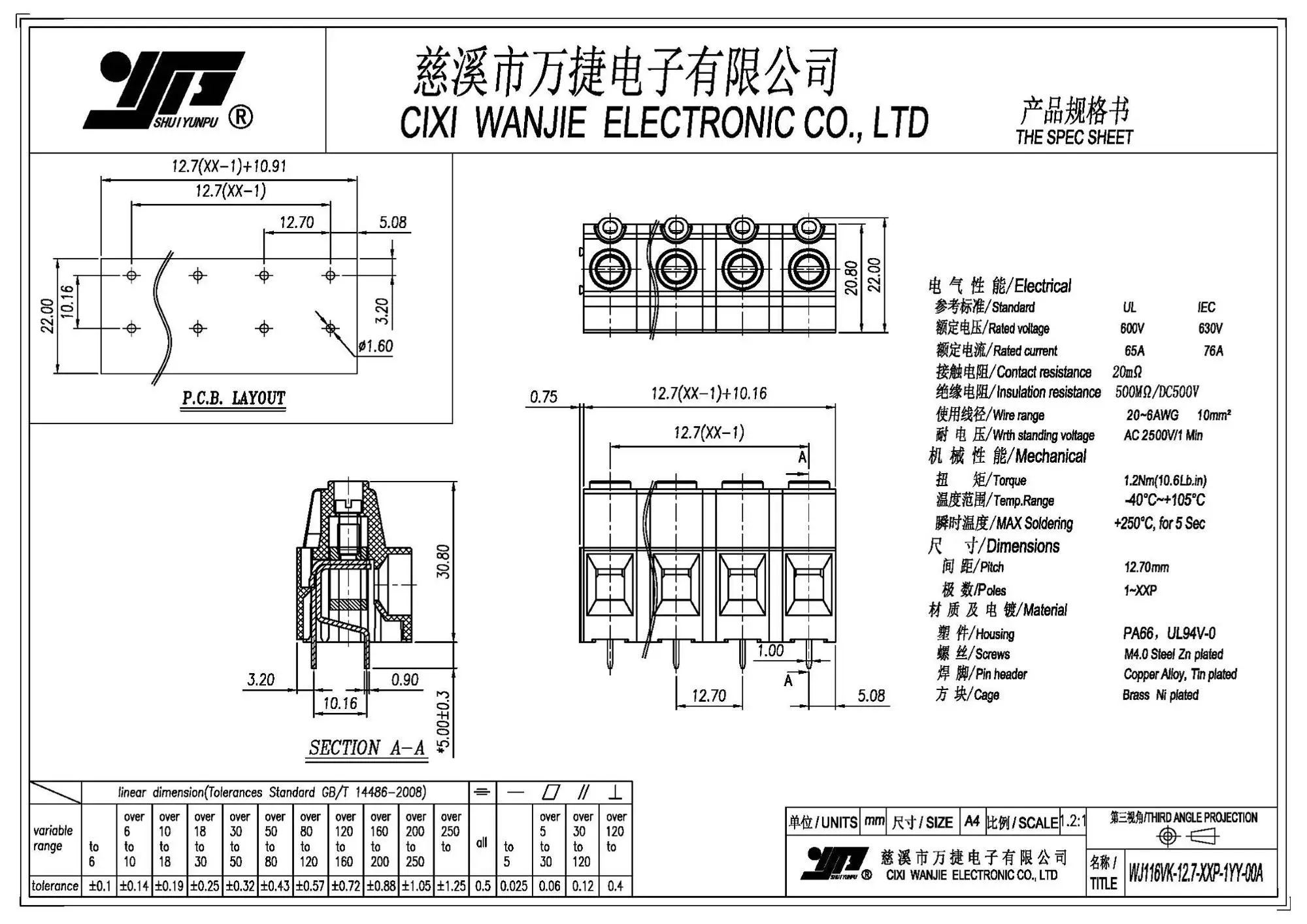

WJ116VK-12.7
