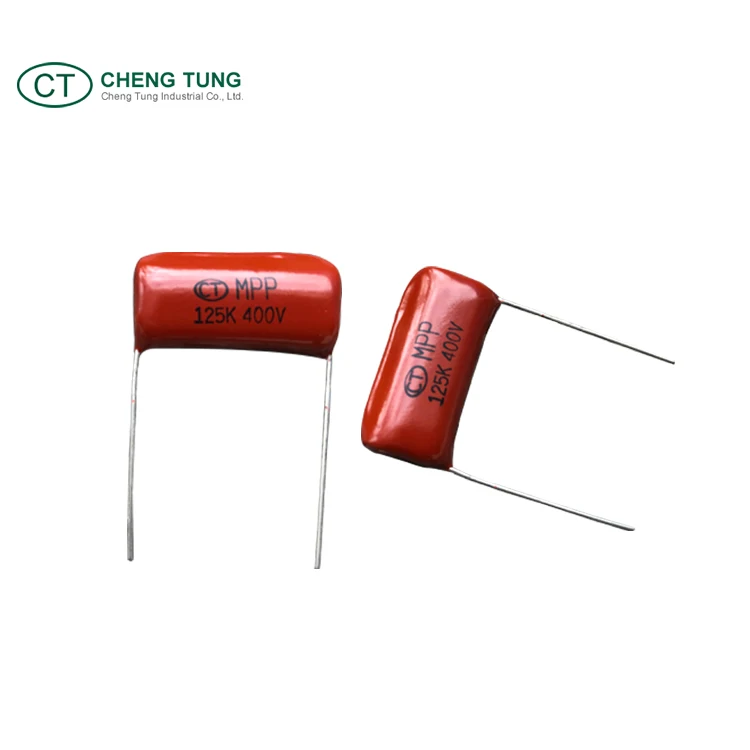

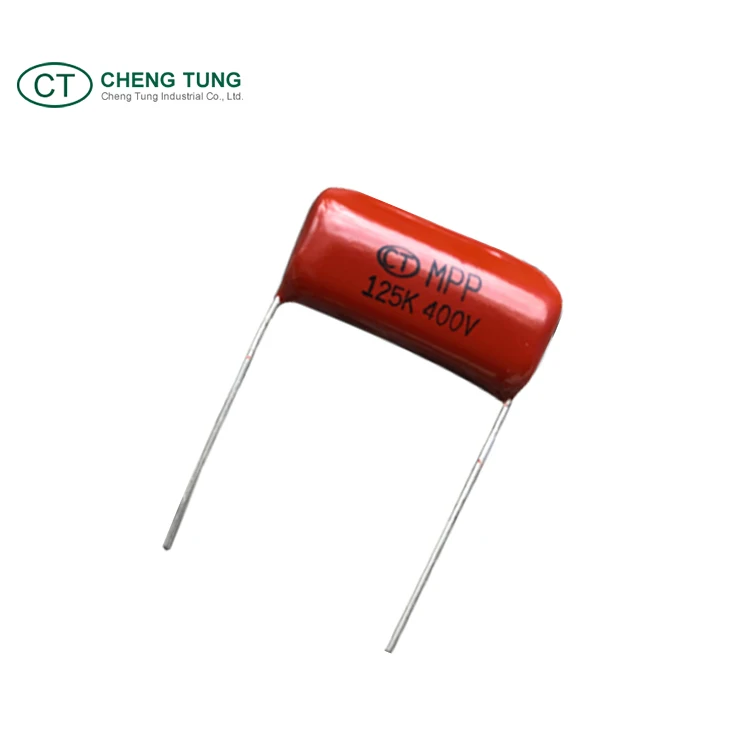

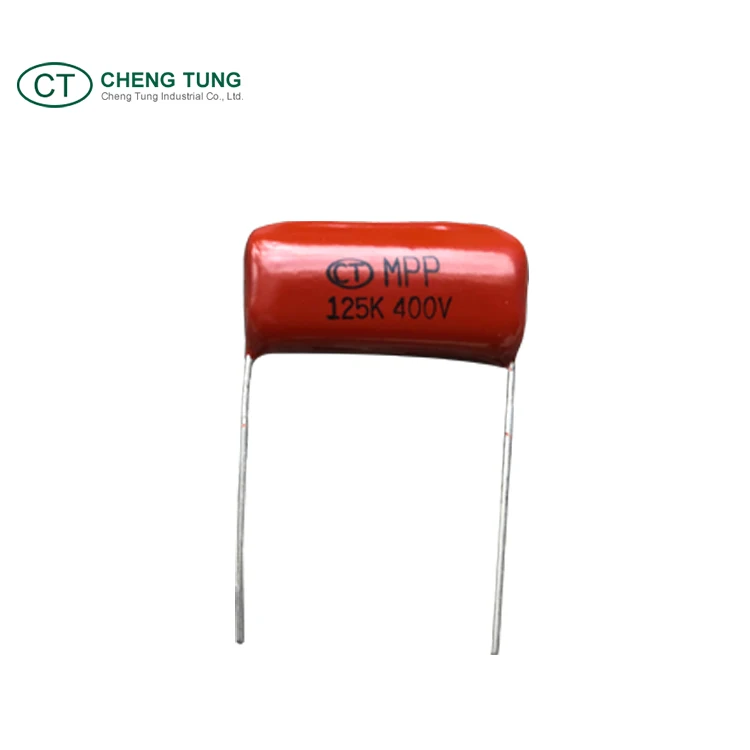

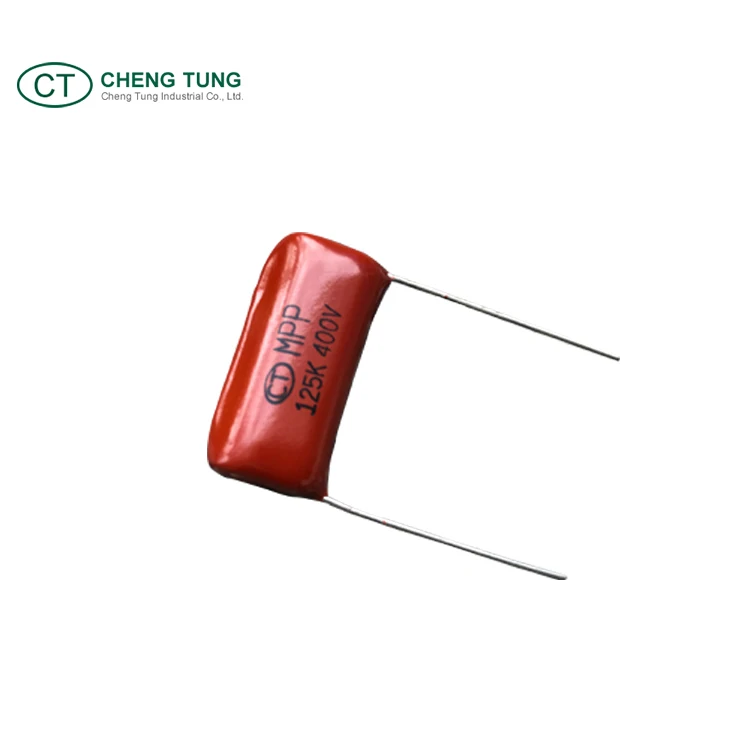

MPP Metalized Film Capacitor with Coating

TYPE: MPP

FEATURES

 APPLICATIONS

•


  Non – inductive and self-healing





•


  Low DF and high IR





•


  High stability of capacitance and DF versus temperature and frequency





•


  Very small inherent temperature rise




•


  General resonance circuit





•


  Widely used in DC pulse, high frequency and




    high current circuit





•


  Providing optimum performance with small size in S-shaping correction of Colour TV set




SPECIFICATIONS

  Dielectric

  Polypropylene film

  Electrodes

  Vacuum evaporated metal

  Coating

  Epoxy resin coating

  Leads

  Radial leads of tinned wire

  Climatic Catalogue

  40 / 85 / 21

  Capacitance versus Rated Voltage  (U_R)

250VDC  0.01uF ~ 3.3uF ;  400VDC 0.01uF ~ 1.5uF

630VDC  0.01uF ~ 0.68uF;

  Capacitance Tolerance

  J = ± 5%  K = ±10%  M = ± 20%

 Dissipation Factor (Tangent of Loss)

DF<=0.10%              (at 20℃,1KHZ)

  Voltage Proof

  1.6×U_R (1minute at20℃)

  Insulation Resistance

C<=0.1uF  IR>=30,000MΩ

C>0.1uF  IR×C>=3,000MΩ / uF

(1minute at20℃and RH<=65%)
