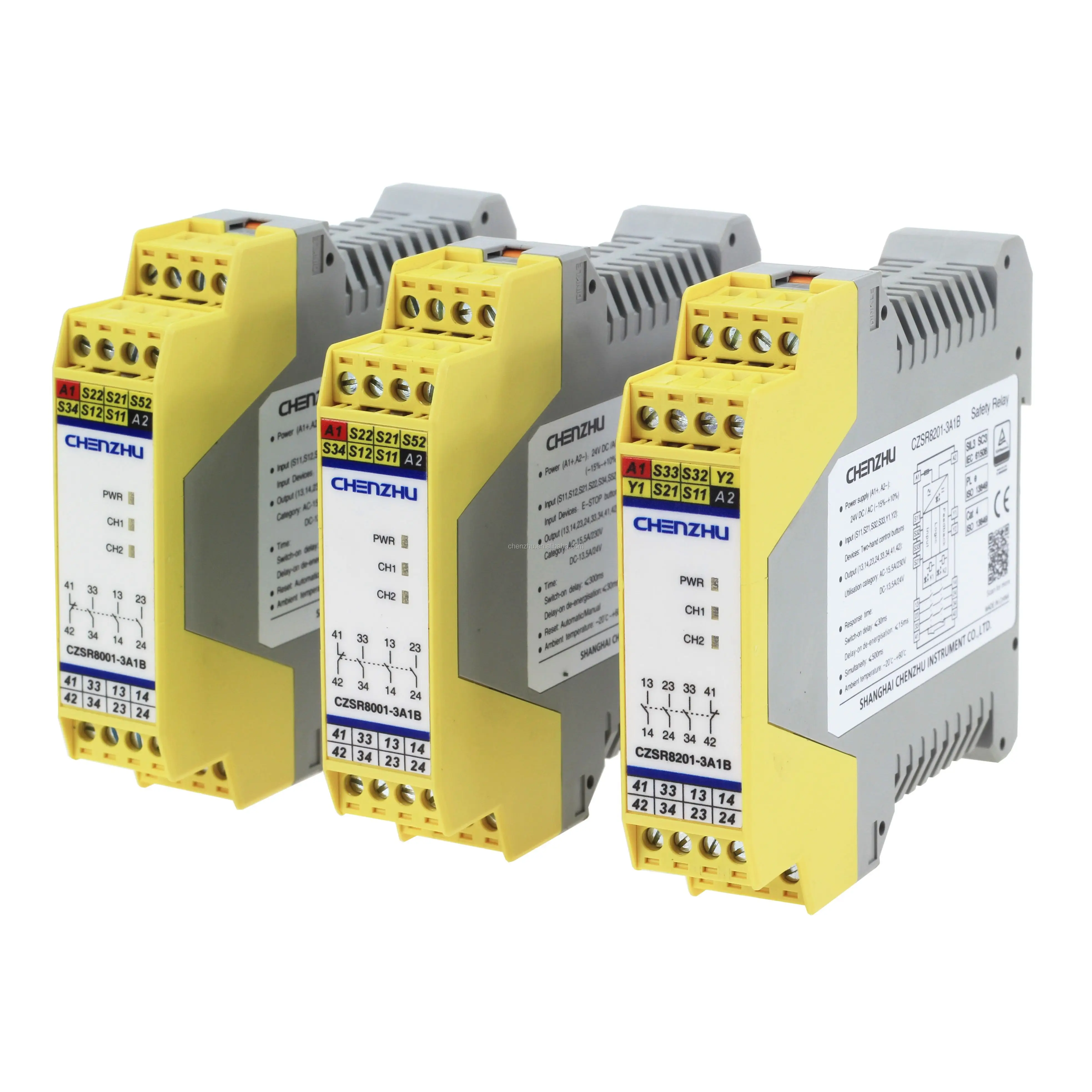

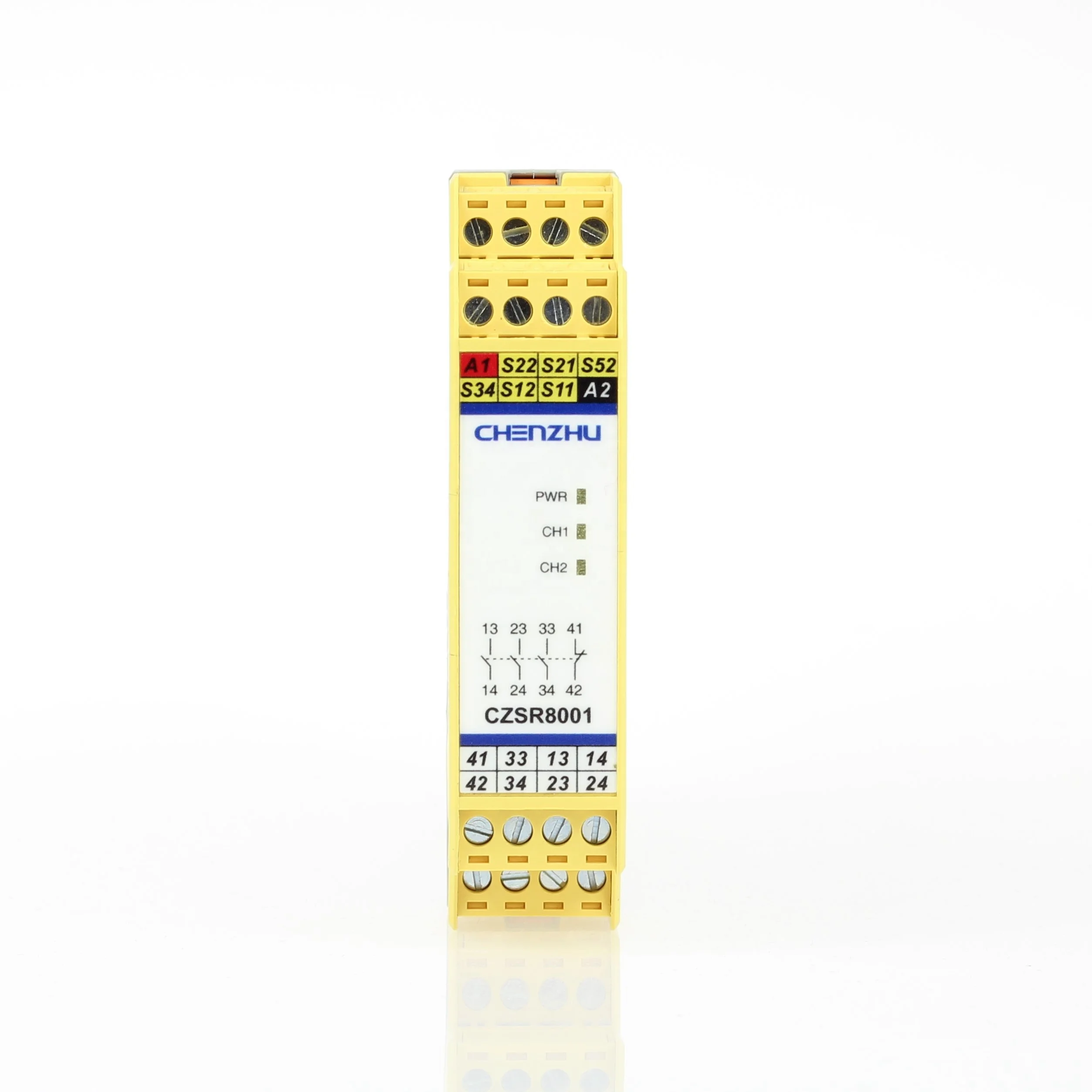

CZSR8301 3A1B(M) 4 wire safetymat safety relay | 24V DC/AC | 3NO 1NC | Monitored Manual Reset CHENZHU
- Category: >>>
- Supplier: Shanghai Chenzhu Instrument Co. Ltd.
Share on (60723353091):
Product Overview
Description

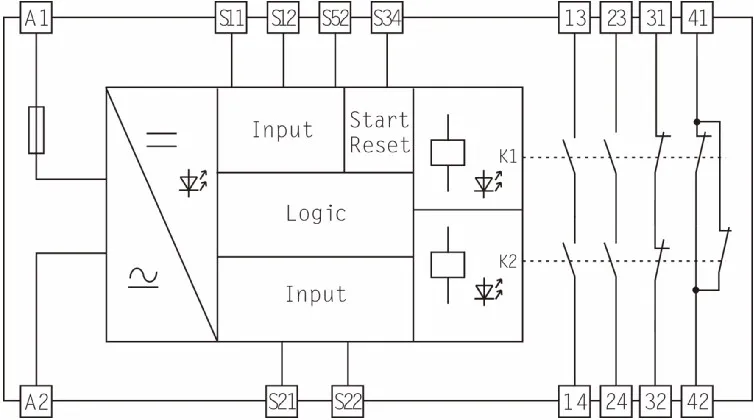

CZSR8301-3A1B(M) is suitable for emergency stop button, safety control switch input, with 3 NO (normally open) safe output contacts and 1 way NC (normally closed) auxiliary output contact of the safety relay. It can choose single and double channel operation, manual or automatic reset, and has the function of monitoring the short circuit between channels.
Product Name | CZSR8301-3A1B(M) Safety Relay |
Supply voltage | 24DC/AC |
Input signal | Switch |
Output signal | Relay: 3NO+1NC |
Ambient temperature | -20℃~+60℃ |

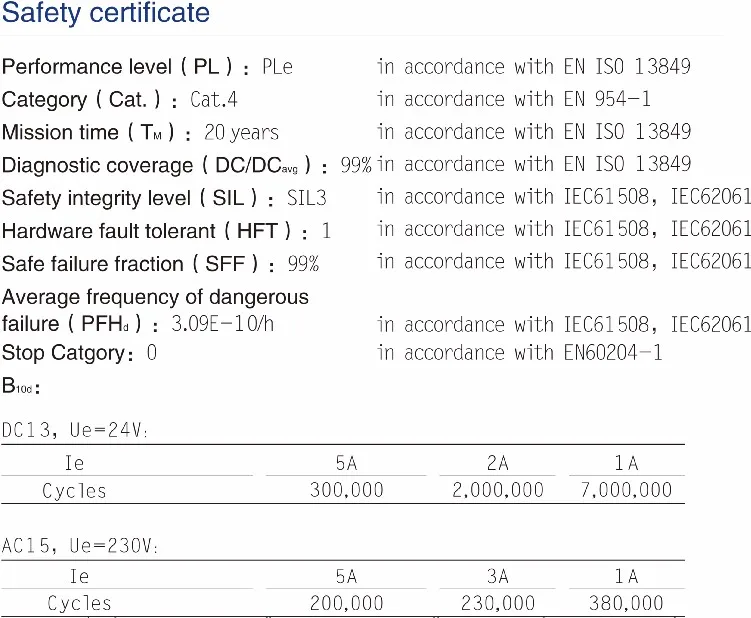

Certification | TUV ;CE;PLe; Cat.4 |
