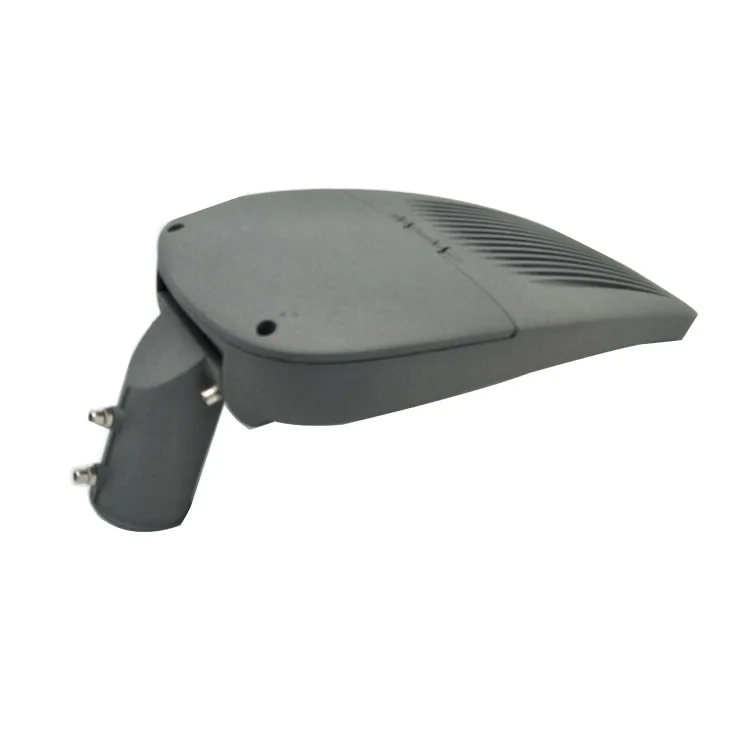

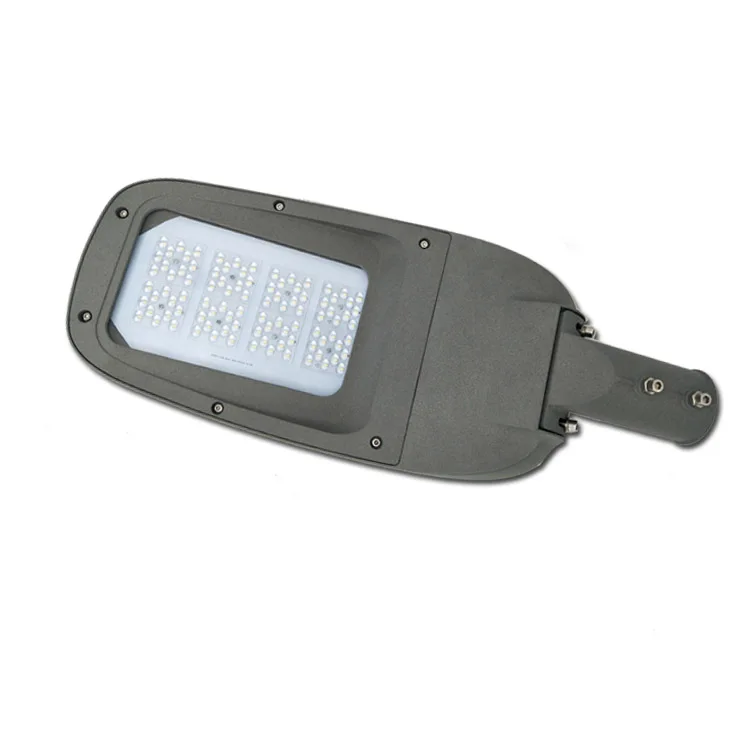

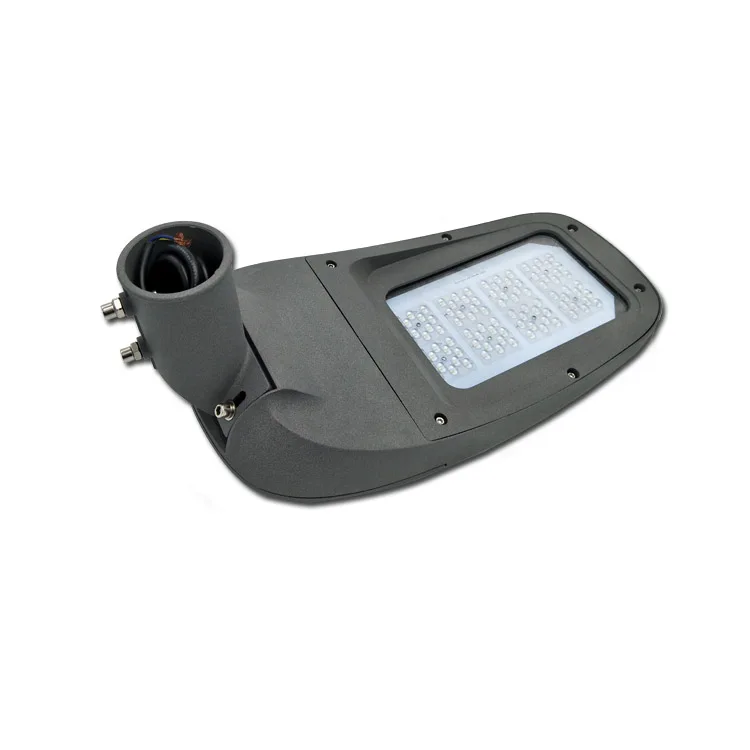

Modern design 80w led street light cheap price aluminium led street light ip66 for outdoor use

Share on (60723374454):


Price:

Quantity:


Product Overview

Description




Modern design 60W 80w led street light cheap price aluminium led street light ip66 for outdoor use



Product Description

 product description



Model No

SLN616-60W

System Consumption

60W

Input Voltage/Frequency

100-295VAC/47-63Hz

Power Factor (PF)

>0.98

Led Source

LUMILEDS LUXEON 3030

Color Temperature

3000K 4000K 5000K 6500K

Lamp’s Luminous Efficiency

≥120Lm /W

Led Initial Flux

>8400Lm

Lumen Maintenance

70%(50,000Hrs)

Color Rendering Index

Ra70

IP Rating

IP66

Life span

≥50000Hrs

Appliance Class

Class Ⅰ

Materials

Aluminum

Working Temperature

-30  +45

Operating humidity

10%~90%RH

Dimension

616*250*186mm

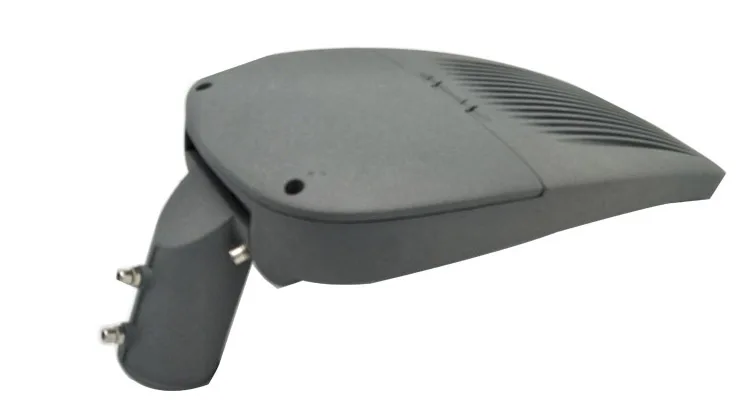

Product display



   What's details of led street light?










 CLICK ME!! Send enquiries can get a huge discount

 More products display




 Why chosse us?

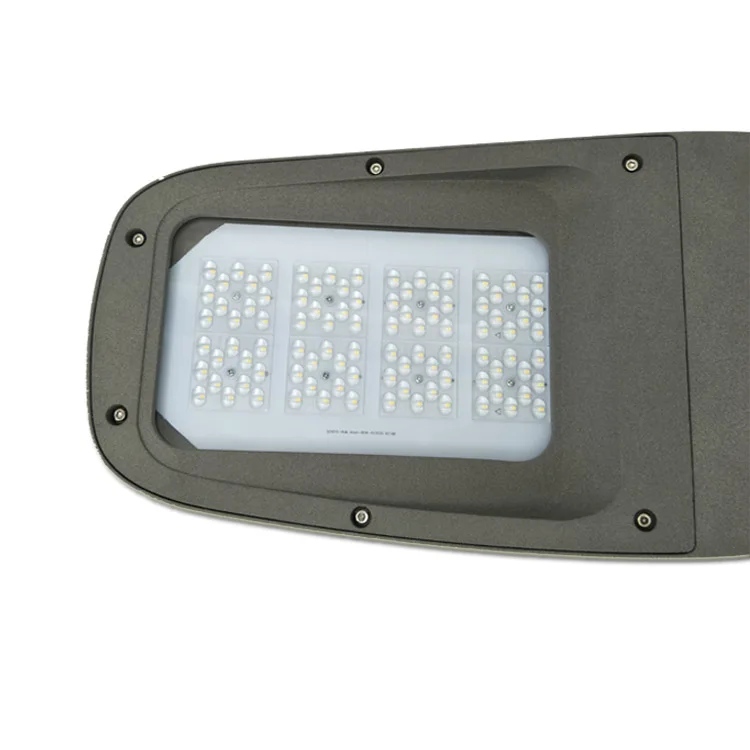

1 SLN616-Walk Moon series LED street light use LUMILEDS LUXEON 3030 SMD LED , high thermal conductivity aluminum lamp shell and radiating body, high light transmittance lens.

2 Compared with the traditional street light, it has lots of unique features, such as the installation angle is adjustable,multiple light distribution options,more efficient, energy-saving, more security and environmental, long lifespan, quicker response and higher CRI.

3 It will be the best to replace traditional high pressure street light, besides, it’s also the best choice to light square, school personal garden and so on.



  Features

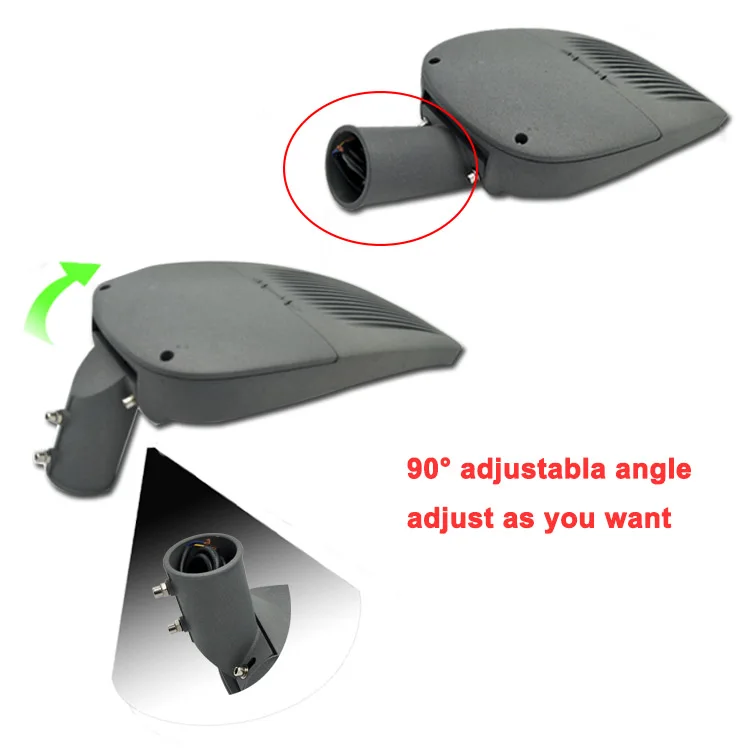

1 The installation angle is adjustable, easy to use.

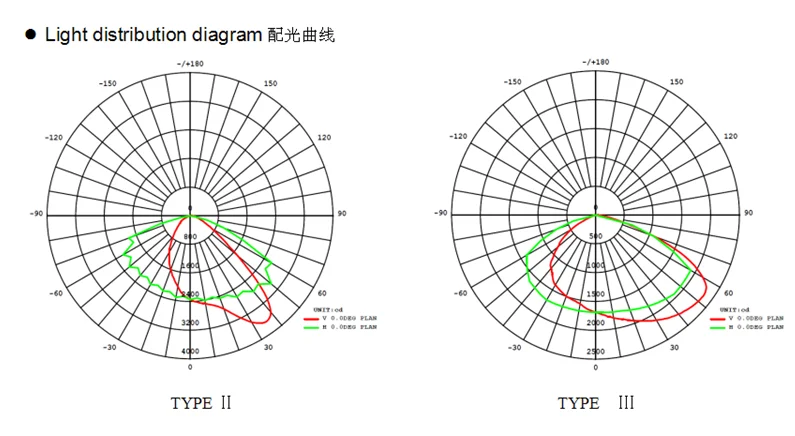

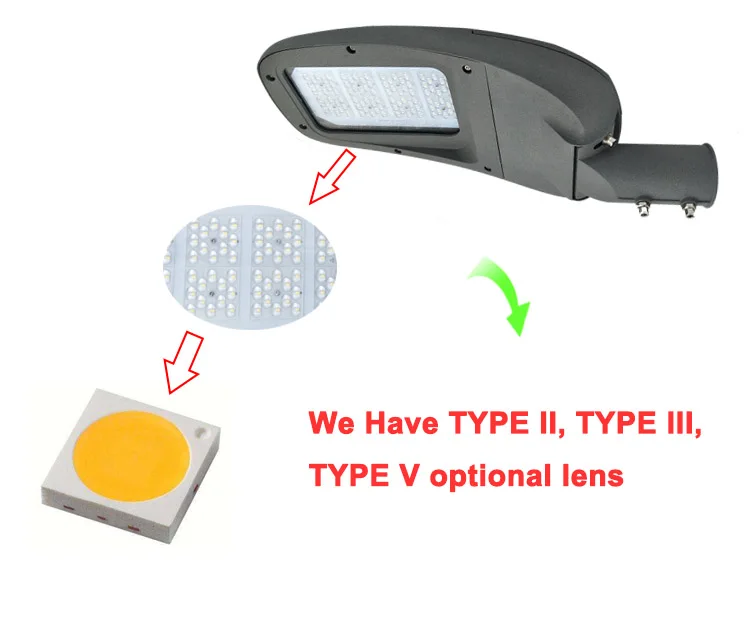

2  There are many types of light distribution, and many lenses are available

3 With entire aluminum housing structure, the led contact the heat sink closely, optimize    heat dissipation.

4 No bad glare, stroboscope or start up delay, eliminating the disadvantage of the            traditional street light.

5 Environmental-friendly without contamination, with no Lead, Hg or any other pollution    elements, no  pollution to the environment.

6 Wide input voltage, high efficiency, constant current and constant voltage switch    power supply.

7 Specially designed for outdoor using, with self-leaning mechanism lead to less dust    and water accumulation,    reducing, maintenance, IP65 rated.

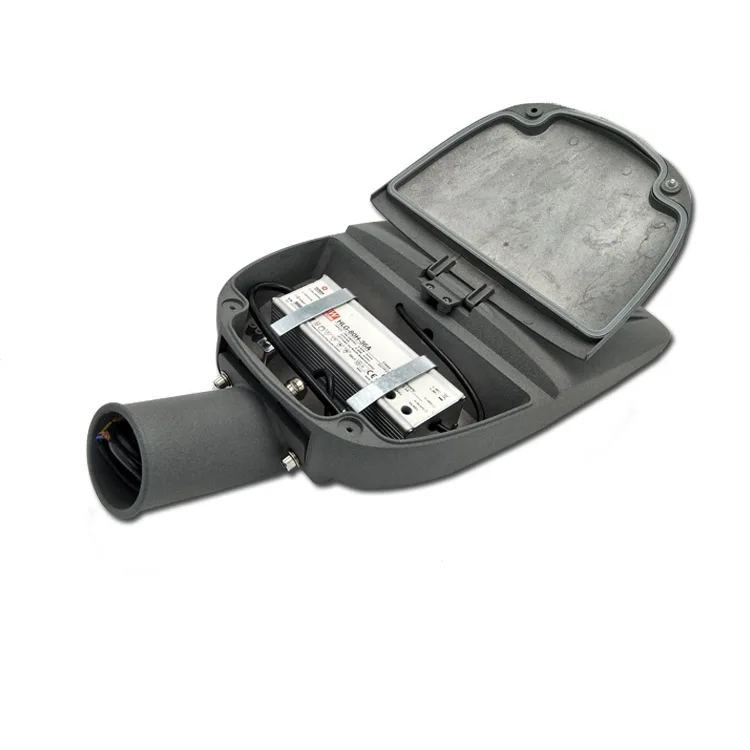

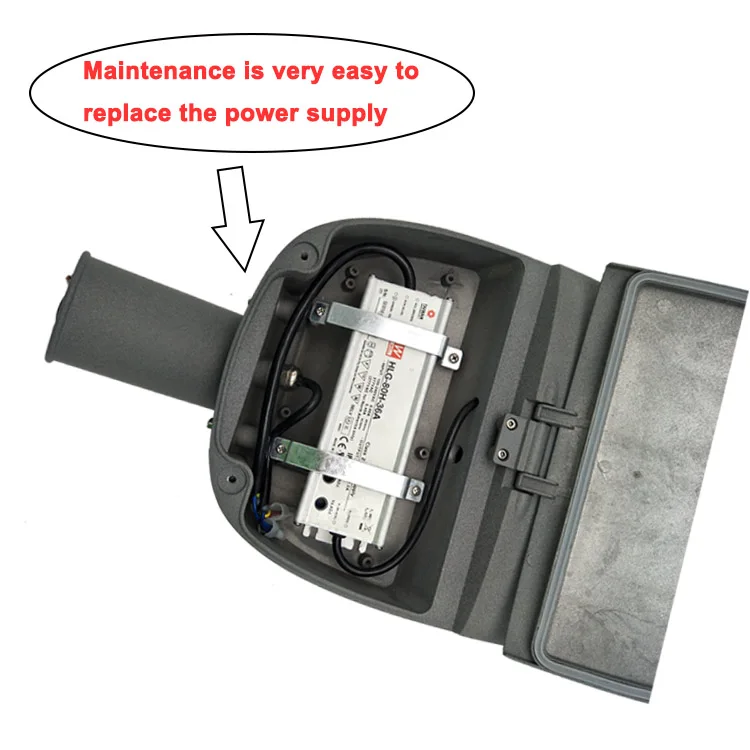

8 Separate drive box design, enhancing the drivers efficiency and stability.

  More characteristics



Power parameters

Input Power Consumption



60±2W

80±2W

Input Voltage/Frequency



90-305VAC   47-63Hz

90-305VAC   47-63Hz

Input Current

0.54A/115VAC,0.27A/230VAC

0.72A/115VAC ,0.36A/230VAC

Output Voltage

DC36.6±2V

DC36.6±2V

Output Current

1.49±0.1A

1.99±0.1A

Power Efficiency

90% at 230VAC

90% at 230VAC

Power Factor

PF>0.96/115VAC

PF>0.96/230VAC

PF>0.96/115VAC

PF>0.96/230VAC







 Hot sales
Hot sales







Company Information






FAQ



Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 2-3 weeks for order quantity more than



Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.



Q6:Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
