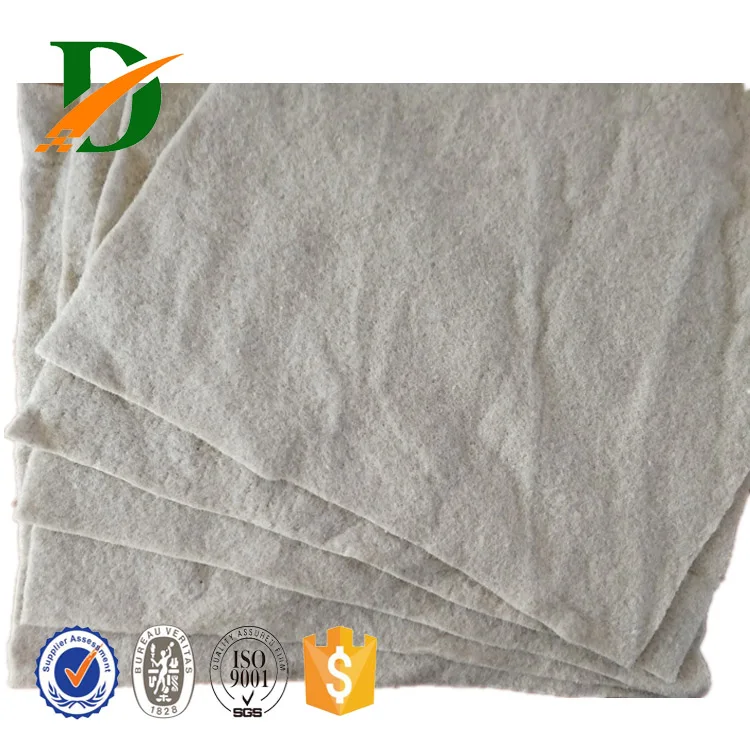

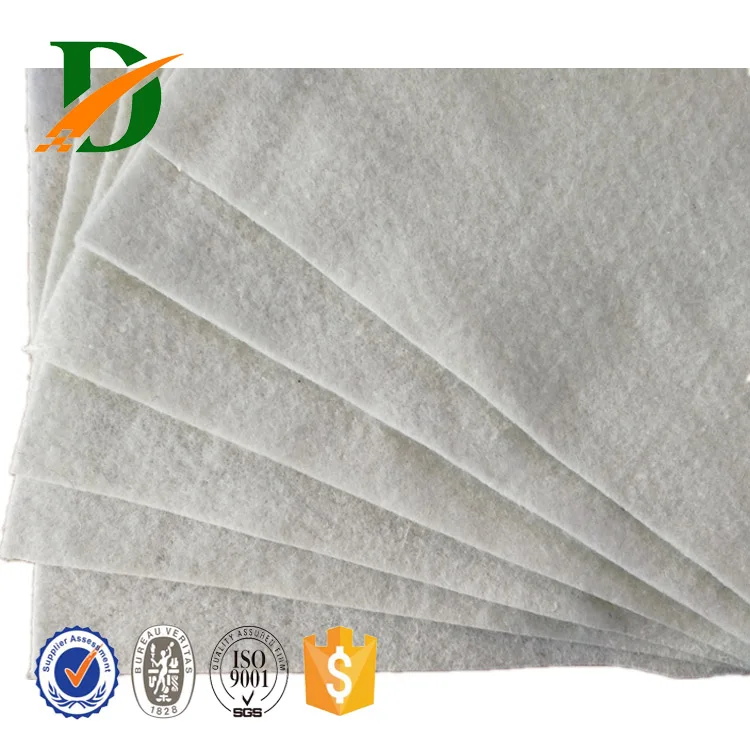

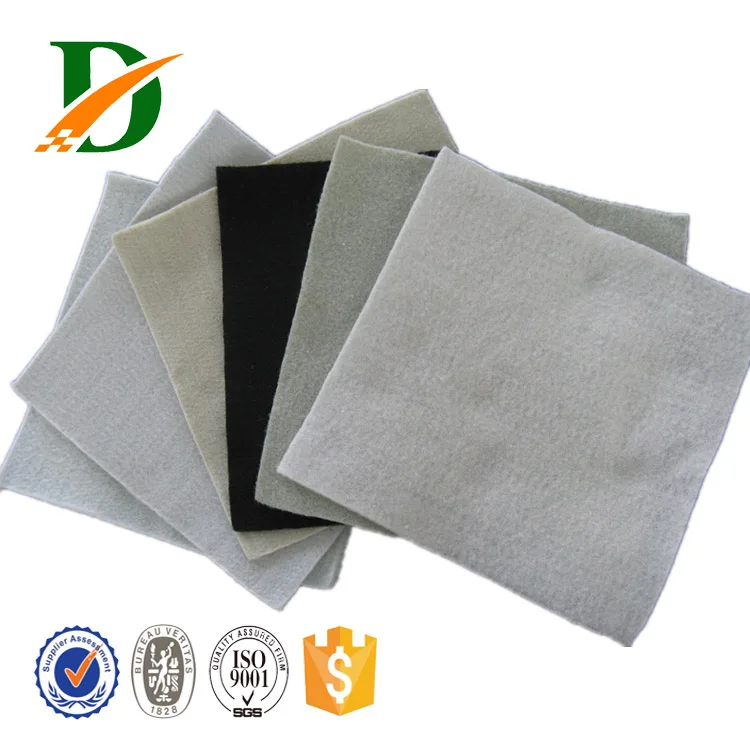

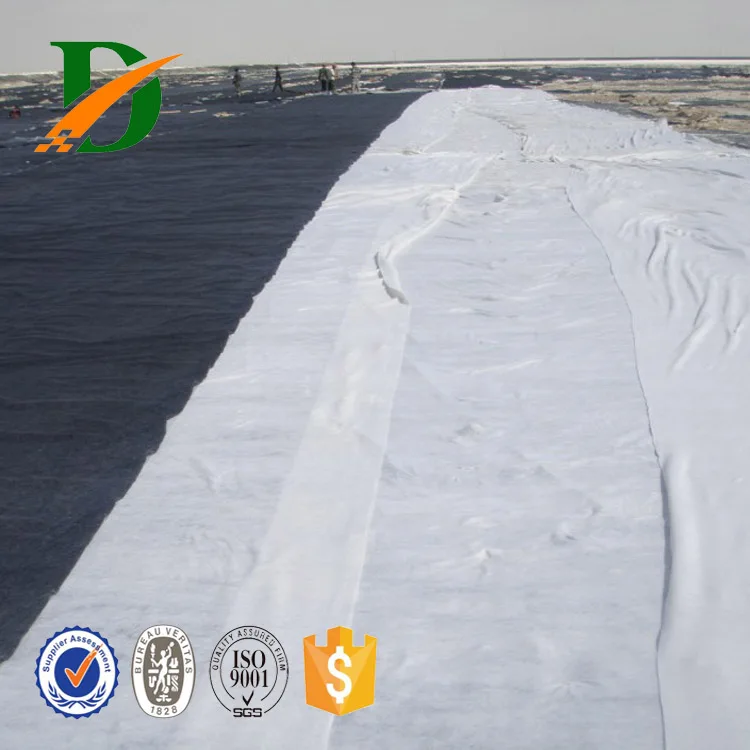

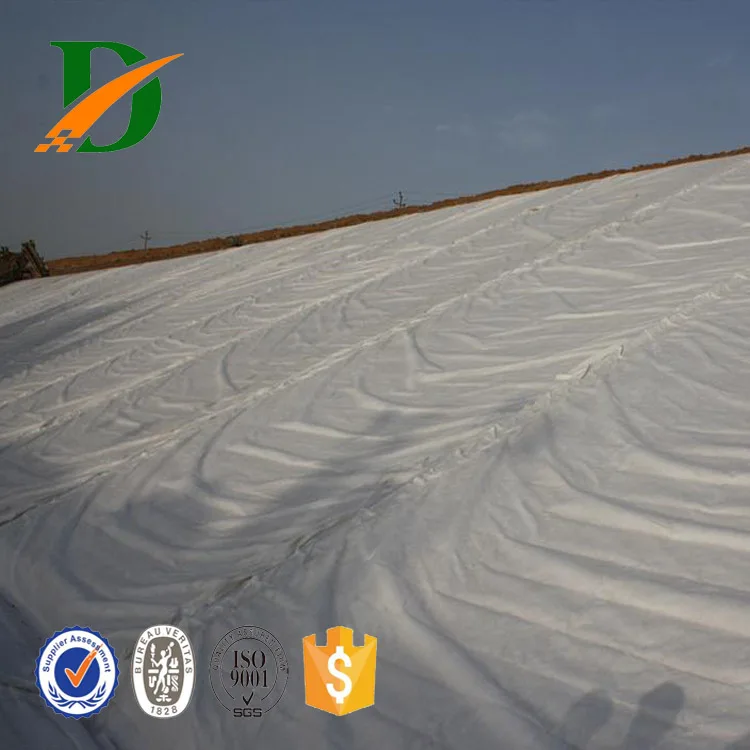

Non woven geotextile 300g/sqm geotextile fabric price

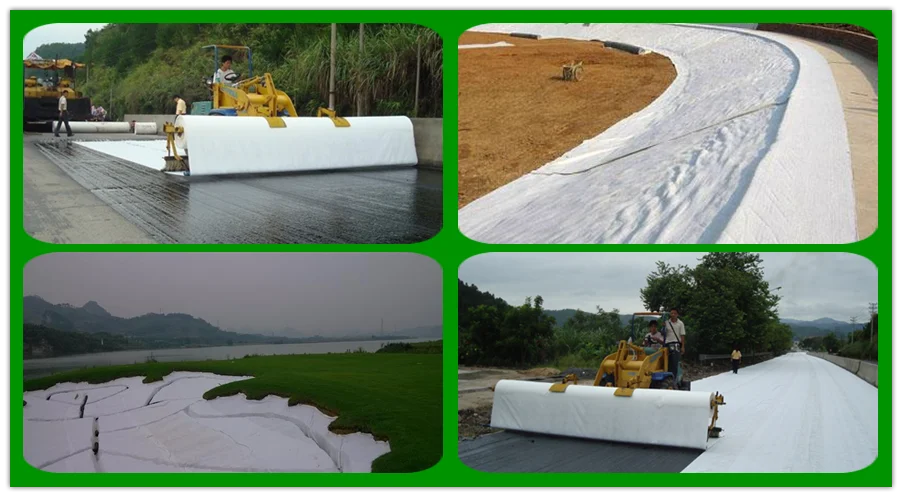

1: Isolation
Using polyester staple fiber needle geotextile to separate the building materials with different physical properties (particle size, distribution, consistency and density), such as soil and sand, soil and concrete, etc.. Two or more materials are not lost, not mixed, to maintain the overall structure and function of materials, so that the carrying capacity of the structure is strengthened.
2: Filtration (filtration)
When the water from the soil into the fine coarse material layer, using polyester staple fiber needle punched geotextile has good air permeability and water permeability, the water flow through, and effectively carrying soil particles, sand, small stones and so on, in order to maintain the stability of soil and water engineering.
3: Drainage
The polyester needle punched geotextile has good water conductivity. It can form drainage channel in the soil, and make the excess liquid and gas out of the soil structure.
4: Reinforcement
The use of polyester staple fiber needle geotextile to enhance the tensile strength and deformation resistance of soil, and enhance the stability of building structure, in order to improve the quality of soil.
5: Protection
When the soil flows against the soil, it can effectively diffuse, transfer or decompose the concentrated stress so as to prevent the soil from being damaged by the external force and protect the soil.

Product Data

Product appearance
Color	Unit weight (g/sqm)	Thickness(mm)	Length(m/roll)	Width(m/roll)
White	200	1.72	100	4
White	300	2.4	50	4

Technical index
Unit weight(g/sqm)	200	300

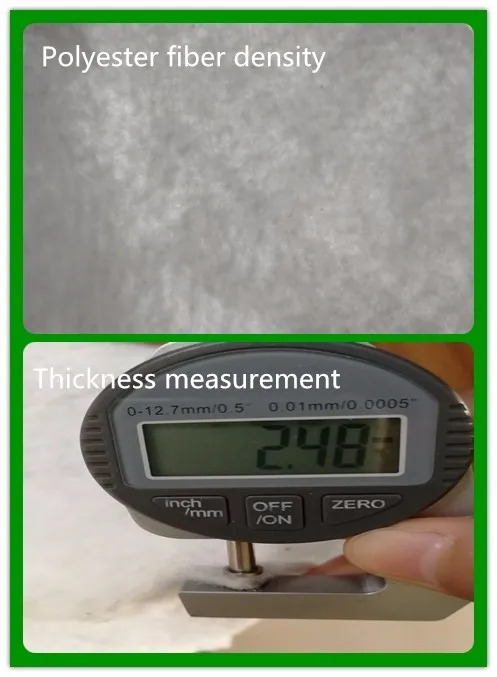

Thickness(mm)	1.7	2.4
Transverse fracture strength(kN/m)	6.5	9.5
Longitudinal breaking strength(kN/m)	6.5	9.5
Elongation of transverse fracture(%)	25~100	25~100
Elongation of longitudinal fracture(%)	25~100	25~100
CBR Bursting strength(kN)	0.9	1.5
Tear strength(kN)	0.16	0.24

Product Details

Packing & Delivery

Transportation and packing of samples.

Customers can get our free samples by paying the postage.If you have frequent international express, please inform us that we will send the samples to you through the designated express delivery.

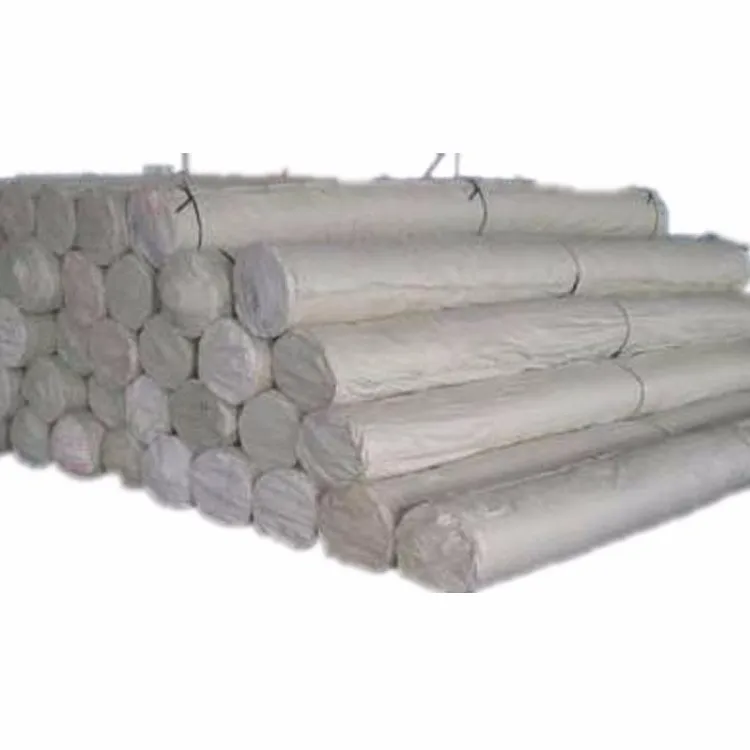

Transportation and packaging of bulk products.

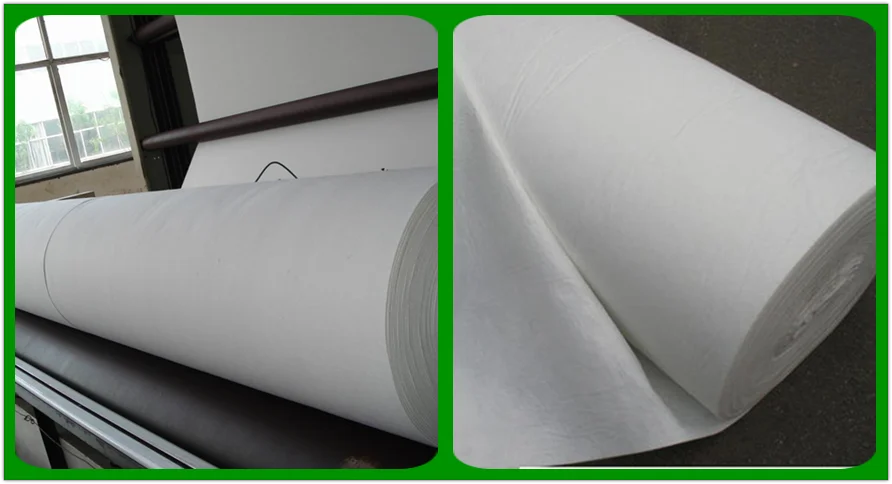

The finished product looks like a roll, and each roll is wrapped in nylon braid.

Type	Packing standard	Volume (Cubic meters/roll)
200g/sqm	length:100m/roll width:3m/4m/6m	0.7
300g/sqm	length:50m/roll width:3m/4m/6m	0.5
400g/sqm	length:100m/roll width:3m/4m/6m	0.7
