Brief Introduction of Fluid Bed Dryer Drying Equipment:
Dryer Name

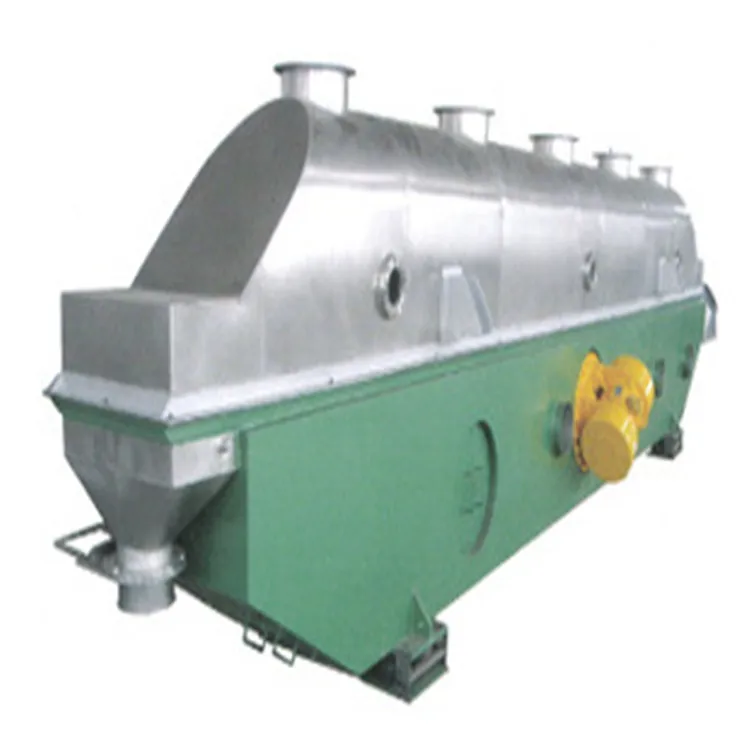

vibrating fluidized bed dryer drying equipment
Overall Look

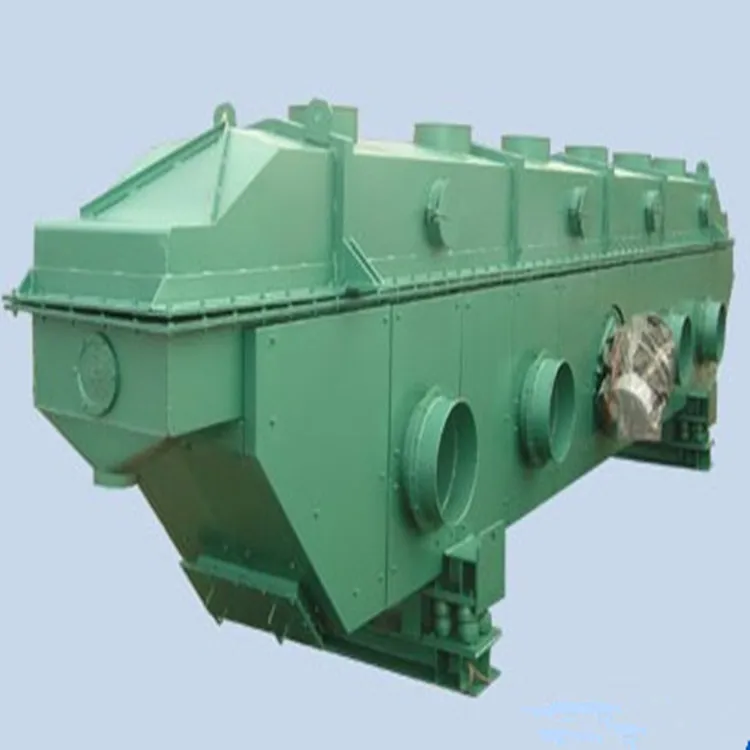

surface spray-paint in green, blue, white, etc, and mirror surface processing
Components of Fluidized Bed Dryer Drying Equipment
cyclone, air filter, cyclone separator, induced draft fan, hopper, feed port, heating exchanger, vibrating motor, air tube, electric control cabinet and so on.
Designed Electric Power
Voltage: 110V, 220V, 240V, 380V, 440V or as suctomers' requirements. The picture shown fluidized bed dryer drying equipment is 380V.
Electric Hertz: 50Hz, 60Hz
Electric Type: single phase, two-phase(qusrter-phase), three phase.
Heating Temperature
adjustable through the electric control cabinet.
Raw Material of Dryer
(1) stainless steel
(2) carbon steel
(3) other steel materials suitable for the dryer drying machine.
Payment
(1). The price of dryer drying equipment is according to the specific different technical requirements, overall size and some other details.
(2). What we offer common is FOB Shanghai price. If indeed, we can also offer the CIF Shanghai and even EXW price.
Packaging & Shipping

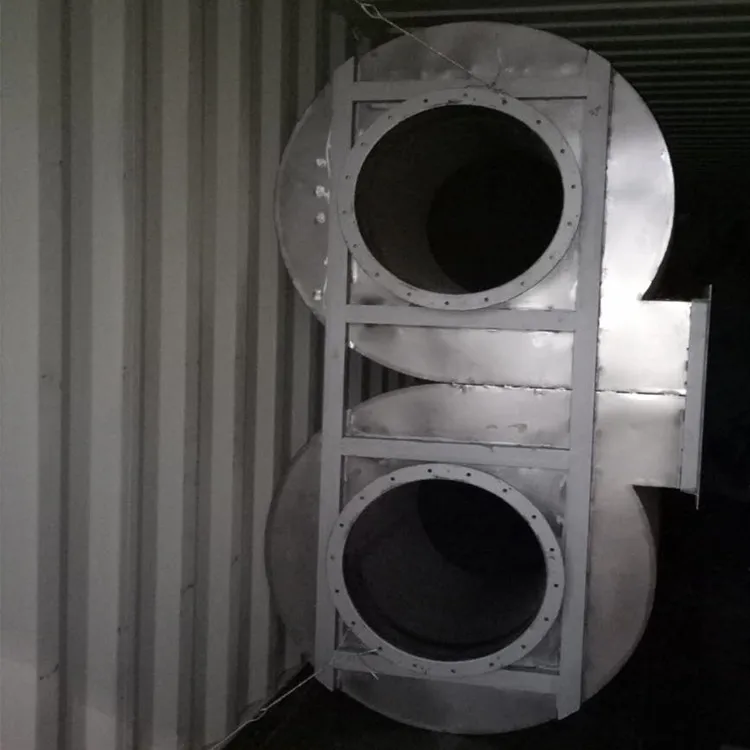

(1). We common directly packaged into the shipping container because of the overall size and shape of the drying equipment,but all the components of fluidized bed dryer drying equipment are all tied with the iron wire.
(2). The shipping date is according to the sales contract.

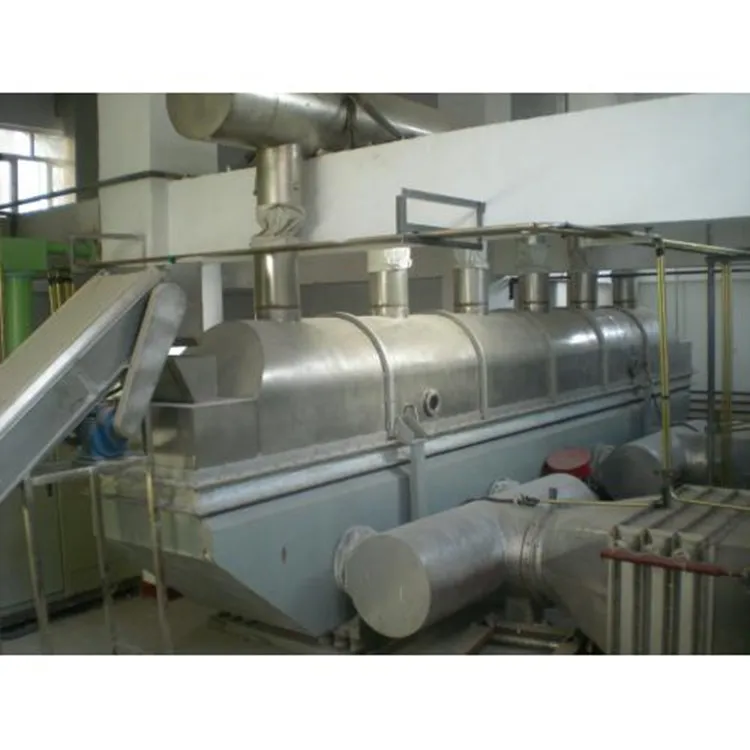

Vibrating fluid bed dryer drying equipment is widely used for operation of drying, cooling and damp increasing (or carry out at the same time) for powder or granule materials. Material is fed into the machine from feeding inlet, and moves forward continuously along with the level of fluid bed under the action of vibration force. Hot air passes through fluid bed and carries out heat exchanging with damp material. Then the damp air is exhausted out by exhaust fan, some fine powder is collected by cyclone separator and dust remover, and dried product is discharged from discharging outlet.
Working Principle of Fluidized Bed Dryer Drying Equipment:
Material from the feed port into the machine, under the effect of vibration power, the material along the horizontal throwing straight forward movement, hot air upwards through the fluidized bed with wet material after heat, wet air outlet after cyclone dust removal by the discharge, dry material is being exhausted from port discharge.
Technical Advantages of Vibrating Fluidized Bed Drying Equipment:
1. Easy and convenient temperature control: The drying temperature is controlled by temperature sensor which makes it very easy to control and display the drying temperature through the control panel. 2. Perfect fluidization: With the special designed agitator, the fluidization is perfect and without dead corner. 3. Wide application scope: The application scope is extensive and its drying efficiency is relatively high. 4. Good compatibility: It can be use to dry sticky granules with wide granule size distribution. 5. Sanitary working condition: The whole machine body is compact and easy to clean, operate and install. Its working condition can meet the GMP standard. 6. Enhanced drying capacity: Because of perfect fluidization, the drying time is considerably reduced.
Features of Vibrating Fluid Bed Dryer Drying Equipment:
1. Adopts new type quick-open structure for upper bed and bottom bed. Upper bed can be moved easily. So it is very convenient to clean and wash the drying system.
2. Bed plate adopts laser punching, it can avoid the deformation in common punching process effectively.
3. Bottom bed adopts stainless steel seamless tube for supporting, the structure of bed is more stronger and make the life of equipment longer.
4. Material is heated uniformly, heat exchanging is full and drying intensity is high. Energy can be saved about 30%.
5. Vibration source is vibrating motor. It features constant operation, convenient maintenance, low noise and long life.
6. Fluid state is stable, there is no phenomenon of gap or blowing out.
7. There is less damage to the surface of material. It can be used for drying material that is easy to broken. The work efficiency is not affected even if the granule of material is irregular.
8. Adopts full sealed structure. It effectively avoids cross infection between and air, the operation environment is clean.
FAQ
Q: How can I visit your factory ? A: Our company is near Shanghai, it takes about 1 hour to get Changzhou. Or if indeed, we can go to visit you inShanghai.
Q: What’s the quality of your products ? A: Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem ? A: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: What is your payment term ? A: Our usual payment term is: 30% TT in advance, and 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight ? A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF price.
Important Notice
In order to quote you the right drying machine equipment with best price, we would like to get the following information include in your inquiry:
1. drying material name
2. primary moisture (%)
3. final moisture (%)
4. drying temperature (℃)
5. final product capacity (kg / h)
6. heating source
7. raw material of equipment
8. electric power supply: 220V, 380V or 440V? or how about the HZ?
