Product Overview

Description

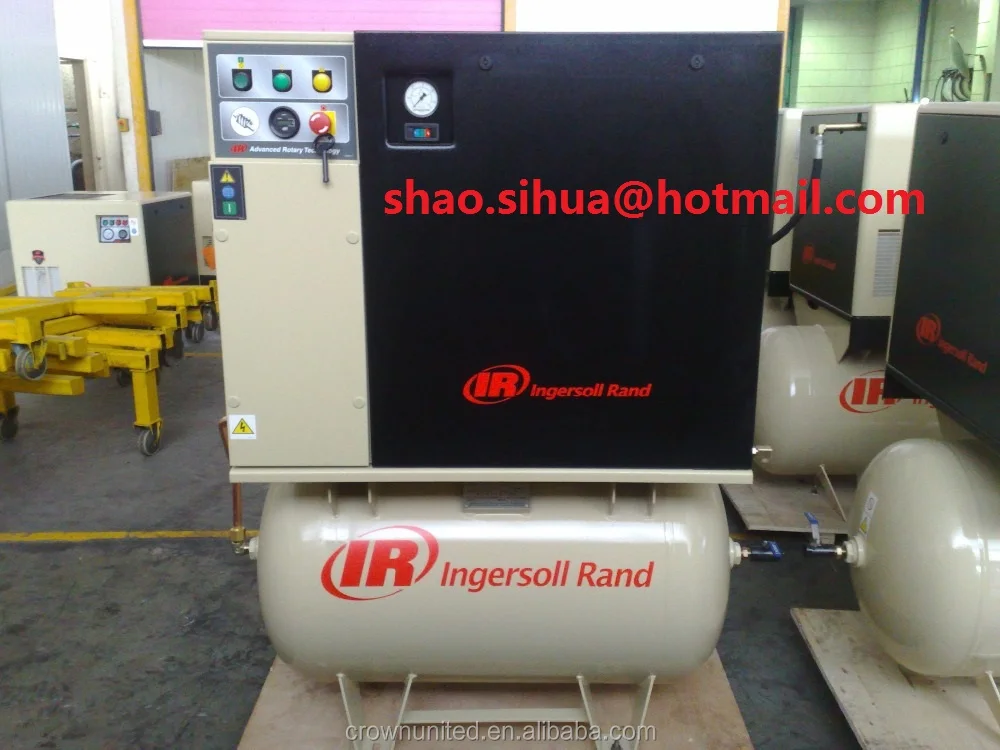

 Rotary screw air compressor







We can help take your productivity further

Since 1872, when we introduced our first air compressor,we at Ingersoll Rand have inspired progress by driving innovation
with technology that improves the way the world works. We’re the technology leader in compressed air not only because we develop class-leading products, but also because we stand behind our customers in everything we do.
A compressed air system is a considerable investment. So, you want to be confident that the particular system you’re choosing is a smart investment. You want the peace of mind that comes from knowing the equipment won’t need to be replaced prematurely. With Ingersoll Rand, you buy once, not twice. We’ll ensure you have the right sized equipment, delivering the appropriate air quality to meet your demands.



Features:



a.Time-proven engineering
b.Peace-of-mind reliability and durability
c.High efficiency
d.Best value and longevity for the investment







MODEL	POWER	CAPACITY	PRESSURE	TANK
	KW	m3/min	bar(g)
R5IU-A7-X	5.50	0.83	7.00	w/o
R5IU-A8-X	5.50	0.78	8.00	w/o
R5IU-A10-X	5.50	0.70	10.00	w/o
R7IU-A7-X	7.50	1.10	7.00	w/o
R7IU-A8-X	7.50	1.03	8.00	w/o
R7IU-A10-X	7.50	0.91	10.00	w/o
R11IU-A7-X	11.00	1.63	7.00	w/o
R11IU-A8-X	11.00	1.52	8.00	w/o
R11IU-A10-X	11.00	1.35	10.00	w/o
R5IU-A7-X272H	5.50	0.83	7.00	272L
R5IU-A8-X272H	5.50	0.78	8.00	272L
R5IU-A10-X272H	5.50	0.70	10.00	272L
R7IU-A7-X272H	7.50	1.10	7.00	272L
R7IU-A8-X272H	7.50	1.03	8.00	272L
R7IU-A10-X272H	7.50	0.91	10.00	272L
R11IU-A7-X272H	11.00	1.63	7.00	272L
R11IU-A8-X272H	11.00	1.52	8.00	272L
R11IU-A10-X272H	11.00	1.35	10.00	272L



Simply advanced

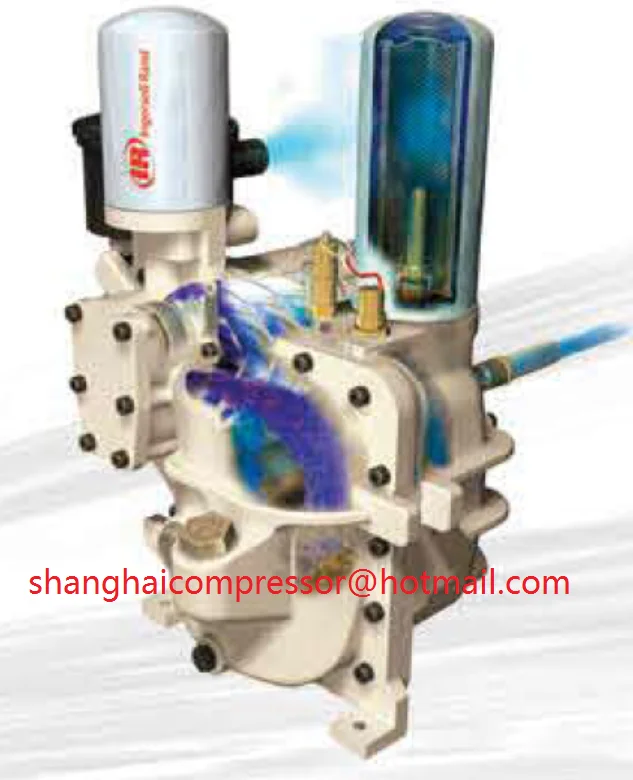

The compressor's air end, interconnecting piping, and separation system are all integrated into one simple design. This eliminates leaks and pressure losses-maxing efficiency and performance. The spin-on oil and separator cartridge make service and maintenance extremely user-friendly.







Benefits:

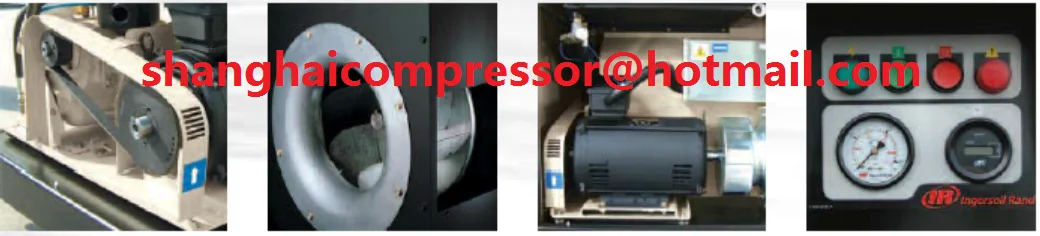

1). Premium poly V-belt provides uniform bearing load and belt wear patterns to extend life of belt.

2). High-efficiency blower cools evenly, save energy, and produces less noise

3). Air/oil cooler discharges heat from the top for greater efficiency

4). Exclusive hot box/ cool box design isolates hot elements from other components to ensure effective cooling and extended life

5). Dual-control operation provides application felexibility and reduced operating costs

6). Simple user interface and diagnostic indicators signal operating status,hours, and fault warnings to minimize downtime

7). Spacious interior design permits easy maintenance

8). Baseplate feature enables convenient transport
