Product Overview

Description



Product Description


Articulated Automatic Swing Door Opener for Residential and Commercial Use


Main Features



  • Available for installs 2 openers or 1 opener with a single control box.

  • Integrated mechanical limit switches that permits  to eliminate the ground stops.

  • Travel time protection, mechnical limit switch failure, travel time protection function to open, standard 30 seconds.

  • User can select auto-close function.

  • Soft start and slow stop, smooth operation and low noise.

  • Automatic learning of remote control.

  • Keypad / single button interface.

  • Alarm lamp, photo beam & safety beam interface.

  • Available with articulated arm or sliding arm.

  • Manual key release design for emergency purposes.


Standard Unit



  • 2pcs gate motors

  • control board & box

  • 2pcs remote controls

  • manual release key

  • user manual

  • bolts & nuts


Main technical parameters

































































Unit ModelPK400AC
Power SupplyAC220V/50Hz; AC110V/60Hz
Maximum Gate Weight400kg/leaf
Motor PowerDC24V, 200W
Driving MethodLinkage
Limit SwitchMechanical limit switch
Max Speed1.75rpm
Max.Single-Leaf Length3.0m
Operating Cycle10 second per 90 (aaprox.)
Remote Control Range≥30m
Recording of Up Remotes25
Frequency433.92MHz
Work DutyS2 15min
Working Temperature-20℃~+50℃
Package WeightMotor 25.70kg, Control unit 1.30kg

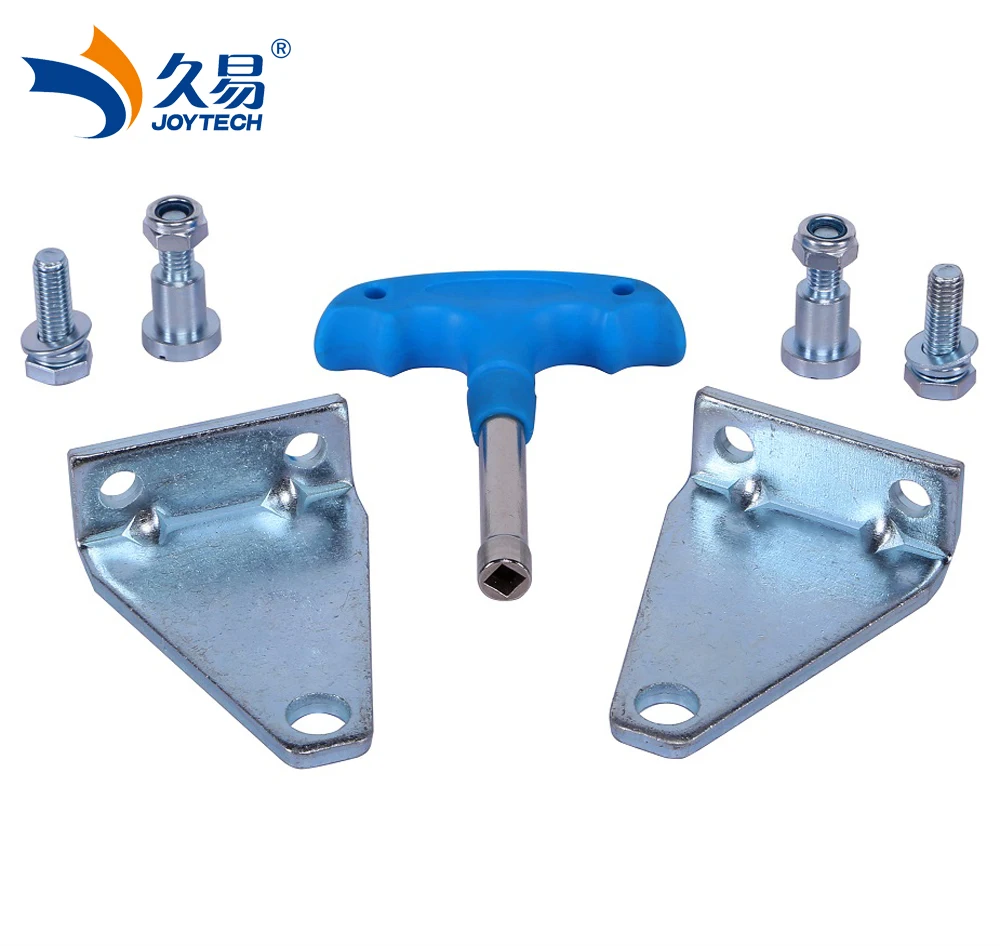

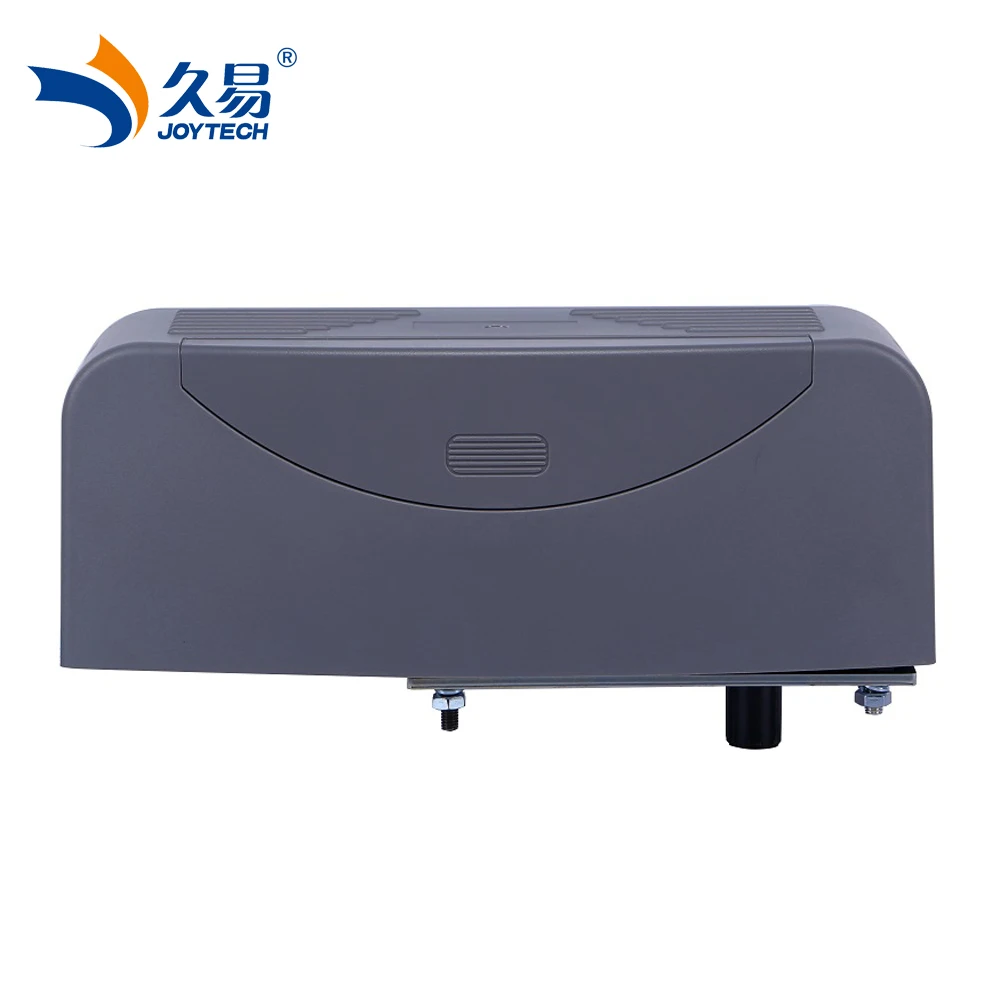

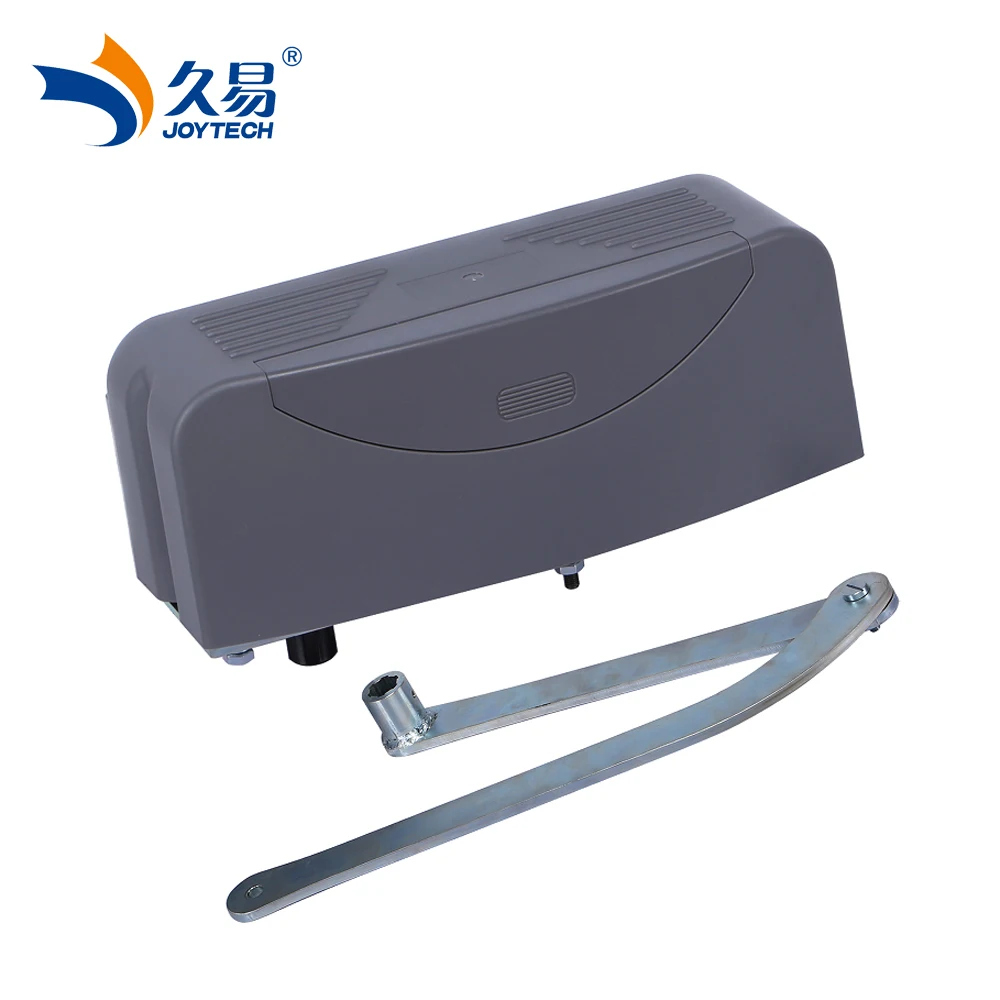

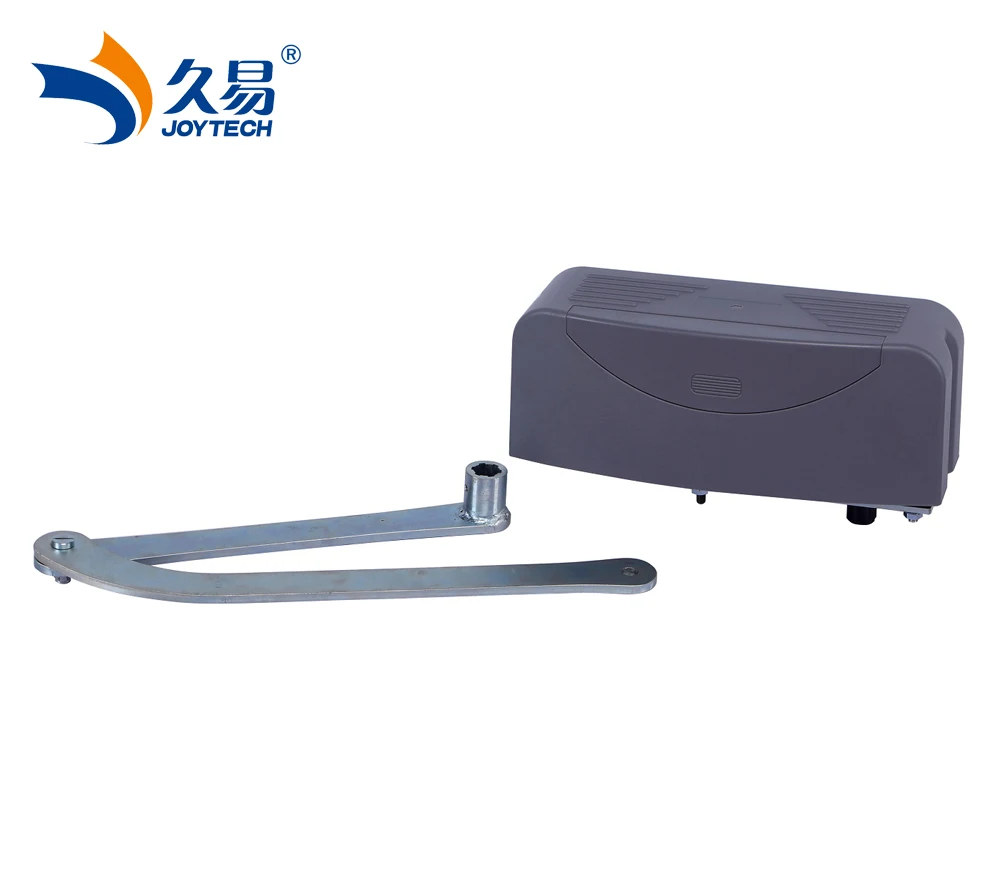

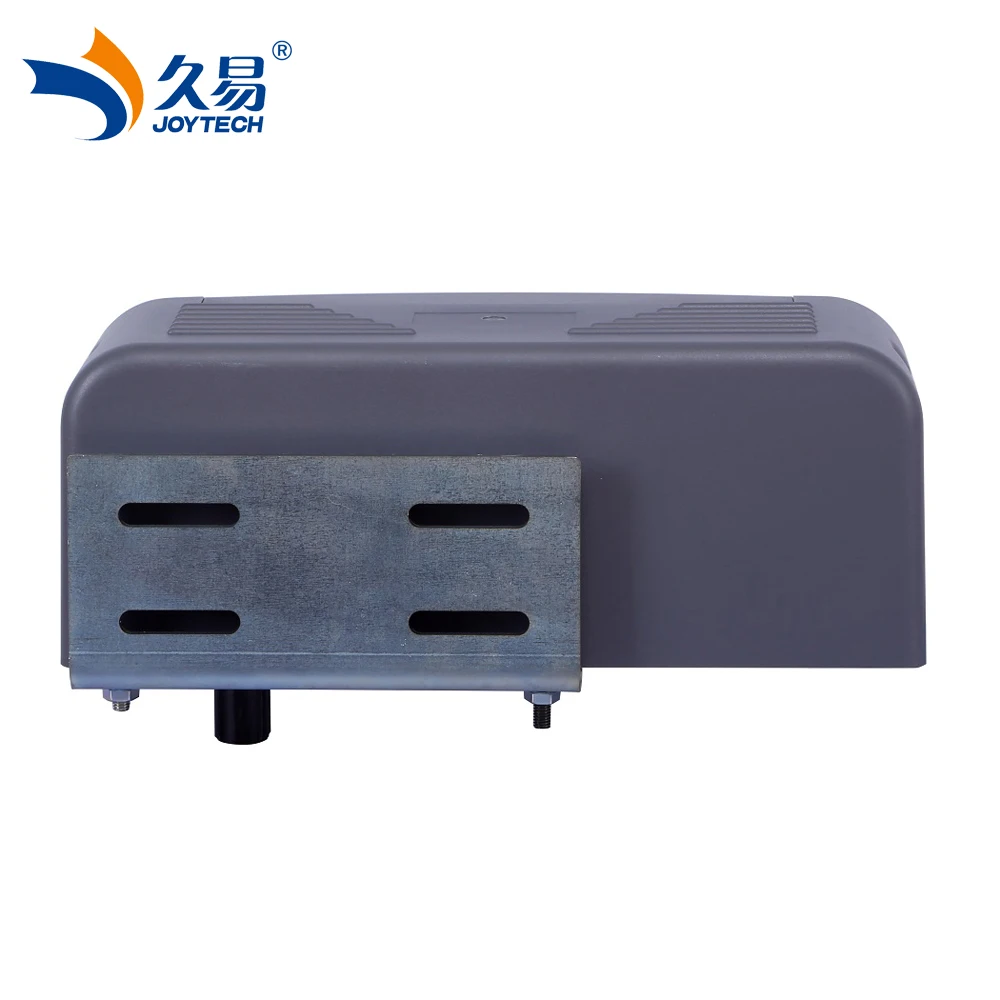

PK400AC 1.jpgPK400AC 2.jpgPK400AC 3.jpgPK400AC 4.jpgPK400AC 5.jpgPK400AC 6.jpg





Packaging & Shipping


Sample by Express


Bulk by Sea or Air











Certifications






Our Services


Pre-Sales Service                                                After-Sales Service



* Inquiry and consulting support.                          * Technical Support all the time.
* Sample testing support.                                     * Warranty: one year. Free replacement will be


* Welcome to visit our company at any time.                          sent in your next order.





Company Information



Zhejiang Joytech Electronics Co.,LTD




Zhejiang Joytech Electronics Co. is a professional manufacturer specializing in R&D, producing sales, processing and service of gate automation in the industry, to provide intelligent control systems and driving source solutions for all kinds of gates & doors.
Our core competitve products are sliding gate motors, We also produce swing gate motors, garage door openers, industrial gate openers and high speed gate openers.


The company has passed ISO9001:2008 international quality system certification, and all products have acquired CE certificates of EU and Germany Dekra testing agency RoHS certification.



Sliding Gates Motor/Operator





FAQ


Q1: What about Minimal order quantity?
A1: No MOQ.One PC of Sample is available. Would advice deliver by Express such as DHl,FEDEX,TNT,etc.





Q2: How about your quality control?
A2: Each motor with quality control (testing) before packing.IQC,IPQC,PQC,FQC,all are tested.





Q3: Any certificate you have ?
A3: CE ,ISO9001
