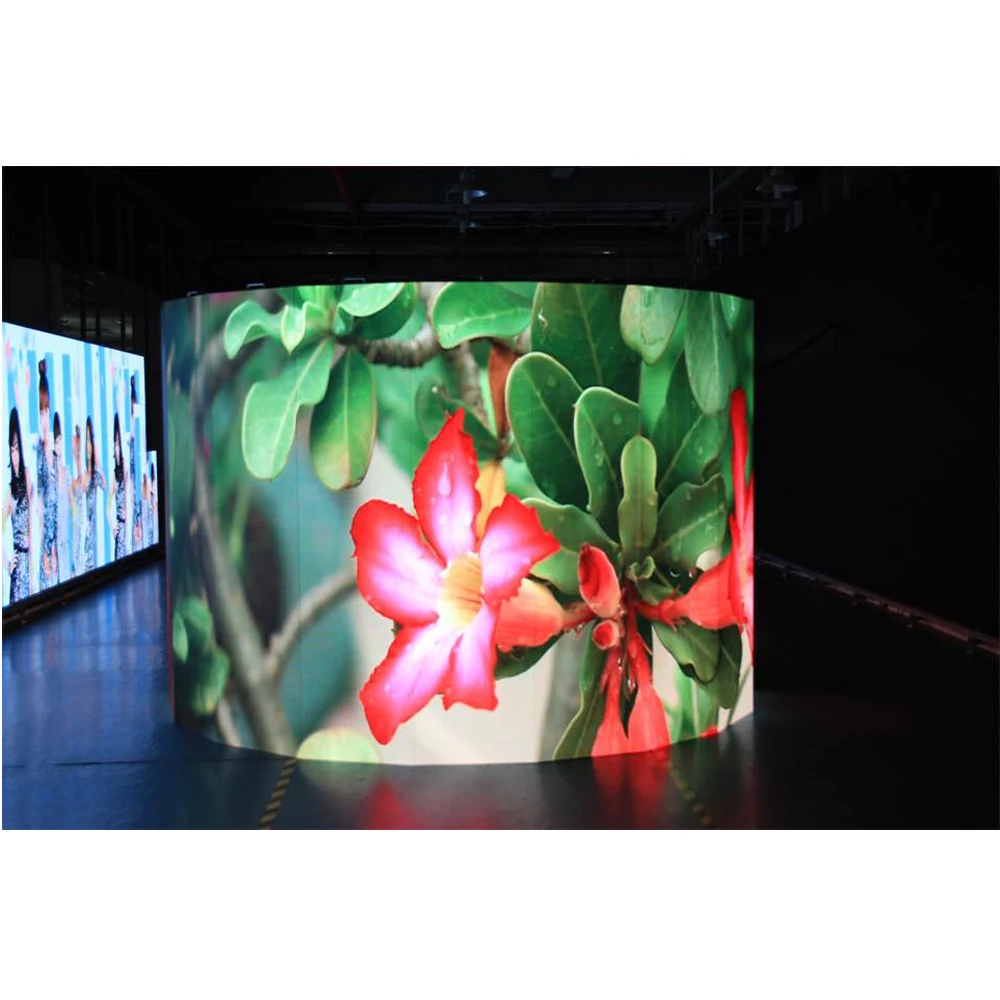

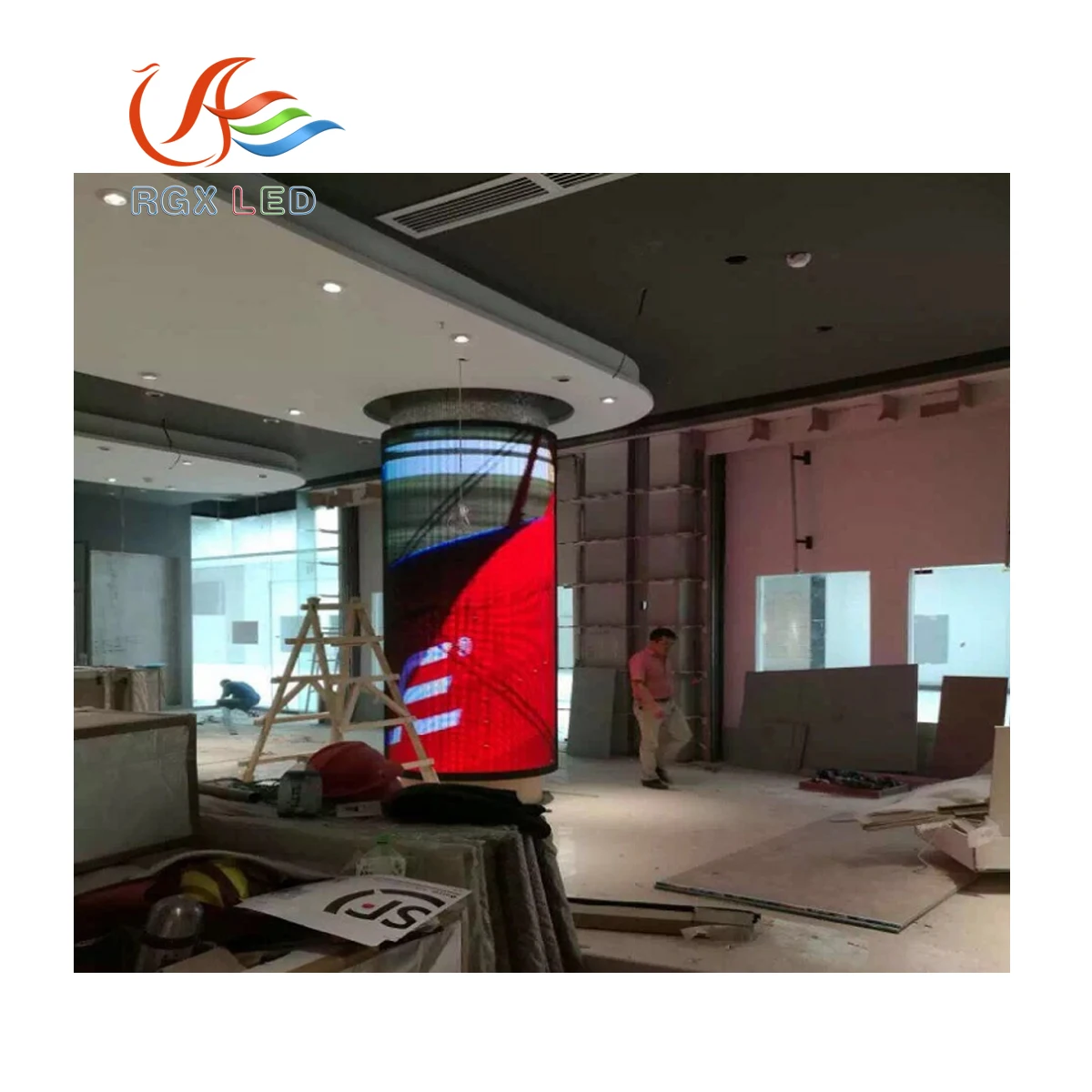

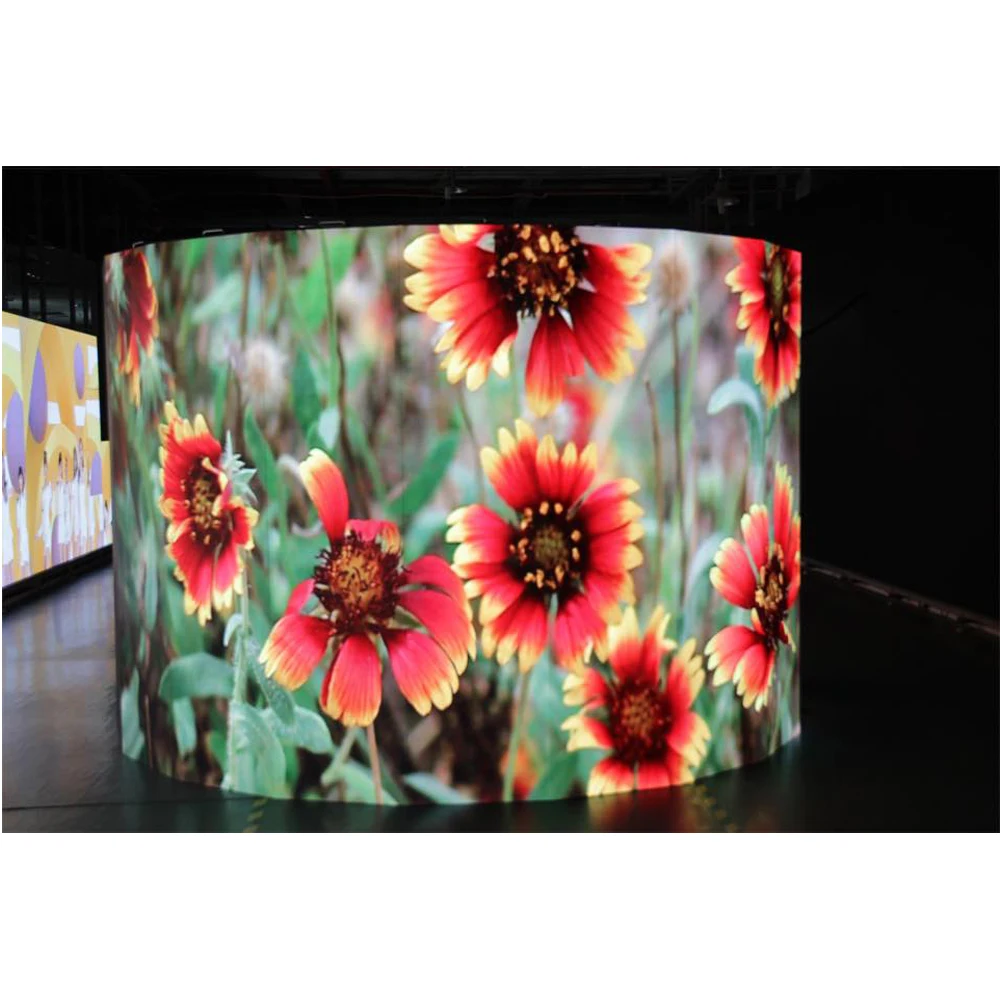

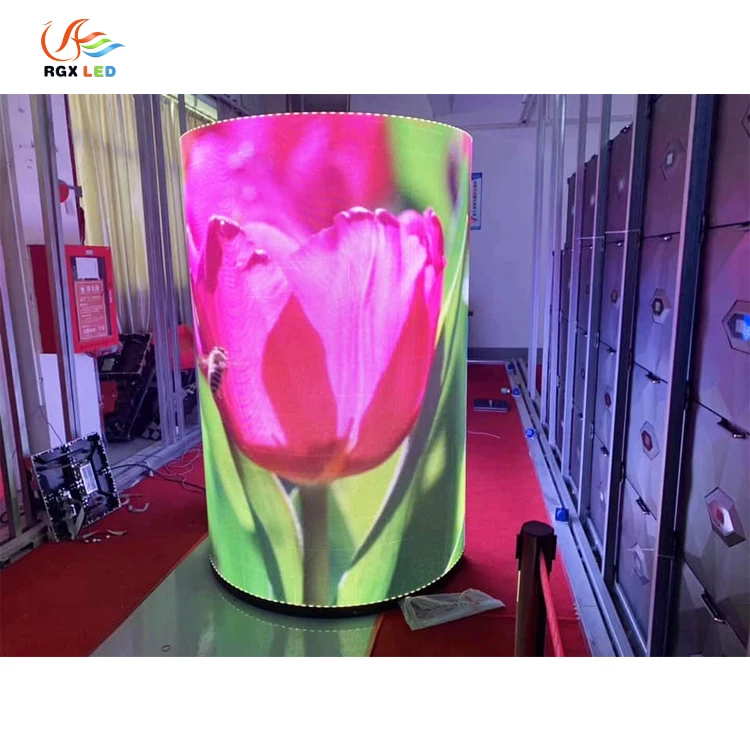

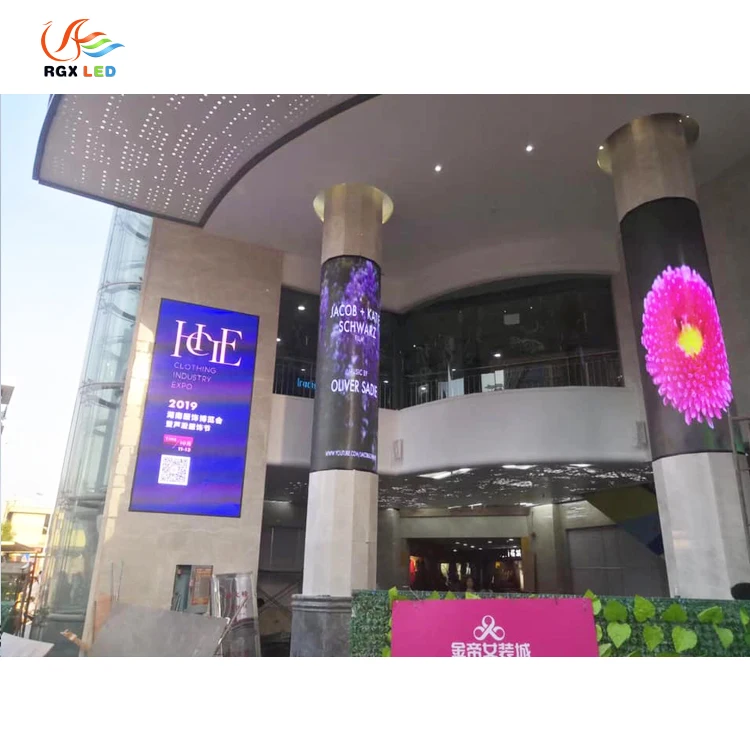

RGX 360 degree curve round Indoor P4 Cylinder Column led display circular screen
- Category: >>>
- Supplier: Shenzhen RGX Electronics Co. Ltd.
Share on (60723458066):
Product Overview
Description
HD Indoor P4 Curved Flexible Led Display Screen Circle Column Led Wall With Soft module
indoor curved installation project. The flexible module enables the screen to be made into various shapes such as column screen, reception desk screen, step screen, etc, bringing your creative ideas to life. The cabinet size can be customized based on specific requirements.
Product Features:
Flexible Module, Max Bending Angle ±30°
Indoor Curved Screen, Minimum Pixel Pitch 1.56mm.
Minimum Arc Diameter 0.95m.
Customize LED Screen Shape
Easy Maintenance
Product Description
1 RGX P4 led display full color description:
Module Composition | Pixel Structure | SMD2121 1R1G1B LED |
Pixel Spacing | 4mm | |
Model Resolution(W×H)dots | 64×32dots | |
Model Size(W×H)mm | 256×128mm | |
Module Weight (kg) | 0.3kg | |
Maximum Module Power(W) (W) | 45W | |
Cabinet Composition | Cabinet Composition(W×H)pcs | 2×4pcs |
Cabinet Resolution(W×H)dots | 128×128dots | |
Cabinet Size(W×H)mm | 512×512 mm | |
Cabinet Area(sqm) | 0.262144 sqm | |
Cabinet Weight (kg) | 7.6KG±0.05KG | |
Pixel Density /sqm | 62500 /sqm | |
Maintenance mode | Post maintenance
| |
structure formation | Integral forming die casting aluminum cabinet
| |
Optical parameter | Optimal Distance | 1m—300m |
Single point brightness correction | possess | |
Single point color correction | possess | |
White Balance Brightness | >1200cd/sqm | |
Viewing Angle | 120-160 | |
Electrical Parameter | Maximum Power Consumption (W/sqm) | <1000 W/sqm |
Average Power Consumption (W/sqm) | <500 W/sqm | |
Power Supply Requirements | 220V±10% & 110V±10% | |
Safety characteristics | GB4943/EN60950 | |
Drive Mode | Constant current drive :16 Saul | |
Gray level | 65536 | |
refresh rate(HZ) | >1920HZ | |
Operation Parameter | Lifespan(hrs) | >100000 h |
Temperature Range(℃/RH) | -35℃-80℃/RH | |
Humidity Range | 10%-80% RH |
Show Photo Details:
P4 indoor Curve Led module 256*128mm

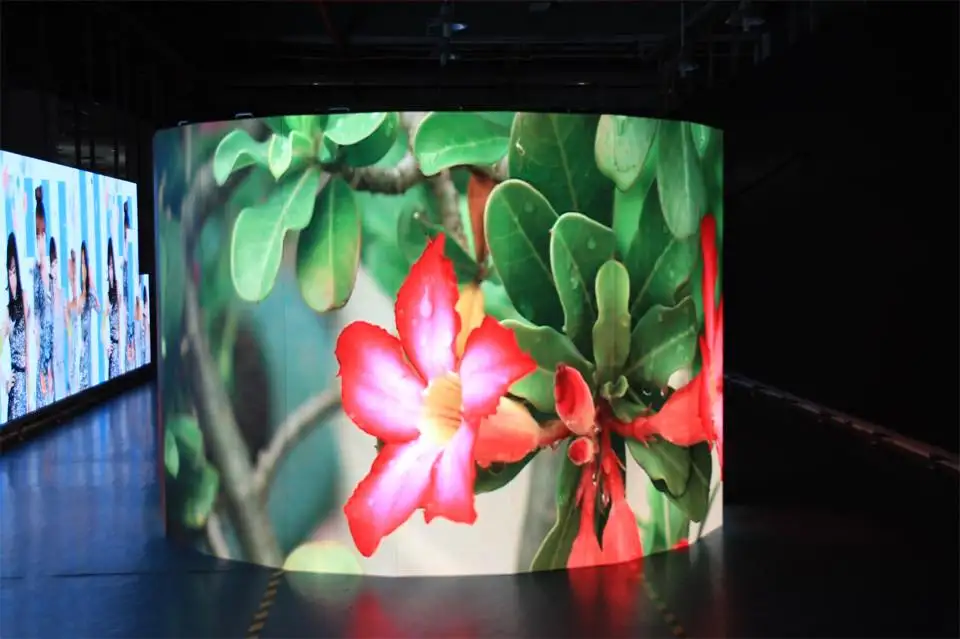

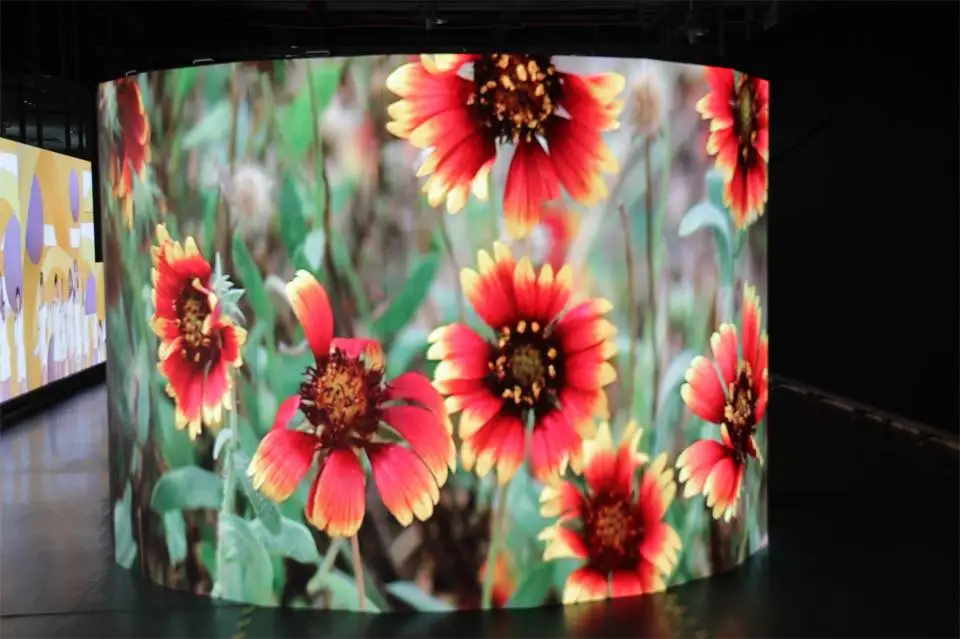

customized P4 indoor Curve Led Display Screen real show
RGX have more kinds of goods can be choose
About Us
FAQ
1. How can i place an order?
Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time. For designing or further discussion, it is better to contact us with Skype/email /phone, in case of any delays.
2. What kind of display do we provide?
We have indoor/outdoor/mobile LED /rental LED display /LED stage/ Advertising LED display for you choose.
3. What about the lead time for an order?
Always: 10-17 days, as your order quantity, sometimes we have stock, can delivery within 7 days
4. What about the warranty?
We have Three years quality guaranteed, spare parts such as led module, receiving card, control card, power supply are damaged not cause of artificial damaged, then it’s free maintenance and ship back new ones for replacement.
5.How about the quality?
Our led products must be testing of at least 72hours before shipping, from purchase raw materials to ship ,Each step has strict quality control systems to ensure led display with good quality
6. Can you offer a technical support? Since it's my first time....
We provide free training for our customer, teach the client how to set up screens, make configuration of parameters, broadcast the videos through Nova star or Linsn control systems, our engineer can directly teach you how to control, or help you to done if you are really don't know how to control(Our Engineer can text English, we can saving more time )
Any question please add my wechat/ whatsapp +86137 1700 8357 for quick response or send your detailed inquiries in the belows for free samples, click"send"Now.
