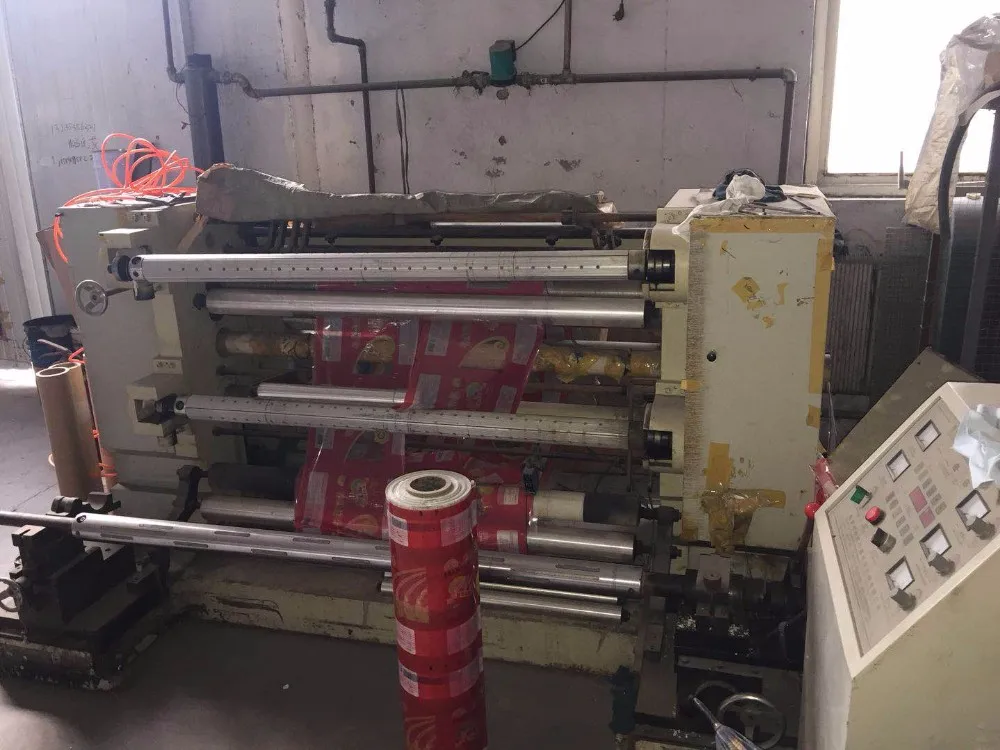

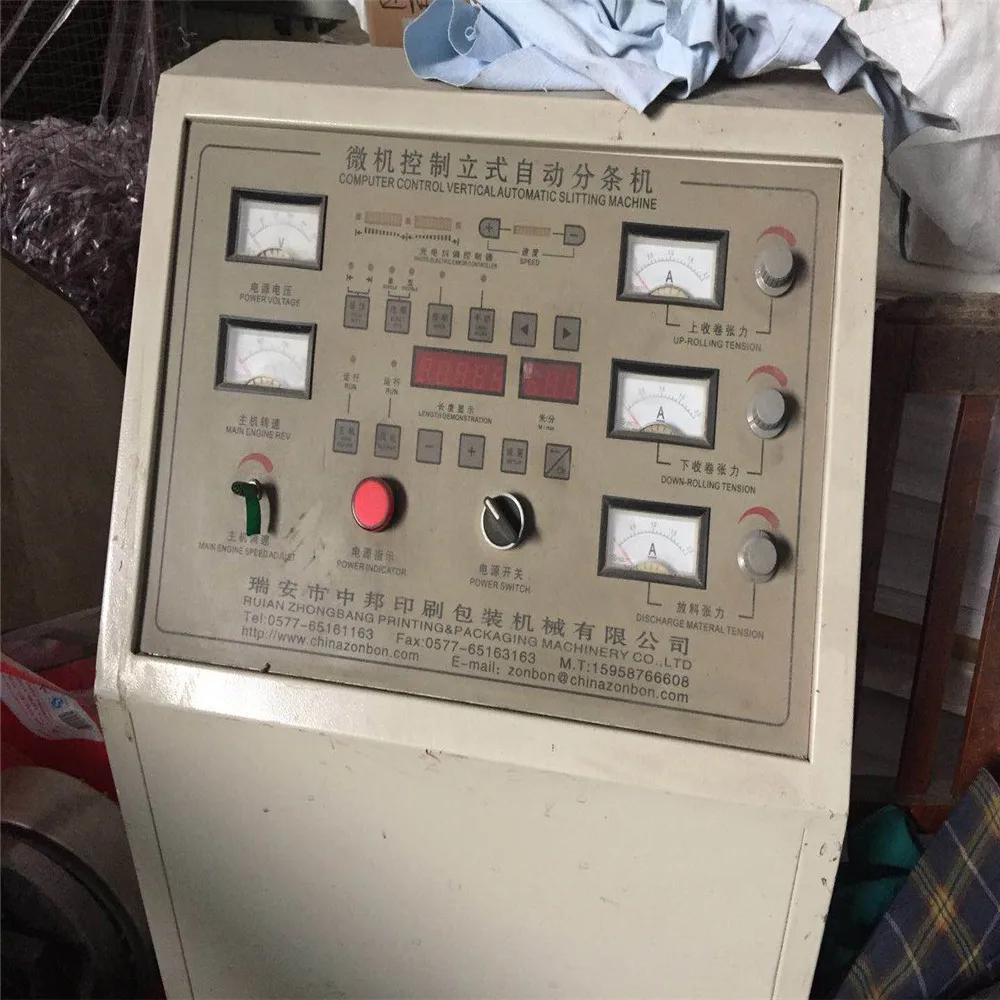

Hot sell Used Slitting and rewinding machinery

Feautre

This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil and paper, etc. and can cut edge. separate and cut material according to different requirements during production. This machine is a kind of both vertical and horizontal slitting & rewinding machine, unwinding & rewinding shaft and located in front and back position of machine. independent master control panel. more flexible and even easier operation. Automatic EPC for unwinding, photocell is suitable for tracking the edge and color of transparent material.Equipped with magnetic powder brake for unwinding tension control. Magnetic clutch control for rewinding tension control. It can be equipped with rim charge conveying or rewinding device (which can be selected on order). Automatic meter counting device. All the cylinders on the machine can be adjusted to slove the material's horizontal and vertical deviation.

Type ZY-CLFQ1100 ZY-LFQ1300

Max. Width of Roller 1300mm 1300mm

Max.Dia. Of Mother Roller Φ600mm Φ600mm

Max. Rewinder Dia. Φ450 mm Φ450 mm

Final Roll Width 30-1100mm 30-1300mm

Slitting Speed 5-210m/min 5-210m/min

Error of EPC ﹤±0.5mm ﹤±0.5mm

Total Power 4kw 4kw

Machine Weight 1800kg 1800kg

Machine Size 2450×1350×1300mm 2450×1350×1300mm

Detailed Images

Related Products

Packing & Delivery

Extra description

1. With the static elimination device

2. Infrared laser pen follows the paper core

3. Razor blade cutting and groove roller cutting(also can be circular blade slit as optional device.

4. Unloading type: bracket type

D. Delivery time: 35days

F. Payment terms: 30% as deposit, 70% after inspected by customer before the shipment.
