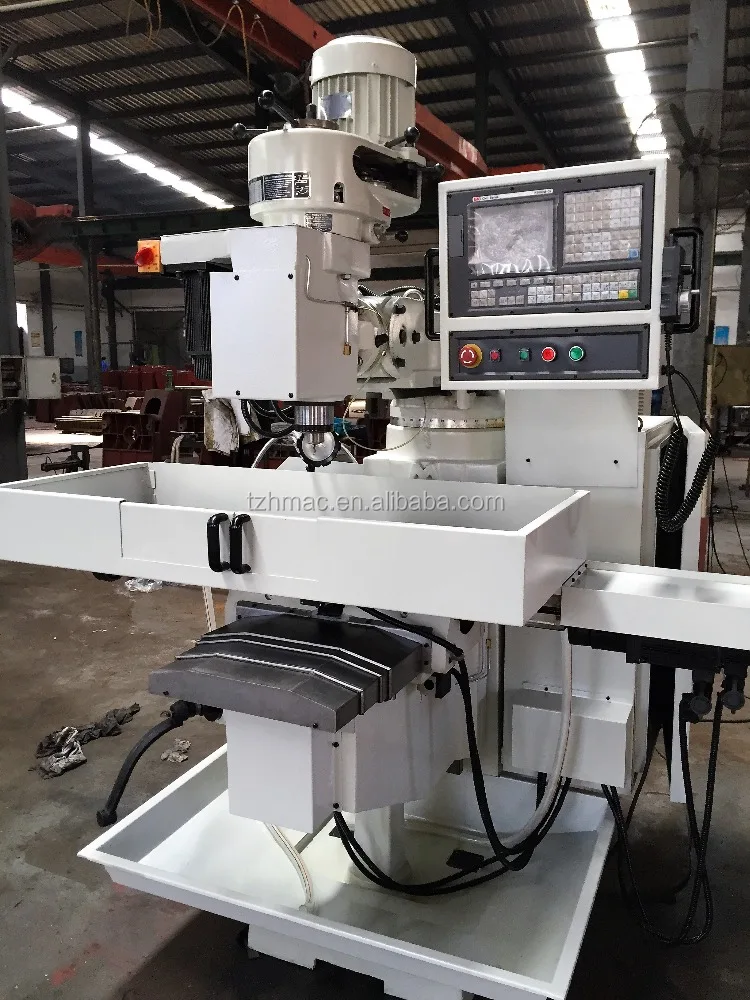

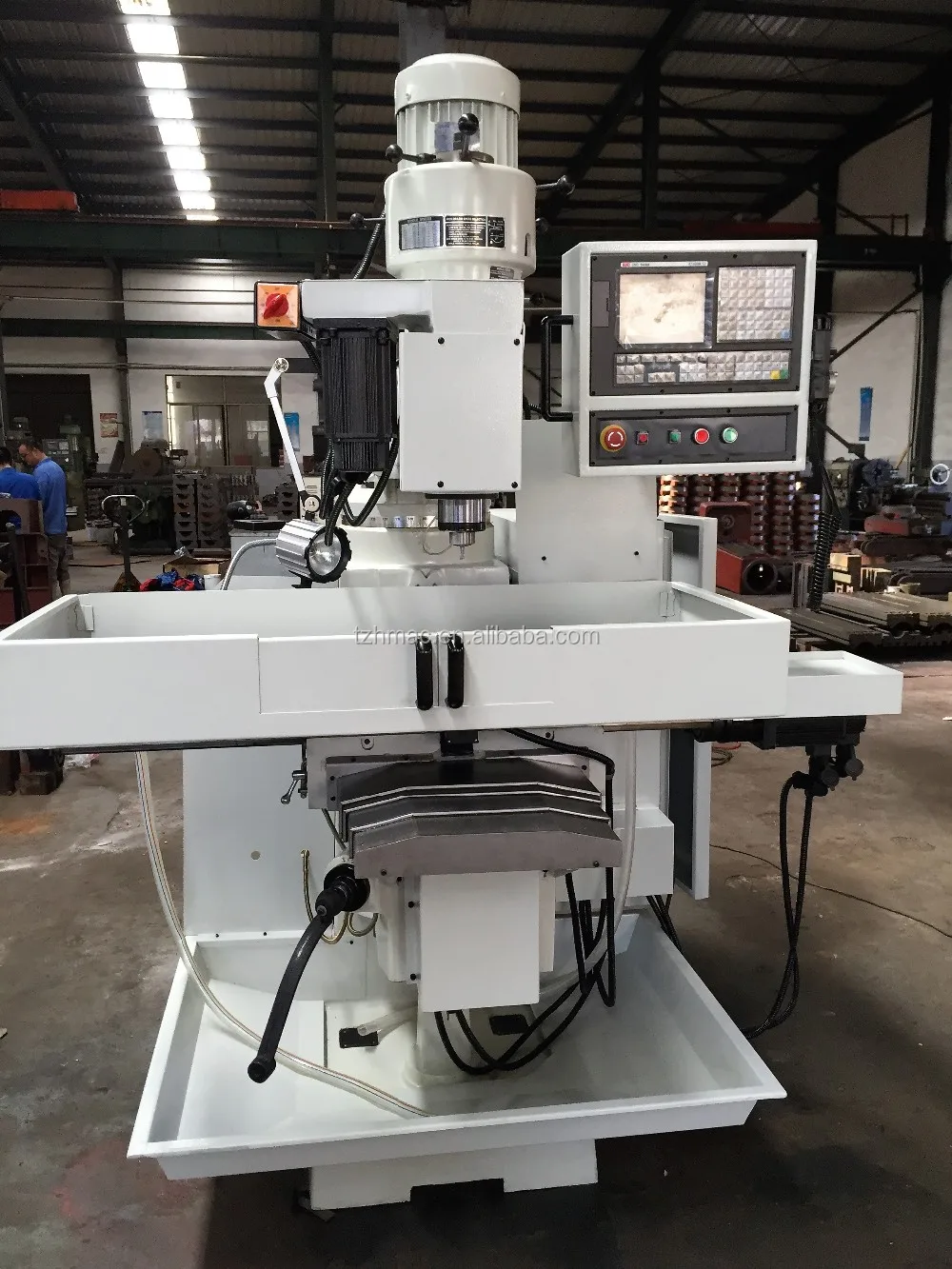

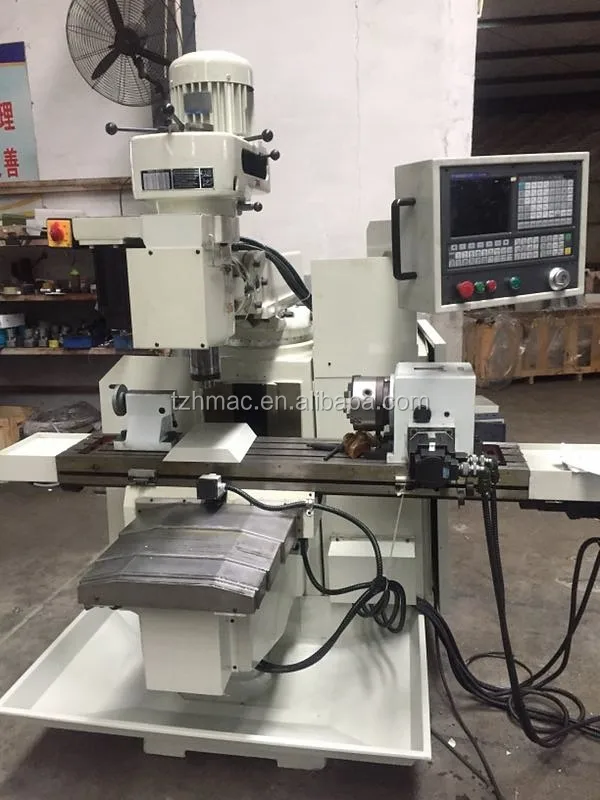

Fanuc control system CNC milling machine X6325B for metal

Share on (60723489288):


Price:

Quantity:


Product Overview

Description


Product Description
\t
Tchnical parameters
\t
Model
\t
Unit
\t
 XJ6325T
\t
X6325T
\t
X6325D
\t
X6330
\t
X6330A
\t
Longitudinal travel (X)
\t
mm
\t
800(900)
\t
800(900)
\t
800(900)
\t
800(900/1100)
\t
780/1100
\t
Later travel (Y)
\t
mm
\t
400
\t
400
\t
400
\t
414
\t
425
\t
Vertical travel (Z)
\t
mm
\t
405
\t
405
\t
405
\t
450
\t
450
\t
Table area
\t
mm
\t
254*1270
\t
254*1270
\t
254*1270
\t
254/280*1375/1570
\t
305*1370(320*1670)
\t
Spindle lifting travel
\t
mm
\t
127
\t
127
\t
127
\t
132
\t
132
\t
Spindle taper
\t

\t
R8/NT30
\t
R8/NT30
\t
R8/NT30
\t
NT40
\t
NT40
\t
Spindle motor
\t
hp
\t
3
\t
3
\t
3
\t
5
\t
5
\t
Spindle center to column
\t
mm
\t
190-685
\t
190-685
\t
190-685
\t
170-720
\t
170-756
\t
Spindle nose to table
\t
mm
\t
0-428
\t
0-428
\t
0-428
\t
0-530
\t
0-580
\t
Swivel of the spindle head (from after to before)
\t
degree
\t
±45
\t
±45
\t
±45
\t
±45
\t
±45
\t
Swivel of the spindle head (from left to right )
\t
degree
\t
±90
\t
±90
\t
±90
\t
±90
\t
±90
\t
Arm stroke
\t
mm
\t
550
\t
550
\t
550
\t
570/590
\t
570/590
\t
Spindle speeds
\t
rpm
\t
16  segment 80-5440
\t
16 segment 80-5440
\t
16 segment 80-5440
\t
10 segment 80-2850
\t
10 segment 80-2850
\t
Form of X shaft orbit
\t

\t
The X axis dovetail
\t
The X axis dovetail
\t
The X axis dovetail
\t
The X axis dovetail
\t
The X axis dovetail
\t
Form of Y shaft orbit
\t

\t
Y dovetail
\t
Y dovetail
\t
Y dovetail
\t
Y dovetail
\t
Y dovetail
\t
Form of Z shaft orbit
\t

\t
The Z axis dovetail
\t
The Z axis dovetail
\t
The Z axis dovetail
\t
The Z axis  side rail
\t
The Z axis side rail
\t
Lubrication system
\t

\t
Manual filling
\t
Manual filling
\t
Manual filling
\t
Manual/automatic oiling
\t
Automatic oiling
\t
Machine weight
\t
kg
\t
1200
\t
1250
\t
1300
\t
1450
\t
1650
\t
Machine dimensions
\t
mm
\t
1600*1730*2200
\t
1600*1730*2200
\t
1600*1730*2200
\t
1790*1750*2200
\t
1790*1900*2420
\t
Standard accessories
\t
Draw bar
\t
tool and tool box
\t
working light
\t
eletric box
\t
hand oil pump
\t
rubber chip cover
\t

\t

\t

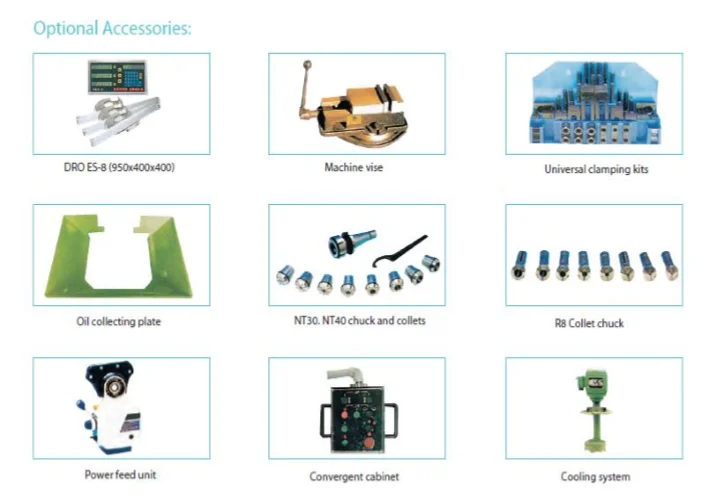

Optional
\t
X power feeder model
\t
Y power feeder model
\t
Z power feeder model
\t
Z axis motorized
\t
52pcs clamping kits
\t
R8 collets 8 pcs
\t
NT40 collets 8 pcs
\t
R8 collets 15 pcs
\t
Machine vice 6"
\t
Coolant
\t
DRO
\t

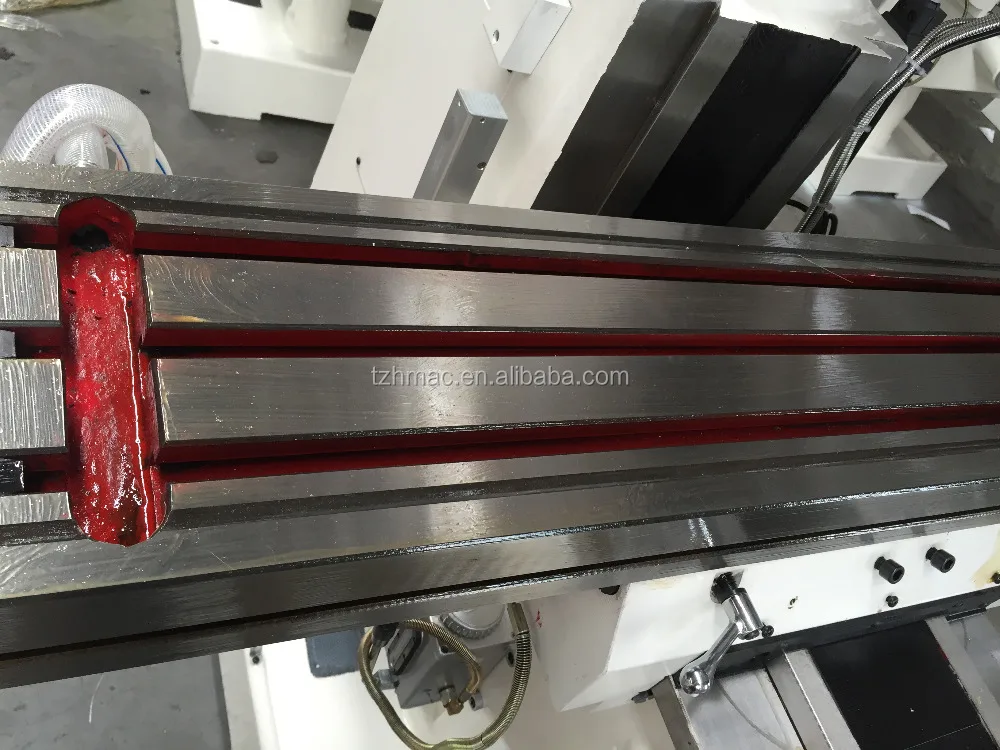

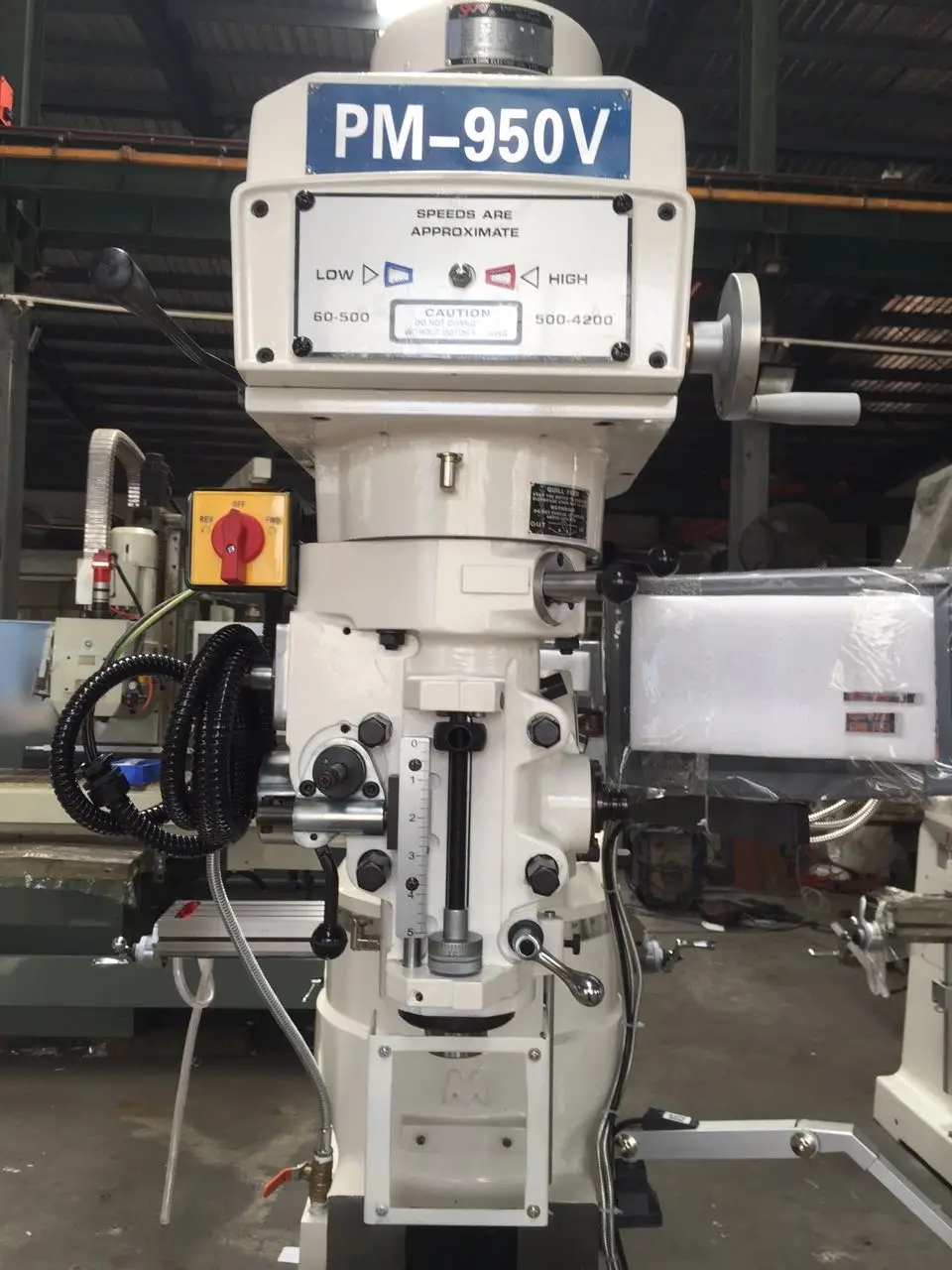

Detailed Images

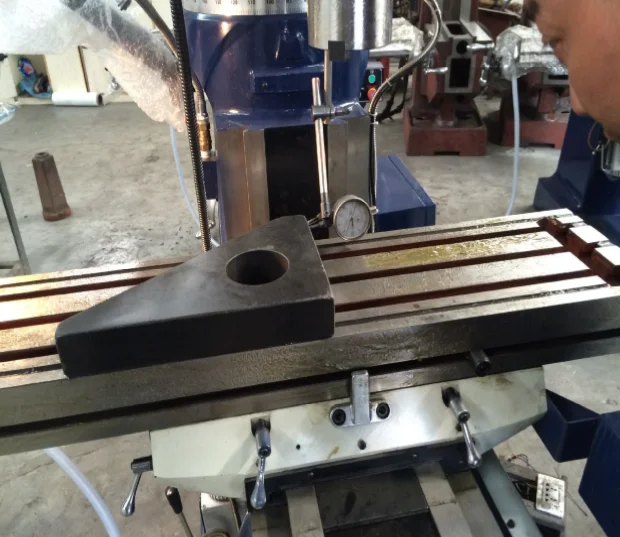

We take carefully inspection in machine accuracy ,keep high quality to customer .


FAQ

 1. How should i pay for my order ? what is the procession of this purchase ?

we accept TT by bank. you can do 30% prepayment at first, then we will start to make production.
when the machine is ready , we will take pictures to you, and then you can do the ballance.
after we got your payment. i will send the machine to you.
2. How about your service after sales ? can your engineer speak fluent english ?
we offer the service from you got the machine, including how to install the machine,
how to use machine. how to let machine work. and so on. usually we will teach you how to do by email or by skype our engineer has many years of experience for cnc machine service . he can speak very good english ,so he can slove the problem in short time.
3.Are you a factory or trading company?
We are the manufacturer . as only the machine made by ourself ,quality can be trusted, and most important thing is we can do better service after sales. we know how to fix the problem in each parts easliy. so welcome to visit our factory
4. How long is the delivery time?
For standard machines, it would be 7-10 days; For non-standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
5. How about the documents after shipment?
Aftershipment,will send all original documents to you by DHL, including Packing List, Commercial Invoice, B/L, and other certificates as required by client.
6.How to master the stability of machine castings?

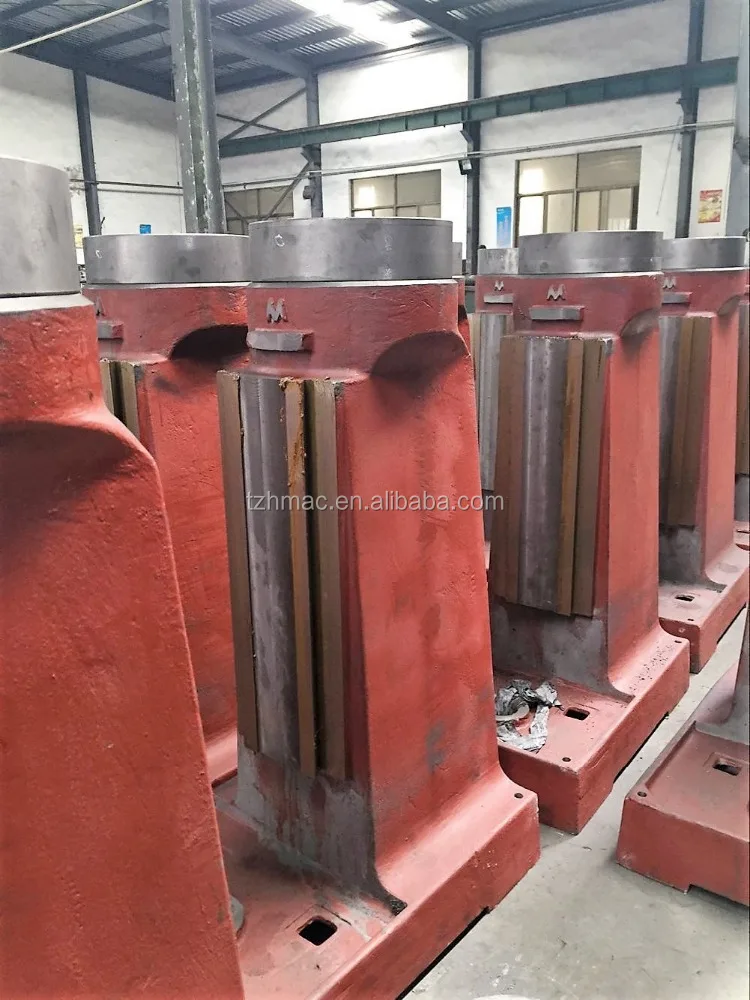

The casting of numerical control machine all adopt HT250 and HT300,It is treated by Two times temper and one time vibration aging to release internal stress,in order to ensure structural stability and the machine accuracy can be long maintained
Our Service

 Warranty & After-sale service

1. 24-hours technical support by E-mail or telephone.
2. Provide extra accessories for the machine, Also provide service of make program according to your drawings Customized or special design is OK.
3. All of our products’ warranty period for 12 months.
4. Man-made destroy will be exception
5.We can supply the materials or tech support to our customers to help them fix the problems.
We will pay the delivery charge if the repair, return or replacement cases happen.

Contact
1.Our working time: 8:00am~6:00pm
2. All inquiries will be replied within 24 hours, So please feel free to send us your inquiry.
3. when our trade manager is off line, please feel free to leave a message, and tell us the products with model you are interested in, and your E-mail address, we will reply to you within 24 hours.
Packing & Delivery
Our Company

                                            Welcome to Yiji Machiney Tool Co., Ltd

 Our company as the main partner member of China Jiangsu International Economic-Technical Cooperation, specializes in import & export of brand-new industrial machinery & tools.Our mechanical products with ISO9001 or CE certificate cover more than 80 kinds including lathe ,milling machine,grinding machine,power press,guillotine shearer,hydraulicpressbrake,CNC Machine and so on,which have been exported to 40 or more countries & areas.
