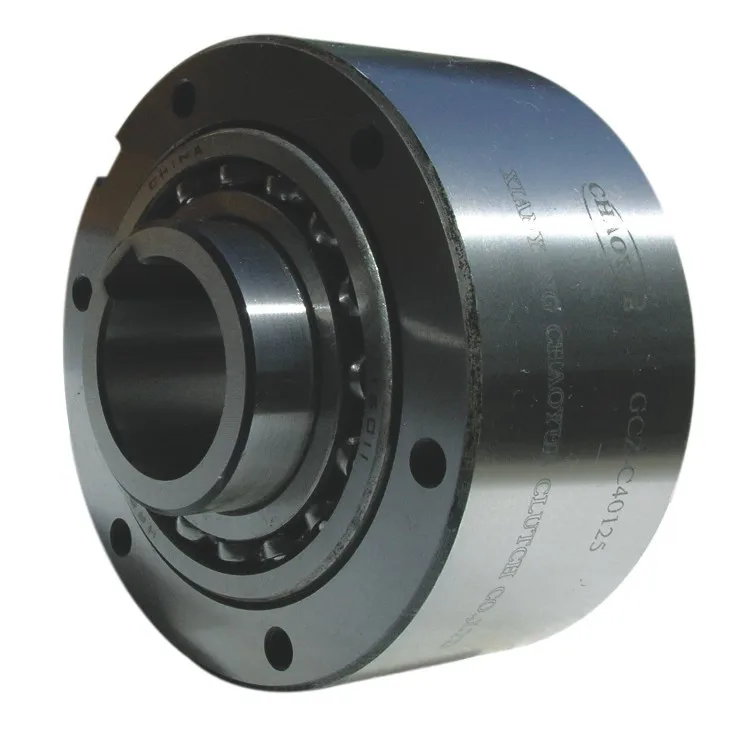

GCZ C China supplier bearing supported roller type overrunning clutch

Name: GCZ C China supplier bearing supported roller type overrunning clutch
SKU: 60723493016
Availability: InStock

Price:

Quantity:

Product Description

GCZ-C China supplier bearing supported roller type overrunning clutch

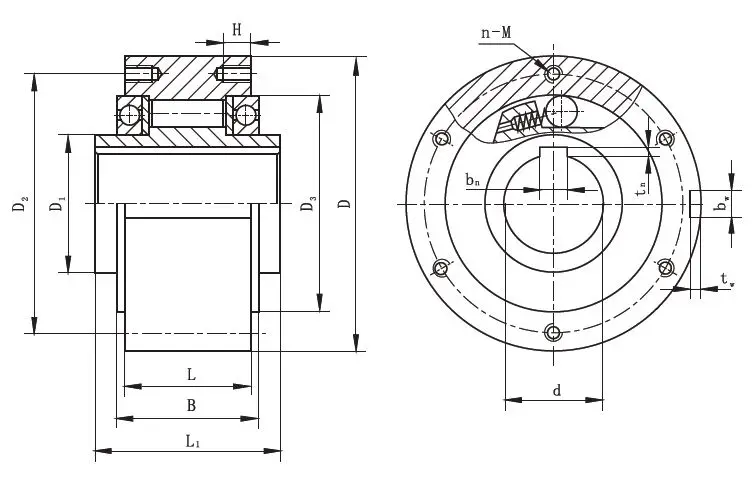

Parameter of GCZ-C China supplier bearing supported roller type overrunning clutch

TYPE	NOMINAL TORQUE [N · m]	OVERRUNNING LIMITING SPEED [r / min]		DIMENSION IN CONTOUR [mm]												WEIGHT [kg]
TYPE	NOMINAL TORQUE [N · m]	INNER RACE	OUTER RACE	d [H7]	D [h7]	D₁	D₂	D₃	L	L₁	B	b_w x t_w	b_nx t_n	n - M	H	WEIGHT [kg]
GCZ-C1262	44	1600	2800	12	62	20	51	42	20	42	27	4 x 2.5	4 x 1.8	3 - M5	8	0.5
GCZ-C1568	100	1450	2600	15	68	25	56	47	28	52	32	5 x 3	5 x 2.3	3 - M5	8	0.8
GCZ-C2075	151	1080	2300	20	75	30	64	55	34	57	39	6 x 3.5	6 x 2.8	4 - M5	8	1.0
GCZ-C2590	230	840	1800	25	90	40	78	68	35	60	40	8 x 4	8 x 3.3	4 - M6	10	1.5
GCZ-C30100	400	680	1600	30	100	45	87	75	43	68	48	8 x 4	8 x 3.3	6 - M6	10	2.2
GCZ-C35110	580	620	1500	35	110	50	96	80	45	74	51	10 x 5	10 x 3.3	6 - M6	15	3.0
GCZ-C40125	820	460	1300	40	125	55	108	90	53	86	59	12 x 5	12 x 3.3	6 - M8	14	4.6
GCZ-C45130	900	400	1200	45	130	60	112	95	53	86	59	14 x 5.5	14 x 3.8	8 - M8	14	4.7
GCZ-C50150	1700	320	1075	50	150	70	132	110	64	94	72	14 x 5.5	14 x 3.8	8 - M8	14	7.2
GCZ-C55160	1890	260	1000	55	160	75	138	115	66	104	72	16 x 6	16 x 4.3	8 - M10	16	8.6
GCZ-C60170	2520	220	950	60	170	80	150	125	78	114	89	18 x 7	18 x 4.4	10 - M10	25	10.5
GCZ-C70190	4320	210	875	70	190	90	165	140	95	134	108	20 x 7.5	20 x 4.9	10 - M10	25	13.5
GCZ-C80210	7285	200	800	80	210	105	185	160	100	144	108	22 x 9	22 x 5.4	10 - M10	25	18.2
GCZ-C90230	9440	180	725	90	230	120	206	180	115	158	125	25 x 9	25 x 5.4	10 - M12	30	28.5
GCZ-C100270	12800	140	625	100	270	140	240	210	120	182	131	28 x 10	28 x 6.4	10 - M16	40	42.5
GCZ-C130310	20000	100	500	130	310	160	278	240	152	212	168	32 x 11	32 x 7.4	12 - M16	40	65.0
